Description

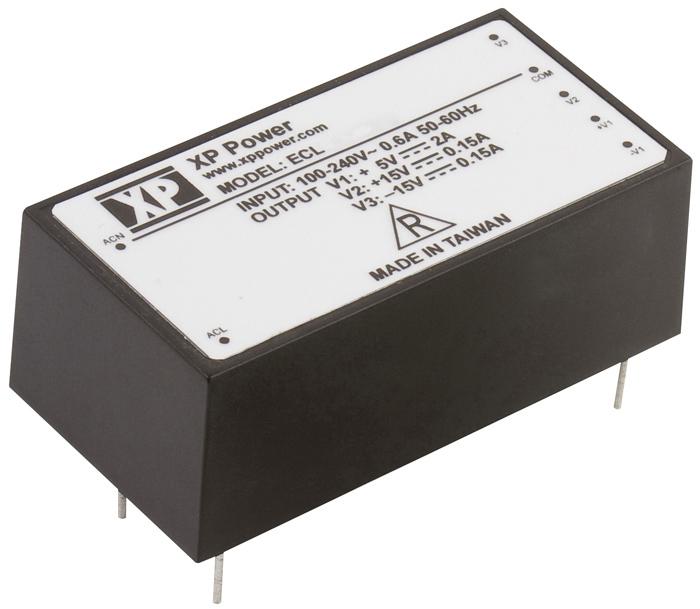

The ECL series 5 to 30W AC/DC Power Supply with fixed and adjustable outputs.
- Ultra Compact Size
- Single, Dual & Triple Outputs
- Open Frame PCB & Chassis Mount
- Encapsulated PCB & Chassis Mount
- Less Than 0.3W No Load Input Power
- Peak Load Capability
- Class II Construction
- See Technical Note for information about XP Power's plans for the UKCA Marking
Applications
Power Management, Industrial, Computers & Computer Peripherals, Automation & Process Control
Product details
| Power Supply Applications: ITE |
| No. of Outputs: 1 Output |
| Output Power Max: 10W |
| Output Voltage - Output 1: 15VDC |
| Output Current - Output 1: 670mA |
| Output Voltage - Output 2: - |
| Output Current - Output 2: - |
| Output Voltage - Output 3: - |
| Output Current - Output 3: - |
| Power Supply Output Type: Adjustable, Fixed |
| Input Voltage VAC: 85V AC to 264V AC |
| Width: 27.2mm |
| Height: 23mm |
| Depth: 52.4mm |
| Product Range: ECL10 Series |
Other details
| Brand | XP POWER |
| Part Number | ECL10US15-E |
| Quantity | Each |
| Technical Data Sheet EN |  |
