XP Power E70 E70 High Voltage DC/DC Converter Proportional Positive Output Fixed Adjustable 3 W 430 µA

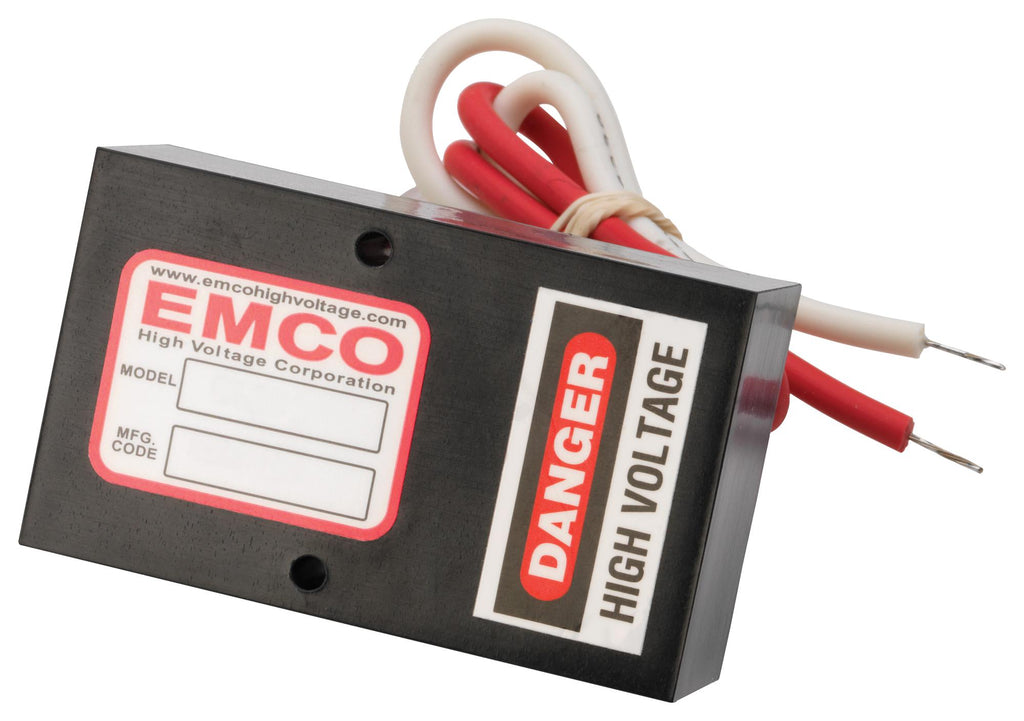

The E Series is a broad line of small, component level high voltage converters in a PCB mount package that provides up 3 Watts continuous output power for models up to 7kV (2 Watts for models >7kV). These HV converters feature low ripple and noise, and low EMI/RFI by utilizing a quasi-sinewave oscillator, excellent filtering techniques and a fully enclosed pot-core transformer. The output voltage is directly proportional to the input voltage and is linear from approximately 0.7 volts to maximum input. The galvanically isolated output allows for user selectable output polarity. Dual output models with a center-tap pin provide both positive and negative outputs from one module. Some models are provided with an external aluminum box for increased EMI/RFI shielding and rugged mounting. Proven design techniques, classic topology and custom encapsulation formula come together to provide engineers with a clean, reliable, low cost, and easy to integrate high voltage solution.

• Output Voltages from 100V to 12kV
• Output Voltage Proportional to Input
• Low Turn-on Voltage 0.7VDC
• Input to Output Isolation
• Dual Output
• No Minimum Load
• See Technical Note for information about XP Power's plans for the UKCA Marking

Applications

Power Management, DC, DC Converters

Other details

Brand	XP POWER
Part Number	E70
Quantity	Each
Technical Data Sheet EN
CAD Multiple Formats EN
Technical Notes & Articles EN
