| ₹ 15200.82 includes GST and import duties. | |
| B2B customers can avail ₹ 2318.13 ITC on this product | |
| 100% Secure Payments | 100% Genuine product | |
| The product is eligible for Free Shipping |
Description

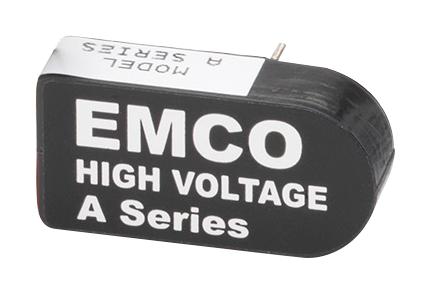

The AH Series is a broad line of ultra-miniature, DC to HV DC converters that set an industry standard in high voltage miniaturization. This unique package occupies less than one tenth of a cubic inch of volume, and an extremely low profile of only 0.250 inches (6.35mm). Controllable output voltages range from 100 volts to 6000 volts. The output is directly proportional to the input voltage and is linear from
- Output voltages from 100V to 6000V
- Output Proportional to Input
- 0.7VDC Turn-on Voltage

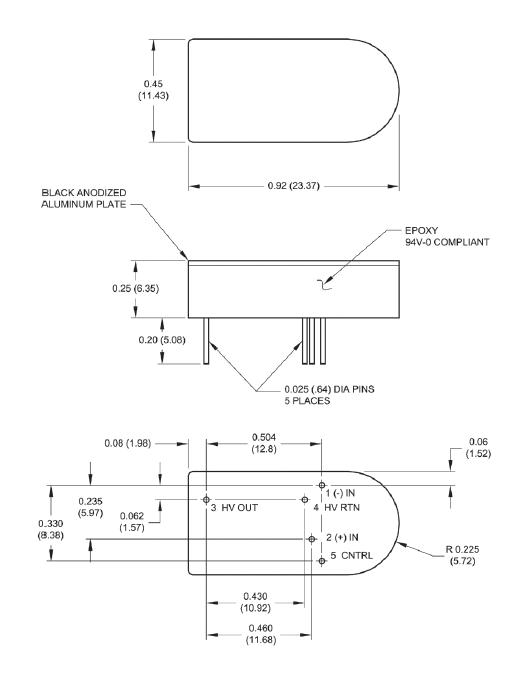

- Extremely Low Profile <0.25"
- Input to Output Isolation
- Short Circuit Protection
- Control Pin
- No minimum load
- See Technical Note for information about XP Power's plans for the UKCA Marking
Power Management
Other details
| Brand | XP POWER |
| Part Number | AH05P-12 |
| Quantity | Each |
| Technical Data Sheet EN |  |
| Certificate of Conformity EN | |
| Technical Notes & Articles EN | |
All product and company names are trademarks™ or registered® trademarks of their respective holders. Use of them does not imply any affiliation with or endorsement by them. Image is for illustrative purposes only. Please refer to product description.
Bulk Discount
| Quantity | Price |
| 2 | ₹ 14896.8 |
| 3-5 | ₹ 14744.8 |
| 5-10 | ₹ 14440.78 |
| 10+ | ₹ 14136.76 |
Bulk discount will be automatically applied during checkout based on quantity.
