Description

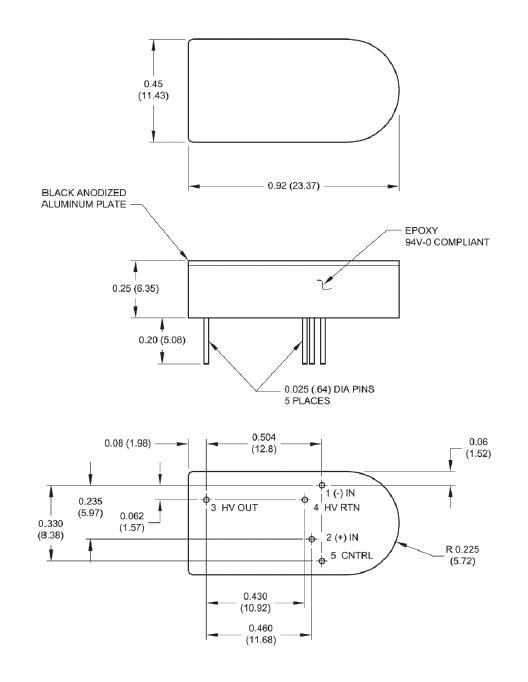

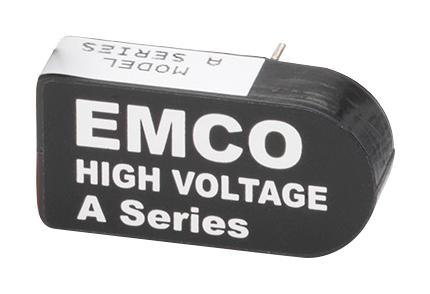

The A Series is a broad line of ultra-miniature, DC to HV DC converters that set an industry standard in high voltage miniaturization. This unique package occupies less than one tenth of a cubic inch of volume, and an extremely low profile of only 0.250 inches (6.35mm). Controllable output voltages range from 100 volts to 6000 volts. The output is directly proportional to the input voltage and is linear from
- Output voltages from 100V to 6000V
- 0.7VDC Turn-on Voltage
- Extremely Low Profile <0.25"
- Input to Output Isolation
- Short Circuit Protection
- Control Pin
- No minimum load
- See Technical Note for information about XP Power's plans for the UKCA Marking
Applications
Power Management
Product details
| High Voltage Power Supply Type: Proportional |
| Polarity: Positive Output |
| DC / DC Converter Output Type: Adjustable |
| Power Rating: 1W |
| Output Current Max: 660µA |
| Power Supply Mounting: Through Hole |
| Output Voltage Min: 0V |
| Output Voltage Max: 1.5kV |
| Input Voltage DC Min: 700mV |
| Input Voltage DC Max: 5V |
| Product Range: A Series |
Other details
| Brand | XP POWER |
| Part Number | A15P-5 |
| Quantity | Each |
| Technical Data Sheet EN |  |
All product and company names are trademarks™ or registered® trademarks of their respective holders. Use of them does not imply any affiliation with or endorsement by them.
Bulk Discount
| Quantity | Price |
| 2 | ₹ 22468.29 |
| 3-5 | ₹ 22239.03 |
| 5-10 | ₹ 21780.49 |
| 10+ | ₹ 21321.95 |
Bulk discount will be automatically applied during checkout based on quantity.
