Description
XLCS Designs XLCS-OG-00100 Overview
Add a full-featured camera cage to add accessories and protect your camera with the BMPCC OG Cage, Wooden Handle, HDMI Lock & 12V Cable Lock Kit from XLCS. This kit includes a formfitting camera cage for the original (OG) Blackmagic Pocket Cinema Camera, a micro-HDMI to HDMI cable adapter with cable lock, a wooden handle, and a 12V cable lock. The cage includes numerous mounting threads on all sides, all mounting hardware, a 3/8"-16 to 1/4"-20 thread adapter, and a 12V power cable that allows you to power the camera with external power.
Please note that only one 12V power cable is included in this kit.

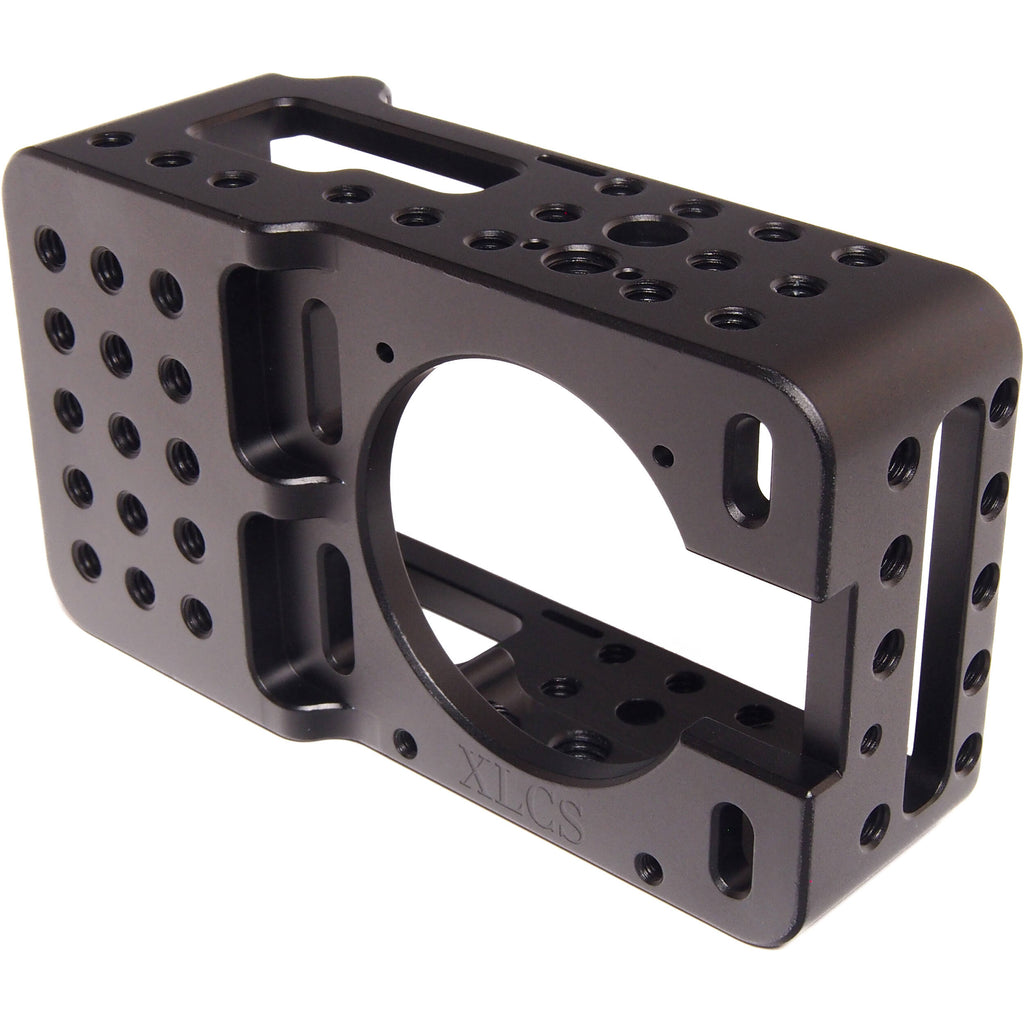

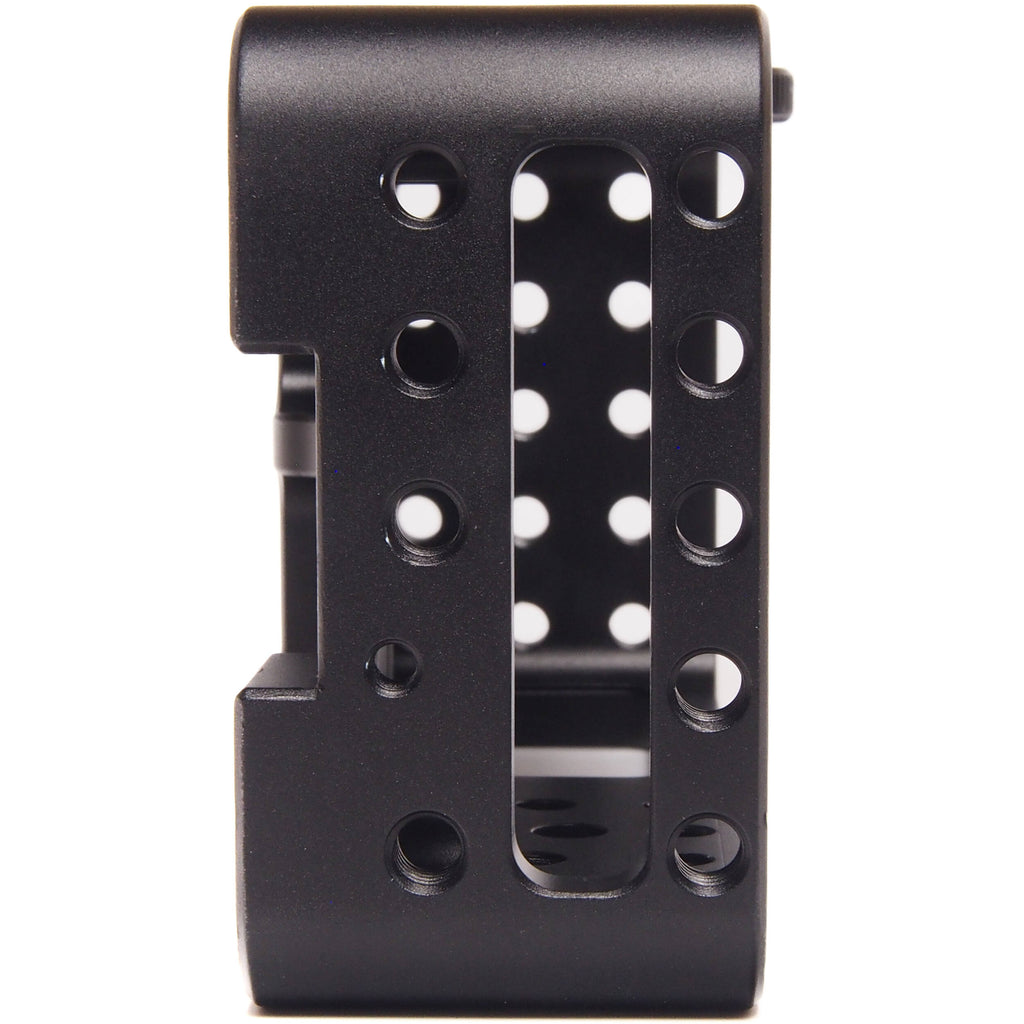

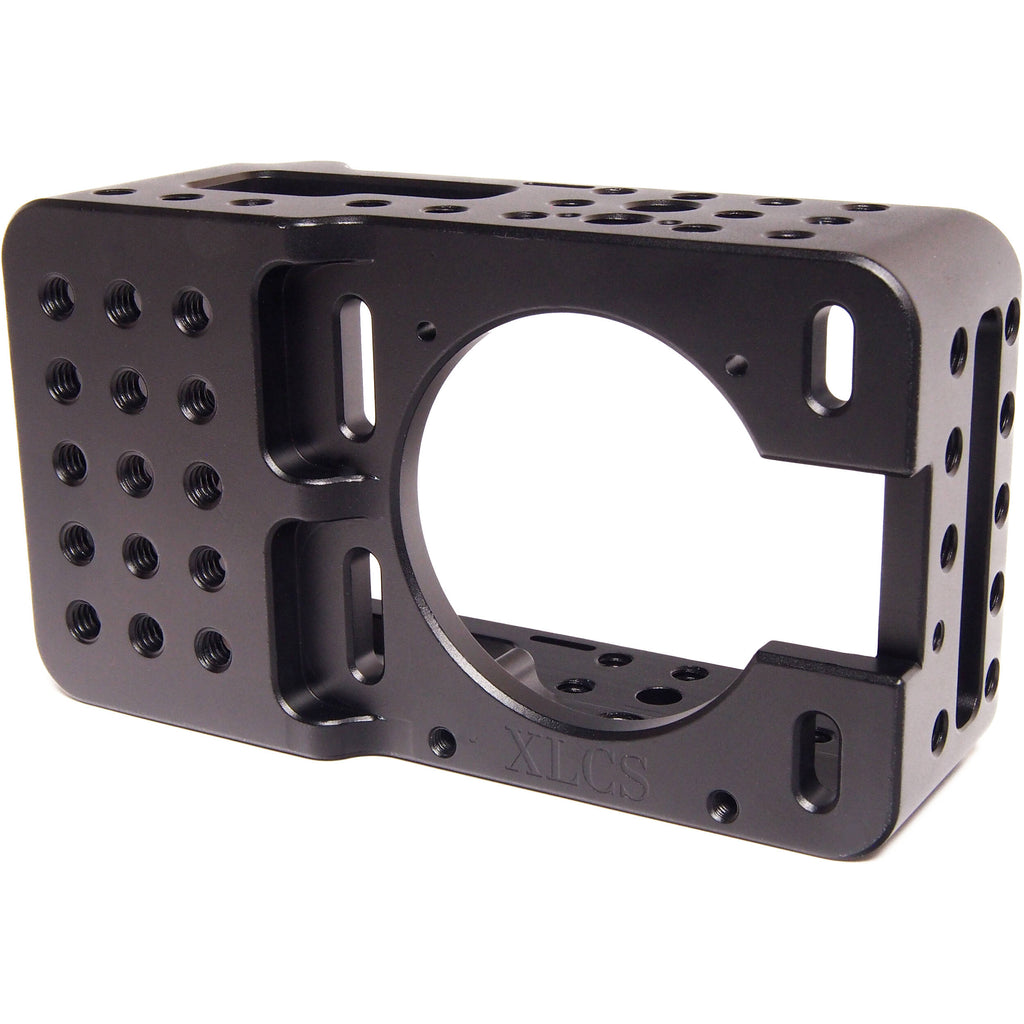

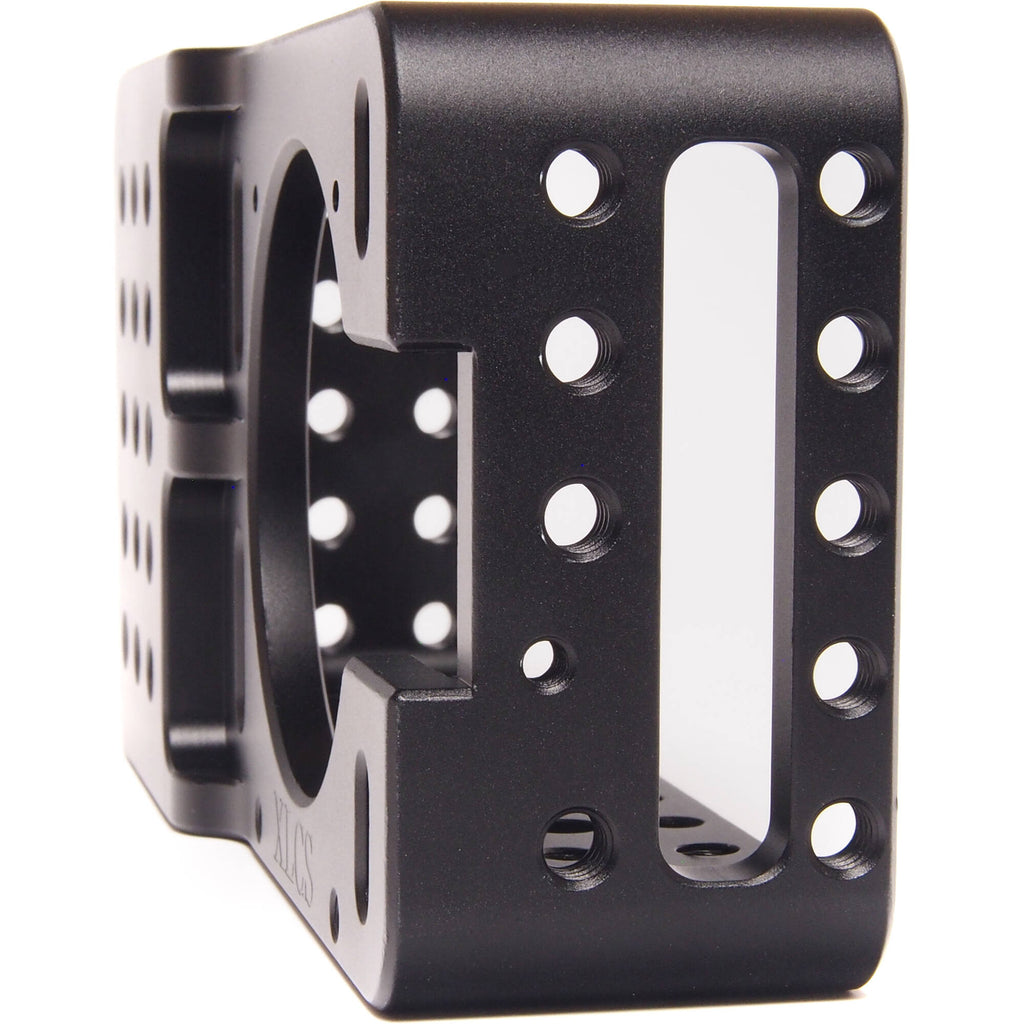

The Camera Cage from XLCS provides added protection, stability, and accessory mounting threads for your original (OG) Blackmagic Pocket Cinema Camera while leaving access open to all camera functions and the battery door. The camera attaches to the cage via top and bottom 1/4"-20 threaded screws and features numerous 1/4"-20 threads all around the cage, one 3/8"-16 thread, one 3/8"-16 ARRI-style anti-twist thread, and three M4 threads for mounting an optional cable clamp or speedbooster mount. There are also two hood/rear cover guide slots.
The cage is made from durable aluminum with a stylish, anodized matte black finish. Included with the cage is all mounting hardware, a 3/8"-16 to 1/4"-20 thread adapter, and a 12V power cable that allows you to power the camera with external power.
- Designed for original (OG) Blackmagic Pocket Cinema Camera
- Machined out of 6061-T5 aluminum
- Anodized matte black finish
- Sixty-five 1/4"-20 mounting threads
- One 3/8"-16 mounting thread
- One 3/8"-16 ARRI-style anti-twist mounting thread
- One M4x0.7 mounting thread for an HDMI cable clamp
- Two M4x0.7 mounting threads for a speedbooster anchor
- Two hood/rear cover guide slots
- Mounts onto camera with two 1/4"-20 screws
- Includes 12V power cable for external power

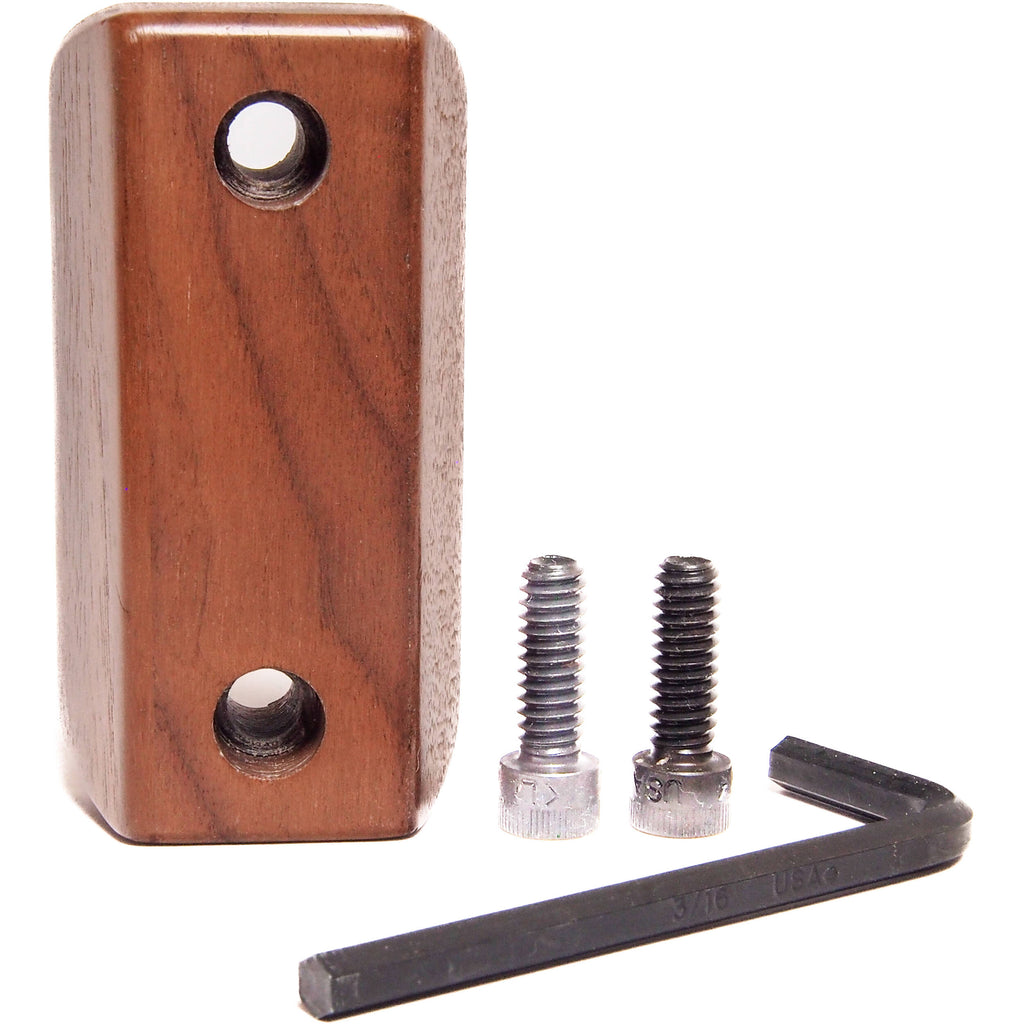

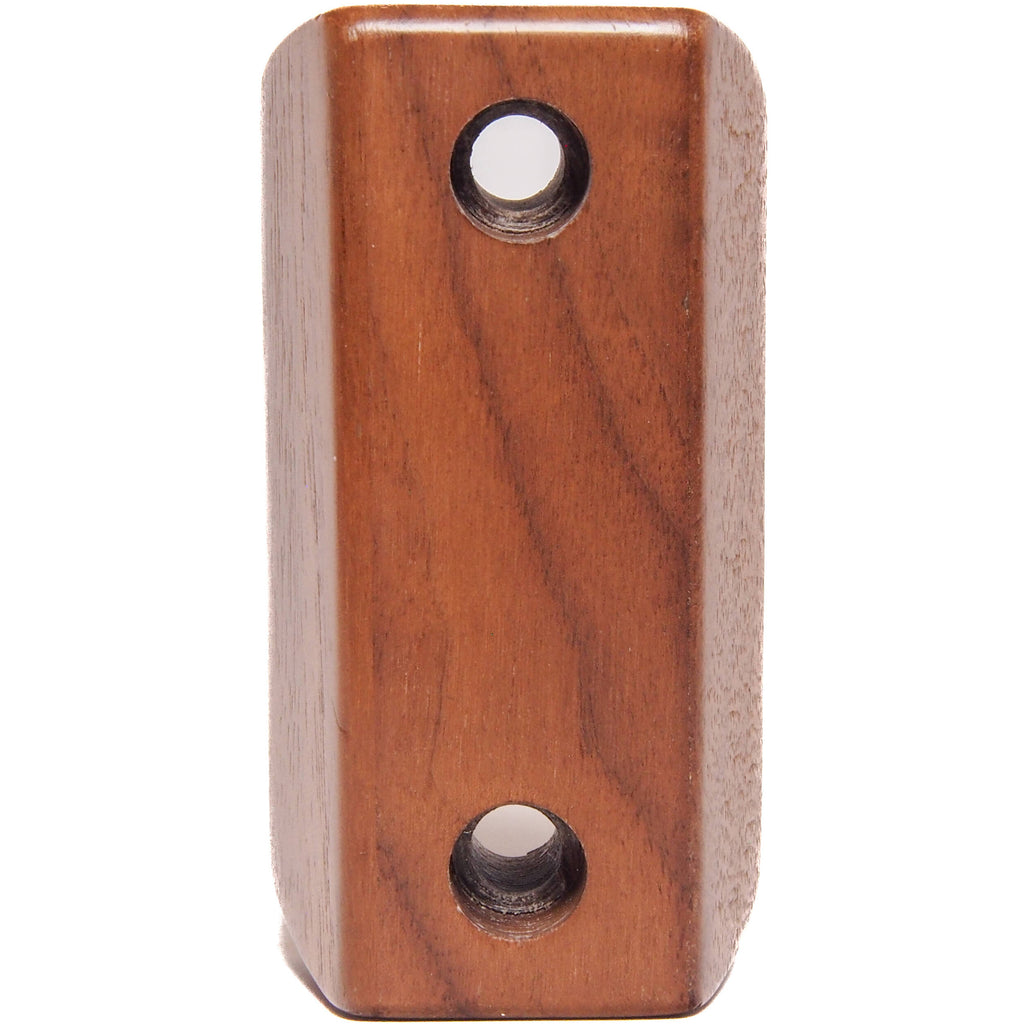

Get a firm and comfortable grasp of your original BMPCC using this Wooden Handle from XLCS Designs combined with the rear thumb-nub of the XLCS cage. The sturdy handle is made from natural black walnut wood and is also compatible with the Contineo cage from Viewfactor. The handle comes with all the necessary mounting hardware.
This Micro-HDMI to HDMI Cable with Cable Lock from XLCS Designs anchors the cable to the optional XLCS cage designed for the BMPCC OG. Machined from high-strength aluminum, the lock restricts movement and mitigates any strain put on the HDMI port in the event of an accidental cable snag. The lock is in no way intrusive on any other part of the cage, retaining full access to all other ports.
Power your BMPCC OG reliably with this 12 VDC Cable with Cable Lock from XLCS Designs, which anchors the cable to the optional XLCS cage designed for the BMPCC OG. Machined from high-strength aluminum, the power cable lock restricts movement and mitigates any strain that can be put on the power port in the event of an accidental cable snag. The lock is in no way intrusive on any other part of the cage, retaining full access to all other ports even when used with either the hood, rear cover, or transparent backing in place.

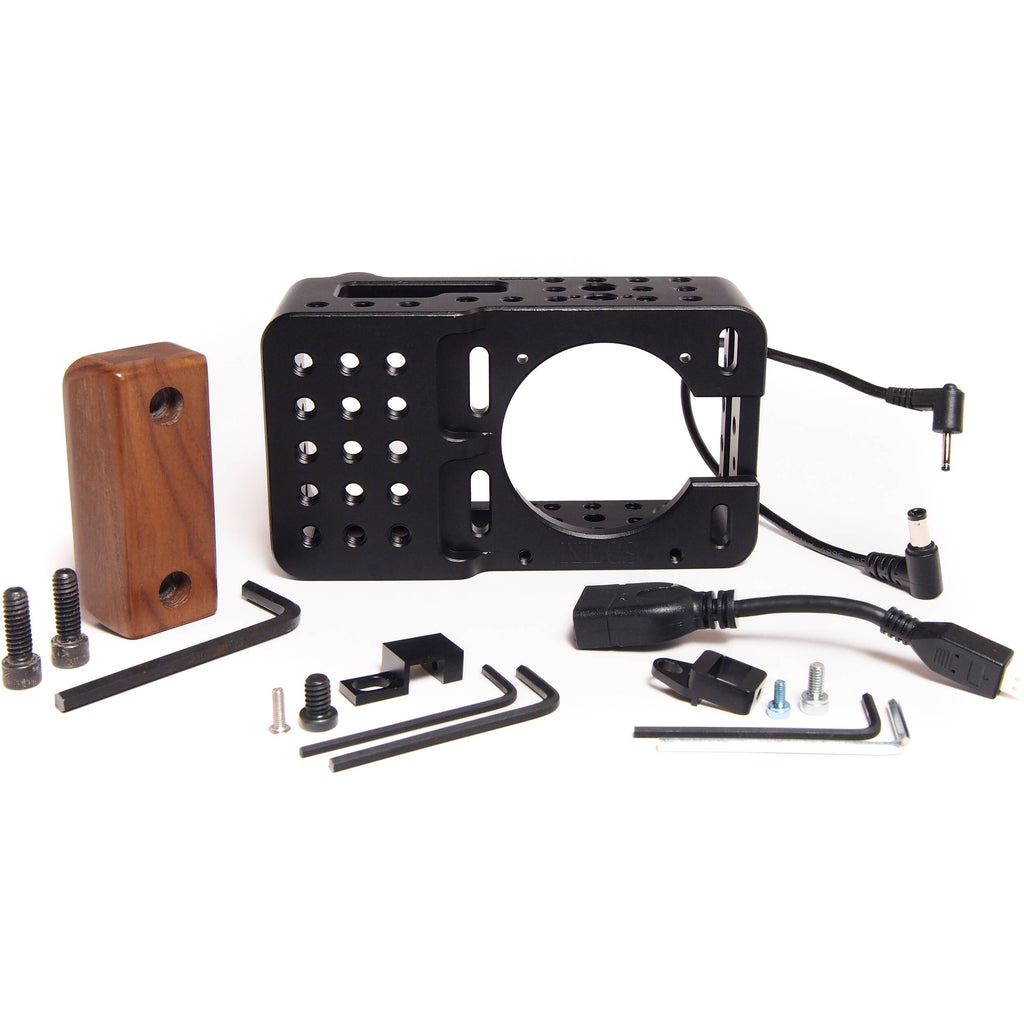

In the Box
- XLCS Designs Camera Cage for Original Blackmagic Pocket Cinema Camera OG
- 1/4"-20 to 3/8"-16 Thread Adapter
- 12V Power Cable
- 2 x Mounting Screw
- Allen Wrench
- Limited 1-Year Manufacturer Warranty
- XLCS Designs Wooden Handle for BMPCC OG XLCS Cage
- Set of Mounting Hardware
- Limited 1-Year Manufacturer Warranty
- XLCS Designs Micro-HDMI to HDMI Cable with Cable Lock for BMPCC OG
- Micro-HDMI to HDMI Cable
- Cable Lock
- Set of Mounting Screws
- Limited 1-Year Manufacturer Warranty
- XLCS Designs 12 VDC Cable with Cable Lock for BMPCC OG
- 12 VDC Cable
- Cable Lock
- Set of Mounting Hardware
- Limited 1-Year Manufacturer Warranty
Additional Resources
No additional resources available
XLCS Designs XLCS-OG-00100Specs
| Support Type |
Cage
|
| Grip Type |
No
|
| Camera Compatibility |
Blackmagic Pocket Cinema Camera
|
| Battery Plate Type |
No
|
| Accessory Mounting |
Multiple 1/4"-20 Female Thread
1x 3/8"-16 Female Thread 1x ARRI Anti-Twist 3/8"-16 Female Thread 3x M4 Female Thread |
| Camera Mounting |
1/4"-20 Male Screw
|
| Tripod Mounting |
1/4"-20 Female Thread
|
| Shoe Mounting |
No
|
| Rosettes |
No
|
| Materials |
Aluminum
|
| Dimensions |
Not Specified by Manufacturer
|
| Weight |
Not Specified by Manufacturer
|
| Package Weight |
0.91 lb
|
| Box Dimensions (LxWxH) |
7.3 x 4.8 x 3.3"
|
XLCS Designs XLCS-OG-00100Specs
| Compatibility |
XCLS Designs Cage for BMPCC OG
|
| Color |
Woodgrain
|
| Material of Construction |
Black Walnut Wood
|
| Dimensions |
Not Specified by Manufacturer
|
| Weight |
Not Specified by Manufacturer
|
| Package Weight |
0.19 lb
|
| Box Dimensions (LxWxH) |
5.95 x 4.95 x 1.25"
|
XLCS Designs XLCS-OG-00100Specs
| Compatibility |
XLCS Designs Cage for BMPCC OG
|
| Color |
Black
|
| Material of Construction |
Aluminum, Plastic
|
| Dimensions |
Not Specified by Manufacturer
|
| Weight |
Not Specified by Manufacturer
|
XLCS Designs XLCS-OG-00100Specs
| Compatibility |
XLCS Designs Cage for BMPCC OG
|
| Color |
Black
|
| Material of Construction |
Aluminum, Plastic
|
| Dimensions |
Not Specified by Manufacturer
|
| Weight |
Not Specified by Manufacturer
|
| Package Weight |
0.075 lb
|
| Box Dimensions (LxWxH) |
5.95 x 4.95 x 0.45"
|
