The Zynq« UltraScale+Ö RFSoC ZCU111 Evaluation Kit enables designers to jumpstart RF-Class analog designs for wireless, cable access, early-warning(EW)/radar and other high-performance RF applications. This kit features a Zynq Ultrascale+ RFSoC supporting 8x 4GSPS 12-bit ADCs, 8x 6.5GSPS 14-bit DAC, and 8 soft-decision forward error correction (SD-FECs). Complete with ARM Cortex A53 and ARM Cortex-R5 subsystems, UltraScale+ programmable logic, and the highest signal processing bandwith in a Zynq UltraScale+ device, this kit provides a rapid, comprehensive RF Analog-to-Digital signal chain prototyping platform.
- Zynq UltraScale+ RFSoC ZCU111 Evaluation Board with XCZU28DR-2FFVG1517E RFSoC
- DDR4 Component - 4GB, 64-bit, 2666 MT/s, attached to Programmable Logic (PL)
- DDR4 SODIMM - 4GB 64-bit, 2400 MT/s, attached to Processor Subsystem (PS)
- Ganged SFP28 cage to support up to 4 SFP/SFP+/zSFP+/SFP28 modules
- USB3, DisplayPort, and SATA
- FPGA Mezzanine Card (FMC+) interface for I/O expansion including 12 x 32.75 Gb/s GTY transceivers and 34 user defined differential I/O signals
- XM500 RFMC balun transformer add-on card with 4 DACs/ 4 ADCs to baluns 4 DACs/ 4 ADCs to SMAs
Applications
RF Communications, Communications & Networking, Embedded Design & Development
Footnotes Please note this product is Non-Cancellable and Non-Returnable (NCNR) Warnings Warranty Information: Xilinx development boards, kits and programming cables have a warranty of ninety (90) days from date of purchase.
Product details
| Silicon Manufacturer |
Xilinx |
| No. of Bits |
64bit |
| Silicon Family Name |
Zynq UltraScale+ |
| Core Architecture |
ARM |
| Core Sub-Architecture |
Cortex-A53, Cortex-R5 |
| Silicon Core Number |
XCZU28DR-2FFVG1517E |
| Kit Contents |

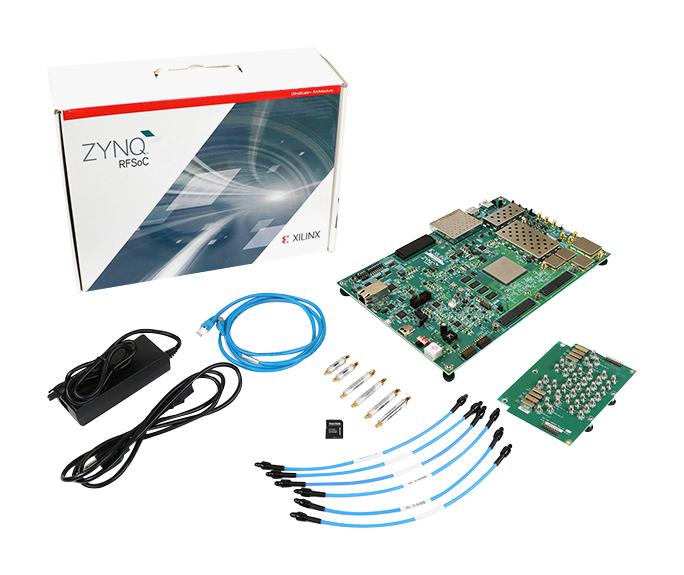

ZCU111 Eval Brd, XM500 RFMC Add-on Card, filters, Cables, License, Access to AMS Ref Design, H/W,QSG |
| Product Range |
- |
Other details
| Brand |
XILINX |
| Part Number |
EK-U1-ZCU111-G |
| Quantity |
Each |
| Technical Data Sheet EN |
 |
