Description

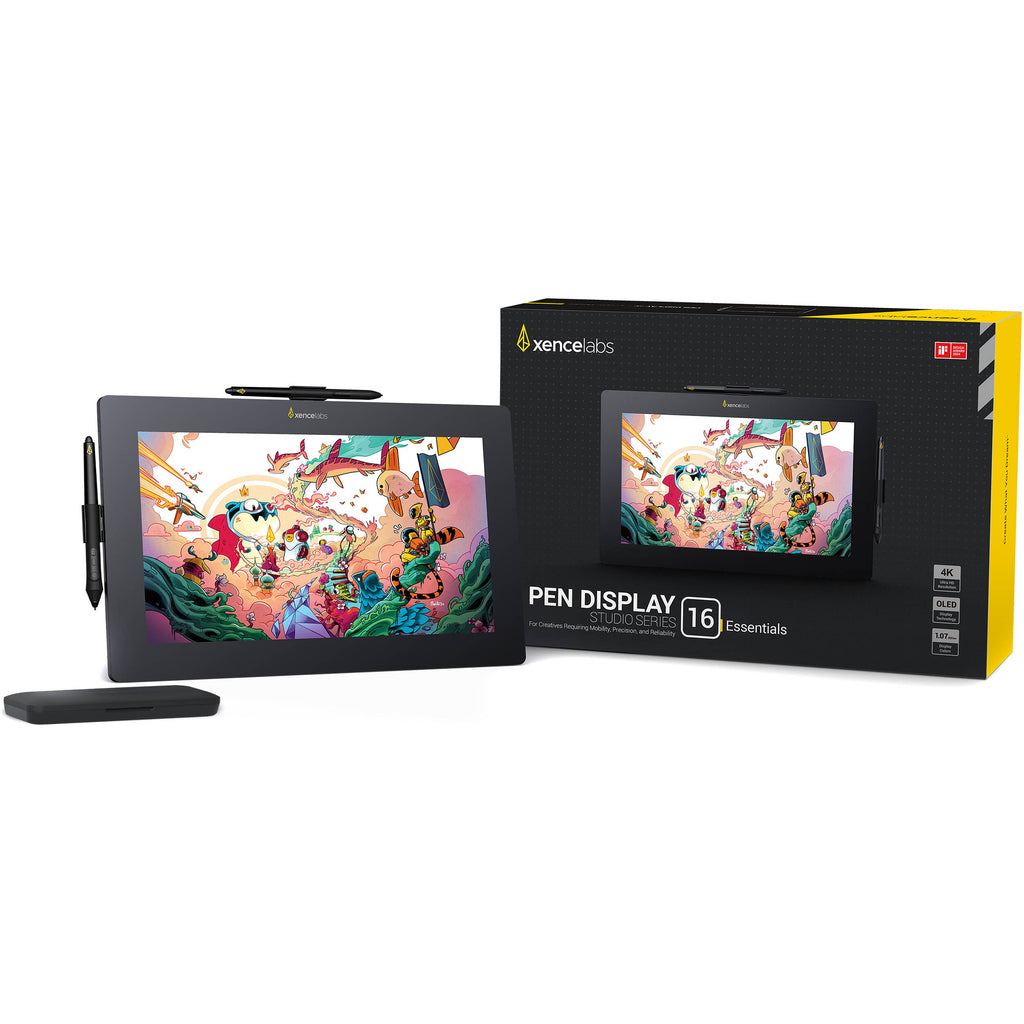

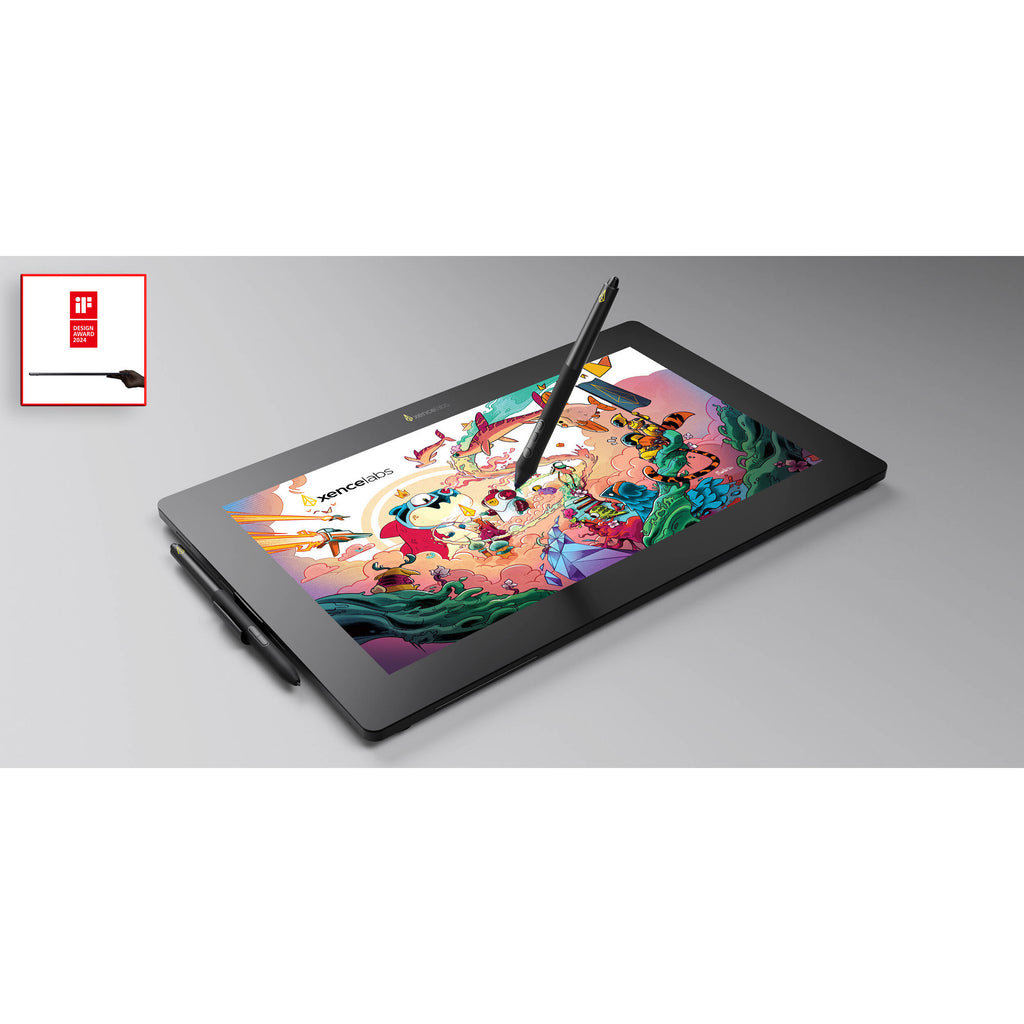

Xencelabs Pen Display 16 Overview
Create professional illustrations and diagrams from almost anywhere with the Xencelabs Pen Display 16 Essentials. Designed for high portability, the slim and lightweight 16" 4K OLED pen display has a 13.6 x 7.6" active area and may be connected directly to a DisplayPort in Alt Mode compatible USB-C port with a single cable.
A 3-button standard pen is included alongside a thin pen, both of which have erasers, 8192 pressure levels, ±60° tilt, and don't require batteries. Other accessories include a drawing glove, cleaning cloth, and carrying case.
Rich Visuals
The 3840 x 2160 resolution 4K OLED pen display features a tempered edge-to-edge textured anti-glare glass surface and 13.6 x 7.6" active area, delivering a highly responsive pen and paper-like experience. The pen display also delivers lifelike visuals with support for 1.07 billion colors, covering 98% of the Adobe RGB and DCI-P3 color gamut.
Dual Pens
This pen tablet includes both a 3-button wide barrel pen and a thin barrel 2-button pen. Choose the one that best fits your comfort and workflow and draw freely. Both use battery-free electromagnetic resonance technology and detect 8192 levels of pressure with a ±60° tilt. Standard and felt pen nibs are included, providing you with the feel of a pen or pencil.
VESA Mountable
You can use this pen display with a 75 x 75mm or 100 x 100mm VESA mountable easel.
Virtual Tablet Mode
Enhance your multitasking and workflow by extending your virtual workspace across other connected displays while using pen control.

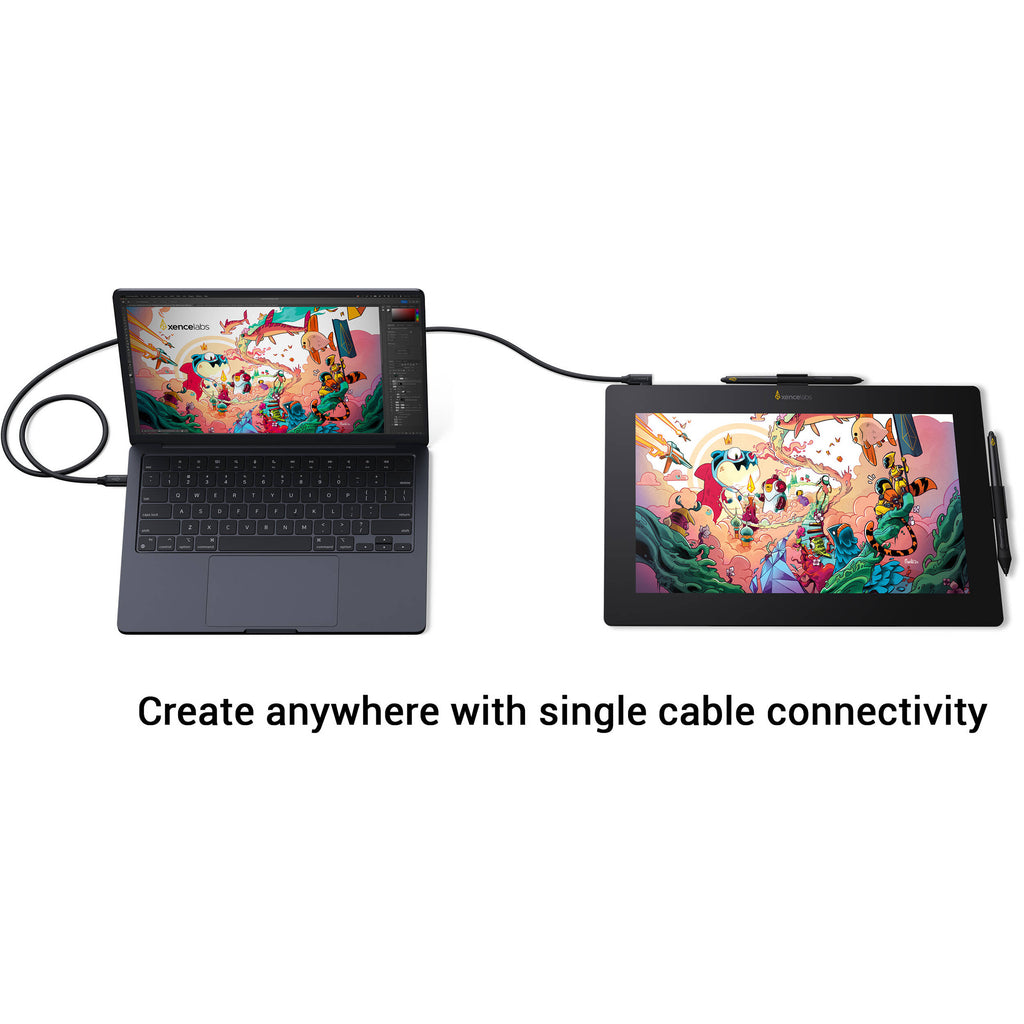

Easy Connectivity
The Pen Display 16 connects to compatible devices using a single USB-C cable.
Hub Compatible
Don't worry if you system doesn't have a DisplayPort in Alt Mode compatible 15W USB-C port. Simply add a separately purchased Xencelabs hub for HDMI, DisplayPort, and power connectors. It also increases the max brightness from 170 to 300 nits.
Compatibility
Windows
macOS
Linux
macOS
Linux
Note:
Internet access is required to download drivers.
UPC: 850052635619

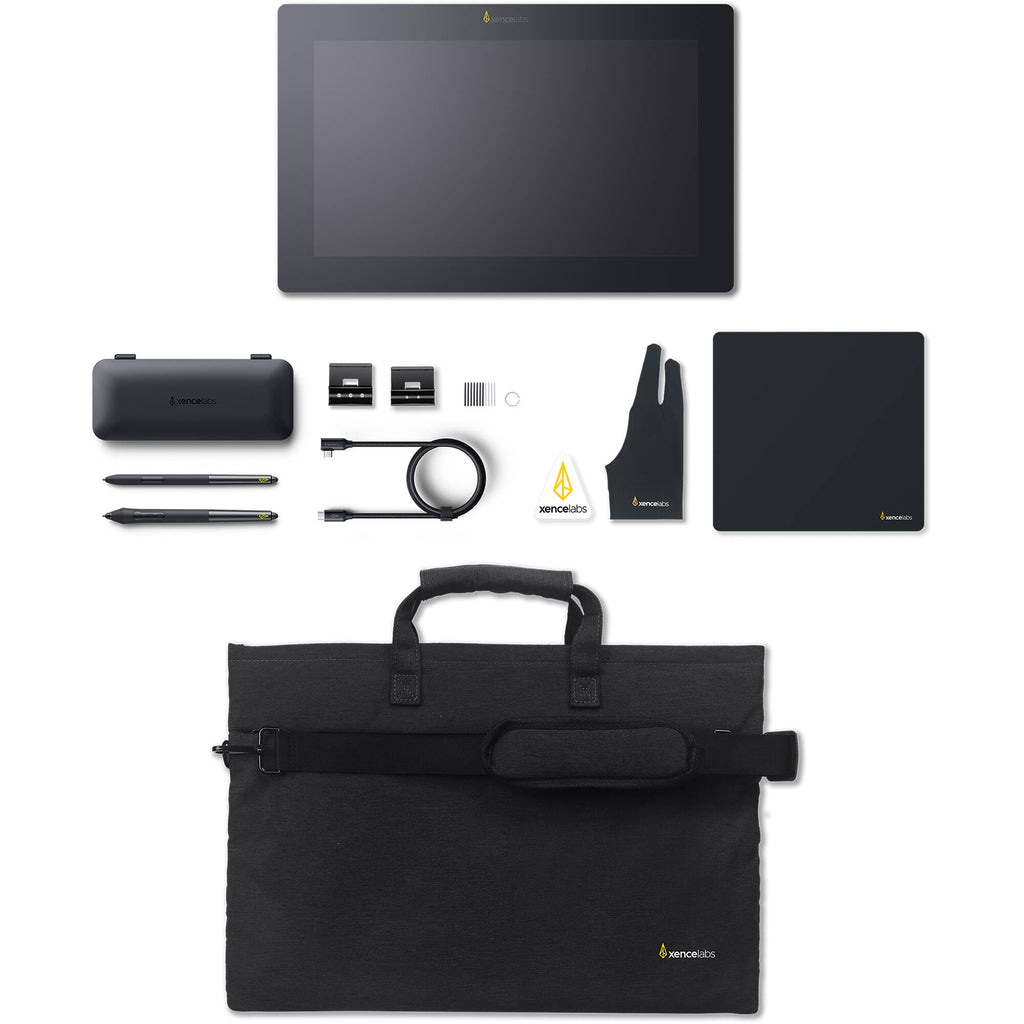

Items Included
- Xencelabs Pen Display 16 Essentials
- Pen Case
- Xencelabs 3-Button Pen v2
- Xencelabs Thin Pen v2
- 2 x Pen Clip
- 6 x Standard Pen Nib
- 4 x Felt Pen Nib
- Nib Extractor
- Cleaning Cloth
- Xencelabs Drawing Glove (Medium, Black)
- Braided USB-C to L-Shaped USB-C Cable (4.9')
- USB-A to USB-C Adapter
- Carrying Case
- Sticker
- Limited 2-Year Manufacturer Warranty
Additional Resources
No additional resources available
Xencelabs Pen Display 16 Specs
Key Specs
| Display Size |
16"
|
| Aspect Ratio |
16:9
|
| Native Resolution |
3840 x 2160
|
| Video I/O |
1x USB-C
|
| Active Area |
13.6 x 7.6" / 344.2 x 193.6 mm
|
| Bluetooth |
No
|
Display
| Panel Type |
OLED
|
| Display Size |
16"
|
| Aspect Ratio |
16:9
|
| Native Resolution |
3840 x 2160
|
| Video I/O |
1x USB-C
|
| Color Gamut |
98% Adobe RGB
98% DCI-P3 99% sRGB 99% Rec. 709 82% Rec. 2020 |
| Maximum Brightness |
170 nits / cd/m2
|
| Display Colors |
1.07 Billion
|
Tablet
| Active Area |
13.6 x 7.6" / 344.2 x 193.6 mm
|
| Number of Buttons |
No
|
| Buttons Customizable |
No
|
| Inputs/Outputs |
1x USB-C (Unspecified Interface)
|
| Connectivity Cable |
USB-C
|
Stylus
| Pressure Levels |
8192
|
| Tilt |
120°
|
| Number of Switches |
3
|
| Resolution |
5080 lpi
|
| Stylus Technology |
Electromagnetic Resonance (EMR)
|
General
| Bluetooth |
No
|
| Cable Length |
6.6' / 2 m
|
| OS Compatibility |
Windows / macOS / Linux
|
| OS Compatibility |
Windows
macOS Linux |
| Adjustments |
Tilt
|
| Multi-Touch |
No
|
| Weight |
2.6 lb / 1.2 kg
|
Packaging Info
| Package Weight |
9.5 lb
|
| Box Dimensions (LxWxH) |
18.7 x 13.5 x 4.9"
|
