Xcellon U10-1VPD-10G Overview
-
1Description
-
2Universal Compatibility
-
3USB 3.2 Gen 2
-
4Power Delivery 3.0
-
5USB-C and USB-A Ports
-
6SD & microSD Slots
-
7Combo-Audio Jack
-
8HDMI 2.0
-
9Gigabit Ethernet
-
10Compatibility
Accelerate your workflow with the Pro Hub 10 from Xcellon. Designed for photographers, videographers, and other professionals who work with large files, this 10-in-1 hub connects to your compatible laptop's USB-C 3.2 Gen 2 port through its integrated cable. Once connected, the hub expands your device's capabilities with one USB-C and dual USB-A 3.2 Gen 2 ports, each of which can transfer data at up to 10 Gb/s speeds, meaning that you can copy a 750GB file in about 10 minutes with compatible devices. A 5 Gb/s USB-A 3.2 Gen 1 port is also available for peripherals such as mice, keyboards, and webcams. Additionally, the SD and microSD card readers both support UHS-II speeds of up to 312 MB/s and allow for simultaneous transfers so you can quickly ingest RAW videos and photos.
Connect an external 3840 × 2160 resolution, 60 Hz 4K HDR10+ compatible monitor to the HDMI 2.0 port to view images with lifelike color, sharp details, and rich contrast. With support for 100W Power Delivery 3.0 through the USB-C charging port, you can stay in the flow by keeping your power-hungry laptop charged as you work. Other features include a Gigabit Ethernet port and a 3.5mm combo headset jack. The Pro Hub 10 is designed to work with macOS, Windows, iPadOS, Android, Chrome OS, and Linux systems without requiring additional drivers.

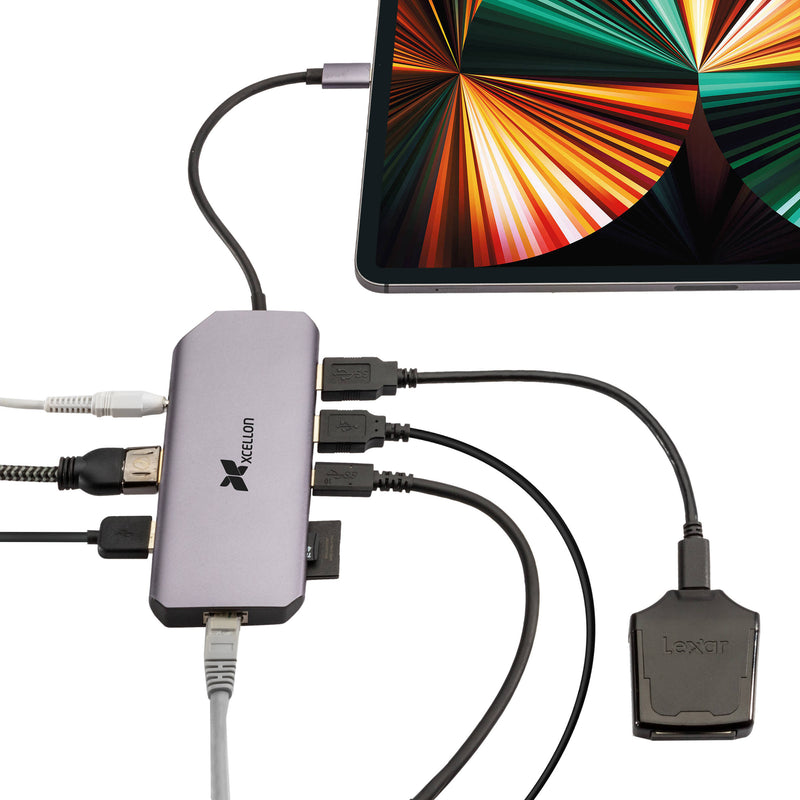

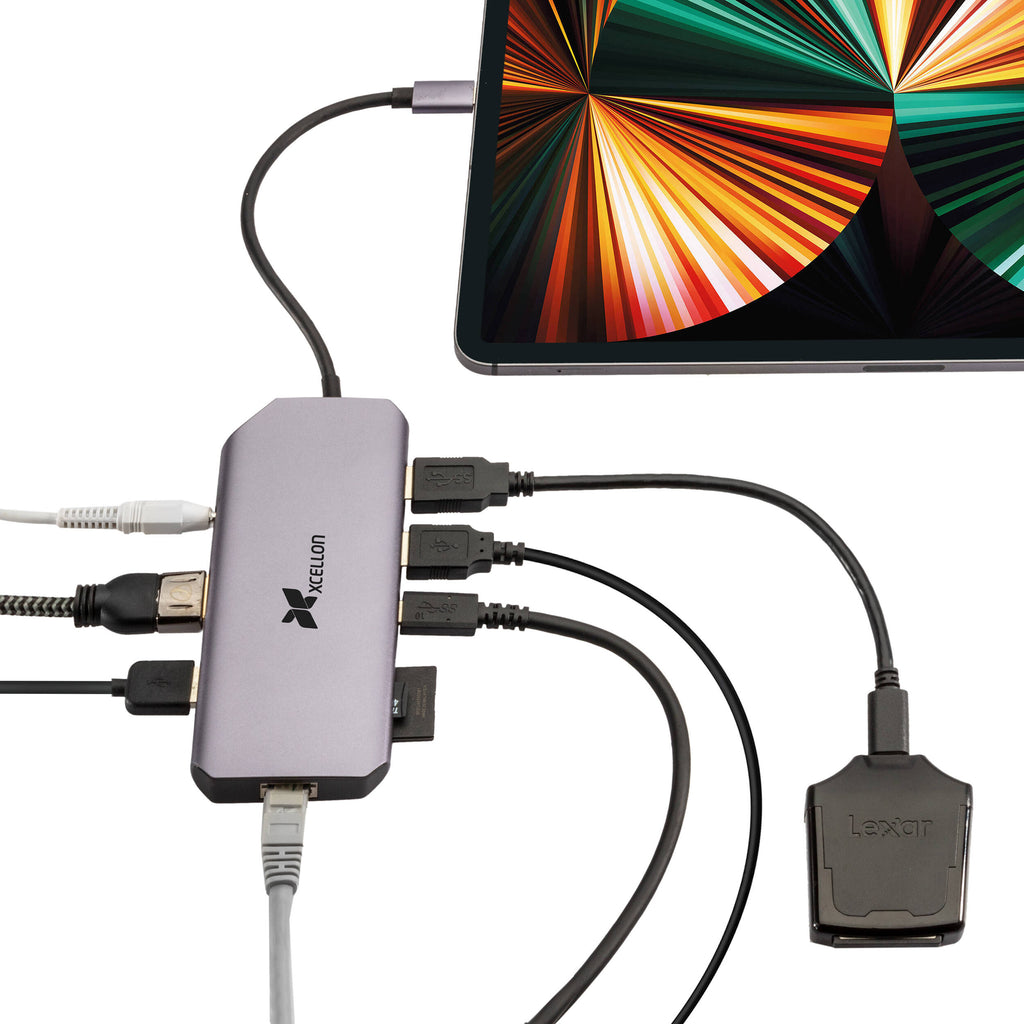

The Pro Hub 10 is made to work with practically any USB-C compatible device, including Windows laptops, Macs, smartphones, and tablets. With its plug-and-play design, you won't have to spend time installing drivers.
Connecting the Pro Hub 10 to a compatible device using its integrated USB-C cable allows you to take advantage of up to 10 Gb/s data transfer speeds. Professionals can spend less time waiting for large files to transfer and more time working with them.
The dedicated USB-C charging port supports 100W Power Delivery 3.0, which quickly recharges compatible laptops when connected to a separately purchased power adapter.
Connect external SSDs and peripherals such as mice, keyboards, and printers with the available USB-C and USB-A ports. Supporting up to 10 Gb/s USB 3.2 Gen 2 speeds, you can transfer large data files in a flash.
With support for UHS-II and up to 312 MB/s data speeds, you can quickly transfer RAW footage from your memory card. The card slots may also maximize your workflow efficiency by allowing for simultaneous and inter-card transfers.
Enjoy clear communications by connecting a headset into the 3.5mm combo jack.
View your high-resolution footage the way it's meant to be by connecting an external 4K 3840 x 2160, 60 Hz monitor to the HDMI 2.0 port. Support for HDR10+ provides accurate color with bright highlights and deep shadows.
Adding a Gigabit Ethernet port to your laptop allows you to quickly and reliably transfer files over wired network connections. It may also add stability when streaming videos, playing online games, or broadcasting a live stream.
Apple SuperDrive not supported
HDMI output requires DP-alt mode support on host device's USB-C port
Do not connect or disconnect a power source to or from the hub while transferring data
In the Box
- Xcellon Pro Hub 10 10-in-1 USB-C 3.2 Gen 2 Hub
- Limited 1-Year Manufacturer Warranty
Table of Contents
- Description
- Universal Compatibility
- USB 3.2 Gen 2
- Power Delivery 3.0
- USB-C and USB-A Ports
- SD & microSD Slots
- Combo-Audio Jack
- HDMI 2.0
- Gigabit Ethernet
- Compatibility
Xcellon U10-1VPD-10G Specs
Ports
| USB |
1 x USB-C USB 3.1/3.2 Gen 2
2 x USB-A USB 3.1/3.2 Gen 2
1 x USB-A USB 3.0 / 3.1/3.2 Gen 1
1 x USB-C USB (Charging Only) (100 W) |
| Thunderbolt |
None |
| Ethernet |
1 x RJ45 (10/100/1000 Mb/s) |
| Display |
1 x HDMI 2.0 (Female) |
| Audio |
1 x 1/8" / 3.5 mm Headphone/Microphone Combo Jack |
| Media Card Reader |
1 x SDXC (UHS-II [312 MB/s])
1 x microSDXC (UHS-II [312 MB/s]) |
Host Connections
| Host Connection |
USB-C 3.1/3.2 Gen 2 |
| Connection Type |
Integrated Cable |
| Powered Connection |
100 W USB Power Delivery 3.0 |
General
| Maximum Resolution Supported |
3840 x 2160 at 60 Hz |
| HDCP Support |
Yes, Version 2.2 |
Power
| Power Source |
Bus Powered |
| Power I/O |
USB-C (Input) |
Environmental
| Operating Temperature |
14 to 113°F / -10 to 45°C |
| Operating Humidity |
0 to 95% |
| Storage Temperature |
-40 to 158°F / -40 to 70°C |
| Storage Humidity |
0 to 95% |
Physical
| Cable Length |
6.75" / 17.15 cm |
| LED Indicator |
None |
| Enclosure Material |
ABS, Aluminum |
| Lock Slot |
No |
| Dimensions |
5.02 x 2.2 x 0.6" / 12.75 x 5.6 x 1.6 cm |
| Weight |
3.7 oz / 106.3 g |
Packaging Info
| Package Weight |
0.485 lb |
| Box Dimensions (LxWxH) |
7.1 x 4.1 x 1.1" |
