Description
Xcellon PDG-5200L Overview
- 1Description
- 2200W Charger
- 3Power Distribution
- 4LED Display
- 5Fast Charging
- 6Charging Protection

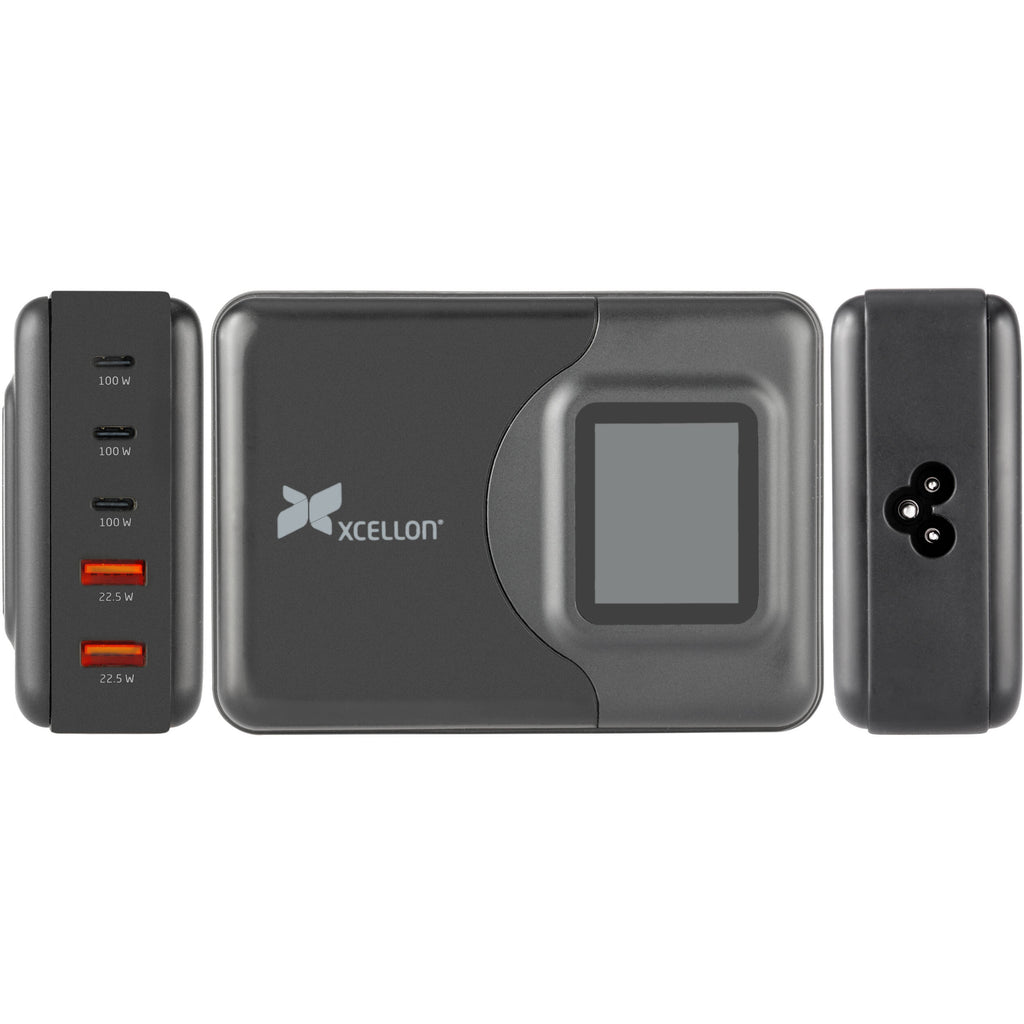

Recharge an array of power-hungry electronics with the PDG-5200L 5-Port 200W GaN USB Charger with LED Display from Xcellon. This compact next-generation charger uses GaN (Gallium Nitride) instead of silicon, which keeps the charger cool while it provides up to 200W of power across five ports. Your devices will charge in a fraction of the time your old silicon charger could do the job. The three USB-C ports individually provide up to 100W, while each of the two USB-A ports supply up to 22.5W. That's more than enough to handle MacBooks, power banks, cameras, tablets, phones, and much more. The built-in LED display lets you quickly keep tabs on each port's status. Fast charging technologies and device protections are also provided to ensure your devices recharge quickly and safely with the Xcellon PDG-5200L.
200W Charger

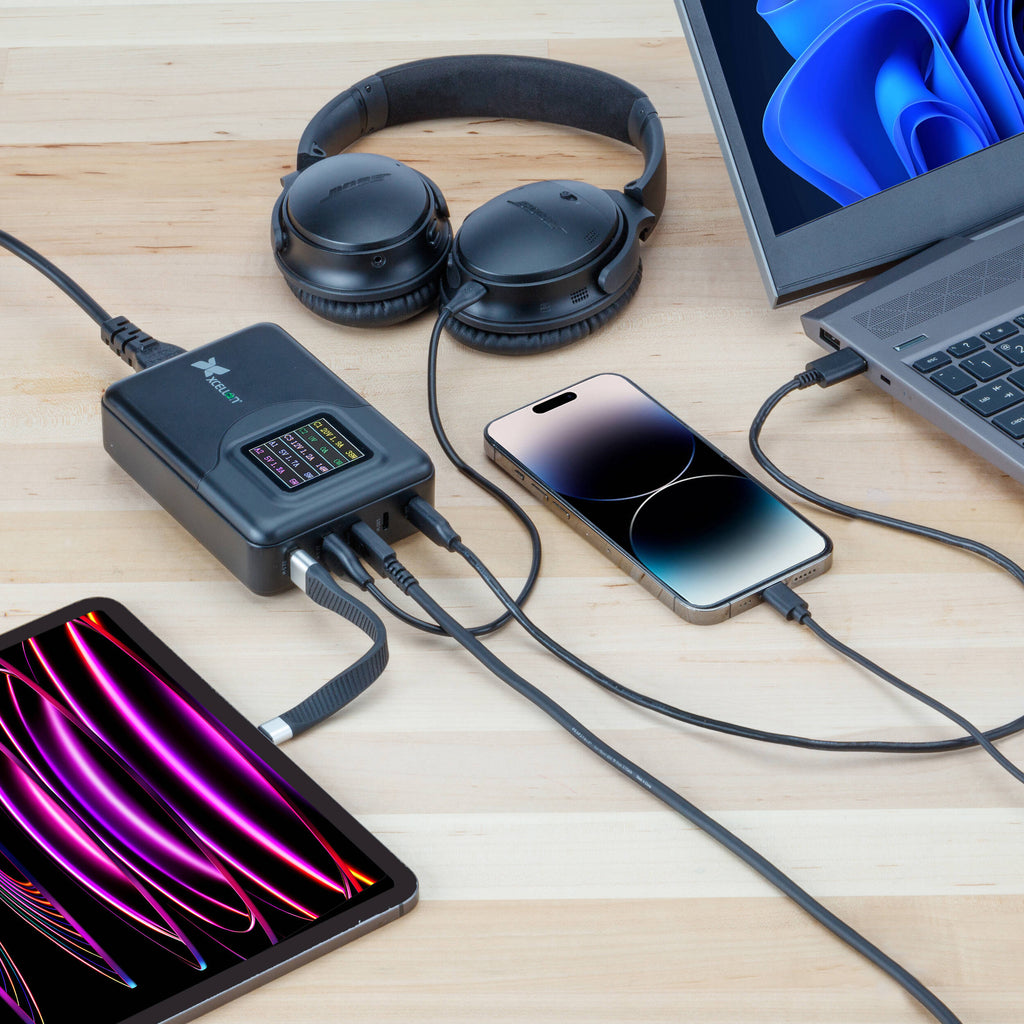

The PDG-5200L offers a maximum output of 200W, so you can charge several power-hungry laptops, like the 16" MacBook Pro, at once and from the same outlet. People who need to charge phones, laptops, tablets, and batteries at a job site will benefit from the simultaneous 100W output from any two of the three USB-C ports. The two USB-A ports are ideal for simultaneously charging smaller USB devices like phones and wireless headsets.
Power Distribution
The power that is distributed from the PDG-5200L to your devices can vary in a variety of ways based on the amount and type of ports you use at a given time. Below is a list of output values and their corresponding port combinations:
- USB-C (Any Single Port): 100W
- USB-A (Any Single Port): 22.5W
- USB-C (Any 2 Ports): 100W + 100W
- USB-C (All 3 Ports): 100W + 65W + 30W
- USB-A (Both Ports): 12W + 12W
- USB-C (Any 2 Ports) and USB-A (Any Single Port): 100W + 65W + 22.5W
- USB-C (All 3 Ports) and USB-A (Any Single Port): 100W + 65W + 20W + 22.5W
- USB-C (All 3 Ports) and USB-A (Both Ports): 100W + 65W + 20W + 12W + 12W
LED Display

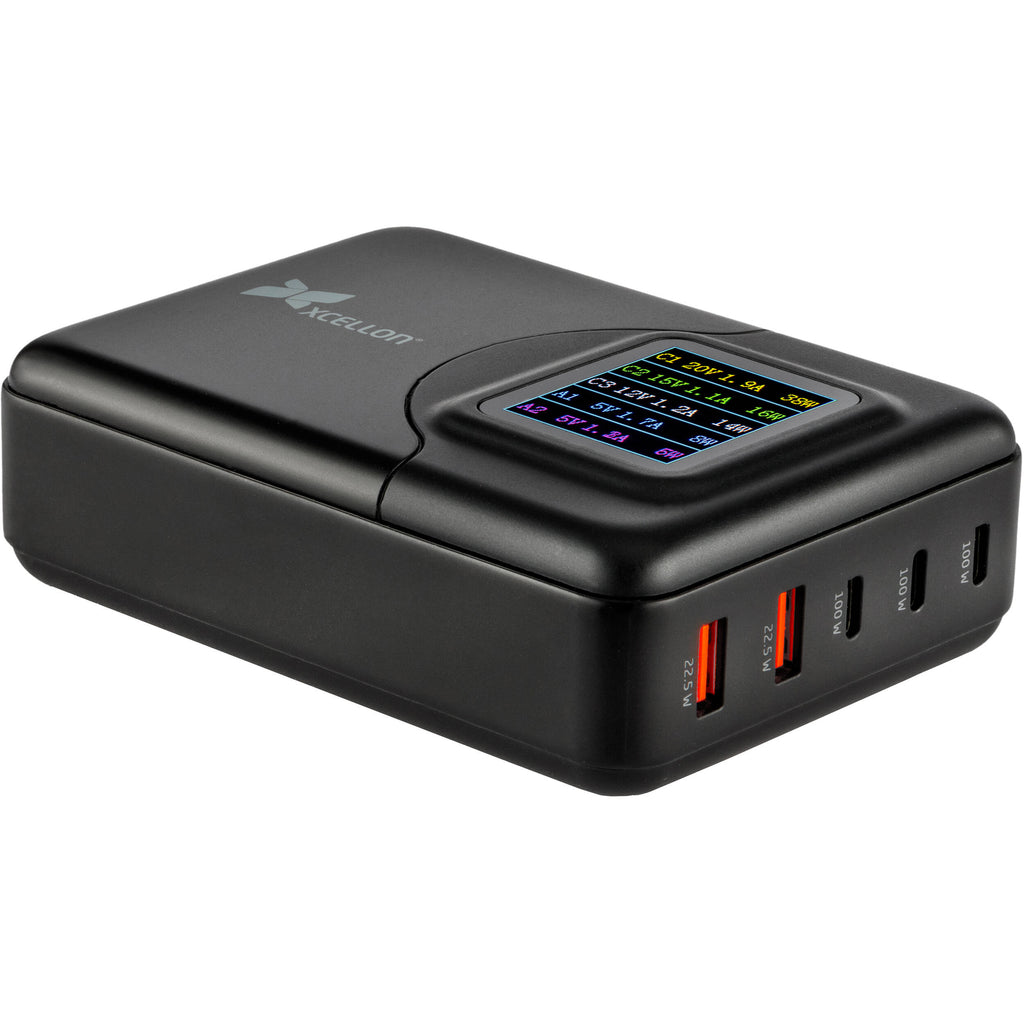

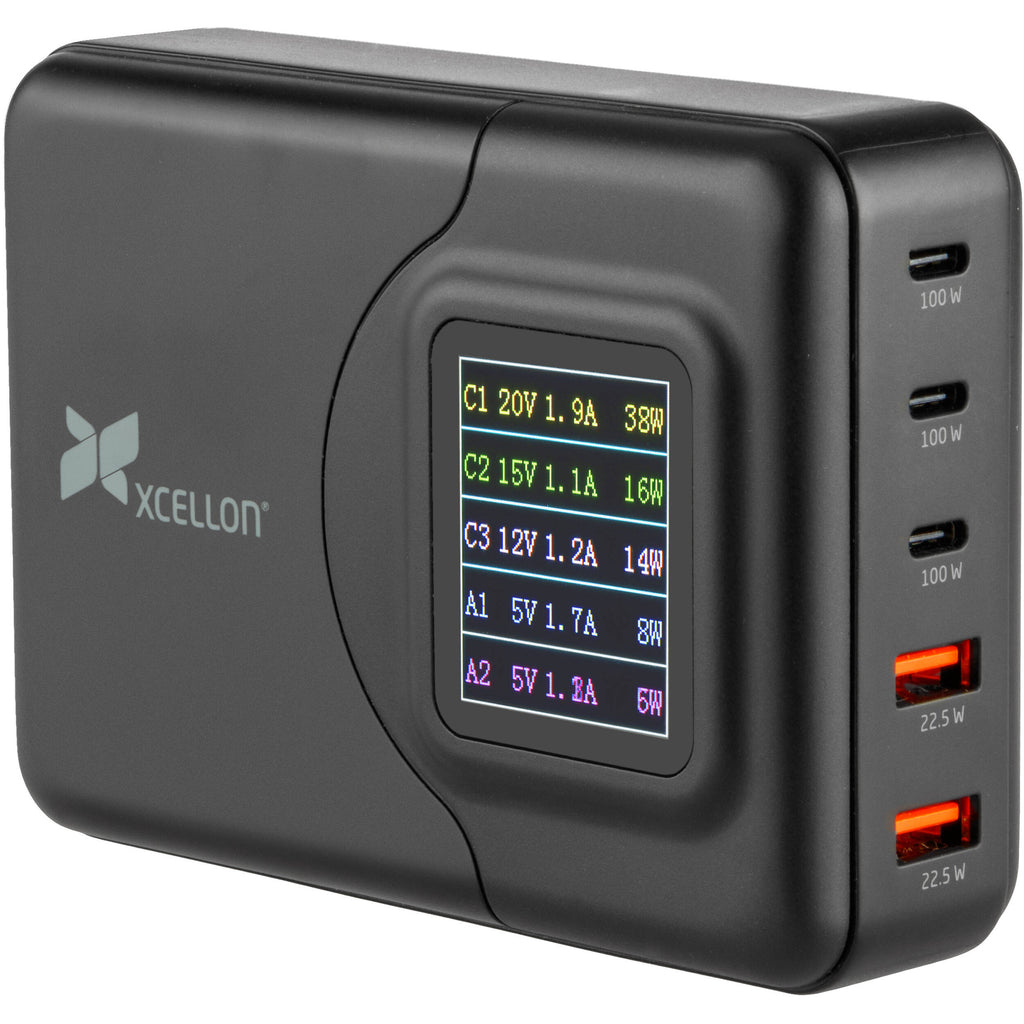

Unlike many USB chargers, the Xcellon PDG-5200L lets you see the charging process of your devices. Each port is represented in its own color, displaying its charging status and the amount of current the connected device draws. The displayed information is a valuable tool for assessing your cables' and devices' charging capabilities and immediately detecting defective or malfunctioning equipment.
Fast Charging
Even with large batteries, you don't have to wait overnight to recharge them with the Xcellon PDG-5200L. This charger supports PD 3.0, PPS (Programmable Power Supply), QC4+, and Samsung Super Fast Charging technologies to deliver the fastest charging protocols available and rapidly power up your compatible devices.
Charging Protection
All devices connected to the PDG-5200L benefit from integrated circuitry that protects them against both overcharging and short circuits.
UPC: 847628057401
In the Box
- Xcellon PDG-5200L 5-Port 200W GaN USB Charger with LED Display

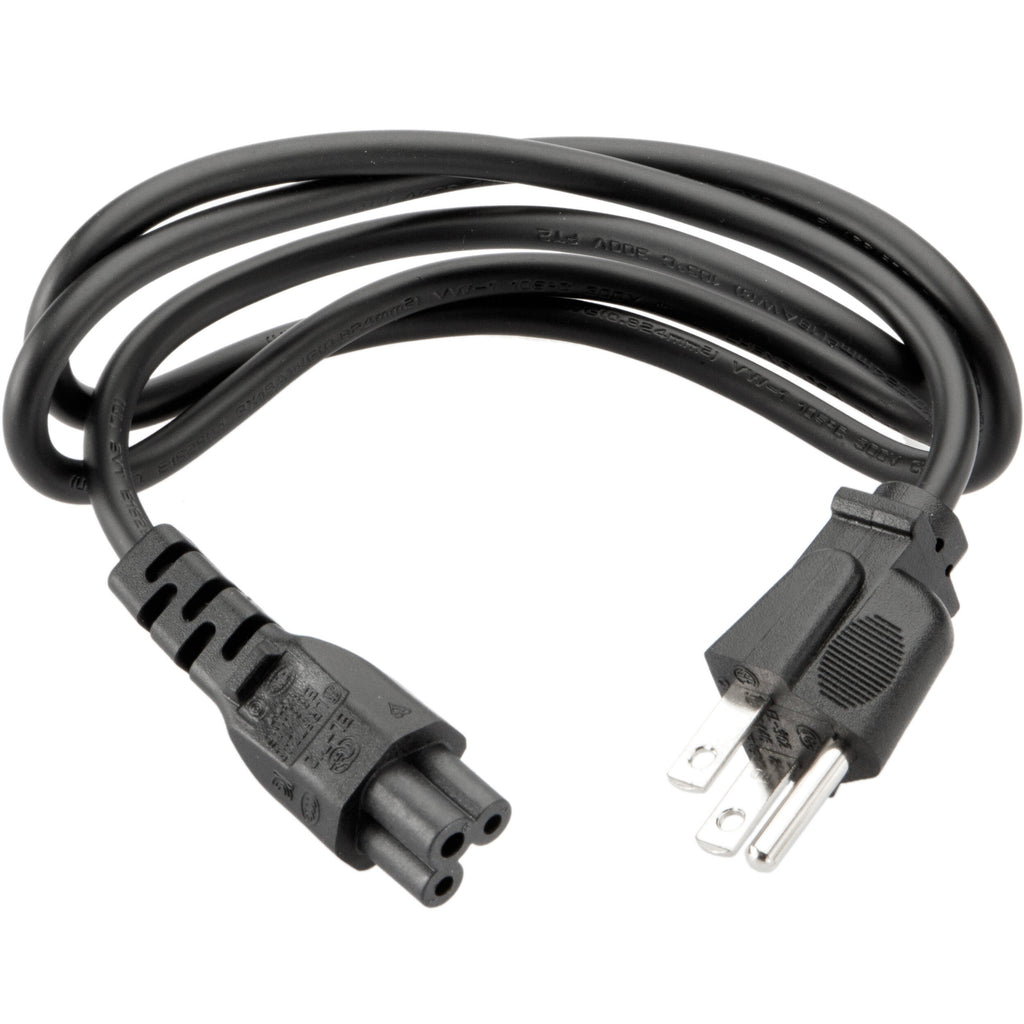

- AC Cable (36")
- Limited 1-Year Manufacturer Warranty
Table of Contents
- Description
- 200W Charger
- Power Distribution
- LED Display
- Fast Charging
- Charging Protection
Xcellon PDG-5200L Specs
Power Output
| Power Outputs | 3 x USB-C: 5 VDC at 3 A (15 W) / 9 VDC at 3 A (27 W) / 12 VDC at 3 A (36 W) / 15 VDC at 3 A (45 W) / 20 VDC at 5 A (100 W) 2 x USB-A: 5 VDC at 3 A (15 W) / 5 VDC at 4.5 A (22.5 W) / 9 VDC at 2 A (18 W) / 12 VDC at 1.5 A (18 W) |
| Max Combined Power Output | 200 W |
| Included Cable | None |
| Fast Charging Technology | PPS, Qualcomm Quick Charge 2.0, Qualcomm Quick Charge 3.0, Qualcomm Quick Charge 4.0, Qualcomm Quick Charge 4+, Samsung Adaptive Fast Charger, USB Power Delivery |
Power Input
| Plug Type | Type B via Detachable Power Cable |
| AC Input Power | 100 to 240 VAC, 50 / 60 Hz at 2.5 A |
| Protections | Overcurrent Protection, Overvoltage Protection, Short-Circuit Protection, Overheating Protection |
General
| Cable Length | 36" / 0.9 m |
| Certifications | RoHS, CE, UL *as per Manufacturer |
| Color | Black |
| Dimensions | 4.7 x 3.4 x 1.5" / 119.6 x 86.8 x 38.8 mm |
| Weight | 19 oz / 539 g |
Packaging Info
| Package Weight | 1.755 lb |
| Box Dimensions (LxWxH) | 6.7 x 6.5 x 3.5" |
