Description
X-Rite i1Basic Pro 3 Overview
- 1Description
- 2i1Pro 3 Plus Spectrophotometer
- 3i1Profiler Software
- 4Additional Software
Designed to achieve highly accurate and consistent color settings for profiling displays and projectors, the X-Rite i1Basic Pro 3 Plus combines the i1Pro 3 spectrophotometer with a series of accessories and software to create a well-rounded color calibration and profiling system. This allows you to measure, calibrate, and create profiles to match up to four-devices. The advantage of working with calibrated and matched devices is that you can trust that image corrections made on one device will appear the same on other devices. This makes for a faster, less frustrating, and more consistent output.
The included spectrophotometer features a 4.5mm aperture for precise results on a variety display surfaces. It also supports both reflective and transmissive materials, and with the included XL ruler it supports measuring larger test patches for improved compatibility with large-format printers. The included polarization filter can help reduce the effects of hot spots on surfaces being measured. The i1Basic Pro 3 Plus hardware and software components support calibrating multiple devices, to create consistent results from monitor to monitor, and to projectors.
i1Pro 3 Plus Spectrophotometer
i1Profiler Software
The included i1Profiler software features basic and advanced modes for calibrated and profiled monitors, projectors, scanners, and RGB printers, for both reflective and emissive materials.
- Transmissive/backlit material profiling for RGB printers
- Polarization filter support to minimize unwanted specular highlights, improve blacks for more refined shadow details, and obtain richer colors
- Profile up to four displays connected to a single computer as well as unlimited multiple monitors connected to different computers for consistent color viewing
- Included presets for video production workflows
- Included display and printer quality assurance functions
Additional Software

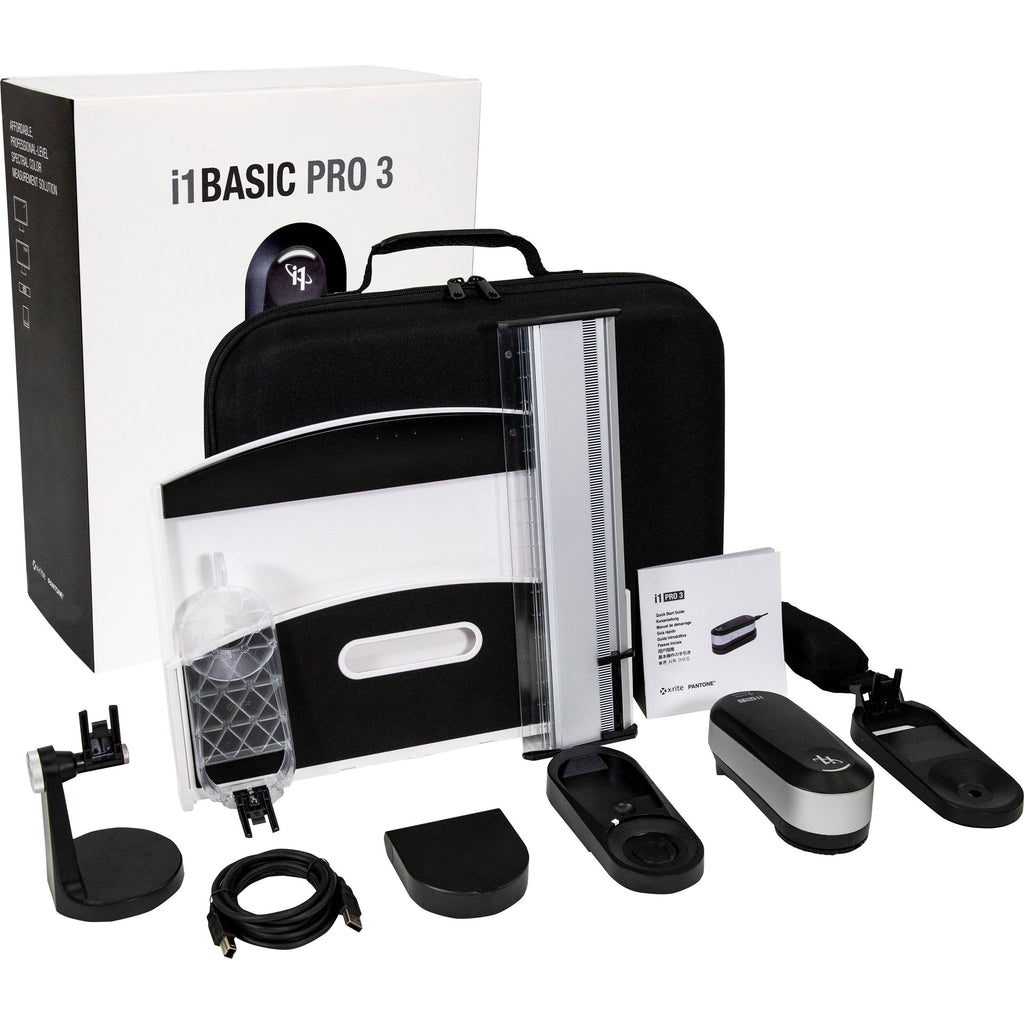

In the Box
- X-Rite i1Basic PRO 3
- i1Pro 3 Spectrophotometer
- Calibration Plate
- Ambient Light Measurement Head
- Monitor Holder
- Positioning Target
- Scanning Ruler
- Backup Board
- USB Cable
- i1Profiler Software
- PANTONE Color Manager Software
- Soft-Sided Storage Case
- Limited 12-Month Warranty
Table of Contents
- Description
- i1Pro 3 Plus Spectrophotometer
- i1Profiler Software
- Additional Software
X-Rite i1Basic Pro 3 Specs
System Requirements
| Mac | Mac OS X 10.13x, 10.14x or 10.15x 512 MB RAM (2 GB Recommended) Intel Core Duo Processor 500MB of Available Disk Space Powered USB Port Monitor Resolution of 1024 x 768 Pixels or Higher DVD Drive or Internet Connection Required for Software Install, Download, and Automatic Software Update |
| Windows | Microsoft Windows 10, 8.1, 8, or 7 (32- or 64-Bit) with Latest Updates and Service Packs Installed 512 MB RAM (2 GB Recommended) Intel Core 2 Duo or AMD Athlon XP or Better CPU 500 MB of Available Disk Space Powered USB Port Monitor Resolution of 1024 x 768 Pixels or Higher DVD Drive or Internet Connection Required for Software Install, Download, and Automatic Software Update |
Hardware Specifications
| Spectral Range | i1 Technology with Built-In Wavelengths Check Spectral Analyzer: Holographic Diffraction Grating with 128-Pixel Diode Array Spectral Range: 380-730 nm Physical Sampling Interval: 3.5 nm Optical Resolution: 10 nm Spectral Reporting: 380-730 nm in 10 nm Steps Measurement Frequency in Scanning Mode: 400 Measurements per Second |
| Optics | Measurement Geometry: 45°/0° Ring Illumination Optics, ISO 13655:2017 Measurement Aperture: 0.31" / 8 mm Diameter (Effective Measurement Aperture During Scanning is Depending on the Patch Size and Measurement Speed) Illumination Spot Size: 0.47" / 12 mm Light Source: LED Illumination (Including UV) |
| Reflective | Data Format: Spectral Reflectance [Dimensionless] Measurement Conditions: M0 - UV Included - ISO 13655:2017 M1 - D50 - ISO 13655:2017 M2 - UV Excluded - ISO 13655:2017 M3 - Polarization - UV Excluded - ISO 13655:2017 OBC: Optical Brightener Compensation (OBC) with i1Profiler Software Calibration: Manual on External Ceramic White Reference Measurement Background: White, ISO 13655:2017; for Measurements on Backup Board Minimal Media Thickness: 0.12" / 3 mm on Backup Board Minimal Patch Size in Spot Mode 0.55 x 0.55" / 14 x 14 mm Minimal Patch Size in Scanning Mode 0.63 x 0.63" / 16 x 16 mm with i1iO 0.63 x 0.63" / 16 x 16 mm with Sensor Ruler 0.79 x 0.63" / 20 x 16 mm without Sensor Ruler 0.79 x 0.63" / 20 x 16 mm with Sensor Ruler in M3 Mode 0.87 x 0.63" / 22 x 16 mm without Sensor Ruler in M3 Mode Maximum Scan Length 20.28" / 515 mm Inter-Instrument Agreement: 0.4 � E00* average, 1.0 � E00* Maximum (Deviation from X-Rite Manufacturing Standard at a Temperature of 73.4°F / 23°C on 12 BCRA Tiles (D50, 2°) Short-Term Repeatability: 0.1 � E00* on White (D50,2°, Mean of 10 Measurements every 3 Seconds on White) Spectral Radiance [mW/nm/m2/sr], Luminance [cd/m²] |
| Emission | Data Format: Spectral Radiance (mW/nm/m2 /sr); Luminance Y (cd/m²) Measurement Range: 0.2-5000 cd/m² on a Typical LCD Monitor Short-Term Repeatability: x,y: +/- 0.002 typical (5000K, 80 cd/m²) |
| Ambient Light Measurement | Data Format: Spectral Irradiance [mW/nm/m2], Illuminance [lux] Type: Cosine-Corrected Diffuse Light Measurement Head |
| Interface | USB 1.1 |
| Power Supply | USB Bus-Powered |
| Operating Conditions | Temperature: 50-95°F / 10-35°C Humidity: 0-80% (Non-Condensing) |
| Dimensions | 6.4 x 2.7 x 2.5" / 162 x 69 x 64 mm |
| Weight | i1Pro 3 Device: 10 oz / 285 g |
Packaging Info
| Package Weight | 9.7 lb |
| Box Dimensions (LxWxH) | 17.1 x 13.9 x 6.2" |
