Description

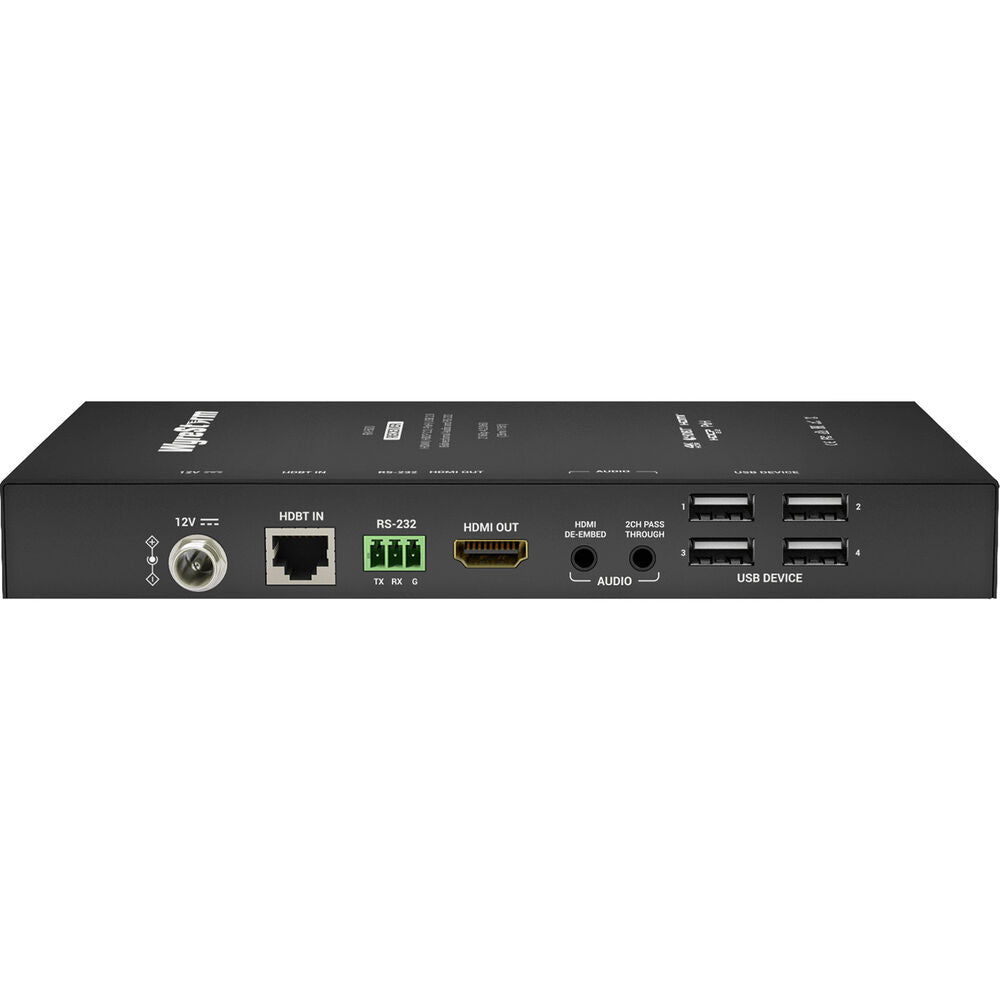

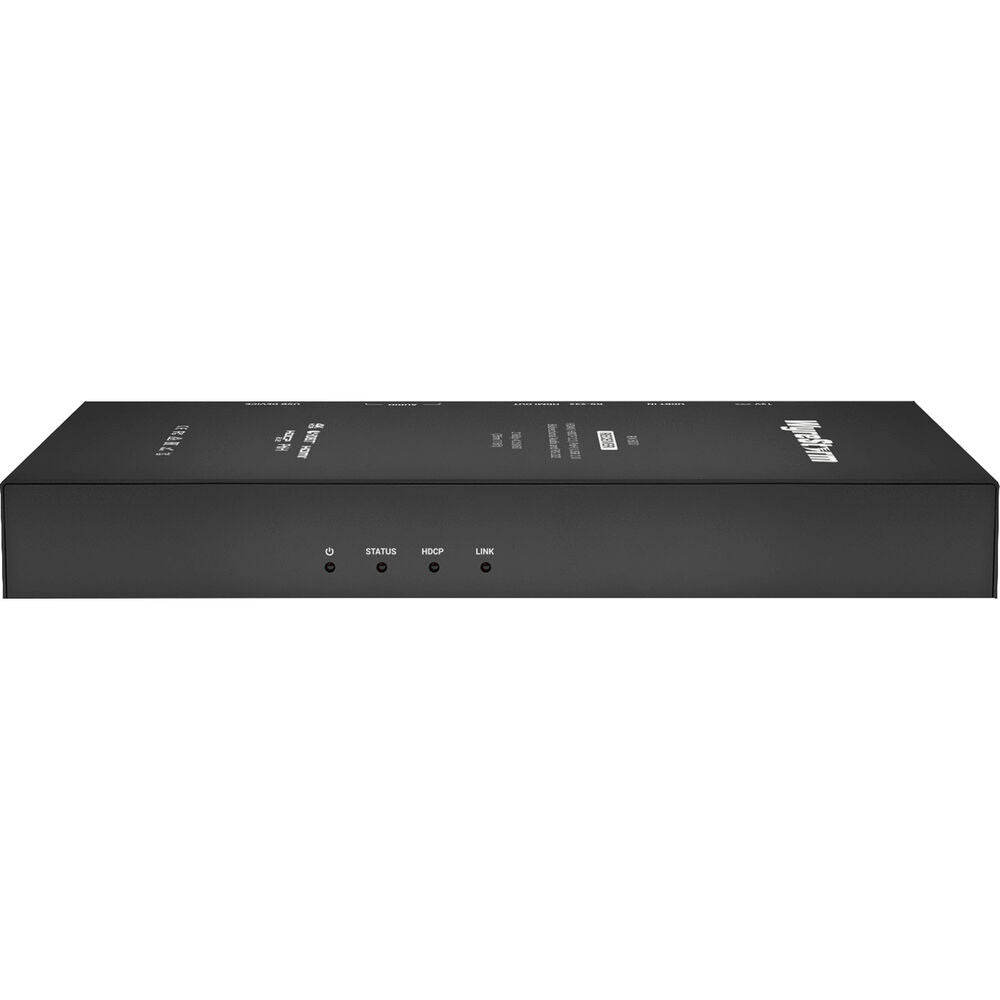

WyreStorm RX-500 Overview
The little sibling to the RX-700, the RX-500 4K UHD 60 Hz HDBaseT Receiver with USB 2.0 from WyreStorm also utilizes HDBaseT 2.0 technology extending 4K video, USB 2.0, audio, and control point to point up to 115'. The RX-500 still maintains the ability send HID's and data back to the transmitter with USB 2.0 compatible devices such as HD webcams, smart whiteboards and data drives alike. Ideally suited for small meeting spaces and conference rooms, the RX-500 pairs perfectly with WyreStorm's popular line of presentation solutions, such as the SW-130-TX, SW-510-TX, or SW-740-TX to meet all of your presentation needs.
Features
- Content up to 4K/60 4:2:0 & RGB 8-bit
- The latest HDR standards, including HDR-10, HLG, and Dolby Vision at 30 Hz
- HDCP 22 encryption technology, ensuring compatibility with the latest 4K UHD content and sources
- HD multichannel audio up to DTS:X and Dolby Atmos via HDMI
- 2160p 4:2:0 60 Hz HDR content from a source to a display or projector using HDBaseT up to 115'
- Compatible with DVI-I and DP++ v1.3 signals from compatible devices
- USB 2.0 passthrough offering 190 Mb/s transfer and HID extension
- Features 4 USB device ports
- Supports analog audio pass-through from transmitter to receiver
- Supports analog audio de-embed from HDMI output
- Bidirectional RS-232 and CEC pass-through communication
- Backwards compatible with HDBaseT 1.0 transmission and receiving devices (lowest denominator takes priority)
- PoH from RX > TX
UPC: 814303015803
In the Box
- WyreStorm RX-500 4K UHD 60 Hz HDBaseT Receiver with USB 2.0 (115')
- 12 VDC Power Supply
- 2 x Mounting Bracket
- Mounting Screw Set
- 3-Pin Terminal Block
WyreStorm RX-500 Specs
Interfaces
| Inputs | 1 x RJ45 (HDBaseT) 4 x USB-A 1 x Block 3-Pin (RS-232) |
| Outputs | 1 x HDMI 2 x 1/8" / 3.5 mm TRS (Stereo Analog) |
Standards
| HDCP Support | Version 2.2 |
| EDID Support | None |
Transmission
| Video Format | HDMI UHD 4K |
| Audio Format | Analog: |
| Latency | 10 ms |
Power
| Power Connector | 1 x Barrel (12 VDC at 12 A) Input |
| PoE Support | Yes |
| Power Consumption | Device: (8 W) |
General
| Dimensions | 8.3 x 3.6 x 1" / 210 x 90.2 x 25 mm |
| Weight | 16.2 oz / 460 g |
Packaging Info
| Package Weight | 1.945 lb |
| Box Dimensions (LxWxH) | 10.6 x 6.7 x 2.5" |
