| ₹ 351260.0 includes GST and import duties. | |
| B2B customers can avail ₹ 53567.15 ITC on this product | |
| 100% Secure Payments | 100% Genuine product | |
| The product is eligible for Free Shipping |
Description

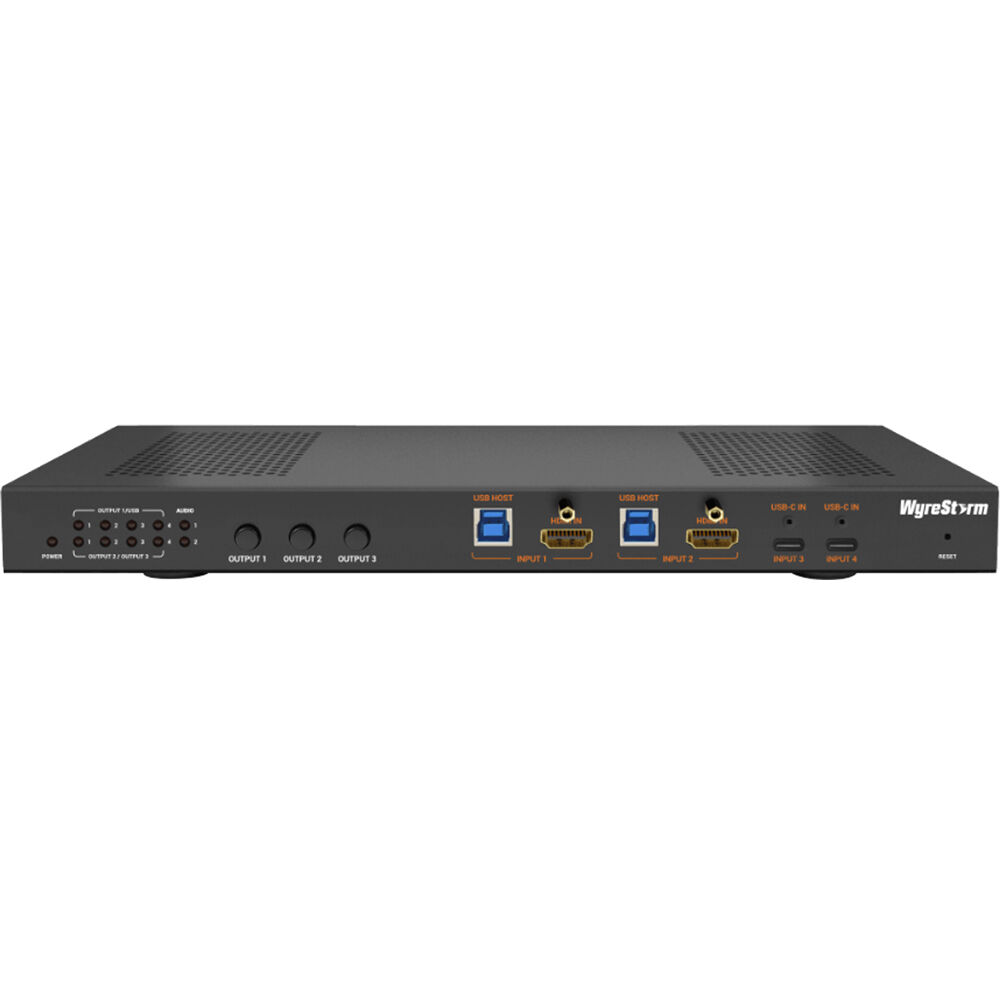

WyreStorm MX-0403-H3 Overview
Multi-Input Switcher with USB-C and HDBaseT
Simplify and enhance your presentations with the
MX-0403-H3-MST 4x3 HDMI & USB-C Matrix Switcher with HDBaseT 3.0 Output from
WyreStorm. This versatile extender supports up to UHD 4K60 4:4:4 HDMI, HDR, and multiple audio formats. It features dual HDMI and USB-C inputs, auto-switching, and signal extension up to 328' via HDBaseT.
HDBaseT Output
The HDBaseT 3.0 output lets you extend your video up to 328'. This enables IP to RS-232 command routing at the display zone for controlling your displays and additional devices.
Input Options
This versatile switcher features dual USB-C and dual HDMI inputs ? each featuring locking cable connections for added stability and security.
Advanced USB-C Integration
The MX-0403-H3-MST's USB-C features include UHD 4K video support, USB 3.2 data transfer, and 60W charging. This switcher also supports dual video output via a single USB-C cable to two HDMI outputs for multi-screen presentations.
Automatic Switching
Multiple switching modes include automatic, priority, and independent USB and video switching, enabling your presentations to flow smoothly with minimal manual intervention.
Items Included
- WyreStorm MX-0403-H3-MST 4K60 HDR 4x3 HDMI & USB-C Matrix Switcher with HDBaseT 3.0 Output
- 20 VDC Power Adapter (US/UK/EU/AU)
- 2 x USB-C Cable (6.6')
- 2 x USB-A 3.0 to USB-B Cable (5.9')
- 4 x Mounting Bracket
- 4 x Bracket Screw
- 5-Pin Block
- 4-Pin Block
- 8-Pin Block
- Limited 5-Year Manufacturer Warranty
Additional Resources
WyreStorm MX-0403-H3 Specs
Processing
| Switching Type |
Pushbutton, Software
|
| Processing Resolution |
UHD 4K at 60
|
| Color Processing |
8-Bit 4:4:4 RGB
|
Input
| Video Inputs |
2x HDMI Female
2x USB-C (3.0) Female |
| Input Video Format |
HDMI / USB-C (8-Bit 4:4:4)
UHD 4K up to 60 fps |
| Embedded Audio Input |
HDMI
USB-C |

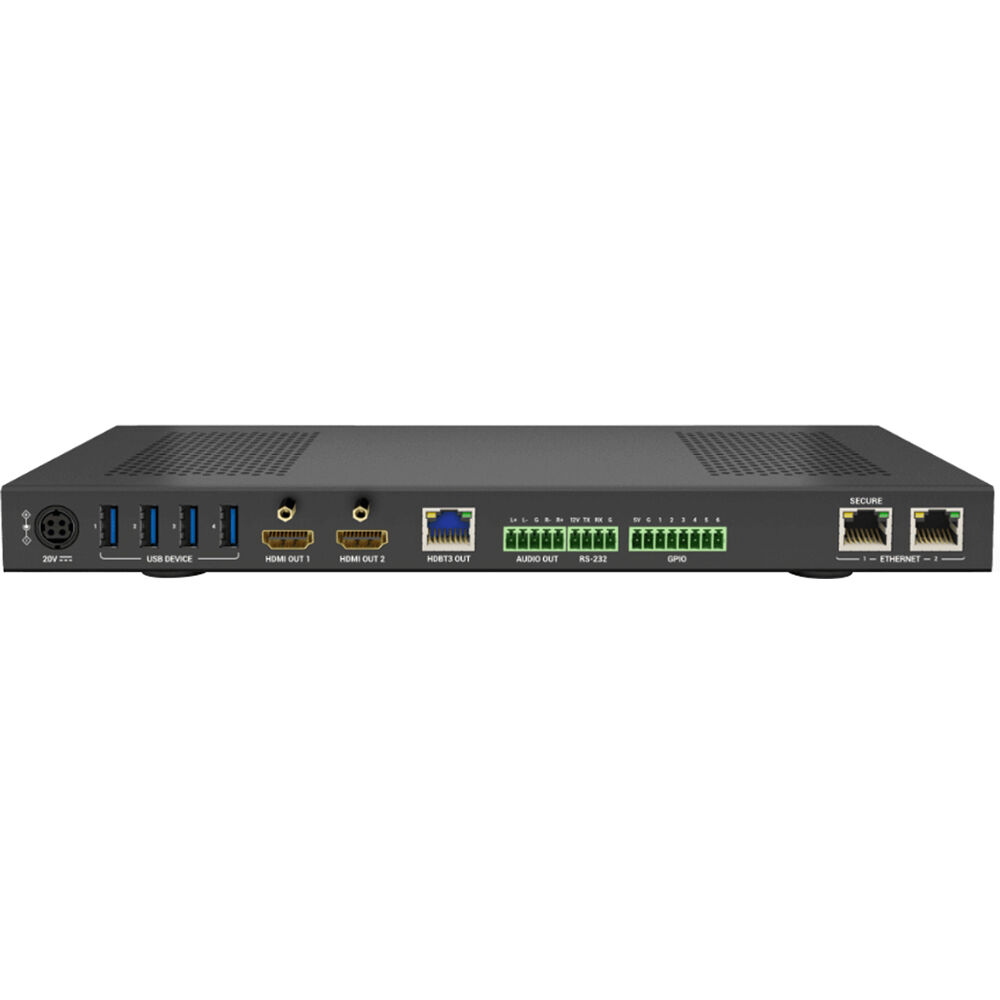

Output
| Video Outputs |
1x RJ45 (HDBaseT) Female
2x HDMI Female |
| Output Video Format |
HDMI / RJ45 / USB-C (8-Bit 4:4:4)
UHD 4K up to 60 fps |
| Audio Outputs |
1x Block 5-Pin Analog Female
|
| Embedded Audio Output |
HDMI
RJ45 USB-C |
Connectivity
| Other I/O |
1x Block 4-Pin RS-232 Input/Output
1x Block 8-Pin GPI Input/Output 2x USB-B Input 2x RJ45 Control, LAN Input/Output 4x USB-A Input/Output |
| Digital Audio Decoding |
Dolby Atmos, Dolby Digital / AC3, Dolby Digital Plus, Dolby TrueHD, DTS-HD Master Audio, DTS:X
|
| HDR Support |
Yes: HDR10/HDR10+/Dolby Vision/Hybrid Log Gamma
|
Hardware
| Wireless |
No
|
Power
| Power I/O |
1x DIN 4-Pin (20 VDC ) Input
|
| Power Consumption |
Power Supply: 100 to 240 VAC (200 W)
|
General
| Operating Conditions |
32 to 113?F / 0 to 45?C at 10 to 90% Humidity
|
| Storage Conditions |
-4 to 158?F / -20 to 70?C at 10 to 90% Humidity
|
| Certifications |
CE, EAC, FCC, RCM, RoHS, UKCA
|
| Dimensions |
11.8 x 7.1 x 1" / 300 x 180 x 25 mm
|
| Weight |
3.02 lb / 1.37 kg
|
All product and company names are trademarks™ or registered® trademarks of their respective holders. Use of them does not imply any affiliation with or endorsement by them.
Bulk Discount
| Quantity | Price |
| 2 | ₹ 344234.8 |
| 3-5 | ₹ 340722.2 |
| 5-10 | ₹ 333697.0 |
| 10+ | ₹ 326671.8 |
Bulk discount will be automatically applied during checkout based on quantity.
