Description
WyreStorm EX-35-H2 Overview

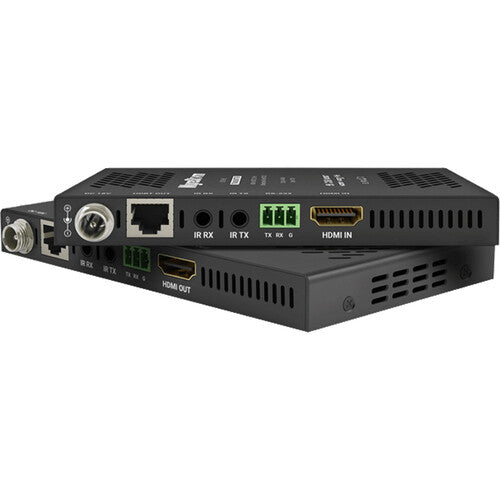

Send and receive up to UHD 4K HDMI 2.2 video using this EX-35-H2 HDMI UHD 4K HDBaseT Extender Kit from WyreStorm with the included receiver and transmitter units with their HDMI and HDBaseT connections. The transmitter unit features an HDMI input and HDBaseT output while the receiver unit features an HDBaseT input and HDMI output. UHD 4K signals can be extended over 115' using a single Cat 6 cable.
The system is capable of delivering power via the HDBaseT connection for easy integration. Auto equalization and adjustment also contribute to an intuitive set up. An upgraded, visually lossless compression chipset increases compatibility with new HDMI sources. Control over the system can be achieved via the IR connections or RS-232 ports.
Features at a Glance
- Transmit 4K video up to 115' and 1080p video up to 230' with Cat 6 cable
- Full UHD 4K supports HDMI 2.0 video standards
- Revised chipset increases compatibility with new UHD 4K sources
- Transmit wideband bidirectional IR and RS-232 control signals with HDMI over a single Cat 5e/6 cable
- Two-way Power over HDBaseT enables transmitter or receiver to be remotely powered by the other
- Supports 2-channel PCM and 7.1 multichannel audio up to DTS:X and Dolby Atmos
- HDCP 2.2 compliant, 3D compatible
- Switchable RS-232 function mode for firmware update
- Threaded bushings allow use of both standard and locking DC power plugs

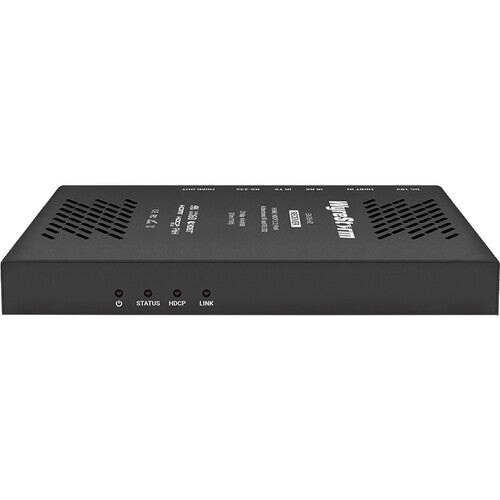

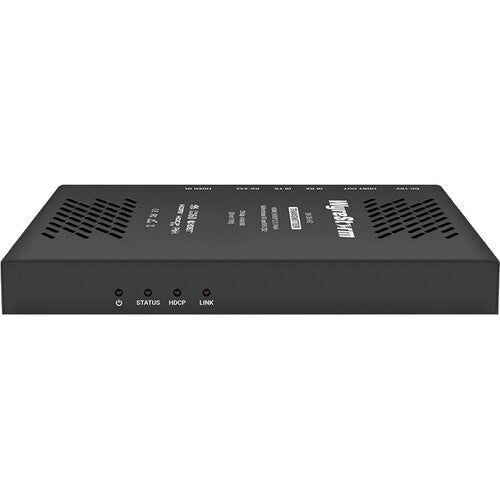

- LED indicators for power, display connection, signal status, HDBaseT link, and HDCP presence
- Cable termination follows IEEE-568B standards
- Automatically adjusts feedback, equalization, and amplification of signal for easy installation
UPC: 814303013502
In the Box
- WyreStorm EX-35-H2 HDMI UHD 4K HDBaseT Extender Kit
- EX-35-H2 Transmitter
- EX-35-H2 Receiver
- 2 x Wide-Band IR Emitter
- 2 x Wide-Band IR Receiver (30-50 KHz)
- DC Power Supply (18V, 1A)
- 4 x Mounting Bracket
- 2 x 3-Pin Screw Down Phoenix Connector
- Limited 5-Year Manufacturer Warranty
WyreStorm EX-35-H2 Specs

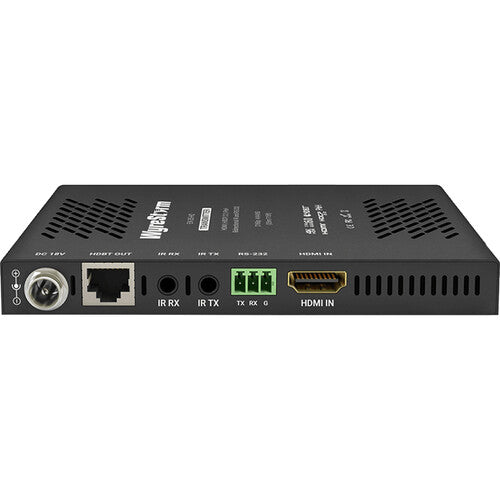

Transmitter Interfaces
| Inputs | 1 x HDMI (HDMI 2.0) Female |
| Outputs | 1 x RJ45 (HDBaseT) Female |
| Transmitter Other I/O | 1 x 1/8" / 3.5 mm IR Input 1 x 1/8" / 3.5 mm IR Output 1 x Block 3-Pin RS-232 Input |
Receiver Interfaces
| Inputs | 1 x RJ45 (HDBaseT) Female |
| Outputs | 1 x HDMI (HDMI 2.0) Female |
| Receiver Other I/O | 1 x 1/8" / 3.5 mm IR Input 1 x 1/8" / 3.5 mm IR Output 1 x Block 3-Pin RS-232 Input |
Standards
| Reclocking | Yes |
| HDCP Support | , Version 2.2 |
| EDID Support | Yes |
Transmission
| Max Transmission Distance | 1080p at 60 Hz: 230' / 70.1 m (via Cat 6) 1080p, DCI 4K, UHD 4K at 60 Hz: 115' / 35.1 m (via Cat 6) 1080p, DCI 4K, UHD 4K at 60 Hz: 230' / 70.1 m (via Cat 6a/7) |
| Video Format | HDMI DCI 4K: 60 fps UHD 4K: 24/30 fps 1080p: 60 fps RJ45 DCI 4K: 60 fps UHD 4K: 24/30 fps 1080p: 60 fps |
| Audio Format | Analog: |
| DTS Compatibility | DTS:X |
| Dolby Compatibility | Dolby Atmos |
| Supported Cable Types | Cat 6/6a/7 |
Power
| Transmitter Power Connector | 1 x Barrel Input |
| Receiver Power Connector | 1 x Barrel Input |
| PoE Support | PoH 802.3at |
| Transmitter Power Consumption | Power Supply: (8.88 W) |
| Receiver Power Consumption | Power Supply: (8.88 W) |
Environmental
| Operating Temperature | 32 to 113°F / 0 to 45°C |
| Storage Temperature | -4 to 158°F / -20 to 70°C |
| Operating Humidity | 10 to 90% (Non-Condensing) |
| Storage Humidity | 0 to 90% (Non-Condensing) |
General
| Rack Form Factor | 1 RU |
| Certifications | CE, IEEE-568B *as per Manufacturer |
| Transmitter Dimensions | 5.5 x 3.6 x 0.7" / 140 x 90.2 x 17 mm |
| Receiver Dimensions | 5.5 x 3.6 x 0.7" / 140 x 90.2 x 17 mm |
| Transmitter Weight | 12.7 oz / 360 g |
| Receiver Weight | 12.7 oz / 360 g |
All product and company names are trademarks™ or registered® trademarks of their respective holders. Use of them does not imply any affiliation with or endorsement by them.
