Description
WyreStorm MX-0404 Overview
- 1Description
- 2
- 3Quick Features
- 44K and HDR Support
- 5Audio De-Embedding
- 6CEC Triggering
- 7A/V Mute Function
The
4x4 HDBaseT UHD 4K60 Matrix with Audio De-Embed & 3 Receivers Kit from
WyreStorm includes a powerful plug-and-play 4x4 HDMI matrix switcher/transmitter with a compact, easy-to-install chassis and three HDBaseT-to-HDMI receivers. Use it to independently route four 4K video sources to four displays with an extended signal up to 115' away from the transmitter. It supports CEC signaling, PoH for the receivers, A/V mute, and SmartEDID. Audio can be extracted via the four digital 5.1 S/PDIF coaxial ports for distribution to an external audio system.
Quick Features
- HDBaseT enables 8-bit UHD 4K60 content to be sent over HDBaseT up to 115'.
- The unit is compatible with DVI-I and DisplayPort++ v1.3 signals from compatible devices.
- Four audio outputs allow audio to be independently de-embedded from outputs via S/PDIF coaxial.
- SmartEDID feature also dynamically detects display/source capabilities and automatically outputs the highest possible resolution.
- Additional EDID management through DIP switches allows for global setting or via WebUI for independent management of EDID per source.
- Embedded WyreStorm WebUI enables simple source switching and installer setup and configuration.
- WebUI includes full EDID management to read, copy, store or import EDID from connected devices.
- Assign a different EDID to each connected source device.
- API triggered standby mode puts unit into low power state during downtime.
- Flexible control options include front panel buttons, infrared remote control, local IR, RS-232, Telnet, or WebUI.
- 3.5mm jack input allows for receiving local IR commands out of line-of-sight.
- 2-way IR allows for far-end device control from control system or source control from a zone.
4K and HDR Support
The 4x4 kit can handle current video content up to 4K60 4:2:0, covering a majority of current source devices and even supporting 10-bit HDR content at up to 30Hz and multi-channel audio. Powerful HDBaseT technology sends this, IR control, and PoH (Power-over-HDBaseT) for the included receivers up to 115'.
Audio De-Embedding
With audio functionality to match its video capability, the 4x4 kit has the ability to extract audio signals from the output, following the zone. Having S/PDIF connectivity means having the flexibility to send multi-channel 5.1 audio to local AVR's or downmix to stereo using the optional EXP-CON-DAC-D.
CEC Triggering
Working automatically on signal presence or triggered via the API, this 4x4 kit can send power trigger commands to all compatible connected screens or projectors, meaning an integrated autonomous control solution.
A/V Mute Function
Certain applications in the residential, education, and commercial markets don't always require a source to be routed through to an output. The 4x4 kit makes it possible to "mute" the video output as well as the audio, meaning that the HDMI signals to the zones can be independently switched off via the API.
In the Box
- WyreStorm 4x4 HDBaseT 4K60 Matrix with Audio De-Embed & 3 Receivers Kit (115')

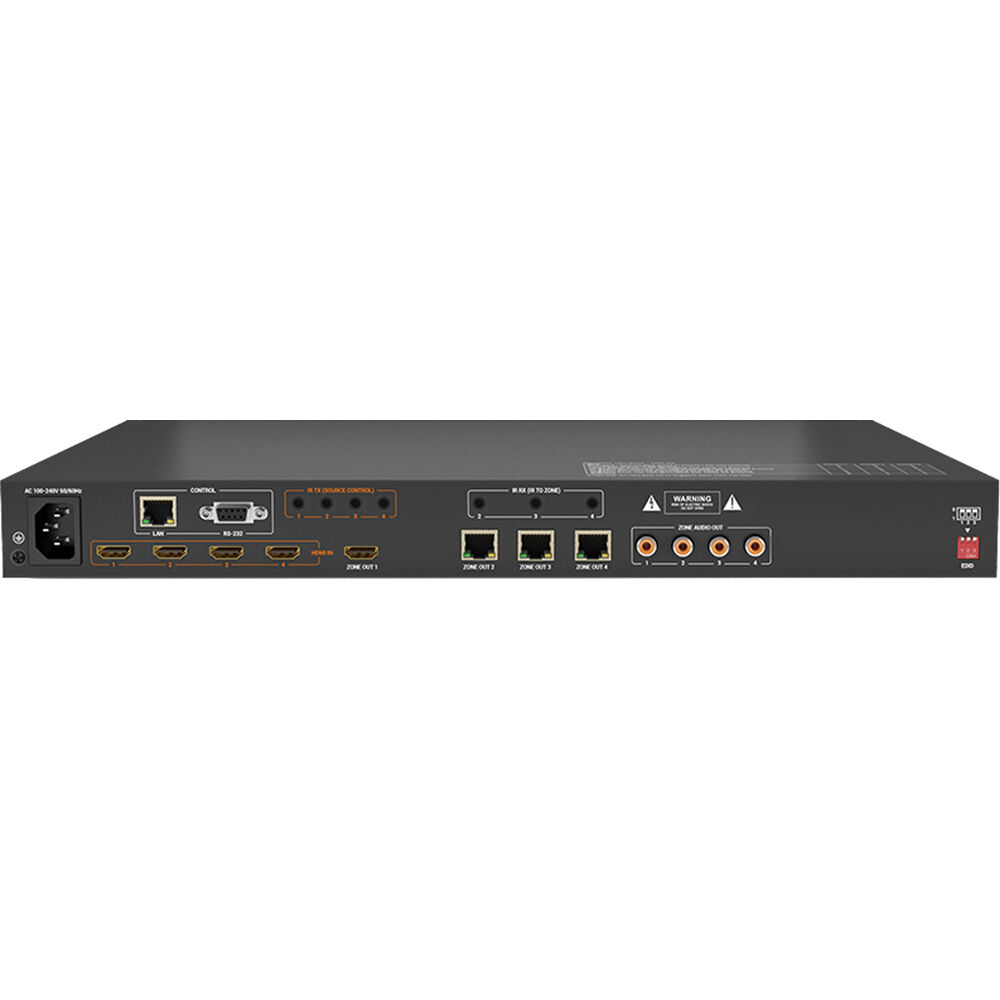

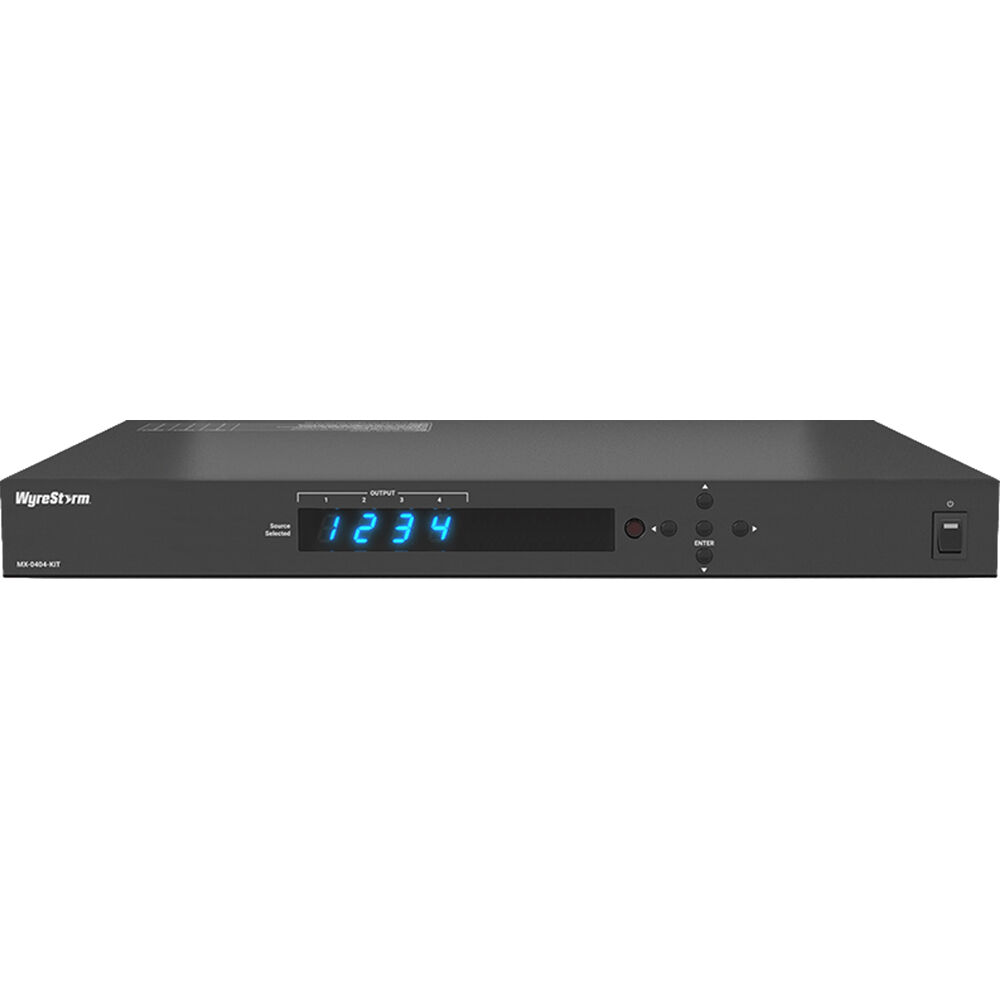

- MX-0404 Matrix Switcher

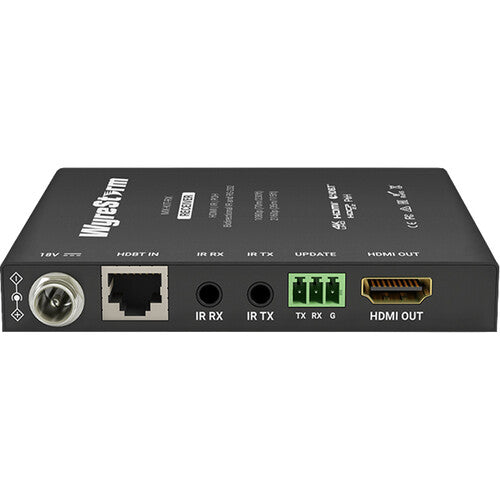

- 3 x MX-KIT-RX Receiver
- Power Cable
- IR Remote (Battery Not Included)
- 4 x IR Emitter
- 3 x IR Receiver
- 2 x Matrix Switcher Mounting Bracket
- 6 x Receiver Mounting Bracket
- Limited 5-Year Manufacturer Warranty
Table of Contents
- Description
- Quick Features
- 4K and HDR Support
- Audio De-Embedding
- CEC Triggering
- A/V Mute Function
WyreStorm MX-0404 Specs
Processing
| Switching Type |
Pushbutton
|
| Latency |
10 ms
|
| Processing Resolution |
DCI 4K at 60
|
| Color Processing |
16-Bit
8-Bit 4:2:0 |
Input
| Video Inputs |
4x HDMI (2.0) Female
|
| Input Video Format |
HDMI (8-Bit 4:4:4)
DCI 4K up to 60 fps HDMI (10-Bit 4:2:0) UHD 4K up to 60 fps HDMI (16-Bit) 1080p up to 60 fps |
| Embedded Audio Input |
HDMI
|
Output
| Video Outputs |
4x HDMI (2.0) Female
3x RJ45 (HDBaseT) Female |
| Output Video Format |
HDMI (8-Bit 4:4:4)
DCI 4K at 60 fps HDMI (10-Bit 4:2:0) UHD 4K at 60 fps HDMI (16-Bit) 1080p at 60 fps |
| Audio Outputs |
4x Coaxial Stereo S/PDIF Female
|
| Output Audio Format |
S/PDIF
|
| Embedded Audio Output |
HDMI
|
Connectivity
| Other I/O |
1x DE-9/DB-9 RS-232 Input/Output
4x 1/8" / 3.5 mm IR Input 3x 1/8" / 3.5 mm IR Input 1x RJ45 Control, LAN Input/Output |
| HDCP Support |
Yes, Version 2.2
|
| HDR Compatibility |
HDR10, Dolby Vision, Hybrid Log Gamma
|
| DTS Compatibility |
DTS:X
|
| Dolby Compatibility |
Dolby Atmos
|
Display
| Wi-Fi |
No
|
| Bluetooth |
No
|
Power
| Power I/O |
1x IEC C14 (100 to 240 VAC) Input
|
| Power Consumption |
Power Supply: 48.2 W
|
Environmental
| Operating Temperature |
32 to 113°F / 0 to 45°C
|
| Storage Temperature |
-4 to 158°F / -20 to 70°C
|
| Operating Humidity |
10 to 90%
|
| Storage Humidity |
10 to 90%
|
General
| Certifications |
CE, EAC, FCC, RCM, RoHS
|
| Rack Form Factor |
1 RU
|
| Dimensions |
17.3 x 11.8 x 1.7" / 440 x 300 x 43.5 mm
|
| Weight |
8.95 lb / 4.06 kg
|
