Description

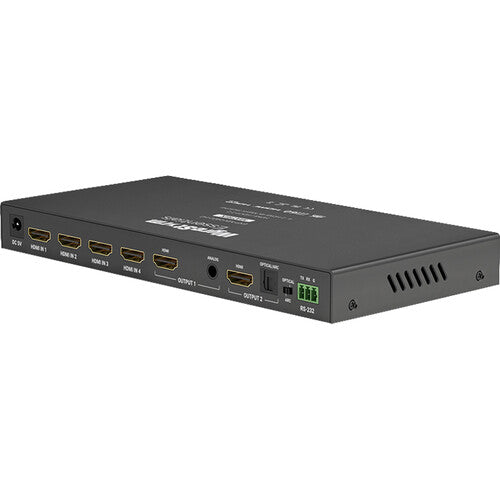

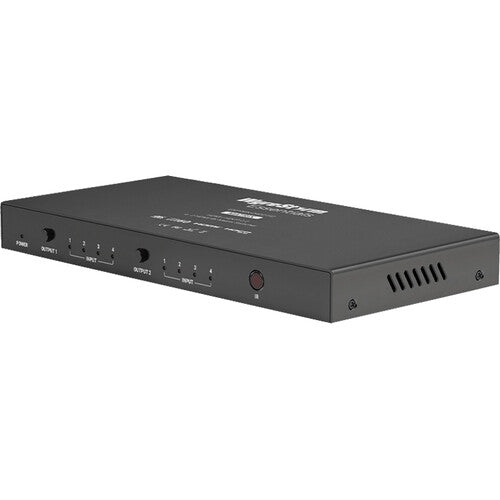

WyreStorm EXP-MX-0402-H2 Overview
The 4K 4x2 HDMI Matrix Switcher from WyreStorm is a powerful, compact matrix switcher with four HDMI inputs and two HDMI outputs that handle bandwidths up to 18 Gb/s. The unit supports ARC as well as CEC triggering and can de-embed audio for outputting via the 3.5mm analog stereo port and/or the digital TOSLINK port.
Compatible with HDR10, HLG, and Dolby Vision, in addition to being HDCP 2.2 compliant, the switcher allows users to simultaneously connect 4K and 1080p displays, using its powerful built-in scaler to deliver the most optimal signal to the appropriate display. An included 3-pin block connector facilitates RS-232 control, and the unit's sleek design ensures placement flexibility. Two mounting brackets are also included for rack mounting.
- Routes up to four 4K HDR HDMI sources to two 4K HDR display devices such as a TV or digital projector
- HDMI inputs and HDMI outputs support bandwidths of up to 18Gb/s
- Fully HDCP 2.2 compliant
- HDR and Dolby Vision support
- Each HDMI output supports scaling down to 1080p without affecting 4K source content
- Supports analog audio de-embed from output 1
- Supports digital audio de-embed from output 2 or HDMI ARC from a smart display via easy to use sliding switch
- Rich control options including IR, push-button controls, and RS-232 control
- Support of timed CEC trigger and time delay on both outputs when input is not detected on selected output
- Enhanced API offers an abundance of control features such as video switching, audio mute of discrete audio outputs, CEC trigger, time delay, EDID control, and many troubleshooting options
- Supports 12-bit Deep Color, 3D, Lip Sync, and lossless HD audio formats pass through
In the Box
- WyreStorm 4K 4x2 HDMI Matrix Switcher
- 5 VDC Power Supply
- 2 x Mounting Bracket
- 3-Pin Terminal Block
- Remote Control (Batteries Available Separately)
WyreStorm EXP-MX-0402-H2 Specs
| Switching Type | IR Remote, Pushbutton |
| Processing Resolution | DCI 4K at 60 |
| Color Processing | 12-Bit 10-Bit 4:2:0 8-Bit 4:4:4 |
| Video Inputs | 4 x HDMI Female |
| Input Video Format | HDMI (8/10/16-Bit 4:4:4/4:2:2) DCI 4K at 60 fps UHD 4K at 60 fps 1080p at 60 fps |
| Embedded Audio Input | HDMI |
| Video Outputs | 2 x HDMI Female |
| Output Video Format | HDMI (8/10/12/16-Bit 4:4:4/4:2:0) DCI 4K at 60 fps UHD 4K at 60 fps 1080p at 60 fps |
| Audio Outputs | 1 x 1/8" / 3.5 mm TRS Stereo Analog Female 1 x TOSLINK S/PDIF Female |
| Output Audio Format | Analog S/PDIF LPCM (Linear Pulse-Code Modulation) |
| Embedded Audio Output | HDMI |
| Other I/O | 1 x 1/8" / 3.5 mm IR 1 x Block 3-Pin RS-232 |
| HDCP Support | Version 2.2 |
| HDR Compatibility | HDR10, Dolby Vision, Hybrid Log Gamma |
| DTS Compatibility | DTS:X |
| Dolby Compatibility | Dolby Atmos |
| Wi-Fi | Yes |
| Bluetooth | Yes |
| Power I/O | 1 x Barrel (5 VDC at 1 A) Input |
| Power Consumption | 5 W |
| Operating Temperature | 32 to 113°F / 0 to 45°C |
| Storage Temperature | -4 to 158°F / -20 to 70°C |
| Operating Humidity | 10 to 90% (Non-Condensing) |
| Storage Humidity | 10 to 90% (Non-Condensing) |
| Certifications | CE, FCC, RoHS *as per Manufacturer |
| Rack Form Factor | 1 RU |
| Dimensions | 7.2 x 3 x 0.9" / 182 x 77 x 22 mm |
| Weight | 12 oz / 340 g |
| Package Weight | 2.255 lb |
| Box Dimensions (LxWxH) | 10 x 6.8 x 3.2" |
WyreStorm EXP-MX-0402-H2 Reviews
