Description
WyreStorm MXV-0808-H2A Overview
- 1Description
- 2
- 3DCI 4K60 4:4:4 and HDR
- 4Transmits Up to 230'
- 5Mirrored HDMI Outputs
- 6CEC and RS-232 Routing
- 7De-Embedded Audio

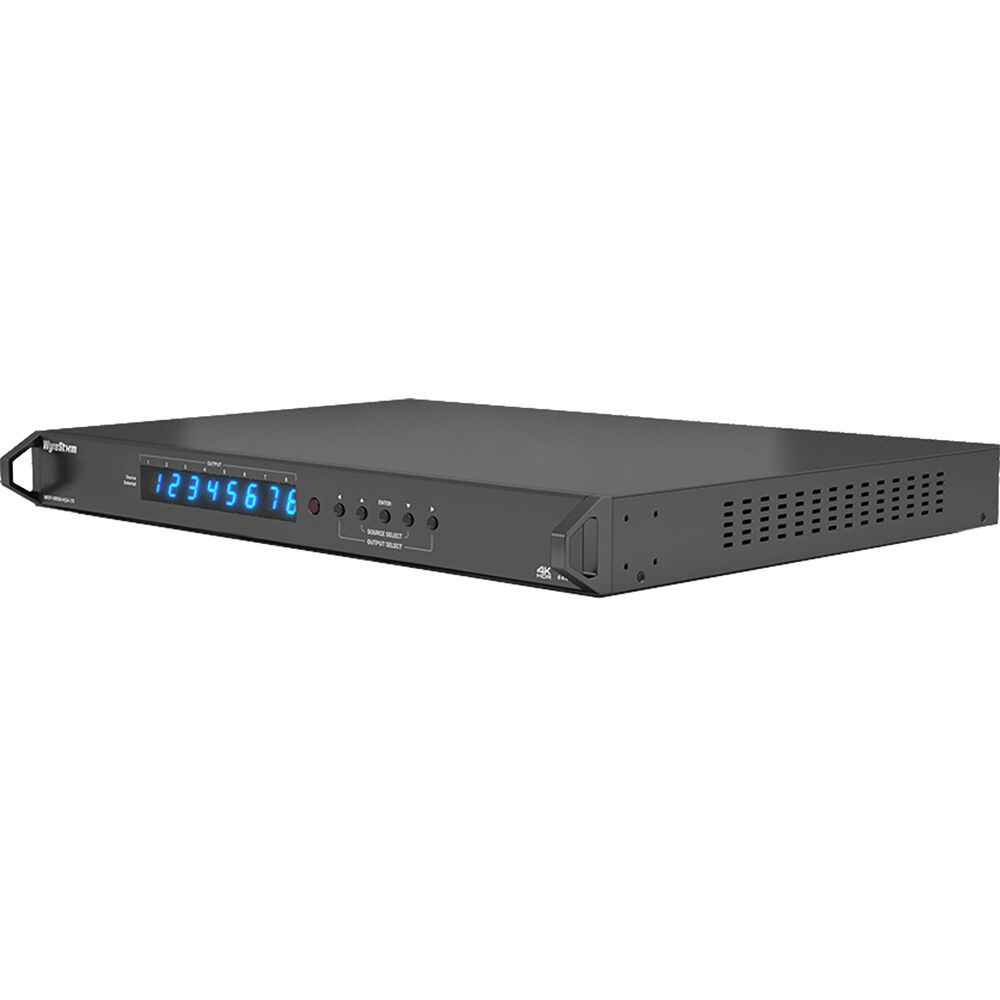

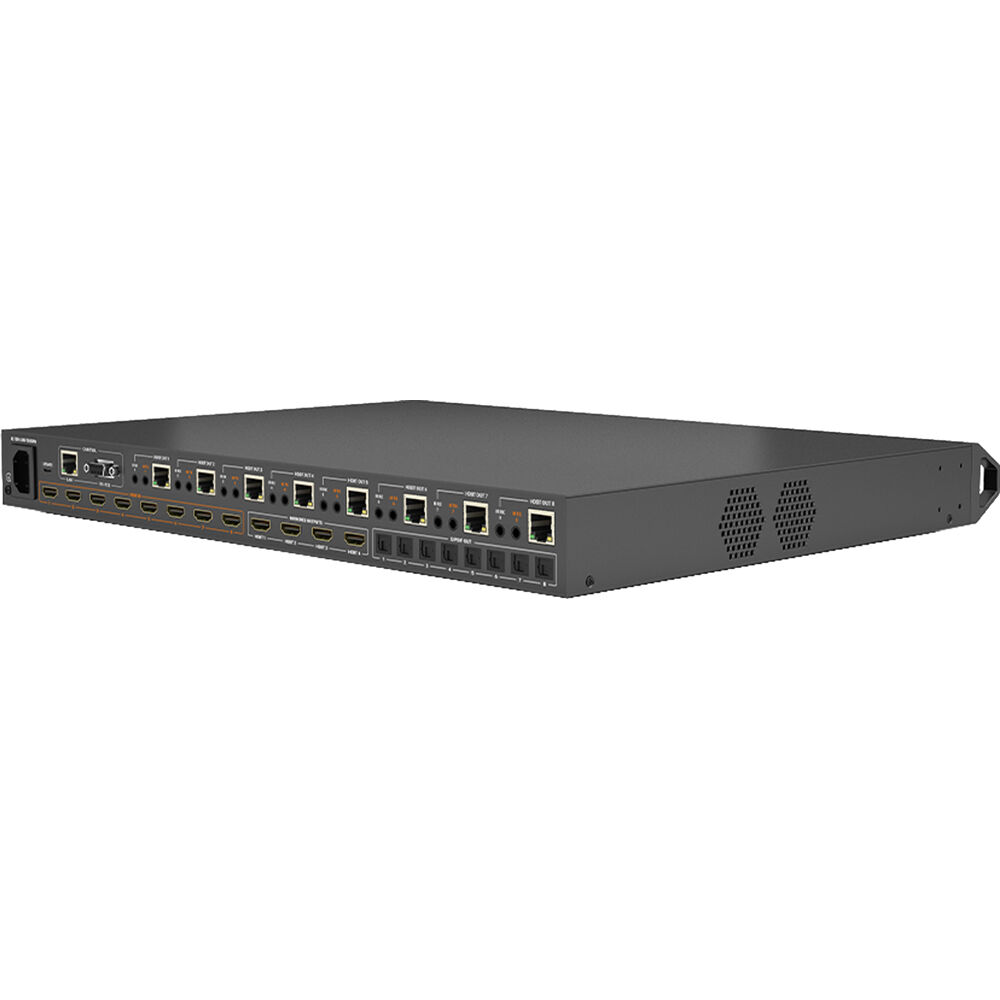

Designed for larger footprint installations, the
MXV-0808-H2A-70 V3 4K60 8x8 HDBaseT Matrix from
WyreStorm transmits HDR HDMI video up to 230' using HDBaseT and powerful, VLC (visually lossless compression) technology to maintain signal integrity. It offers eight HDBaseT zone outputs and four mirrored HDMI outputs that can be paired using separate hybrid optical/HDMI cables. This V3 model features multiple display on/off options including RS-232 zone routing and automatic, API, and custom triggered CEC commands.
DCI 4K60 4:4:4 and HDR
This 8×8 Matrix uses lossless compression technology that originated with the WyreStorm flagship H2XC platform to handle both current and future video content technologies up to DCI 4K60 4:4:4 and high frame rate HDR. This VLC enables you to send the highest current HDMI 2.0 bandwidth to the 8x8 Matrix's eight HDBaseT zones.
Transmits Up to 230'
Ideal for installations with wider-spaced displays, this 8x8 matrix has double the range of other MXV models with a maximum distance of 230'. It can transmit high frame rate HDR or 4:4:4/60 content using Class-A HDBaseT and the latest compression technology.

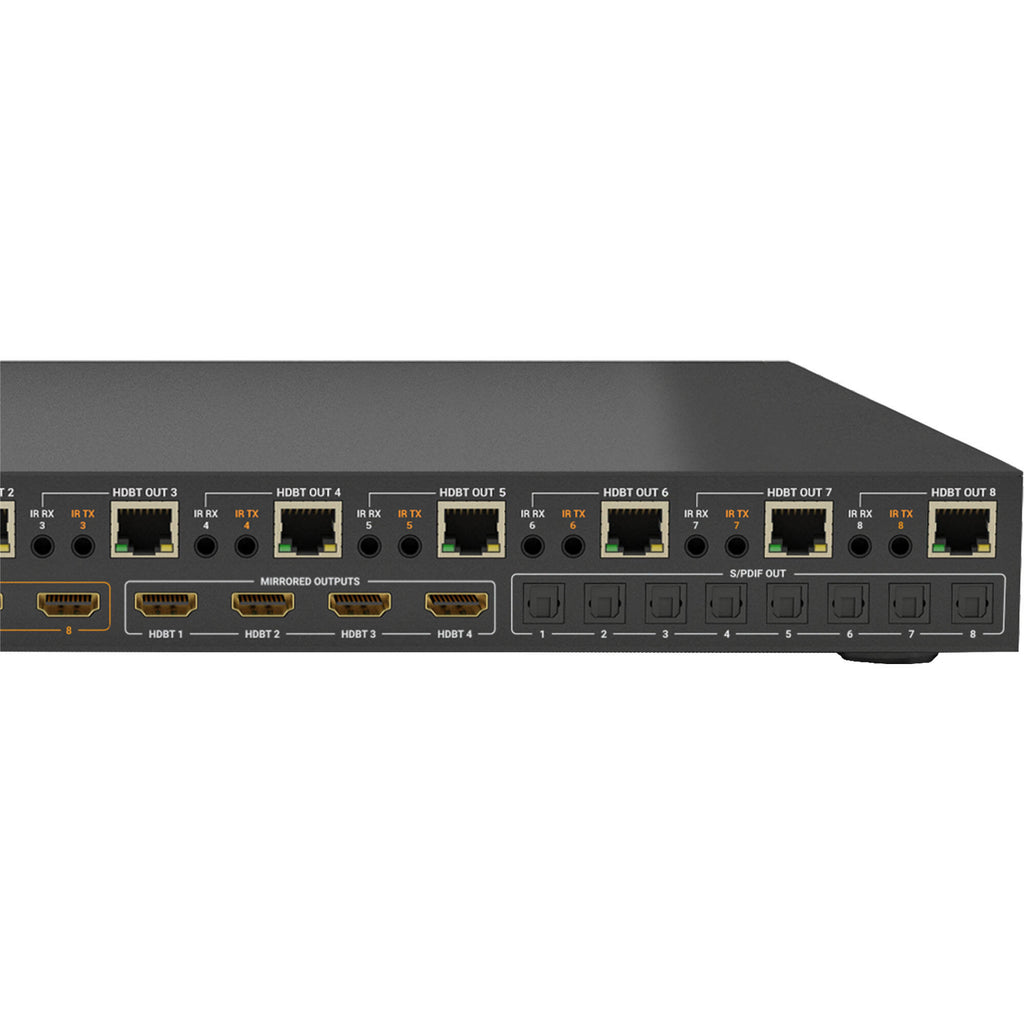

Mirrored HDMI Outputs
Pair this matrix's four HDMI mirrored output ports with WyreStorm's HAOC hybrid optical/HDMI cables to transmit up to 164' or with any extender for HDBaseT or OM3 fiber transmission.
CEC and RS-232 Routing
This MXV 8x8 V3 model enables you to power displays on/off using RS-232 routing to discrete zones and using automatic, API, and custom-generated CEC commands.
De-Embedded Audio
Audio de-embedding enables the MXV 8x8 to extract audio signals from either source devices or from the output, following the zone. S/PDIF connectivity enables this matrix to send multichannel 5.1 audio to local A/V receivers or downmix to stereo using the separate EXP-CON-DAC-D converter.
In the Box
- WyreStorm 0808-H2A-70-V3 8×8 4K60 8x8 HDBaseT Matrix (230')
- AC Power Cord (US/UK/EU/AU)
- IR Remote (CR2025 Battery Not Included)
- 8 x IR Emitter
- 8 x IR Receiver
- 2 x Mounting Bracket with Screws
- Limited 5-Year Manufacturer Warranty
Table of Contents
- Description
- DCI 4K60 4:4:4 and HDR
- Transmits Up to 230'
- Mirrored HDMI Outputs
- CEC and RS-232 Routing
- De-Embedded Audio
WyreStorm MXV-0808-H2A Specs
Processing
| Switching Type |
IR Remote, Pushbutton, Software
|
| Latency |
10 ms
|
| Processing Resolution |
DCI 4K at 60
|
| Color Processing |
12-Bit
10-Bit 4:2:0 8-Bit 4:4:4 |
Input
| Video Inputs |
8x HDMI (2.0)
|
| Input Video Format |
HDMI (8-Bit 4:4:4)
DCI 4K up to 60 fps HDMI (10-Bit 4:2:0) UHD 4K up to 60 fps HDMI (8-Bit 4:4:4) UHD 4K up to 60 fps HDMI (12-Bit) 1080p up to 120 fps |
| Embedded Audio Input |
HDMI: 2-Channel
|
Output
| Video Outputs |
8x RJ45 (HDBaseT)
4x HDMI (2.0) |
| Output Video Format |
HDMI / RJ45 (8-Bit 4:4:4)
DCI 4K up to 60 fps HDMI / RJ45 (10-Bit 4:2:0) UHD 4K up to 60 fps HDMI / RJ45 (8-Bit 4:4:4) UHD 4K up to 30 fps HDMI / RJ45 1080p up to 120 fps |
| Audio Outputs |
8x TOSLINK S/PDIF
|
| Output Audio Format |
LPCM (Linear Pulse-Code Modulation)
|
| Embedded Audio Output |
HDMI: 2-Channel
|
Connectivity
| Other I/O |
8x 1/8" / 3.5 mm IR Input
8x 1/8" / 3.5 mm IR Output 1x RJ45 LAN 1x DE-9/DB-9 RS-232 |
| HDR Compatibility |
HDR10, Dolby Vision, Hybrid Log Gamma
|
| DTS Compatibility |
DTS:X
|
| Dolby Compatibility |
Dolby Atmos
|
Hardware
| Mobile App Compatible |
No
|
| Wi-Fi |
No
|
| Bluetooth |
No
|
Power
| Power I/O |
1x IEC C14 (100 to 240 VAC) Input
|
| Power Consumption |
169 W
|
Environmental
| Operating Temperature |
32 to 113°F / 0 to 45°C
|
| Storage Temperature |
-4 to 158°F / -20 to 70°C
|
| Operating Humidity |
10 to 90%
|
| Storage Humidity |
10 to 90% (Non-Condensing)
|
General
| Certifications |
CE, EAC, FCC, RCM, RoHS
|
| Rack Form Factor |
1 RU
|
| Dimensions |
17.3 x 11.8 x 1.7" / 440 x 300 x 43.5 mm
|
| Weight |
11.77 lb / 5.34 kg
|
