| ₹ 128.97 includes GST and import duties. | |
| B2B customers can avail ₹ 19.67 ITC on this product | |
| 100% Secure Payments | 100% Genuine product |
Description

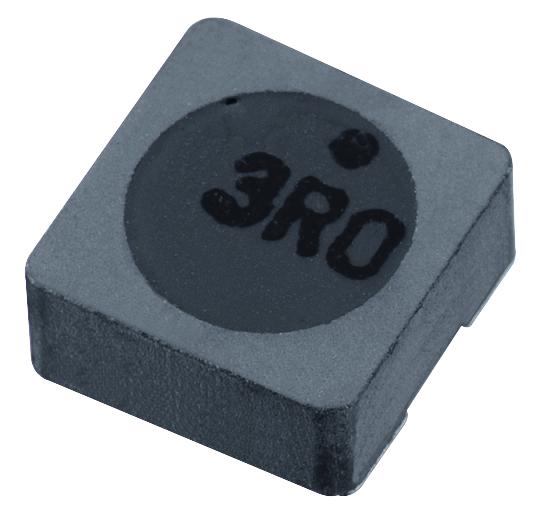

This is a Power Inductor (SMD), 5 µH, 1.65 A, 1.8 A, WE-TPC Series, 5.8mm x 5.8mm x 1.8mm, Shielded product from WURTH ELEKTRONIK with the model number 744052005
Product details
| Inductance | 5µH |
| RMS Current (Irms) | 1.65A |
| Saturation Current (Isat) | 1.8A |
| Product Range | WE-TPC Series |
| Power Inductor Case | 5.8mm x 5.8mm x 1.8mm |
| Inductor Construction | Shielded |
| DC Resistance Max | 0.06ohm |
| Inductance Tolerance | ± 30% |
| Packaging | Cut Tape |
Other details
| Brand | WURTH ELEKTRONIK |
| Part Number | 744052005 |
| Quantity | Each (Supplied on Cut Tape) |
| Technical Data Sheet EN |  |
| Drawing EN | |
| Product Change Notice EN | |
