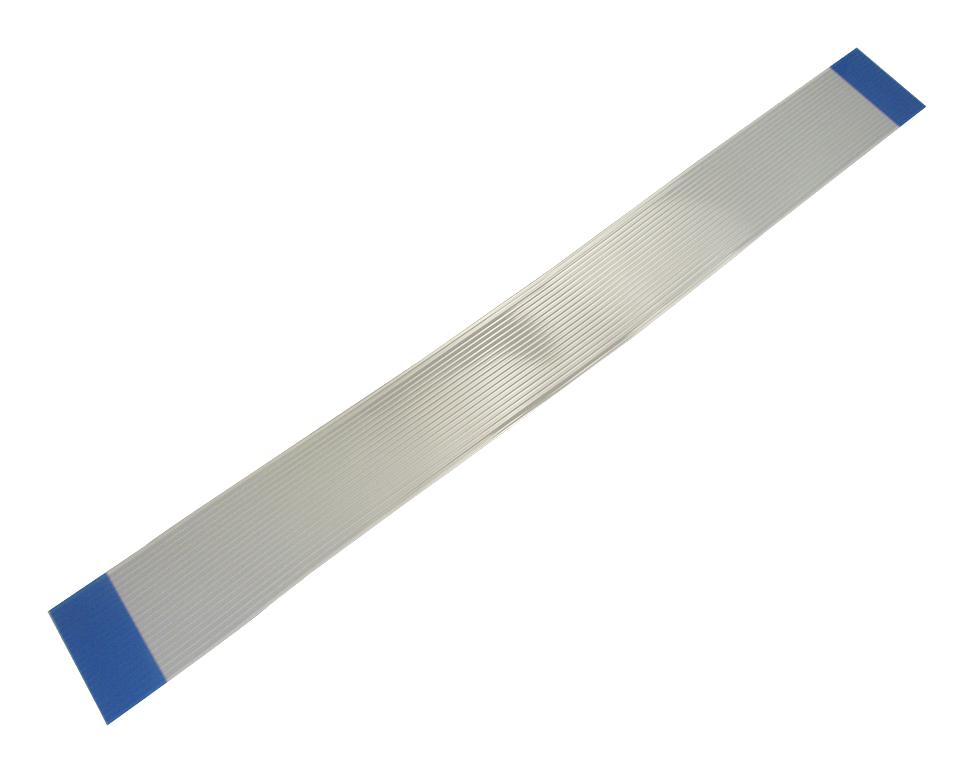

The 687750050002 is a 50mm 50-way type-2 Flat Flexible Cable, contacts opposite, blue PET support tape, tin-plated copper contacts, white PET insulation, 0.5mm pitch. The WR-FFC series flat flexible cable mates with 6871xx14022 and 6873xx124422.
- 0.5A Current rating
- 60V Working voltage
- UL758 Flammability rating
- >1000MR (500VDC) Isolation resistance
- <20mR Contact resistance
- 20 Mating cycles (minimum)
Applications
Industrial, Consumer Electronics
Product details
| No. of Cores |
50Core |
| Pitch Spacing |
0.5mm |
| Contact Orientation |
Opposite Sided Contacts |
| Cable Length - Imperial |
1.97" |
| Cable Length - Metric |
50mm |
| Jacket Colour |
White |
| Product Range |
- |
Other details
| Brand |
WURTH ELEKTRONIK |
| Part Number |
687750050002 |
| Quantity |
Each |
| Technical Data Sheet EN |
 |
