Description

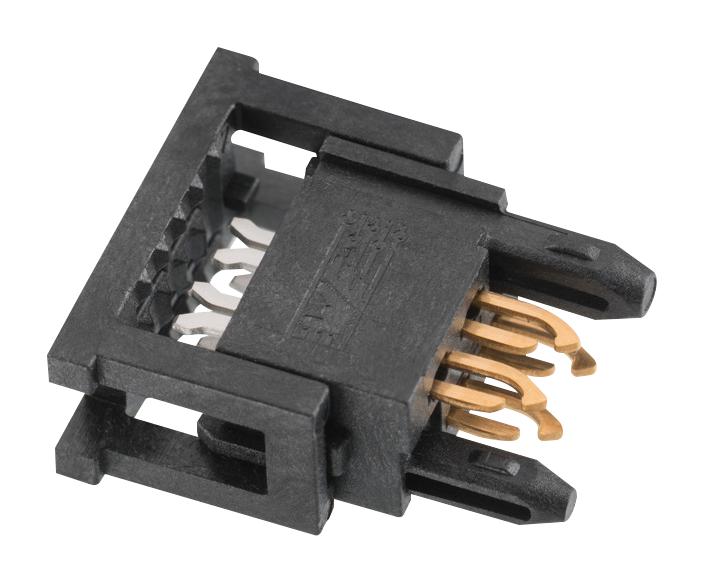

The 490107671012 from Wurth Elektronik is a 10 pin WR-WST REDFIT IDC SKEDD connector.
- Black colour LCP insulator material
- CuNiSi contact material, Au (SKEDD), Sn (IDC) contact plating
- Maximum mating cycle is 10 at standard application and 25 at debugging, programming application
- Insulator flammability rating UL94 V-0
- 1A rated current, 500V (AC) withstanding voltage
- 1000Mohm insulation resistance, 10mohm contact resistance
- Operating temperature range from -25°C to +105°C
- AWG 28/1.27mm ribbon cable
- 20.29mm length
- 1.6mm PCB thickness
Other details
| Brand | WURTH ELEKTRONIK |
| Part Number | 490107671012 |
| Quantity | Each |
| Technical Data Sheet EN |  |
