- Mounts & Adjusts Monitor On Camera Rig
- For Top Handles/Rigs with 15mm Rod Clamp
- LCD Monitor Mounting Bracket
- Tilt, Horizontal, & Vertical Adjustments
- NATO Rail Kit with 15mm Rod & 4" Rail
- UVF v2 Mount with NATO Clamp
- Safety Pin Prevents Accidental Removal
- 1/4"-20 Threaded & Pass-Through Holes
- 3x 1/4"-20 Screws Included
The Wooden Camera UVF Mount LCD enables you to attach a larger LCD monitor to your camera while keeping it horizontally level. It is similar to the UVF Mount LCD Kit, but doesn't include a 15mm rod clamp. Instead, it is designed to be used with top handles or other on-camera hardware that have a rod clamp built-in. It features a NATO rail kit, UVF v2 sled, and LCD bracket that combine to offer tilt, horizontal, and vertical adjustments for positioning your EVF or monitor.
The NATO rail kit consists of a 15mm rod with a 4" NATO rail attached. The rod portion slots into a sideways-oriented rod clamp on your top handle or rig, allowing for tilt and distance adjustment. The included UVF v2 sled slides onto the NATO rail, securing into place using a thumbscrew, and provides attachment points for the LCD bracket. The sled can also attach to any NATO-standard rail.
The LCD bracket features 1/4"-20 threaded and pass-through holes for attaching your LCD monitor. A small spacer piece is included for monitors with video connection ports and controls on the bottom. To prevent the bracket and sled from accidental removal, there is a safety pin at the end of the NATO rail.
-
- UVF Mount without 15mm rod clamp
- Use with top handles or rigs with a built-in sideways-oriented 15mm rod clamp
- For larger sized LCD monitors
- Tension thumbscrew to adjust tilt
- NATO Rail Kit with 15mm rod and 4" NATO rail
- UVF v2 Sled attaches to any NATO compatible rail
- Safety pin on NATO rail prevents accidental removal
- LCD bracket with 1/4"-20 threaded and pass-through holes
- Quick installation and removal
- Screws and Allen wrenches included
UPC: 700987995084
| NATO Rail Length | 4" (10.16 cm) |
| Dimensions | 6.3 x 5.7 x 1.2" (15.88 x 14.53 x 3.08 cm) |
| Weight | 9.5 oz (270 g) |
| Packaging Info |
| Package Weight | 0.55 lb |
| Box Dimensions (LxWxH) | 7.165 x 5.433 x 1.496" |

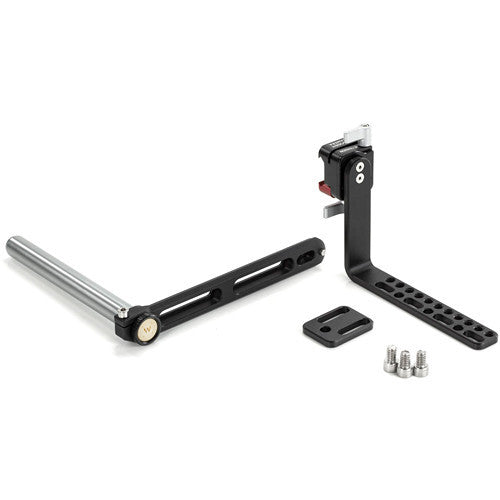

In the Box
Wooden Camera UVF Mount LCD (No Clamp)
- NATO Rail Kit
- UVF v2 Sled
- L-Bracket
- Alpha Adapter for Single 1/4"-20 Screw Hole
- 2 x #6-32 x 1/2" Flat Head Screw
- 3 x 1/4"-20 x 3/8" Socket Cap Screw
- 3/16 Allen Wrench
- 5/64 Allen Wrench
- Limited 1-Year Warranty
