Description
Wooden Camera A00490 Overview

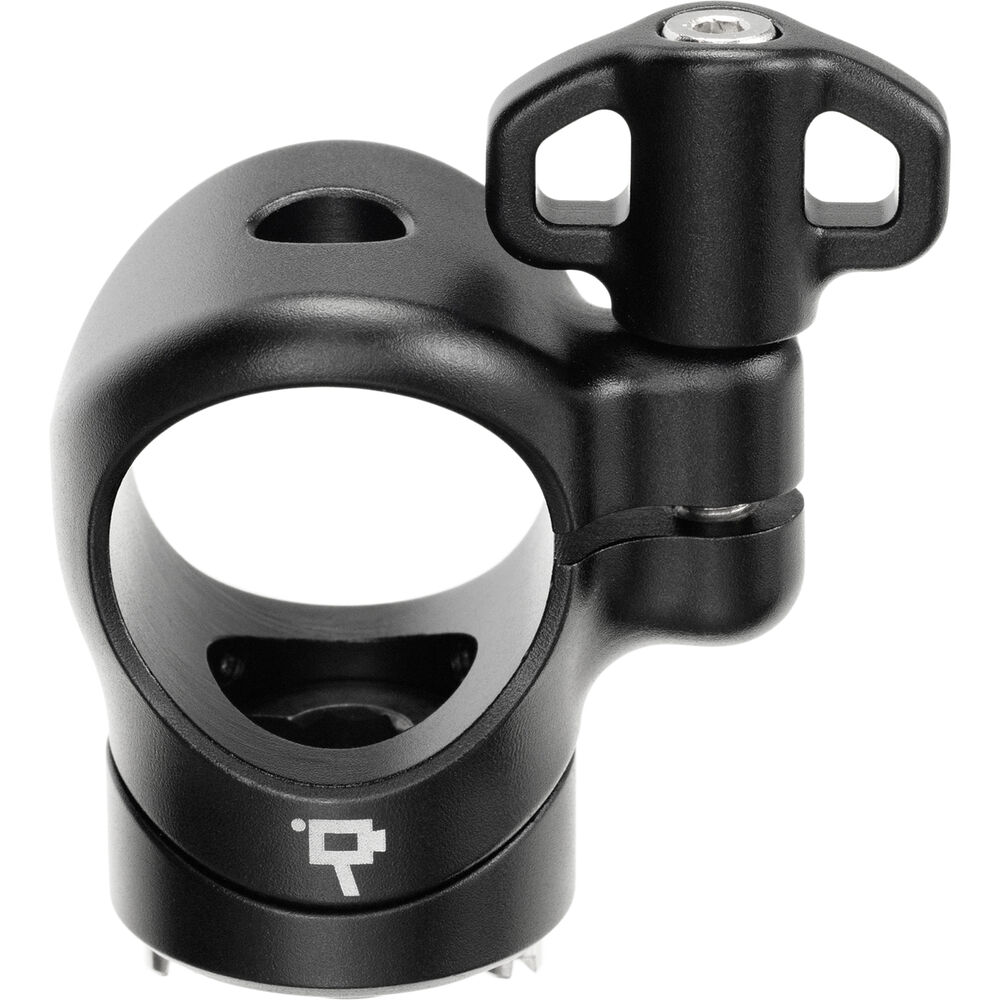

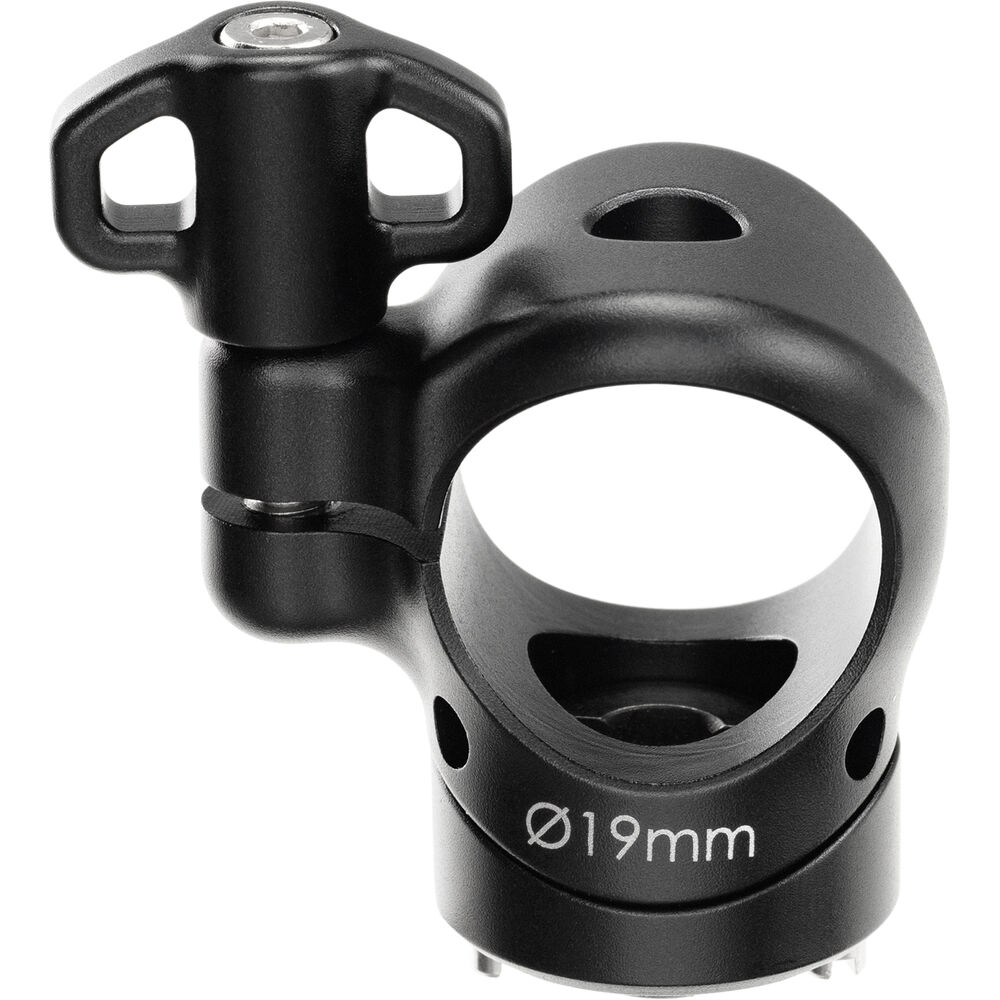

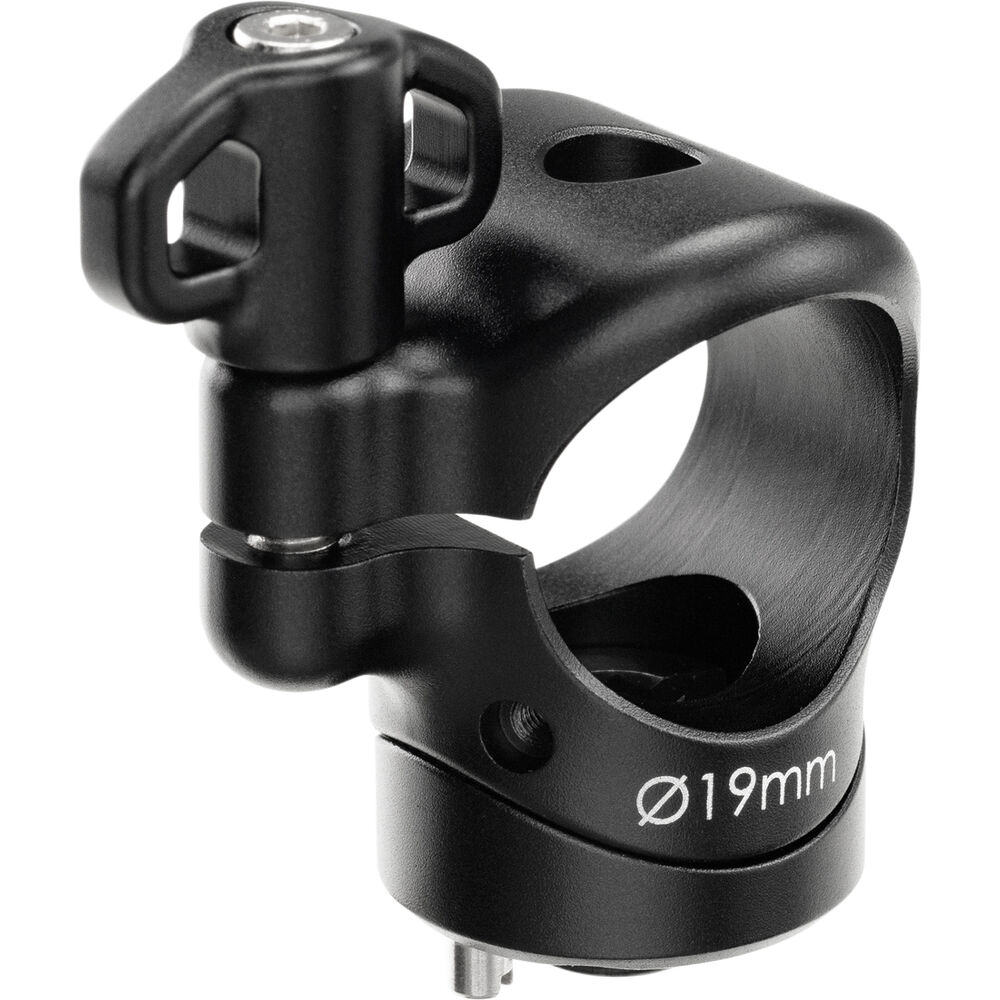

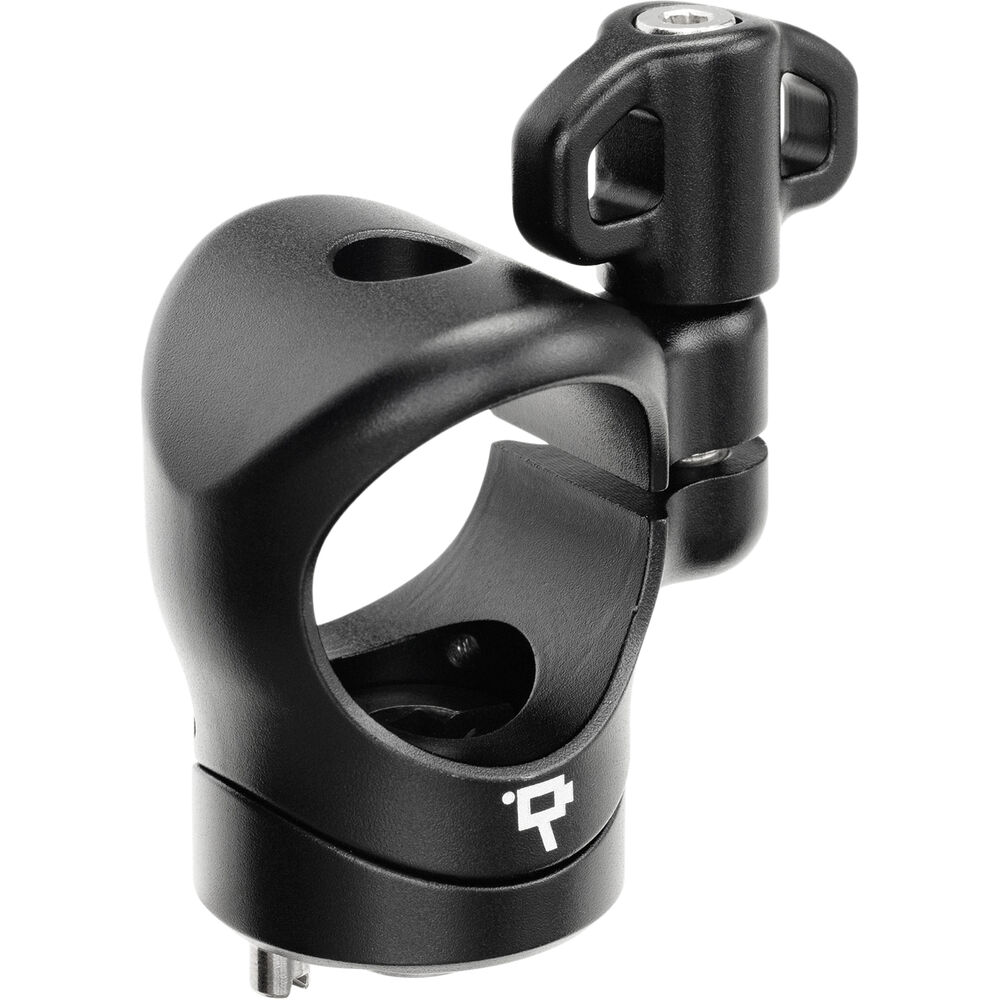

Add a 19mm rod-mounted accessory onto your rig with this Universal 19mm Rod Clamp from Wooden Camera. The compact clamp features a single 19mm rod port that attaches a 19mm rod to any 1/4"-20 or 3/8"-16 mounting point. Three removable bases are included for mounting flexibility, each with appropriate locating pins to match their optional mounting counterparts.
There are 1/4"-20 locating pins compatible with both SmallHD (CS) and ARRI-standard mounting points and 3/8"-16 locating pins compatible with any ARRI-standard mounting point. The rod clamp uses a large locking thumbscrew to secure the device in place, facilitating mounting onto your camera cage or rig to add a follow focus motor, flag, or other accessory. The clamp is compatible with Wooden Camera Bolt-On Accessory Rods for quick and easy accessory attachment.
Items Included
- Wooden Camera Universal 19mm Rod Clamp (3/8"-16, 1/4"-20, 1/4"-20 SmallHD)
- Wooden Camera Rod Clamp Base (3/8"-16, ARRI)
- Wooden Camera Rod Clamp Base (1/4"-20, ARRI)
- Wooden Camera Rod Clamp Base (1/4"-20, SmallHD)
- Limited 1-Year Manufacturer Warranty
Additional Resources
No additional resources available
Wooden Camera A00490 Specs
| Mounting |
Accessory Mount: 1x Included 3/8"-16 Male Screw, 2x Included 1/4"-20 Male Screw
|
| Rod Standard |
19 mm Single Rod
|
| Rod Ports |
1x 19 mm Rod Port
|
| Color |
Black
|
| Pan |
Yes
|
| Tilt |
Yes
|
| Roll |
Yes
|
| Mounting |
Accessory Mount: 1x Included 3/8"-16 Male Screw, 2x Included 1/4"-20 Male Screw
|
| Rod Standard |
19 mm Single Rod
|
| Rod Ports |
1x 19 mm Rod Port
|
| Dimensions |
2.8 x 1.3 x 1" / 70 x 33 x 25 mm
|
| Weight |
1.6 oz / 45.5 g
|
| Package Weight |
0.105 lb
|
| Box Dimensions (LxWxH) |
3.45 x 2.1 x 1.95"
|
