Wooden Camera K10018 Overview
-
1Description
-
2Wooden Camera Full Camera Cage for Panasonic GH6
-
3Wooden Camera Mini Top Handle (3/8"-16)
-
4Wooden Camera LW 15mm Baseplate for Select Sony and FUJIFILM Cameras
-
5Wooden Camera 15mm Support Rod (9")
-
6Wooden Camera Safety Dovetail Plate (8")

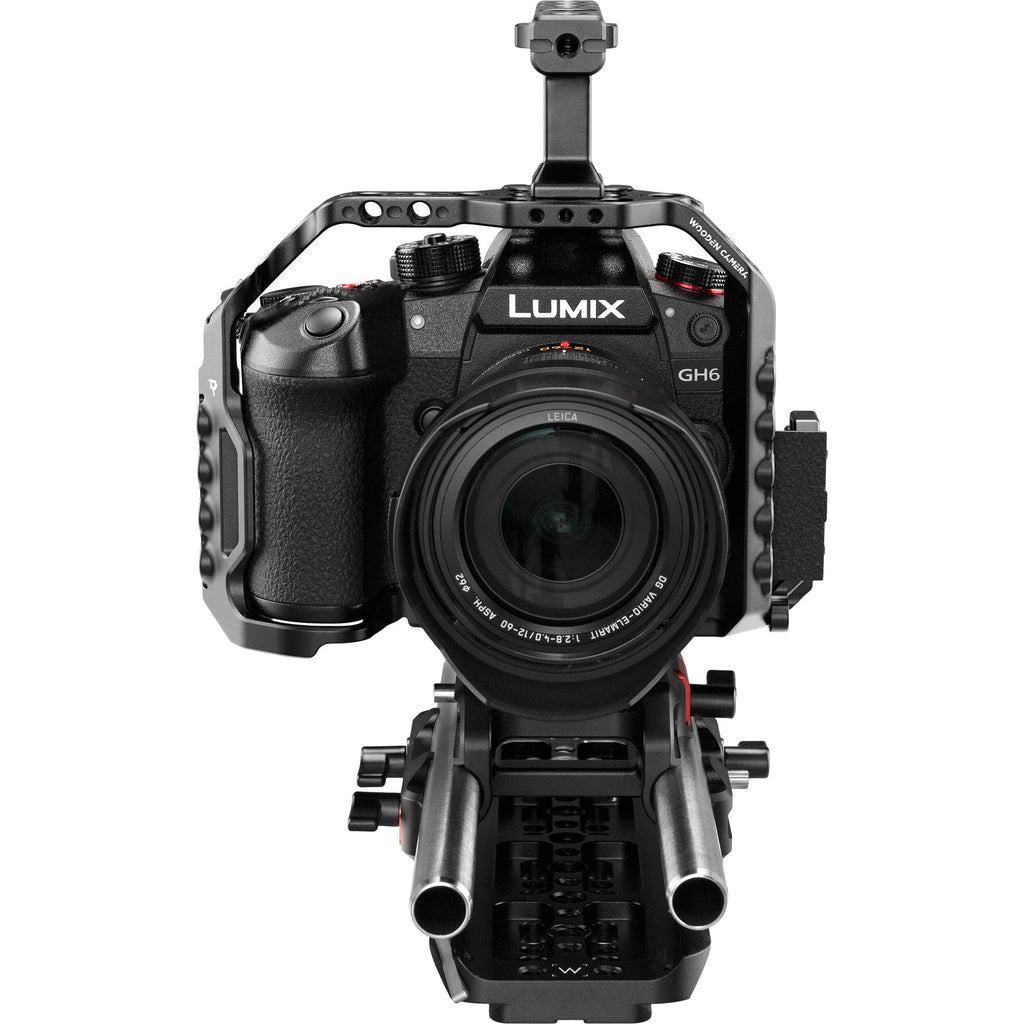

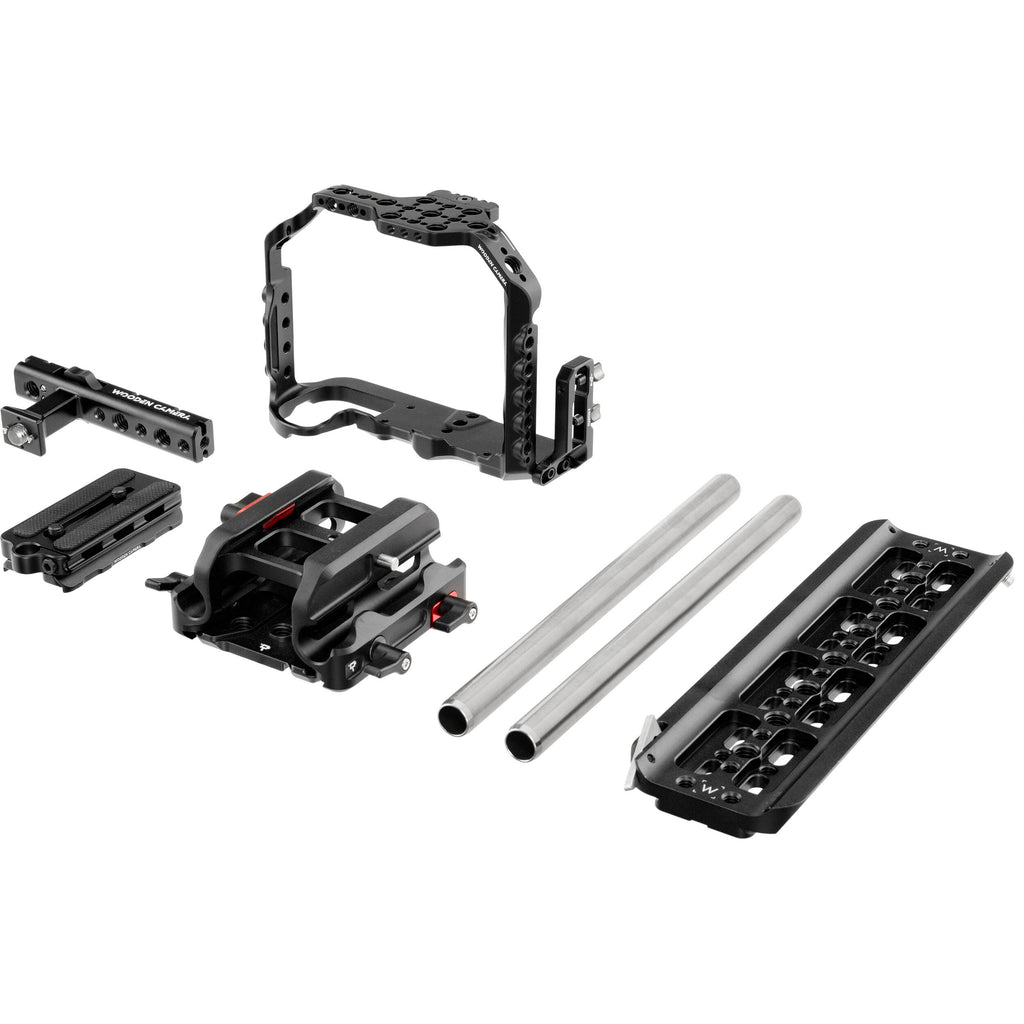

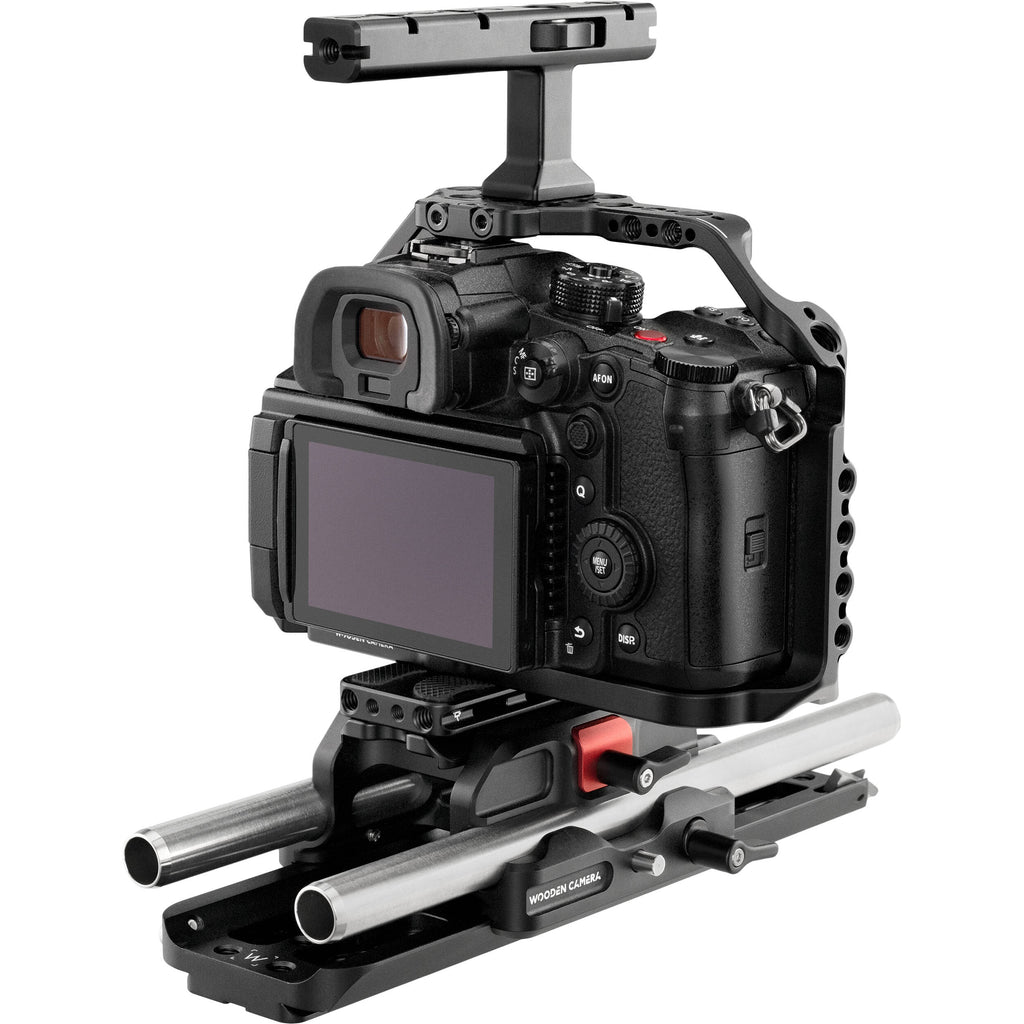

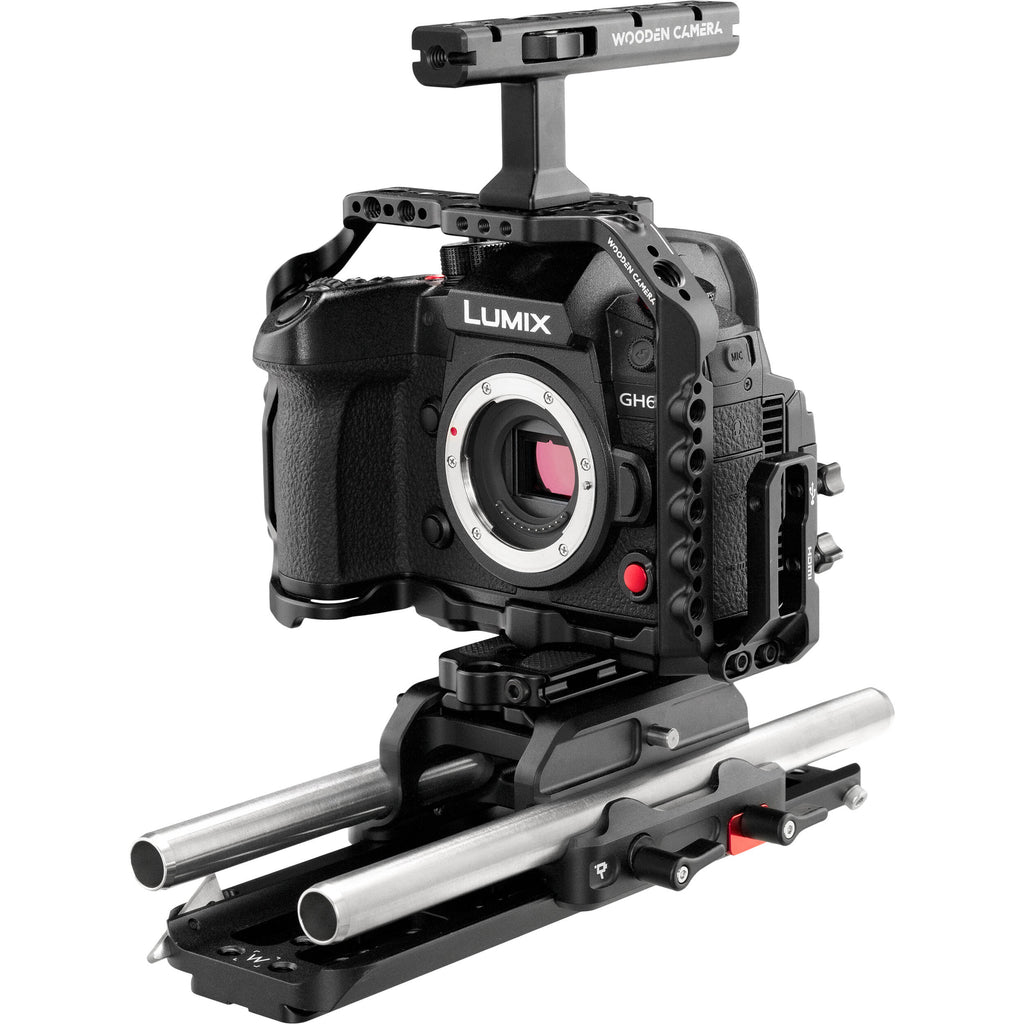

Add a versatile handheld and mounted rig to your Panasonic GH6 camera with this advanced Unified Accessory Kit from Wooden Camera. The kit includes a formfitting cage, a mini top handle, a 15mm LWS baseplate, an 8" safety dovetail, and two 15mm rods that measure 9" in length.
The formfitting cage and top handle both feature multiple 1/4"-20 and 3/8"-16 accessory threads, and the handle mounts on top of the cage using a 3/8"-16 anti-twist screw. The rods insert into the baseplate and the cage mounts on top using a dovetail base. The baseplate raises the camera up and it mounts onto the included 8" safety dovetail, allowing it to balance on your rig.
Wooden Camera Full Camera Cage for Panasonic GH6
Outfit your Panasonic GH6 camera with this Full Camera Cage from Wooden Camera to protect the camera body while expanding its mounting capabilities. Its wraparound custom-fit design offers increased stability to your GH6 without blocking ports and controls, as well as multiple 1/4"-20 and 3/8"-16 threads with anti-twist divots. These allow you to attach an articulating arm, light, mic, or monitor to your handheld configuration.
The cage features a detachable HDMI/USB cable clamp on the side to reduce strain on your HDMI and USB cables and ports on your GH6. On the base, an Arca-type dovetail allows you to mount the cage onto a separately available Arca-type receiver, and it features a quick release plate to quickly mount and unmount the cage. Engraved markings indicate the focal plane of the camera, and location tabs ensure your camera is positioned correctly within the cage.
Wooden Camera Mini Top Handle (3/8"-16)
Add a compact top handle to your camera cage or rig using the 4.3" Mini Top Handle from Wooden Camera. This lightweight handle mounts on your rig via a captive 3/8"-16 screw with detachable ARRI-standard, anti-twist locating pins. The versatile screw mount is attached with an easy-to-use thumbwheel, and it can be further tightened using a flat head screwdriver or either a 5/32" or 4mm Allen key. This aluminum handle features numerous 1/4"-20 threads and 3/8"-16 ARRI-style mounts for attaching a variety of camera accessories.
Wooden Camera LW 15mm Baseplate for Select Sony and FUJIFILM Cameras
Integrate 15mm rod support systems at the correct lens height for your select FUJIFILM or Sony camera using this LW 15mm Baseplate from Wooden Camera. The quick release baseplate has dual 15mm rod ports that have two locking thumbscrews to tighten or release the system. When releasing the baseplate from your support configuration, you can choose to keep the 15mm rods attached or leave them behind. Your camera is secured via two 3/8"-16 screws.
After securing your camera, sliding the quick ARRI standard dovetail onto the system is easy with the engraved arrows. Locating pins on the dovetail give it a more user-friendly design and ensure it locks into the same position every time. A safety release button makes it simple to detach the dovetail as needed. With the dovetail and baseplate attached to each other, you can mount your compatible camera onto Wooden Camera Quick Release Bridgeplates.
Sony FX3, FX30
FUJIFILM GFX100S, X-H2S, X-H2
Wooden Camera 15mm Support Rod (9")
This is a single, 9" long 15mm Support Rod from Wooden Camera for mounting accessories. It is chamfered at each end to ease sliding accessories on and off, and has a hollow interior providing for maximum strength.
Wooden Camera Safety Dovetail Plate (8")
The 8" Safety Dovetail Plate from Wooden Camera is an ARRI standard dovetail with a stopper screw on one end and a safety latch on the other to prevent accidental camera detachment. It features threaded 1/4-20 and 3/8-16 holes for accessory mounting and tripod attachment. The dovetail can be attached to a shoulder pad for custom handheld configurations.
In the Box
- Wooden Camera Full Camera Cage for Panasonic GH6
- HDMI Cable Clamp
- Wooden Camera Arca-Type Dovetail for Panasonic GH6 Cage
- Limited 1-Year Manufacturer Warranty
- Wooden Camera Mini Top Handle (3/8"-16)
- Limited 1-Year Manufacturer Warranty
- Wooden Camera LW 15mm Baseplate for Select Sony and FUJIFILM Cameras
- Limited 1-Year Manufacturer Warranty
- 2 x Wooden Camera 15mm Support Rod (9")
- Limited 1-Year Manufacturer Warranty
- Wooden Camera Safety Dovetail Plate (8")
- Limited 1-Year Manufacturer Warranty
Table of Contents
- Description
- Wooden Camera Full Camera Cage for Panasonic GH6
- Wooden Camera Mini Top Handle (3/8"-16)
- Wooden Camera LW 15mm Baseplate for Select Sony and FUJIFILM Cameras
- Wooden Camera 15mm Support Rod (9")
- Wooden Camera Safety Dovetail Plate (8")
Wooden Camera Full Camera Cage for Panasonic GH6 Specs
Mounting
| Battery Plate Type |
None |
| Accessory Mounting |
Multiple x Anti-Twist 1/4"-20 Female Thread, Multiple x Anti-Twist 3/8"-16 Female Thread |
| Camera Mounting |
Arca-Type Plate |
| Tripod Mounting |
1/4"-20 Female Thread, 3/8"-16 Female Thread |
| Shoe Mounting |
None |
| Rosettes |
None |
General
| Support Type |
Cage |
| Grip Type |
None |
| Camera Compatibility |
Panasonic DC-GH6 |
| Dimensions |
6.3 x 4.6 x 2.5" / 161 x 118 x 63 mm |
| Weight |
10.9 oz / 308 g |
Wooden Camera Mini Top Handle (3/8"-16) Specs
| Item Type |
Topside Handle |
| Rotation |
No |
| Built-In Controls |
None |
Mounting
| Attachment Method |
Attaches via 1 x Built-In 3/8"-16 Screw |
| Accessory Mounting |
5 x 1/4"-20 Thread
3 x ARRI Anti-Twist 3/8"-16 Thread |
| Shoe Mounting |
None |
| Rosettes |
None |
| Rail Mounting |
None |
General
| Materials |
Aluminum |
| Dimensions |
4.3 x 2 x 0.8" / 110 x 50 x 20 mm |
| Weight |
3.5 oz / 98 g |
Packaging Info
| Package Weight |
0.26 lb |
| Box Dimensions (LxWxH) |
4.8 x 2.4 x 1.1" |
Wooden Camera LW 15mm Baseplate for Select Sony and FUJIFILM Cameras Specs
| Support Type |
Baseplate |
| Grip Type |
None |
| Camera Compatibility |
FUJIFILM GFX 100S |
Mounting
| Rod Standard |
15 mm (Unspecified Spacing) |
| Battery Plate Type |
None |
| Accessory Mounting |
None |
| Camera Mounting |
Arca-Type Plate with 3/8"-16 Male Screw |
| Tripod Mounting |
Baseplate: ARRI Dovetail |
| Rod Ports |
2 x 15 mm Rod Port |
| Shoe Mounting |
None |
| Rosettes |
None |
General
| Dimensions |
2 x 4.6 x 3.5" / 50 x 118 x 90 mm |
| Weight |
12.3 oz / 348 g |
Packaging Info
| Package Weight |
0.81 lb |
| Box Dimensions (LxWxH) |
18.9 x 7.1 x 2.1" |
Wooden Camera 15mm Support Rod (9") Specs
| Rod Size |
15 mm |
| Rod Length |
9" (23 cm) |
Packaging Info
| Package Weight |
0.27 lb |
| Box Dimensions (LxWxH) |
9 x 1.15 x 0.7" |
Wooden Camera Safety Dovetail Plate (8") Specs
| Dimensions |
8.0 x 2.7 x 0.5" / 20.3 x 6.8 x 1.3 cm |
| Weight |
0.6 lb / 0.3 kg |
Packaging Info
| Package Weight |
0.635 lb |
| Box Dimensions (LxWxH) |
9 x 2.8 x 0.65" |
