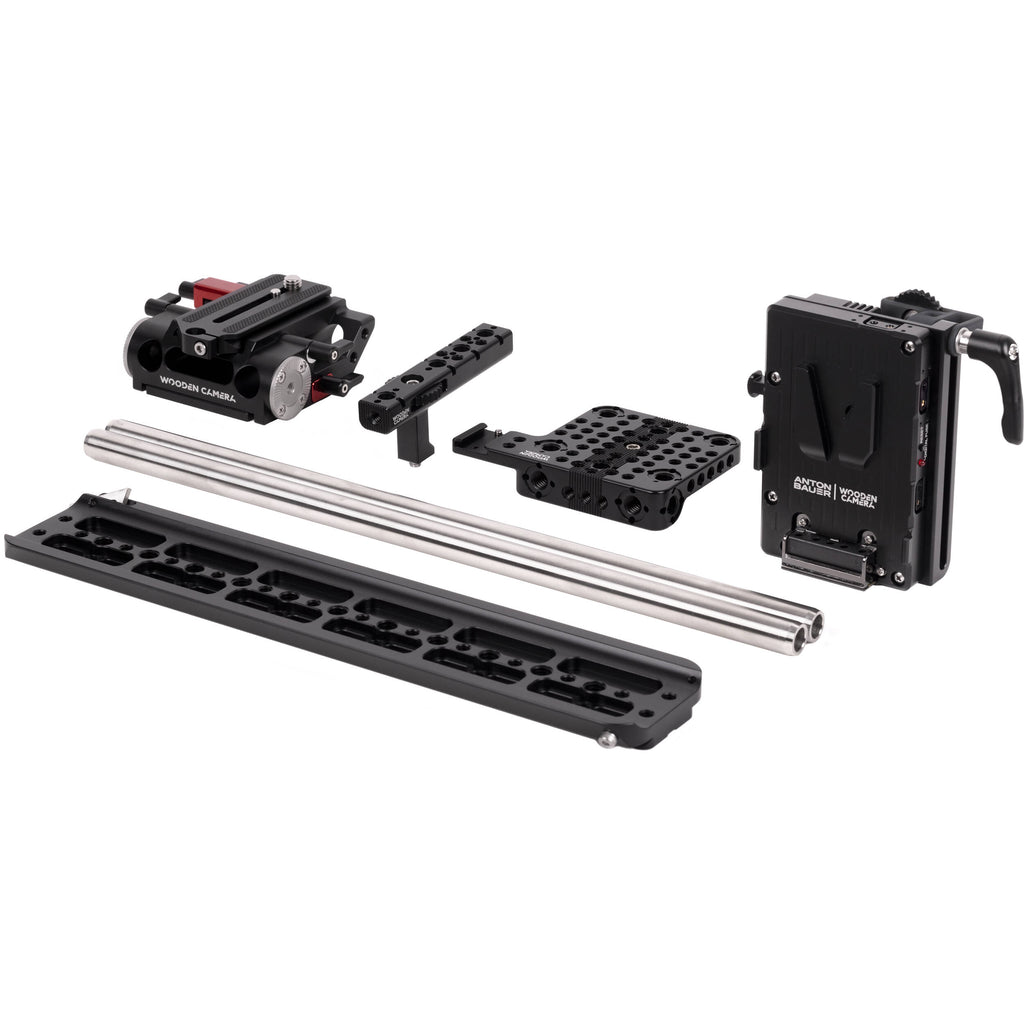

Wooden Camera Unified Accessory Kit for Canon C70 (Pro, V-Mount)

Add a quick release baseplate and additional accessories to your Canon C70 rig with this 15mm LWS Baseplate from Wooden Camera. The durable aluminum baseplate functions as both a riser and a 15mm LWS rod support, and it features multiple accessory attachment points.

The riser baseplate features an Arca-type quick release dovetail plate with a 3/8"-16 camera screw and a push/pull safety pin to keep your camera from twisting. On the front of the dovetail is a vertical rod port that allows you to add an optional vertical lens support.

The base features standard 15mm rod ports that secure with locking levers, multiple 1/4"-20 threads, and one 3/8"-16 ARRI-style accessory mount for additional gear. There is an ARRI-style rosette with an M6 thread on either side for adding a handgrip or extension arm. The bottom of the plate features an ARRI-standard dovetail mount and a quick dovetail plate with multiple threads to mount the baseplate onto a bridge plate or rig.

Compatibility

Add a top handle for accessories, to create low-angle shots, and to safely carry your Canon C70 camera using this Mini Top Handle from Wooden Camera. The compact top handle interlocks with any Canon Accessory Mount hot shoe, such as the one on the C70 camera, or it can mount onto the Wooden Camera top plate for the C70 using its 1/4"-20 mounting screw, which is tightened with an easy-to-use thumbwheel.

The aluminum handle features numerous 1/4"-20 threads and 3/8"-16 ARRI-style accessory mounts to add articulating arms and accessories, and it also features Canon Accessory Mounts on the front and rear of the handle.

Compatibility

Add accessories such as a top handle, extension arms, a monitor, or an EVF mount to your Canon C70 camera with this Top Plate from Wooden Camera. The aluminum top plate features numerous 1/4"-20 and 3/8"-16 ARRI-style anti-twist accessory threads that can be used to mount a top handle, and it features an offset shoe mount to install an additional accessory.

The plate mounts on top of the camera using its Canon Accessory Mount and the captive 1/4"-20 screw, and there are also multiple Canon Accessory Mounts along the center of the top plate.

Compatibility

The 12" Safety Dovetail Plate from Wooden Camera is an ARRI standard dovetail with a stopper screw on one end and a safety latch on the other to prevent accidental camera detachment. It features threaded 1/4-20 and 3/8-16 holes for accessory mounting and tripod attachment. The dovetail can be attached to a shoulder pad for custom handheld configurations.

Add a high-capacity, professional V-mount battery to your Canon C70 camera with this Battery Slide Pro from Wooden Camera. The slide mounts onto any Canon Accessory Mount by interlocking with the mount and securing the 1/4"-20 screw. It supports a single V-mount battery that powers the camera via a DC barrel connector while leaving access to the camera's standard BP-U battery compartment, so hot swapping is supported.

The Battery Slide Pro also features three D-Tap ports for powering accessories, and its integrated digital fuse monitors the D-Tap ports and disables them if they exceed the set current for accessories while leaving the camera running. Once the load has been reduced by removing accessories or otherwise, a reset button can be pressed to enable accessory power again.

Once the Battery Slide Pro is attached, the battery plate position can be adjusted by loosening a lever and sliding the plate.

Compatibility

This is a single, 15" long 15mm Support Rod from Wooden Camera for mounting accessories. It is chamfered at each end to ease sliding accessories on and off, and has a hollow interior providing for maximum strength.

Wooden Camera 15mm LWS Baseplate for Canon C70 Specs

Wooden Camera Mini Top Handle for Canon C70 Specs
