Description
Wooden Camera 288700 Overview
- 1Description
- 2Wooden Camera 15mm LWS Baseplate for Canon C70
- 3Wooden Camera Mini Top Handle for Canon C70
- 4Wooden Camera Top Plate for Canon C70
- 5Wooden Camera 15mm Support Rod (12")

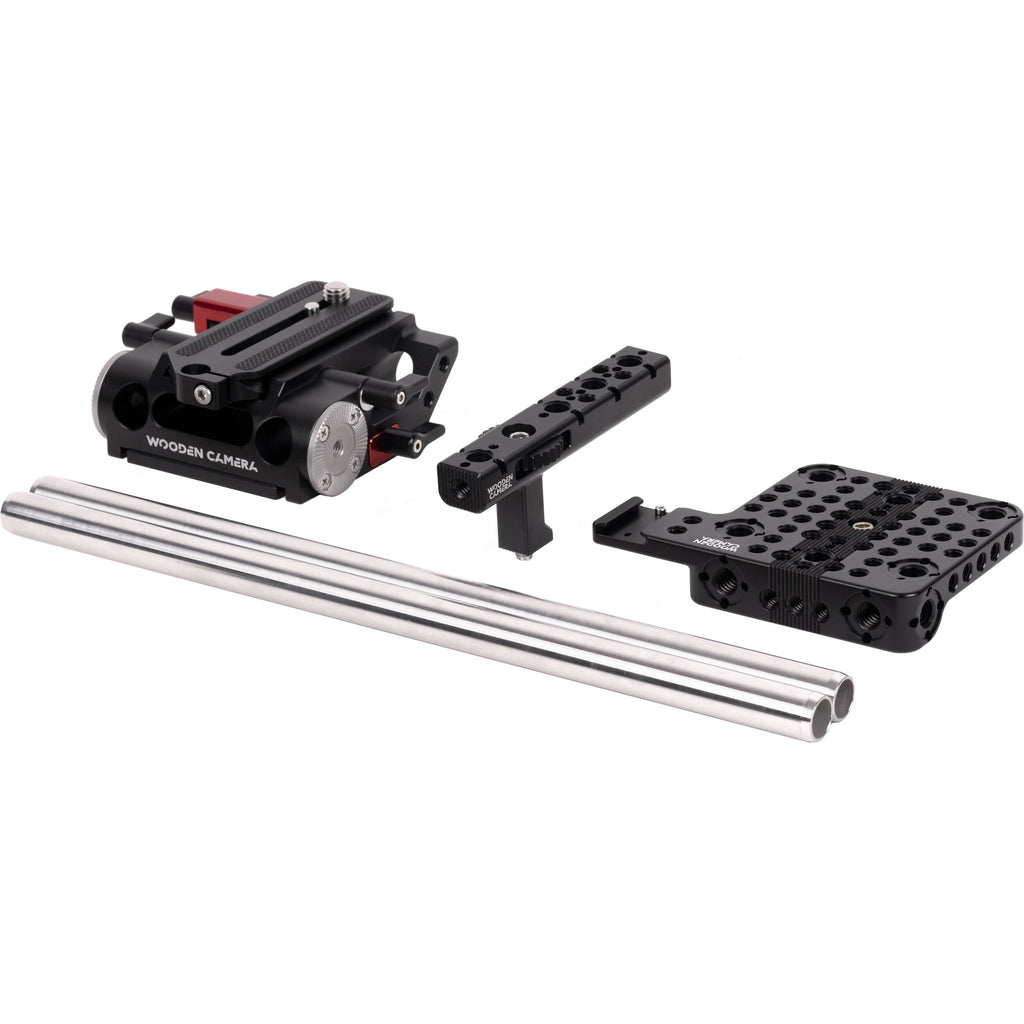

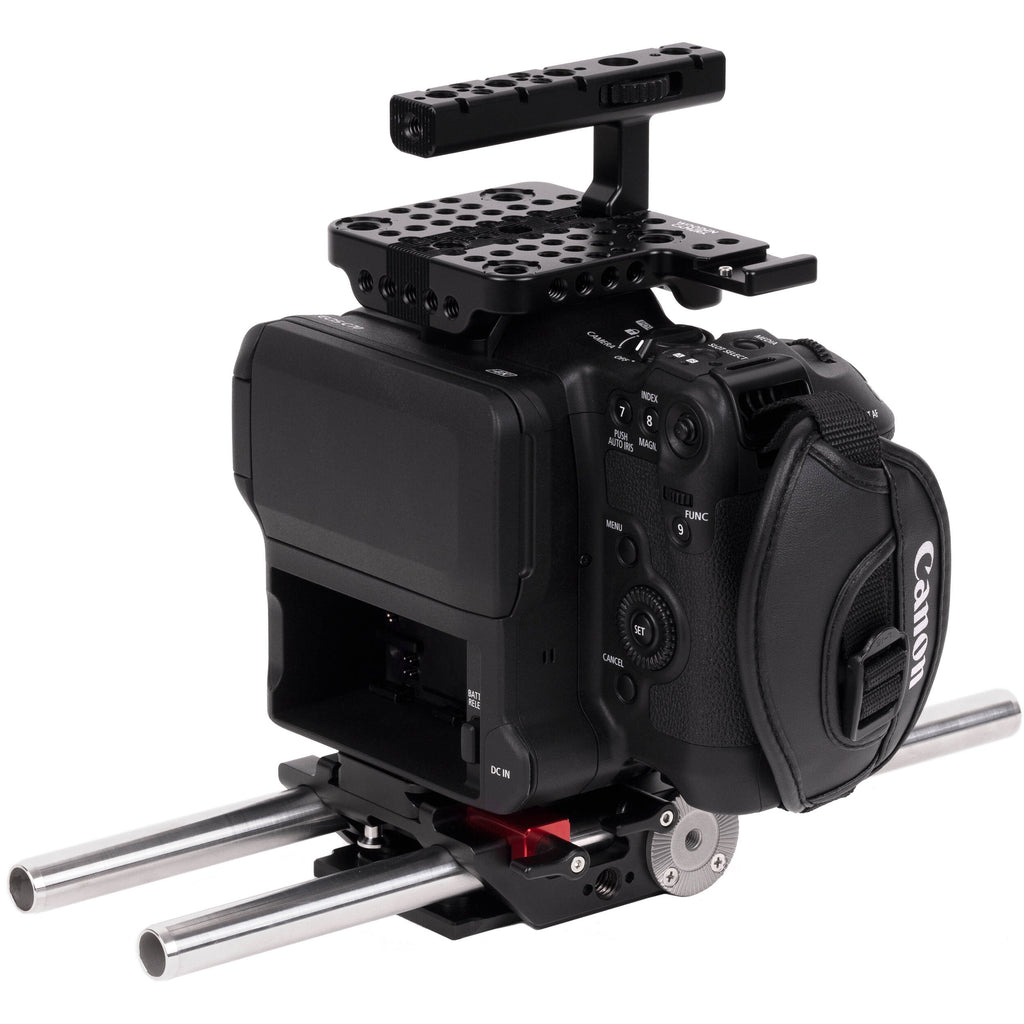

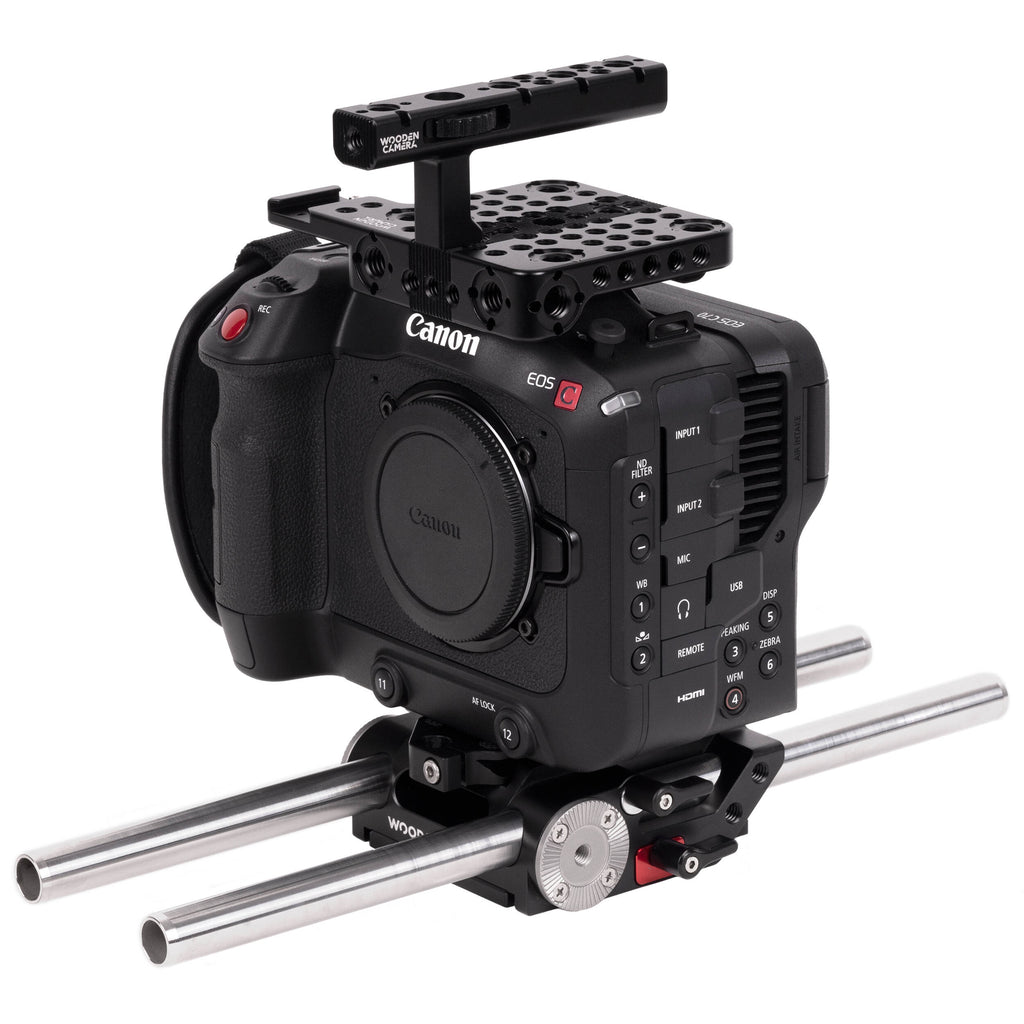

Set up your Canon C70 camera with support and accessories using this Base Unified Accessory Kit from Wooden Camera. The kit includes a 15mm LWS baseplate, a top plate, a mini top handle, and two 12" long 15mm rods.
The baseplate features 15mm LWS rod ports that fit the included 12" 15mm rods, a quick release Arca-type dovetail camera plate with a vertical lens support rod port, a 3/8"-16 camera screw, two rosettes on either side, multiple 1/4"-20 threads, one 3/8"-16 ARRI-style accessory mount, and a quick dovetail baseplate. The cheese-style top plate mounts on top of the camera and features multiple 1/4"-20 and 3/8"-16 ARRI-style threads and an offset shoe mount. The compact top handle mounts onto the top plate and also offers multiple mounting threads.
Add a quick release baseplate and additional accessories to your Canon C70 rig with this 15mm LWS Baseplate from Wooden Camera. The durable aluminum baseplate functions as both a riser and a 15mm LWS rod support, and it features multiple accessory attachment points.
The riser baseplate features an Arca-type quick release dovetail plate with a 3/8"-16 camera screw and a push/pull safety pin to keep your camera from twisting. On the front of the dovetail is a vertical rod port that allows you to add an optional vertical lens support.
The base features standard 15mm rod ports that secure with locking levers, multiple 1/4"-20 threads, and one 3/8"-16 ARRI-style accessory mount for additional gear. There is an ARRI-style rosette with an M6 thread on either side for adding a handgrip or extension arm. The bottom of the plate features an ARRI-standard dovetail mount and a quick dovetail plate with multiple threads to mount the baseplate onto a bridge plate or rig.
Also compatible with but not limited to:
Wooden Camera Quick Release Bridgeplate (19mm) 277000
Wooden Camera Quick Release Bridgeplate (15mm Studio) 277100
Add a top handle for accessories, to create low-angle shots, and to safely carry your Canon C70 camera using this Mini Top Handle from Wooden Camera. The compact top handle interlocks with any Canon Accessory Mount hot shoe, such as the one on the C70 camera, or it can mount onto the Wooden Camera top plate for the C70 using its 1/4"-20 mounting screw, which is tightened with an easy-to-use thumbwheel.
The aluminum handle features numerous 1/4"-20 threads and 3/8"-16 ARRI-style accessory mounts to add articulating arms and accessories, and it also features Canon Accessory Mounts on the front and rear of the handle.
Compatible with but not limited to:
Wooden Camera Top Plate for Canon C70 288200
Wooden Camera Monitor Hinge 282800
Add accessories such as a top handle, extension arms, a monitor, or an EVF mount to your Canon C70 camera with this Top Plate from Wooden Camera. The aluminum top plate features numerous 1/4"-20 and 3/8"-16 ARRI-style anti-twist accessory threads that can be used to mount a top handle, and it features an offset shoe mount to install an additional accessory.
The plate mounts on top of the camera using its Canon Accessory Mount and the captive 1/4"-20 screw, and there are also multiple Canon Accessory Mounts along the center of the top plate.
Compatible with but not limited to:
Wooden Camera Monitor Hinge 282800
Wooden Camera Mini Top Handle 282700
This is a single, 12" long 15mm Support Rod from Wooden Camera for mounting accessories. It is chamfered at each end to ease sliding accessories on and off, and has a hollow interior providing for maximum strength.
In the Box
- Wooden Camera 15mm LWS Baseplate for Canon C70
- Arca-Type Dovetail Camera Plate
- Quick Dovetail Plate
- Wooden Camera Mini Top Handle for Canon C70
- Wooden Camera Top Plate for Canon C70
- 2 x Wooden Camera 15mm Support Rod (12")
- Description
- Wooden Camera 15mm LWS Baseplate for Canon C70
- Wooden Camera Mini Top Handle for Canon C70
- Wooden Camera Top Plate for Canon C70
- Wooden Camera 15mm Support Rod (12")
Wooden Camera 15mm LWS Baseplate for Canon C70 Specs
| Rod Standard | 15 mm LWS / 60 mm Spacing |
| Battery Plate Type | None |
| Accessory Mounting | Baseplate: Multiple x 1/4"-20 Thread, 1 x ARRI Anti-Twist 3/8"-16 Thread |
| Camera Mounting | Arca-Type Plate with 3/8"-16 Screw |
| Tripod Mounting | Baseplate: 1/4"-20 Thread, 3/8"-16 Thread, ARRI Dovetail, ARRI Dovetail Clamp |
| Rod Ports | Baseplate: 2 x 15 mm Rod Port |
| Shoe Mounting | None |
| Rosettes | 2 x ARRI Rosette w/ M6 Thread |
| Support Type | Baseplate, Rod Support System |
| Grip Type | None |
| Camera Compatibility | Canon EOS C70 |
| Materials | Aluminum |
| Dimensions | 4.7 x 3.5 x 1.6" / 120 x 90 x 40 mm |
| Weight | 14.1 oz / 400 g |
| Package Weight | 0.91 lb |
| Box Dimensions (LxWxH) | 5.1 x 4.75 x 1.95" |
Wooden Camera Mini Top Handle for Canon C70 Specs
| Item Type | Topside Handle |
| Rotation | No |
| Built-In Controls | None |
| Attachment Method | Attaches via 1 x Built-In 1/4"-20 Screw |
| Accessory Mounting | 4 x 1/4"-20 Thread 4 x ARRI Anti-Twist 3/8"-16 Thread |
| Shoe Mounting | None |
| Rosettes | None |
| Rail Mounting | None |
| Materials | Aluminum |
| Dimensions | 4.2 x 2 x 1.2" / 106.6 x 50.8 x 31.7 mm |
| Weight | 3 oz / 84 g |
| Package Weight | 0.195 lb |
| Box Dimensions (LxWxH) | 3.95 x 3.85 x 1.05" |
Wooden Camera Top Plate for Canon C70 Specs
| Material of Construction | Aluminum |
| Mounting Interface | 1 x Canon Accessory Mount with 1/4"-20 Screw |
| Accessory Mounting | Multiple 1/4"-20 and 3/8"-16 ARRI-Style Accessory 1 x Shoe Mount Multiple Canon Accessory Mounts |
| Dimensions | 4.7 x 3.1 x 0.7" / 120 x 80 x 20 mm |
| Weight | 5.3 oz / 150 g |
| Package Weight | 0.345 lb |
| Box Dimensions (LxWxH) | 4.85 x 3.6 x 1" |
Wooden Camera 15mm Support Rod (12") Specs
| Rod Size | 15 mm |
| Rod Length | 12" (30.5 cm) |
| Package Weight | 0.34 lb |
| Box Dimensions (LxWxH) | 12.05 x 1.35 x 0.6" |
