Description
Wooden Camera A00602 Overview

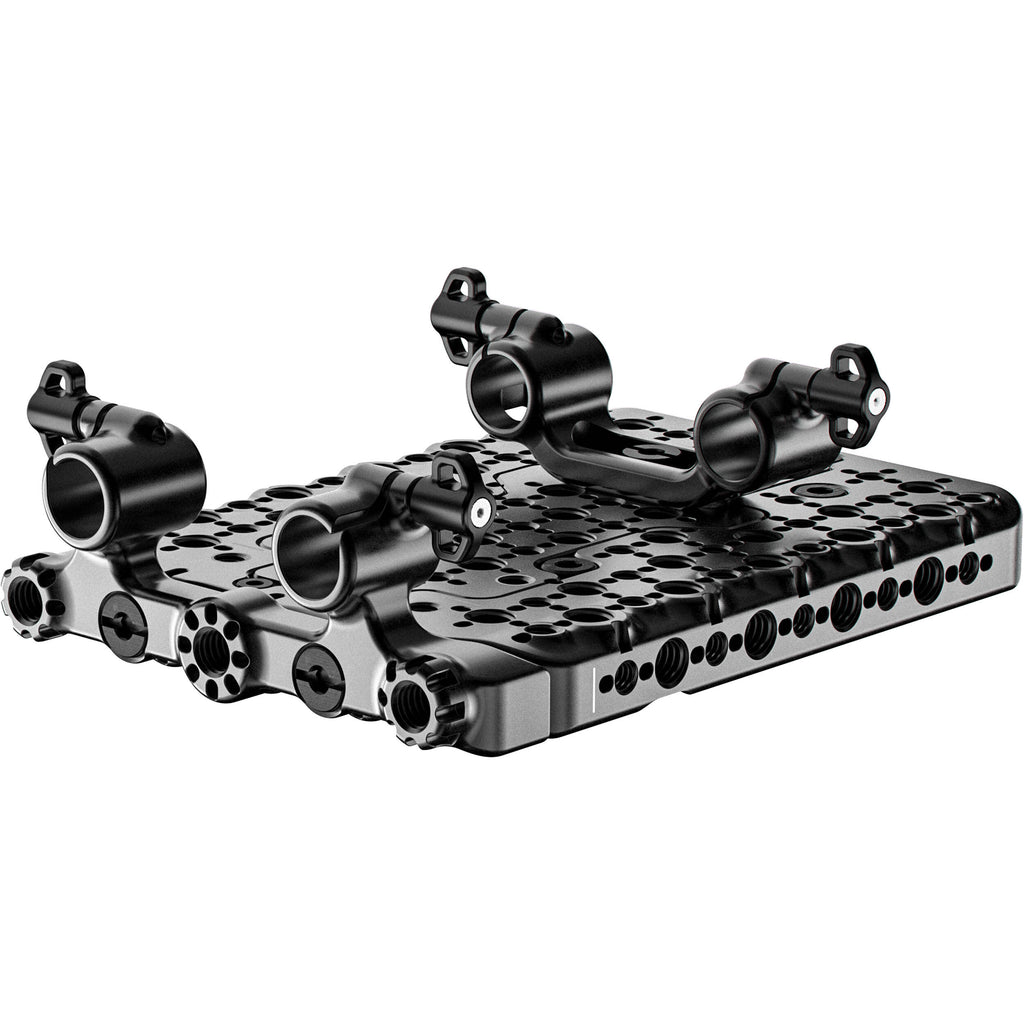

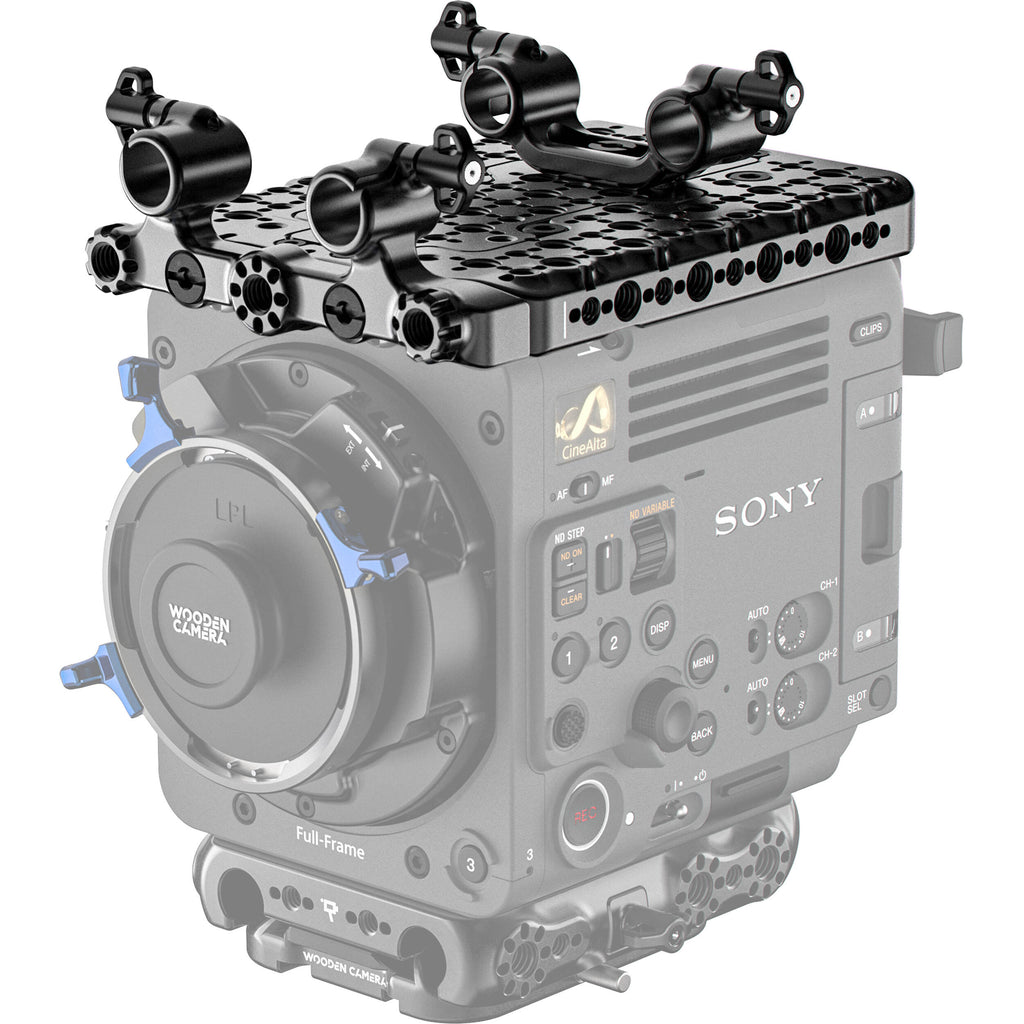

Add a versatile Top Plate System from Wooden Camera to your Sony BURANO cinema camera. The system is made up of a cheese-style top plate, a front dual 15mm LWS rod clamp, and a 15mm LWS upper rod clamp.

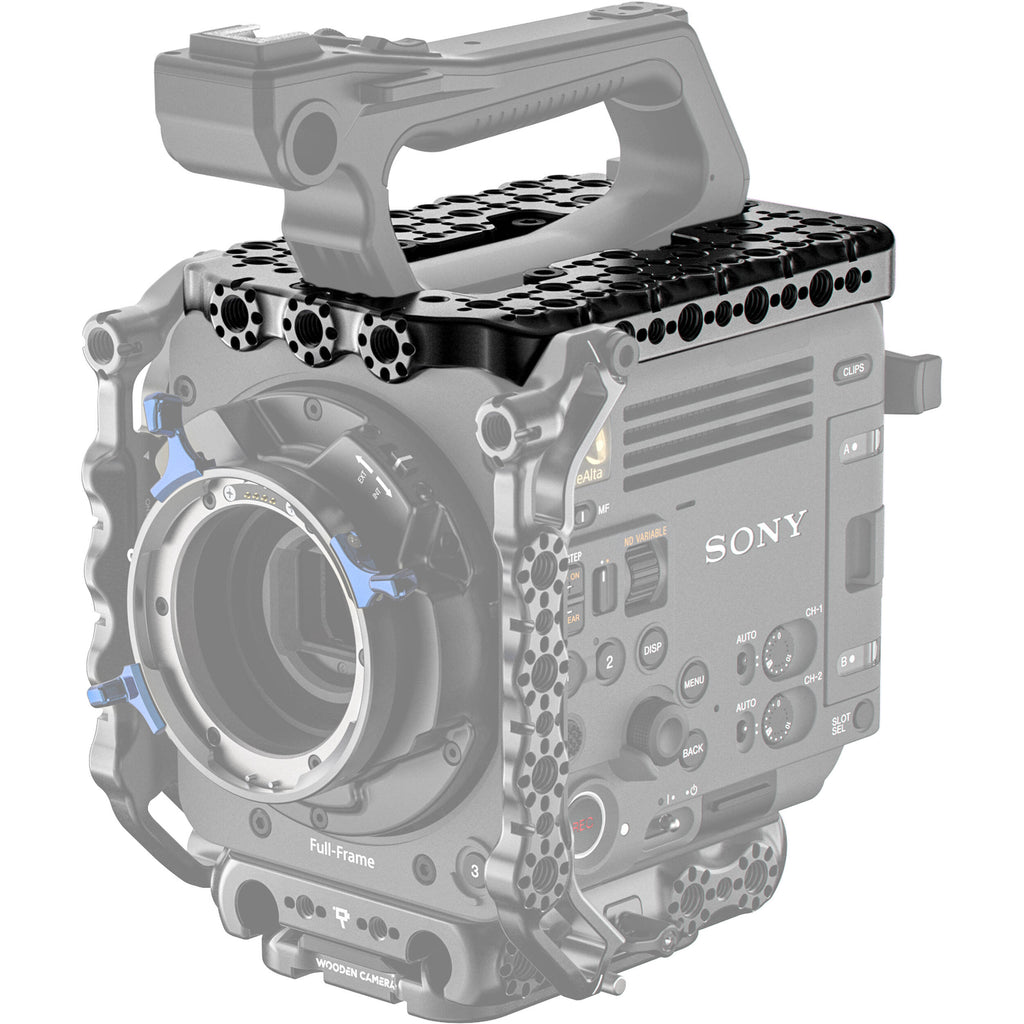

The top plate features multiple 1/4"-20 and 3/8"-16 accessory threads for mounting a variety of accessories, and the center part of the plate can be removed to mount the original FX9 top handle. The rod clamps provide 15mm LWS rod ports, and the front clamp provides additional 3/8"-16 anti-twist threads for accessories. The second 15mm LWS clamp can be installed anywhere on the top plate suitable for your use.

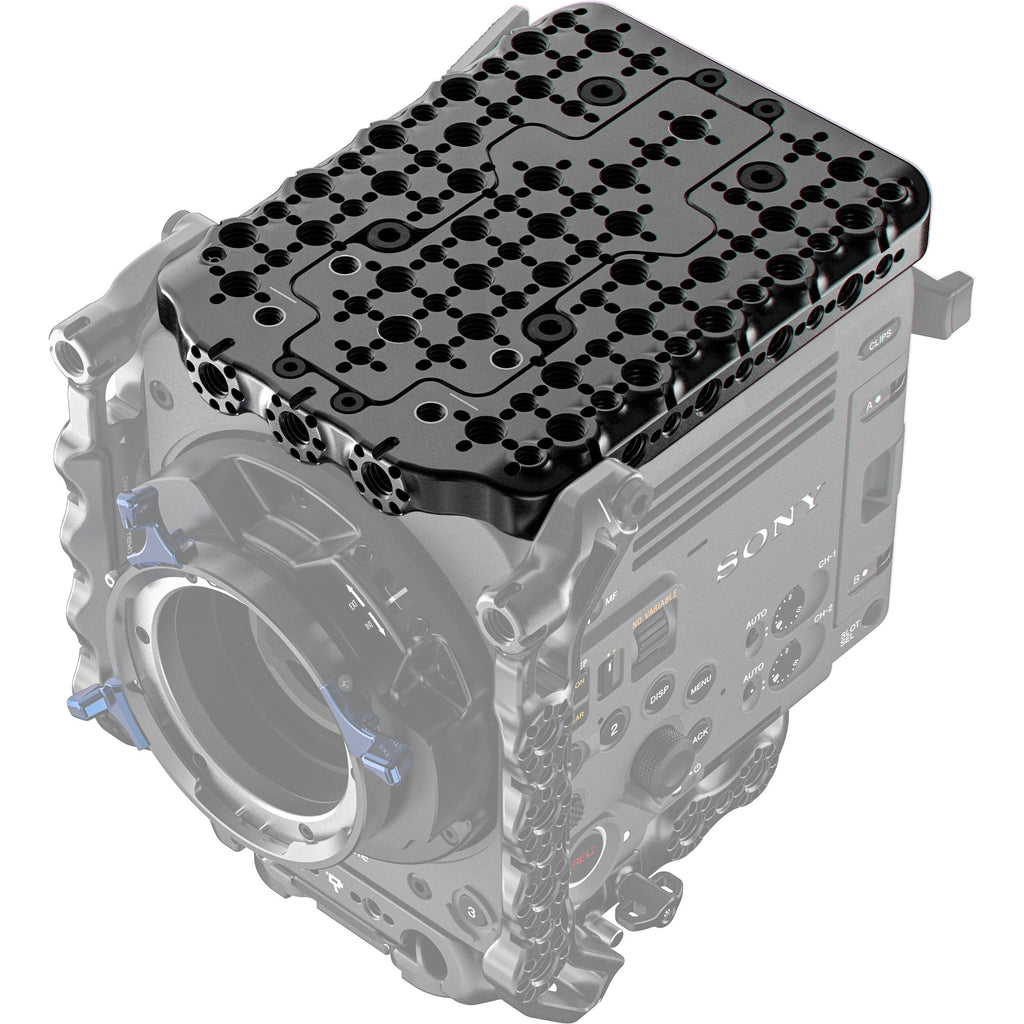

Mount accessories on top of your Sony BURANO cinema camera with this Top Plate from Wooden Camera. The two-piece plate attaches to the top of the camera using four included screws and provides 1/4"-20 3/8"-16 ARRI-style anti-twist accessory threads for extension arms and handles. A component in the center of the plate can be removed to allow attaching the PWX-FX9 top handle with full communication with the camera. It can also be used with the optional Wooden Camera Front Dual-Rod Clamp, left and right side plates, and EVF System.

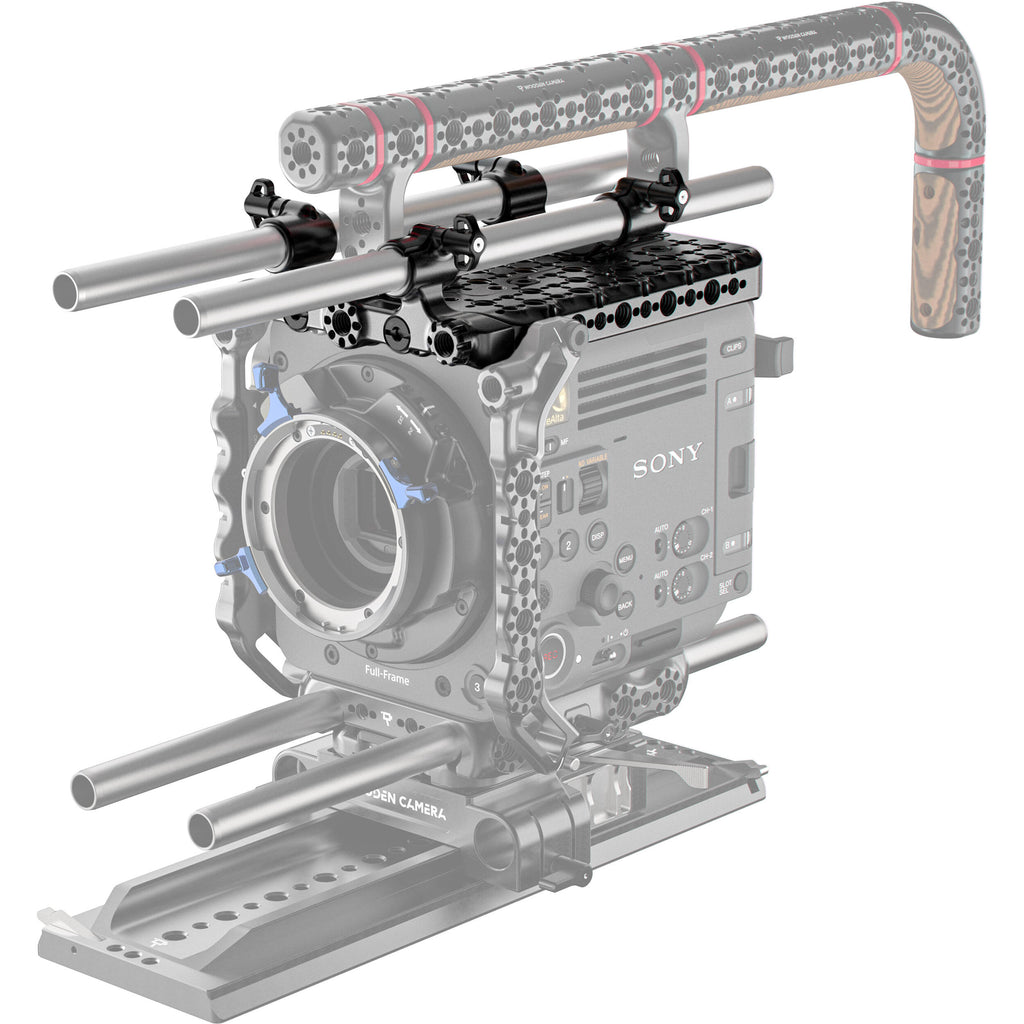

Add optional 15mm rods to the top of your Sony BURANO rig to mount a matte box, monitor, EVF, or follow focus using this Front 15mm LWS Dual-Rod Clamp from Wooden Camera. This rod clamp features 15mm LWS rod port spacing and requires the separately available Top Plate for BURANO. It mounts onto the front of the plate using the two included screws.
There are also three 3/8"-16 anti-twist threads on the front of the clamp to add more accessories, such as bolt-on rods, the Wooden Camera EVF System, or extension arms.
This 15mm Dual Rod Clamp from Wooden Camera is designed to attach to the top of the quick release top plate for your Sony VENICE/VENICE 2 and provide upper 15mm rod clamps for accessory integration. Mounting threads at the bottom of the clamp line up with the threads on the top plate for optically centered orientation. Integrate rod-based accessories such as battery plates and follow focus controls.
Items Included
- Wooden Camera Top Plate for Sony BURANO
- 4 x 1/4"-20 Screw
- 2 x Hex Wrench
- Limited 1-Year Manufacturer Warranty
- Wooden Camera Front 15mm LWS Dual-Rod Clamp for Sony BURANO
- 2 x 3/8"-16 Screw
- Hex Wrench
- Limited 1-Year Manufacturer Warranty
- Wooden Camera 15mm Dual Rod Clamp for Sony VENICE/VENICE 2 Quick Release Top Plate
- Limited 1-Year Manufacturer Warranty
Additional Resources
No additional resources available
Wooden Camera A00602 Specs
| Compatibility |
Sony BURANO Camera / PWX-FX9 Top Handle
Wooden Camera Front Dual Rod Clamp for Sony BURANO / EVF System for Sony BURANO / Right and Left Side Plates for Sony BURANO |
| Mounting |
Multiple 1/4"-20 Threads
Multiple 3/8"-16 Threads 4x 1/4"-20 Screws |
| Material of Construction |
Aluminum
|
| Environmental Resistance |
No
|
| Dimensions |
6.4 x 4.7 x 0.7" / 162 x 120 x 19 mm
|
| Weight |
18.88 oz / 535.24 g
|
| Package Weight |
0.785 lb
|
| Box Dimensions (LxWxH) |
6.8 x 4.95 x 1"
|
Wooden Camera A00602 Specs
| Mounting |
Cage Mount: 2x Included 3/8"-16 Male Screw
Accessory Mount: 3x Built-In ARRI Anti-Twist 3/8"-16 Female Thread |
| Rod Standard |
15 mm LWS / 60 mm Spacing
|
| Rod Ports |
2x 15 mm Rod Port
|
| Color |
Black
|
| Mounting |
Cage Mount: 2x Included 3/8"-16 Male Screw
Accessory Mount: 3x Built-In ARRI Anti-Twist 3/8"-16 Female Thread |
| Rod Standard |
15 mm LWS / 60 mm Spacing
|
| Rod Ports |
2x 15 mm Rod Port
|
| Materials |
Aluminum
|
| Dimensions |
4.7 x 2.2 x 1.3" / 119 x 55 x 32 mm
|
| Weight |
3.73 oz / 105.69 g
|
| Package Weight |
0.235 lb
|
| Box Dimensions (LxWxH) |
5 x 2.25 x 1.15"
|
Wooden Camera A00602 Specs
| Mounting |
Accessory Mount:
|
| Rod Standard |
15 mm (Unspecified Spacing)
|
| Rod Ports |
2x 15 mm Rod Port
|
| Mounting |
Accessory Mount:
|
| Rod Standard |
15 mm (Unspecified Spacing)
|
| Rod Ports |
2x 15 mm Rod Port
|
| Dimensions |
4.4 x 1.3 x 0.9" / 113 x 34 x 24 mm
|
| Weight |
1.4 oz / 39 g
|
| Package Weight |
0.11 lb
|
| Box Dimensions (LxWxH) |
4.35 x 1.75 x 0.95"
|
