Description
Wooden Camera 283700 Overview
- 1Description
- 2Wooden Camera Unified Baseplate for URSA Mini, F55, F5
- 3Wooden Camera Top Plate for Sony FX6
- 4Wooden Camera 15mm Support Rod (12")
- 5Wooden Camera Safety Dovetail Plate (8")

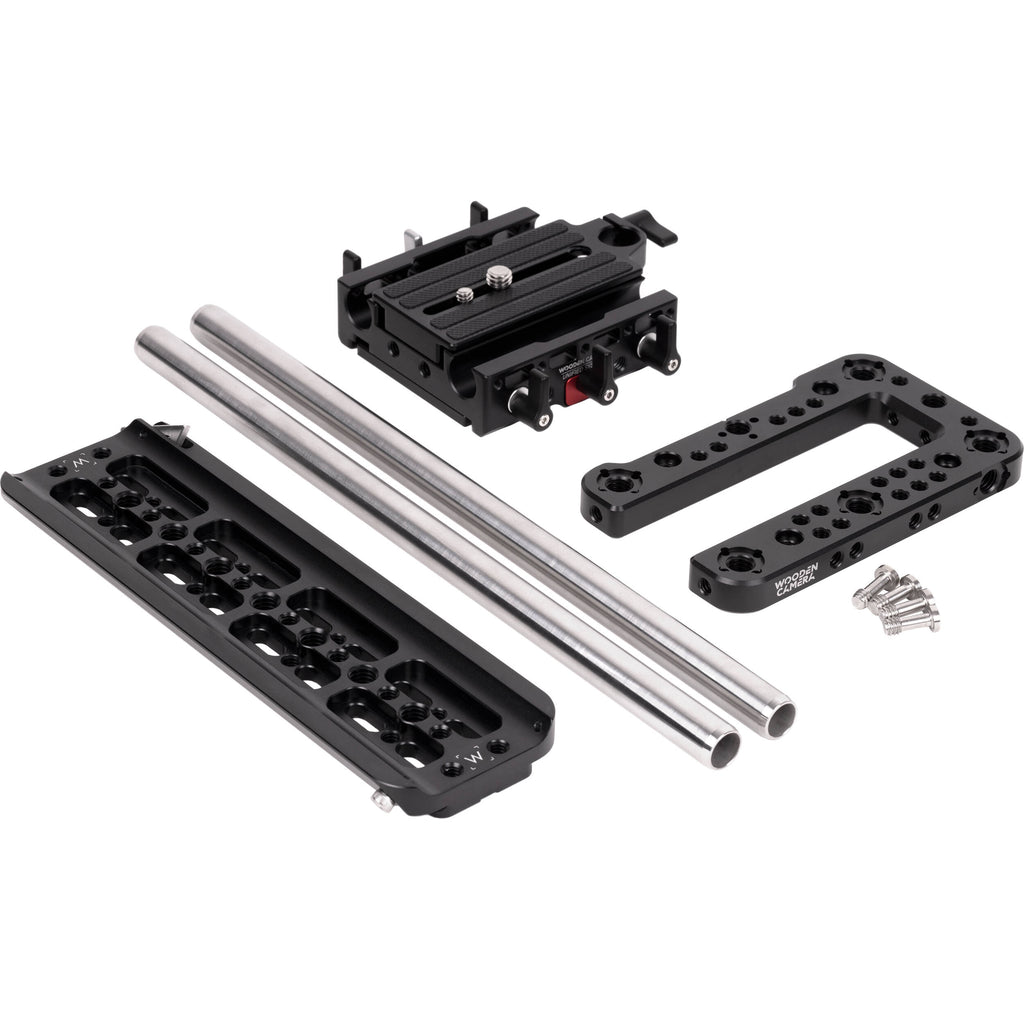

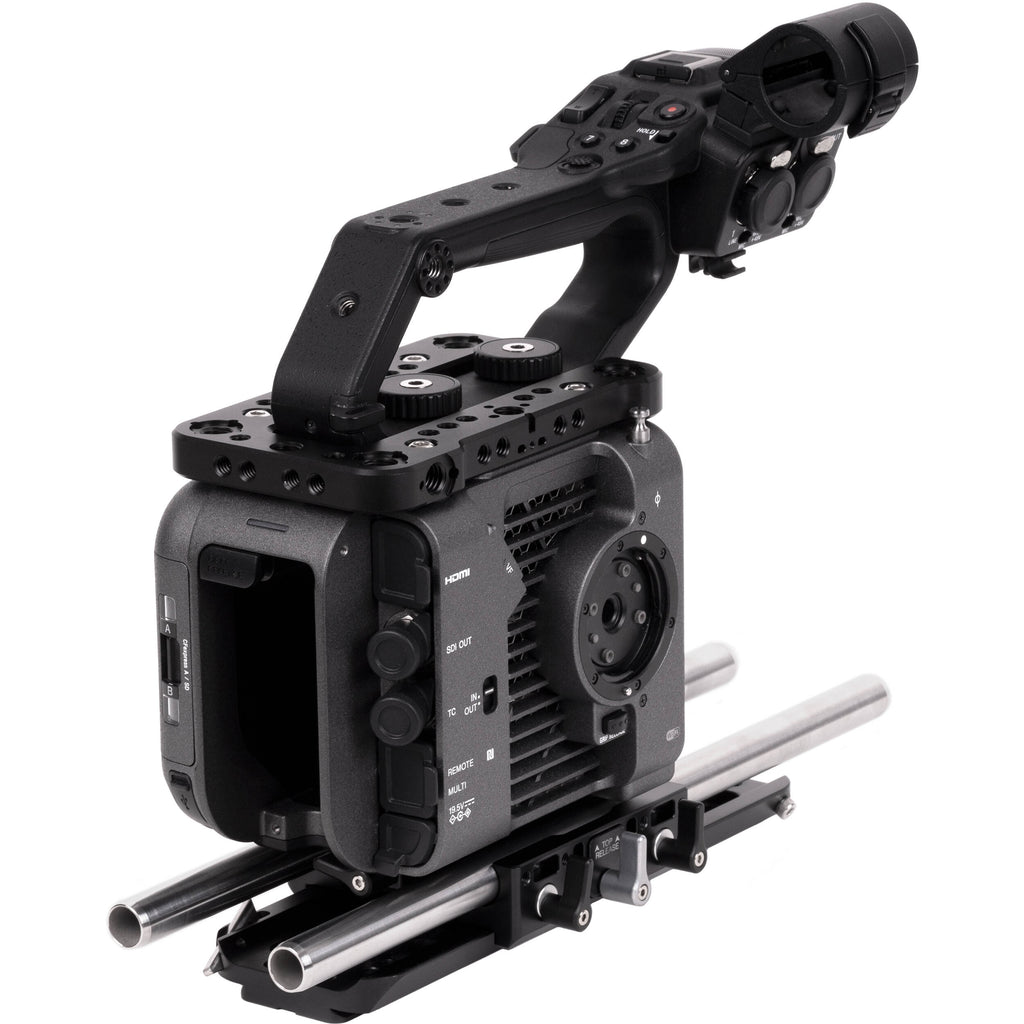

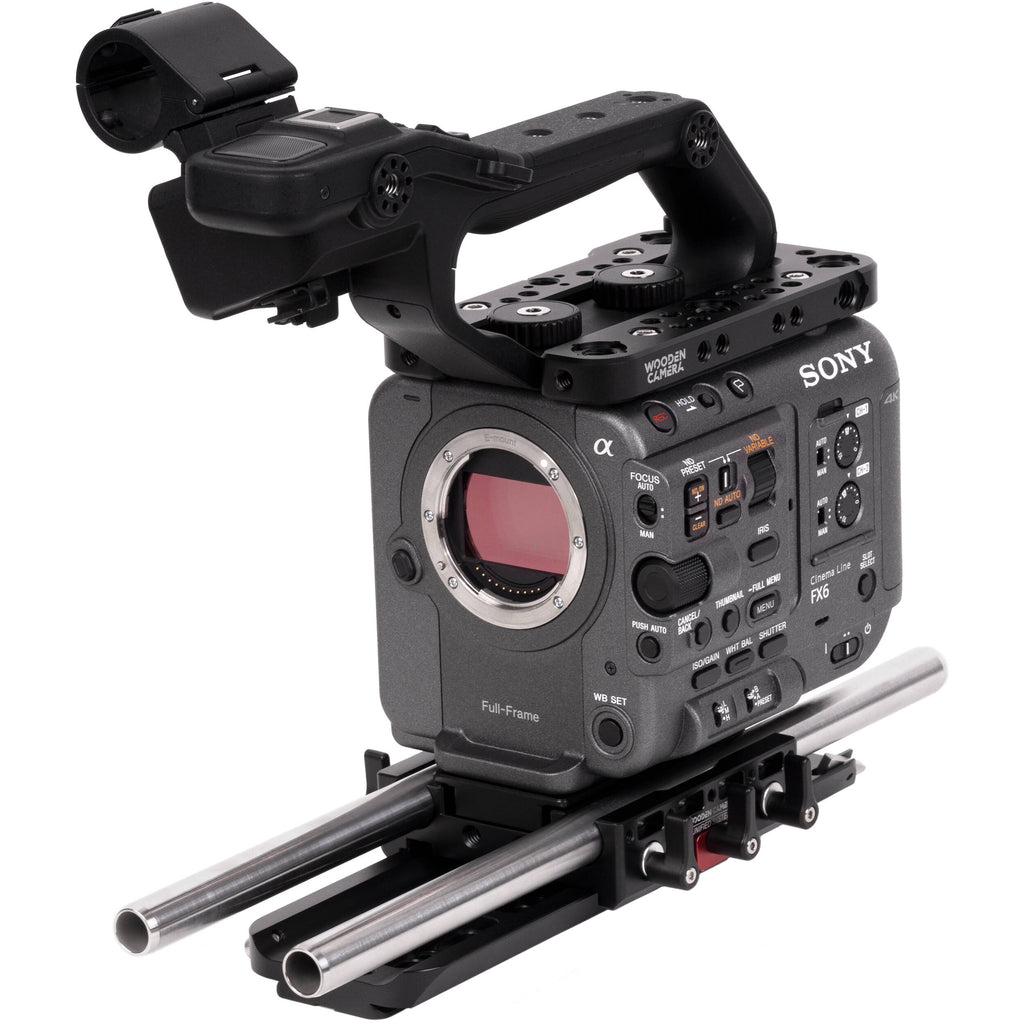

The advanced configuration of Wooden Camera's Sony FX6 Unified Accessory Kit provides accessory mounting points, a baseplate system with a sliding Arca-Swiss baseplate and integrated 15mm LWS rod clamps, a pair of 12" long 15mm rods, and an 8" long dovetail plate. This system allows you to configure and expand your system as your needs evolve. The top plate attaches to your FX6 camera and provides 1/4"-20 threaded holes, as well as 3/8"-16 threaded holes with ARRI-style anti-twist divots.
The baseplate features an ARRI-compatible dovetail slot and a short dovetail plate. It allows you to mount your camera on a variety of tripods and supports and quickly pull the camera off the tripod, leaving behind the rod clamps that support lens accessories, such as follow focus units and matte boxes. The camera plate utilizes an Arca-Swiss compatible design allowing you to quickly transfer the camera from the tripod to another support that accepts an Arca-Swiss baseplate. An integrated vertical 15mm rod clamp can be used to support an optional lens adapter foot. The dovetail plate can be mounted on a tripod and the included baseplate mounts on that. The additional length provides greater balance opportunities than the short plate that comes with the baseplate itself.
Wooden Camera Unified Baseplate for URSA Mini, F55, F5
The Wooden Camera Unified Baseplate supports 15mm LWS rods at the correct lens height, and it offers a vertical 15mm rod port for incorporating the optional Unified Lens Adapter Kit. This Kit allows you to support different lens adapters from Wooden Camera, Metabones, and other brands.
The Baseplate includes the Core Unit, a Lower Quick Dovetail tripod plate on the bottom, and a Dovetail Camera Plate for the Blackmagic URSA Mini and Sony F55/F5. Other Unified Baseplate Dovetail Plates are also supported, allowing for quick swaps with a variety of cameras.
The Baseplate provides two quick release options. You can remove the Dovetail Camera Plate only and leave the Core Unit with your rod pair behind, or you can remove the Core Unit from the Lower Quick Dovetail, in which case you'll have a dovetail on the bottom of the Core Unit that's compatible with any 2060 Dovetail, Safety Dovetail, or Shoulder Rig.
The Dovetail Camera Plate features a long slot along its center that lets you secure it to the camera with multiple screws (included), which can be set up to 2.8" (70mm) apart. It also has a non-slip rubber surface that will prevent the camera from twisting.
The Dovetail Camera Plate has an ARCA Swiss standard dovetail compatible with many third-party products. It also has threaded 1/4"-20 threaded holes on the bottom for attaching to gimbals or other compatible tripod plates. The Lower Quick Dovetail has 1/4"-20 and 3/8"-16 threaded holes for attaching to tripod plates or ARRI standard bridgeplates, such as the Wooden Camera Unified Bridgeplates.
The Unified Baseplate can also be upgraded for VCT-14 compatible mounting options. Simply attach it to the optional Unified VCT Wedge Plate, which can then be mounted on the Unified VCT-14 Tripod Plate, also sold separately. The Unified Baseplate is backward compatible with Wooden Camera's original Quick Dovetails (Standard, DSLR, and Large).
Key Features
- Supports 15mm LWS rods at the correct lens height
- Offers a vertical 15mm rod port for incorporating the optional Unified Lens Adapter Kit (for lens adapter support)
- Includes the Core Unit, Lower Quick Dovetail tripod plate, and Dovetail Camera Plate
- Two quick release options�remove Core Unit or remove Dovetail Camera Plate
- Core Unit features a dovetail on the bottom, compatible with any 2060 Dovetail, Safety Dovetail, or Shoulder Rig
- Dovetail Camera Plate features an ARCA Swiss standard dovetail and threaded holes for attaching to gimbals or other compatible tripods plates
- Lower Quick Dovetail offers threaded holes for attaching to tripod plates or ARRI standard bridgeplates
- Long slot along the center allows multiple screws to be attached to the camera, set up to 2.8" (70mm) apart
- Anti-twist, non-slip rubber surface
- Upgradable for VCT-14 compatible mounting options
- Additional Lower Quick Dovetail and Dovetail Camera Plates can be purchased for quick swap capability
- Backward compatible with original Wooden Camera Quick Dovetail
Wooden Camera Top Plate for Sony FX6
Mount accessories onto the top of your Sony FX6 camcorder with this Top Plate from Wooden Camera. The Top Plate is contoured to perfectly fit your camera, while the mounting screws secure the plate to your camera, helping to distribute the weight and stress of mounted accessories. The plate features numerous 1/4"-20 and 3/8"-16 tapped holes, as well as ARRI-style accessory mounts with anti-twist divots.
Contoured
Wooden Camera 15mm Support Rod (12")
This is a single, 12" long 15mm Support Rod from Wooden Camera for mounting accessories. It is chamfered at each end to ease sliding accessories on and off, and has a hollow interior providing for maximum strength.
Wooden Camera Safety Dovetail Plate (8")
The 8" Safety Dovetail Plate from Wooden Camera is an ARRI standard dovetail with a stopper screw on one end and a safety latch on the other to prevent accidental camera detachment. It features threaded 1/4-20 and 3/8-16 holes for accessory mounting and tripod attachment. The dovetail can be attached to a shoulder pad for custom handheld configurations.
In the Box
- Wooden Camera Unified Baseplate for URSA Mini, F55, F5
- Wooden Camera Unified Baseplate Core Unit (No Dovetails)
- Wooden Camera Unified Baseplate Camera Dovetail Plate for URSA Mini, F5, F55
- Wooden Camera Unified Baseplate Lower Quick Dovetail
- Limited 1-Year Warranty
- Wooden Camera Top Plate for Sony FX6
- 4 x Mounting Screw
- limited 1-Year Warranty
- Wooden Camera 15mm Support Rod (12")
- Limited 1-Year Warranty
- Wooden Camera Safety Dovetail Plate (8")
- Limited 1-Year Warranty
- Description
- Wooden Camera Unified Baseplate for URSA Mini, F55, F5
- Wooden Camera Top Plate for Sony FX6
- Wooden Camera 15mm Support Rod (12")
- Wooden Camera Safety Dovetail Plate (8")
Wooden Camera Unified Baseplate for URSA Mini, F55, F5 Specs
| Support Type | Baseplate |
| Grip Type | None |
| Camera Compatibility | Canon EOS C200, Canon EOS C200B, Canon EOS C700 |
| Rod Standard | 15 mm LWS / 60 mm Spacing |
| Accessory Mounting | Sides: Multiple x 1/4"-20 Thread, Multiple x 3/8"-16 Thread Base: 4 x 1/4"-20 Thread, 6 x 3/8"-16 Thread |
| Camera Mounting | 1/4"-20 Screw, 3/8"-16 Screw |
| Tripod Mounting | 1/4"-20 Thread, 3/8"-16 Thread |
| Rod Ports | 2 x 15 mm Rod Port |
| Shoe Mounting | None |
| Rosettes | None |
| Dimensions | 6 x 6 x 2" / 15 x 15 x 5 cm |
| Weight | 1.1 lb / 0.5 kg |
| Package Weight | 0.85 lb |
| Box Dimensions (LxWxH) | 5.4 x 5.3 x 1.75" |
Wooden Camera Top Plate for Sony FX6 Specs
| Accessory Mounting | Top 17 x 1/4"-20 1 x 3/8"-16 1 x 3/8"-16 with Anti-Twist Divots 5 x 3/8"-16 with ARRI Accessory Mount Left Side 4 x 1/4"-20 1 x 3/8"-16 with ARRI Accessory Mount Right Side 4 x 1/4"-20 1 x 3/8"-16 with ARRI Accessory Mount Inside Edge 2 x 1/4"-20 |
| Package Weight | 0.44 lb |
| Box Dimensions (LxWxH) | 6.05 x 3.5 x 0.95" |
Wooden Camera 15mm Support Rod (12") Specs
| Rod Size | 15 mm |
| Rod Length | 12" (30.5 cm) |
| Package Weight | 0.34 lb |
| Box Dimensions (LxWxH) | 12.05 x 1.35 x 0.6" |
Wooden Camera Safety Dovetail Plate (8") Specs
| Dimensions | 8.0 x 2.7 x 0.5" / 20.3 x 6.8 x 1.3 cm |
| Weight | 0.6 lb / 0.3 kg |
| Package Weight | 0.635 lb |
| Box Dimensions (LxWxH) | 9 x 2.8 x 0.65" |
