Description
Wooden Camera Unified Accessory Kit for Panas... Overview
- 1Description
- 2Wooden Camera Cage for Panasonic BGH1
- 3Wooden Camera Lightweight 15mm Baseplate (Panasonic BGH1)
- 4Wooden Camera Safety Dovetail Plate (12")
- 5Wooden Camera Micro Battery Slide for Panasonic BGH1 (Gold Mount)
- 6Wooden Camera 15mm Support Rod (12")

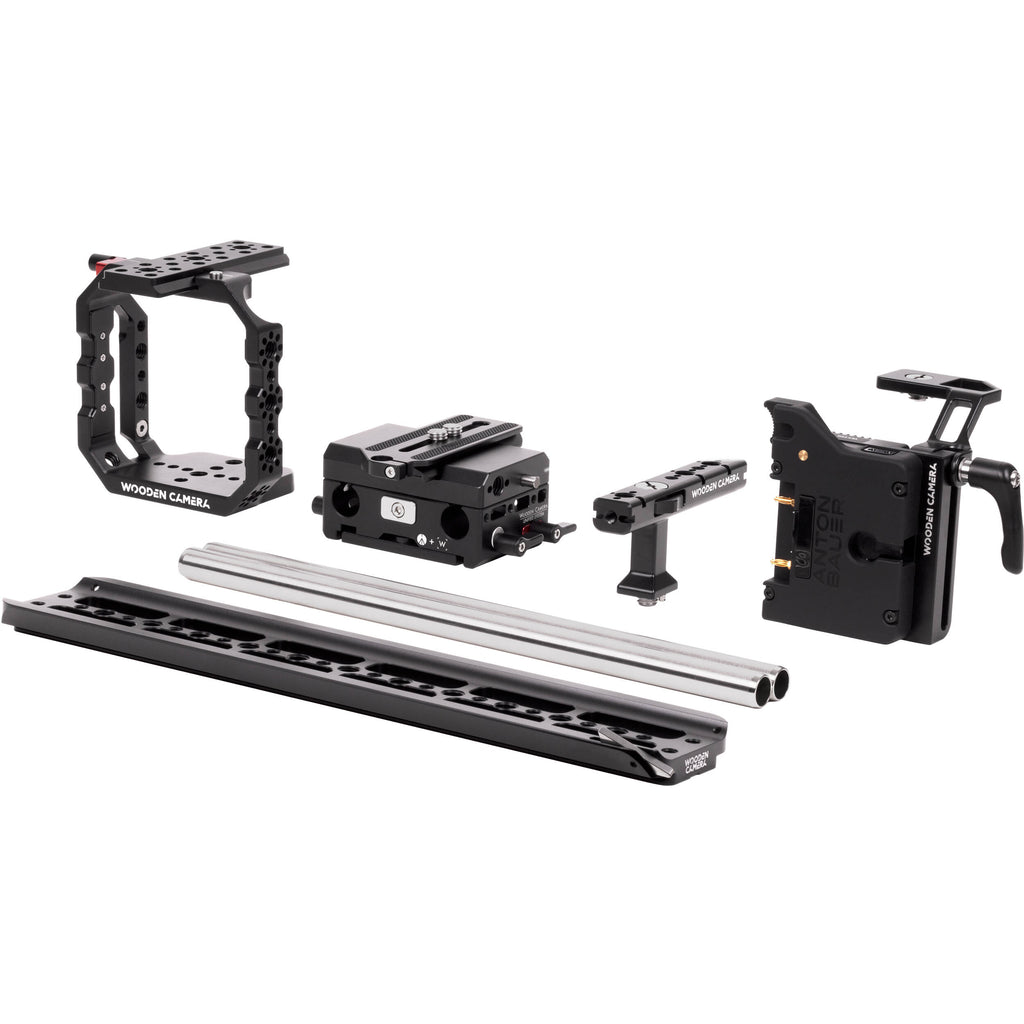

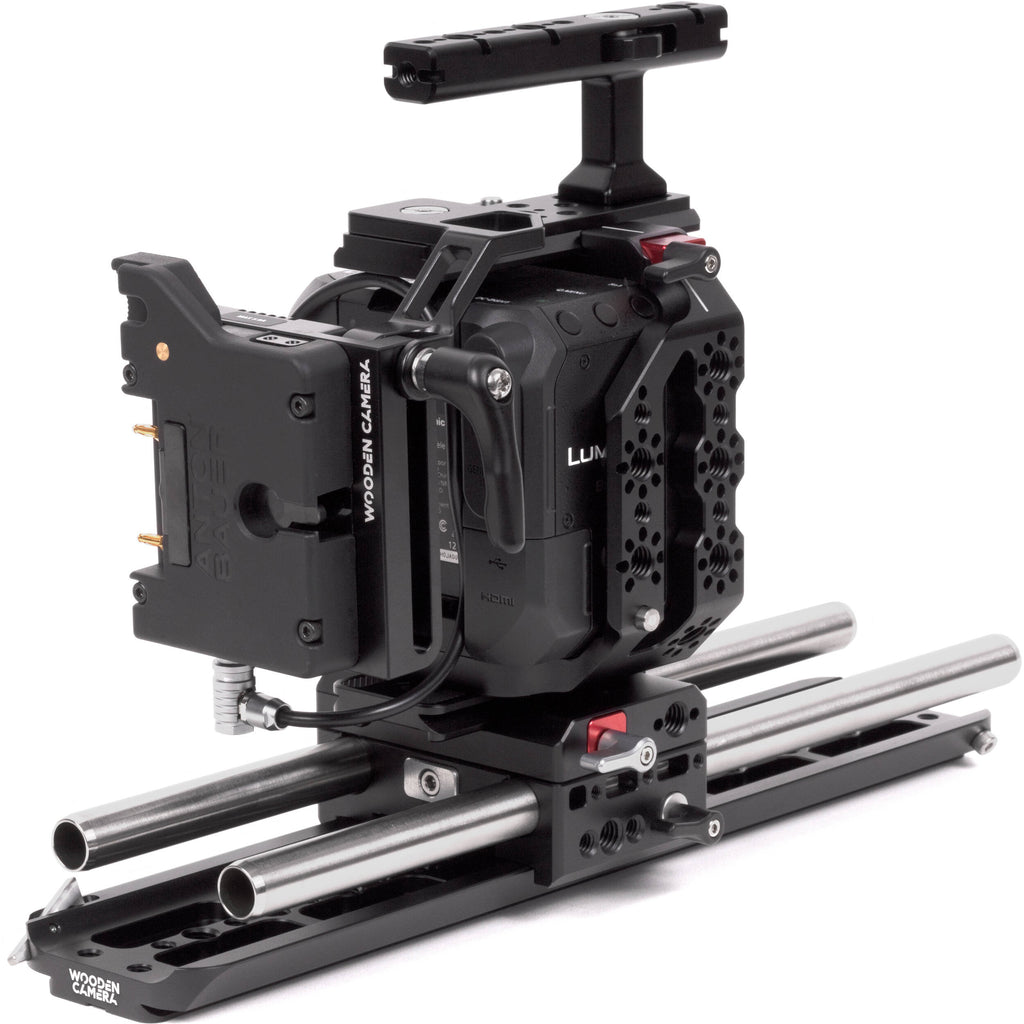

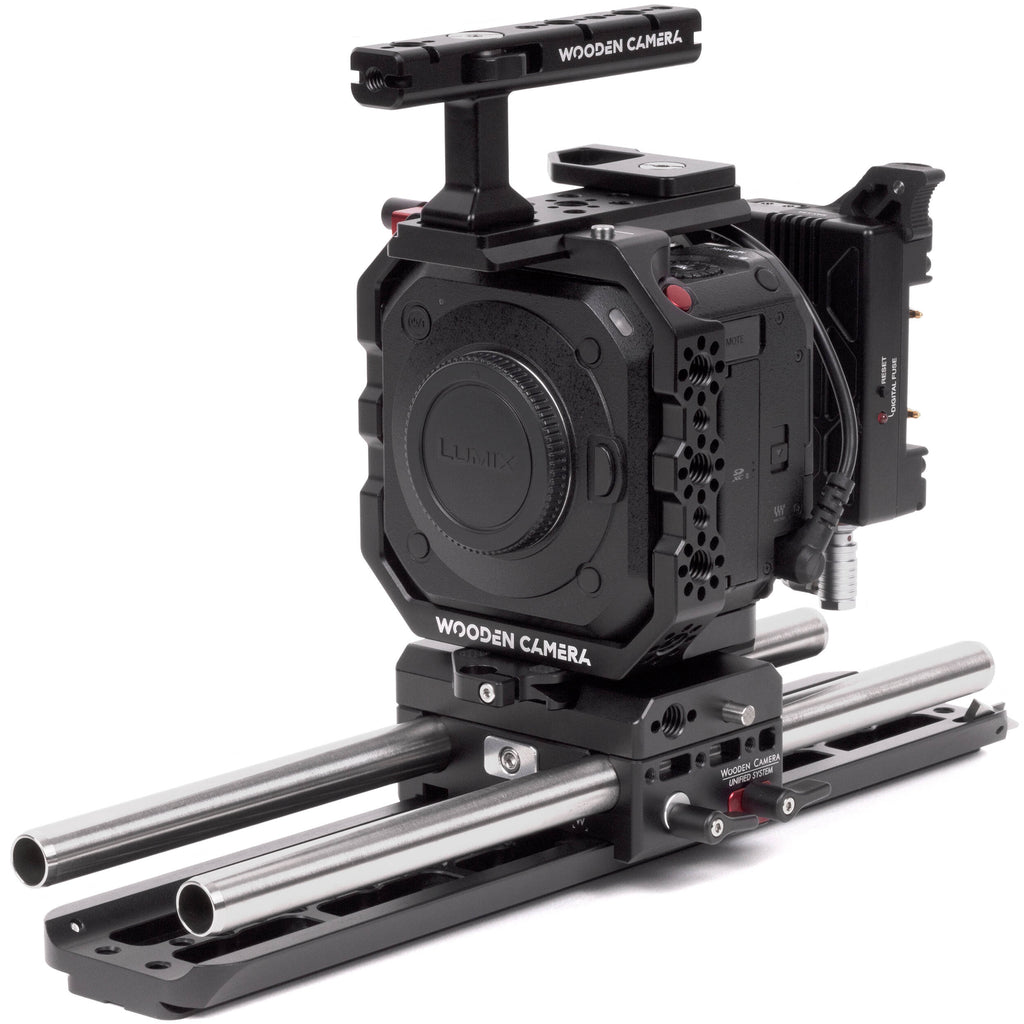

Use this versatile pro Unified Accessory Kit from Wooden Camera to support, protect, and carry your Panasonic BGH1 and add a variety of accessories. The kit comes with a formfitting cage to protect your camera, a mini top handle, an 12" long safety dovetail, a micro Gold mount battery slide, two 12" long 15mm rods, and a 15mm LWS quick release baseplate with two 15mm LWS rod ports and upper and lower quick release plates.
The cage and top handle feature numerous 1/4"-20 and 3/8"-16 threads as well as anti-twist mounts for mounting accessories. The side of the cage features a NATO rail, an Arca-style top plate, and a side slot allows you to run cabling through. The baseplate can accommodate the included 12" long 15mm rods, and it features a dovetail on the bottom and a quick release dovetail plate on the top to mount the camera cage. The upper dovetail features a rod port for a separately available lens support. The 12" safety dovetail mounts on the bottom of the baseplate providing stability for a heavy rig, and it features a safety stopper screw and latch to prevent accidental detachment.
A micro Gold mount battery slide is included to power your rig using a separately available Gold mount battery, and it can be used to hot-swap with the camera battery. It features two D-Tap outputs, a digital safety fuse, and a 3-pin LEMO-type to DC barrel connector to power the camera.
Wooden Camera Cage for Panasonic BGH1
Protect and add accessories to your Panasonic LUMIX BGH1 for pro-style video capture with this Camera Cage from Wooden Camera. The camera mounts into the cage with two bottom screws, and the cage protects your camera while maintaining access to controls and ports on all sides. Accessories can be mounted around the cage using the 1/4"-20 and 3/8"-16 threads as well as threads that feature ARRI-style anti-twist locating holes.
On the top, there is an Arca-type slot and dovetail plate that facilitates top-mounting the camera on a gimbal or stabilizer system. There is also a NATO rail on the side of the cage to add an optional handgrip, extension arms, or other accessories. A pass-through slot on the side allows you to easily manage your cables.
Wooden Camera Lightweight 15mm Baseplate (Panasonic BGH1)
Simplify using your camera with cine-style accessories with this Wooden Camera Lightweight 15mm Baseplate for the Panasonic LUMIX BGH1 camera. Featuring an Arca-type-compatible plate that you mount your camera on, this then slides into the top of the baseplate, which has two integrated 15mm rod clamps that provide the correct rod center to lens mount center and height. They also comply with the LWS standard for your cinema-style lens accessories, such as available follow focus units, lens control motors, and matte boxes.
The baseplate has a machined dovetail on the bottom, making it compatible with ARRI standard dovetail plates, and a built-in locking lever clamps the baseplate onto the dovetail plate to secure your camera. An included quick dovetail plate conforms to the ARRI dovetail standard, allowing you to mount it to a tripod head or other support platform and then mount the baseplate to that, enabling you to use this system with a standard tripod without having to source additional components.
Functionality
Arca-Type Plate
Wooden Camera Safety Dovetail Plate (12")
The 12" Safety Dovetail Plate from Wooden Camera is an ARRI standard dovetail with a stopper screw on one end and a safety latch on the other to prevent accidental camera detachment. It features threaded 1/4-20 and 3/8-16 holes for accessory mounting and tripod attachment. The dovetail can be attached to a shoulder pad for custom handheld configurations.
Wooden Camera Micro Battery Slide for Panasonic BGH1 (Gold Mount)
Add a high-capacity battery plate to power your Panasonic BGH1 rig with this compact Micro Battery Slide from Wooden Camera. It supports one Gold mount battery while leaving access to the camera's standard battery compartment, and it powers the camera using the included 3-pin LEMO-type connector cable. With the camera's AG-VBR59 battery in place, hot swapping is supported.
The compact battery slide mounts onto a rig using its integrated 3/8"-16 mounting screw. It also features two 5.8V D-Tap outputs for powering accessories. The D-Tap accessory outputs feature a digital fuse that monitors each D-Tap port and disables it if it exceeds the set current for accessories, leaving the camera running without interruption. Once the load has been reduced by removing accessories, a reset button can be pressed to enable accessory power again.
Compatibility
Gold mount battery
Wooden Camera 15mm Support Rod (12")
This is a single, 12" long 15mm Support Rod from Wooden Camera for mounting accessories. It is chamfered at each end to ease sliding accessories on and off, and has a hollow interior providing for maximum strength.
In the Box
- Wooden Camera Cage for Panasonic BGH1
- 2 x 1/4"-20 Screw
- Limited 1-Year Warranty
- Wooden Camera Lightweight 15mm Baseplate (Panasonic BGH1)
- 2 x 1/4"-20 Low Profile Multi Screw
- 3/8"-16 Low Profile Multi Screw
- Quick Dovetail Mounting Plate
- Limited 1-YearWarranty
- Wooden Camera Safety Dovetail Plate (12")
- Limited 1-Year Warranty
- Wooden Camera Micro Battery Slide for Panasonic BGH1 (Gold Mount)
- 3-Pin LEMO Type Power Cable (10")
- Limited 1-Year Warranty
- 2 x Wooden Camera 15mm Support Rod (12")
- Limited 1-Year Warranty
- Mini Top Handle
- Description
- Wooden Camera Cage for Panasonic BGH1
- Wooden Camera Lightweight 15mm Baseplate (Panasonic BGH1)
- Wooden Camera Safety Dovetail Plate (12")
- Wooden Camera Micro Battery Slide for Panasonic BGH1 (Gold Mount)
- Wooden Camera 15mm Support Rod (12")
Wooden Camera Cage for Panasonic BGH1 Specs
| Battery Plate Type | None |
| Accessory Mounting | Cage: Multiple x 1/4"-20 Thread, Multiple x 3/8"-16 Thread, Multiple x Anti-Twist 1/4"-20 Thread, Multiple x Anti-Twist 3/8"-16 Thread |
| Camera Mounting | 1/4"-20 Screw |
| Tripod Mounting | 1/4"-20 Thread, 3/8"-16 Thread, Built-In Arca-Type Plate |
| Shoe Mounting | None |
| Rosettes | None |
| Rail Mounting | Cage, Side: 1 x NATO Rail |
| Support Type | Cage |
| Grip Type | None |
| Camera Compatibility | Panasonic DC-BGH1 |
| Materials | Metal |
| Dimensions | 4.5 x 4.3 x 2.6" / 115 x 110 x 65 mm |
| Weight | 9.2 oz / 260 g |
| Package Weight | 0.61 lb |
| Box Dimensions (LxWxH) | 5.05 x 4.8 x 2.7" |
Wooden Camera Lightweight 15mm Baseplate (Panasonic BGH1) Specs
| Support Type | Baseplate |
| Grip Type | None |
| Camera Compatibility | Panasonic DC-BGH1 |
| Rod Standard | 15 mm LWS / 60 mm Spacing |
| Battery Plate Type | None |
| Accessory Mounting | Baseplate: Multiple x ARRI Anti-Twist 3/8"-16 Thread |
| Camera Mounting | Arca-Type Plate with 1/4"-20 Screw, 3/8"-16 Screw |
| Tripod Mounting | Baseplate: ARRI Dovetail |
| Rod Ports | Baseplate, Front: 2 x 15 mm Rod Port |
| Shoe Mounting | None |
| Rosettes | None |
| Dimensions | 5.9 x 2.4 x 1.8" / 150 x 60 x 45 mm |
| Weight | 0.9 lb / 412 g |
| Package Weight | 1.095 lb |
| Box Dimensions (LxWxH) | 4.75 x 3.75 x 2.5" |
Wooden Camera Safety Dovetail Plate (12") Specs
