Description
Wooden Camera A00267 Overview

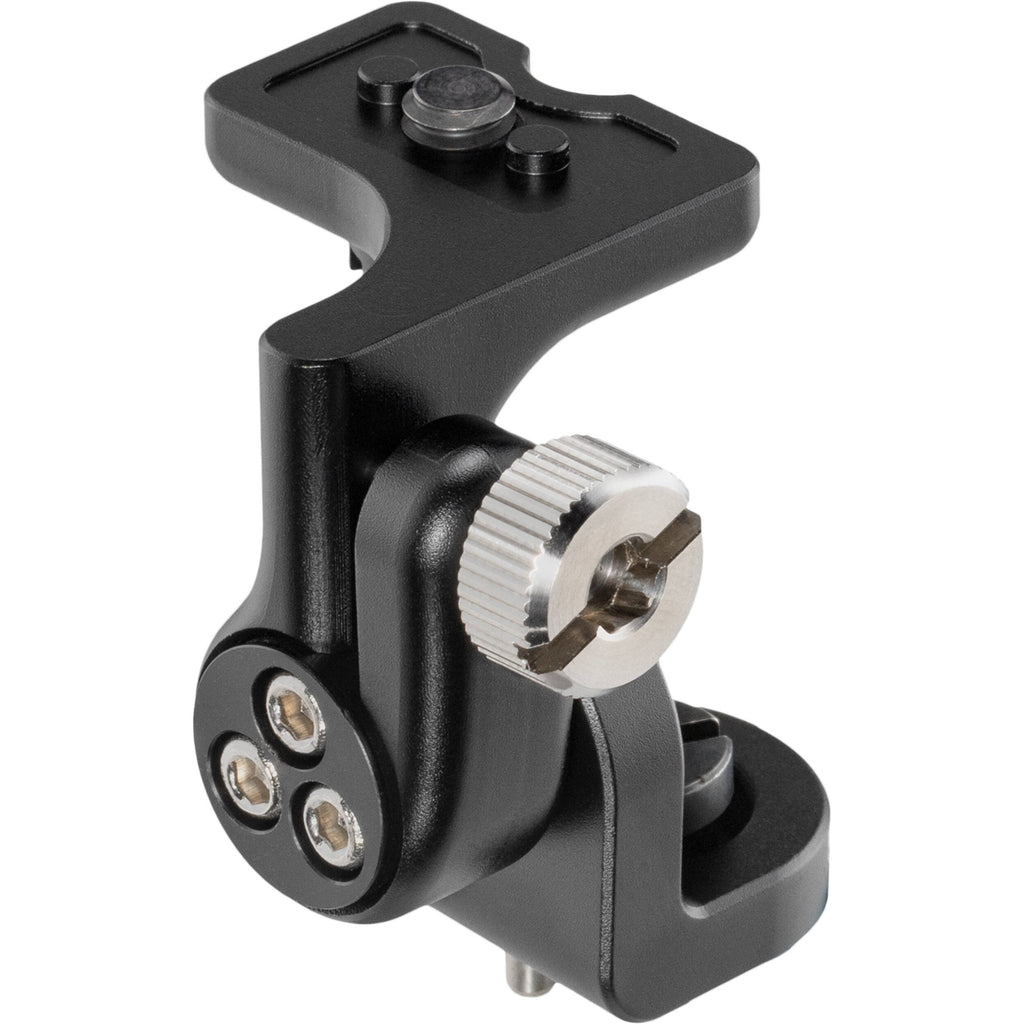

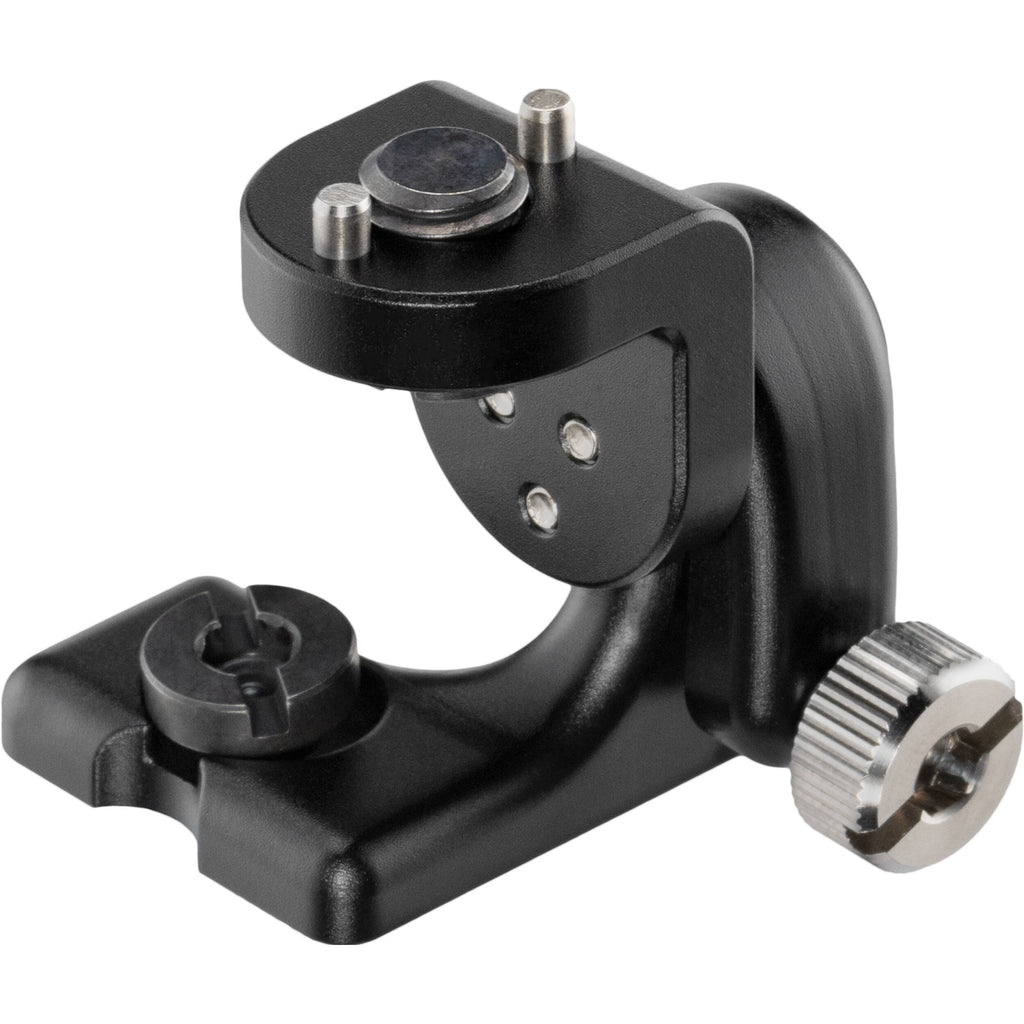

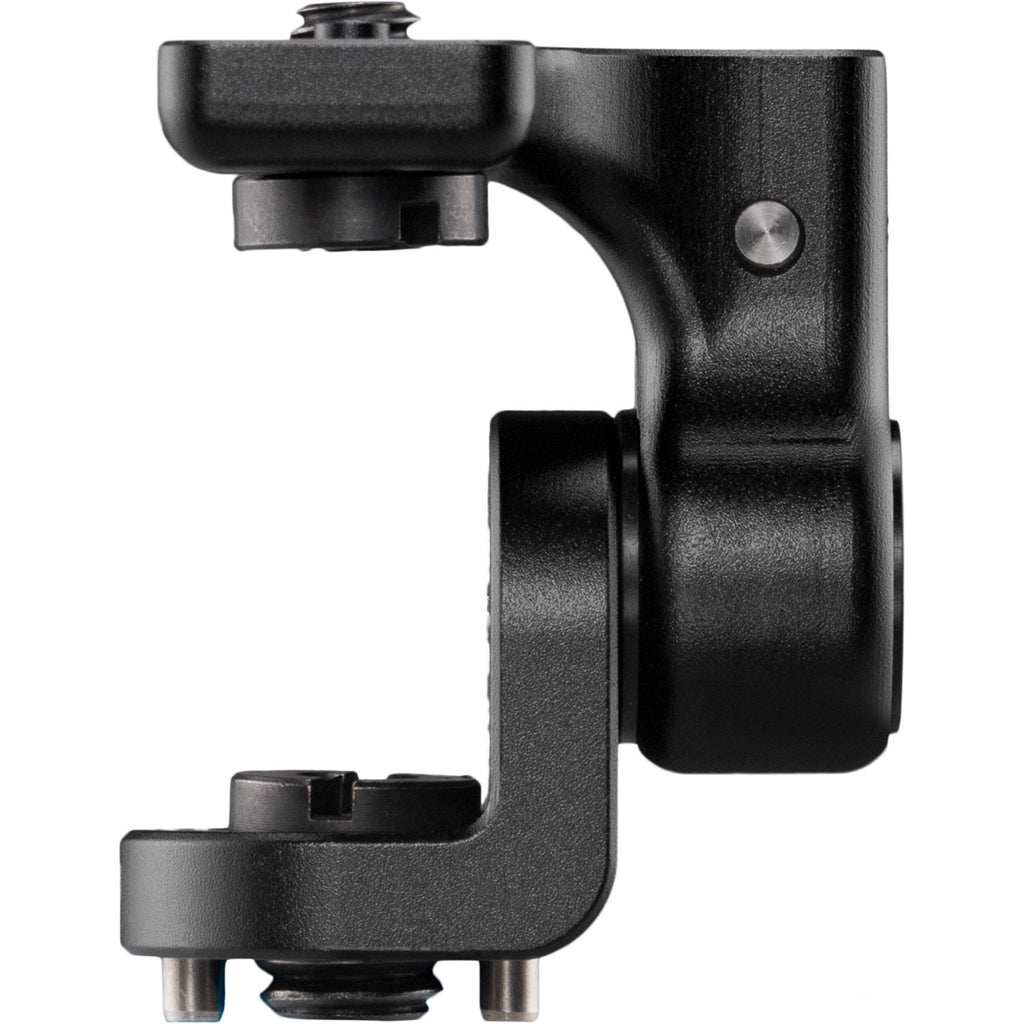

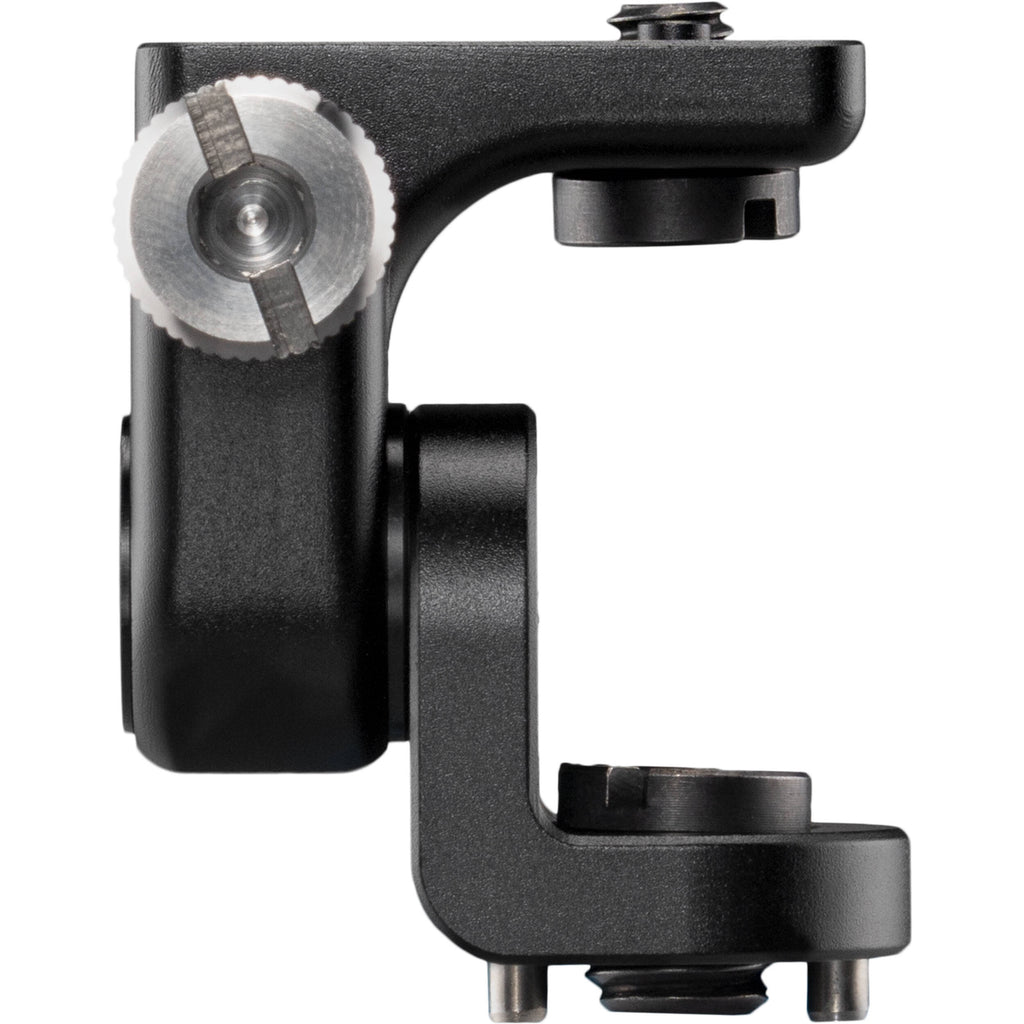

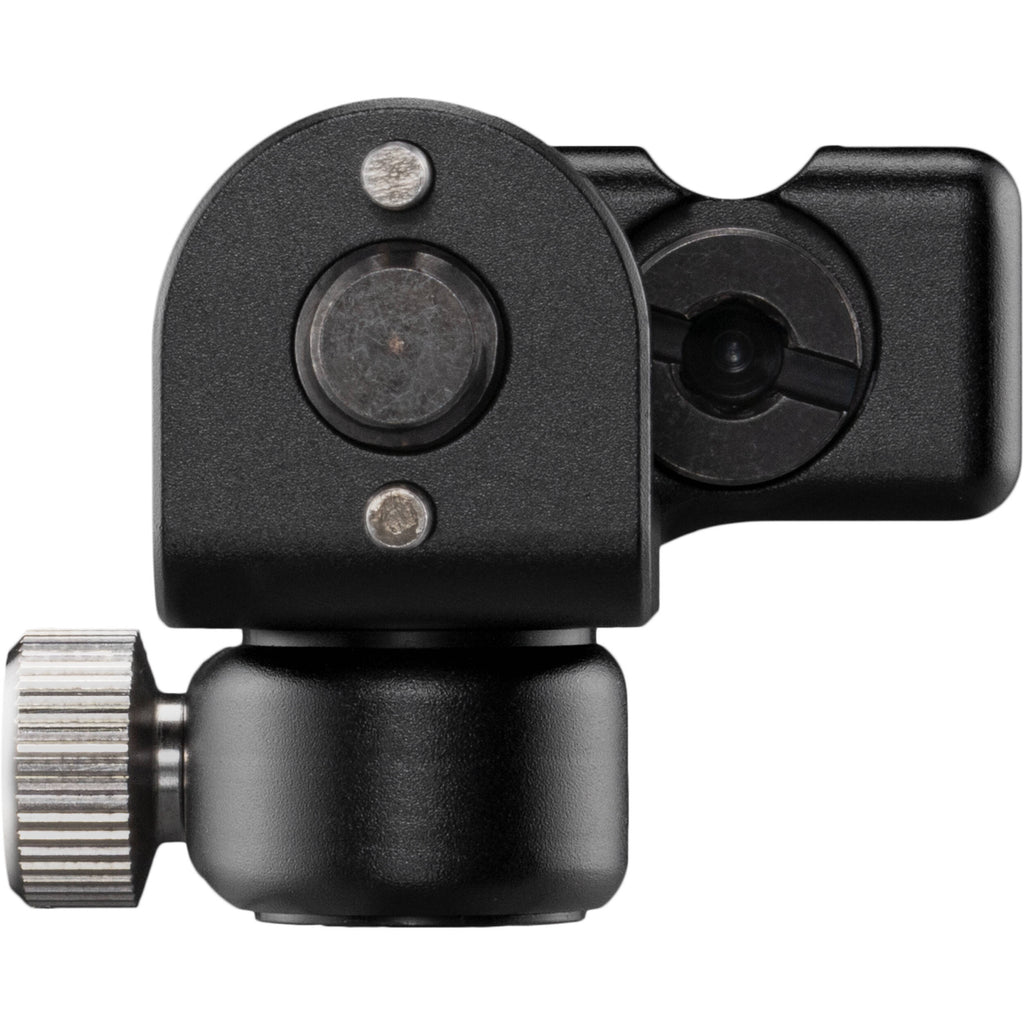

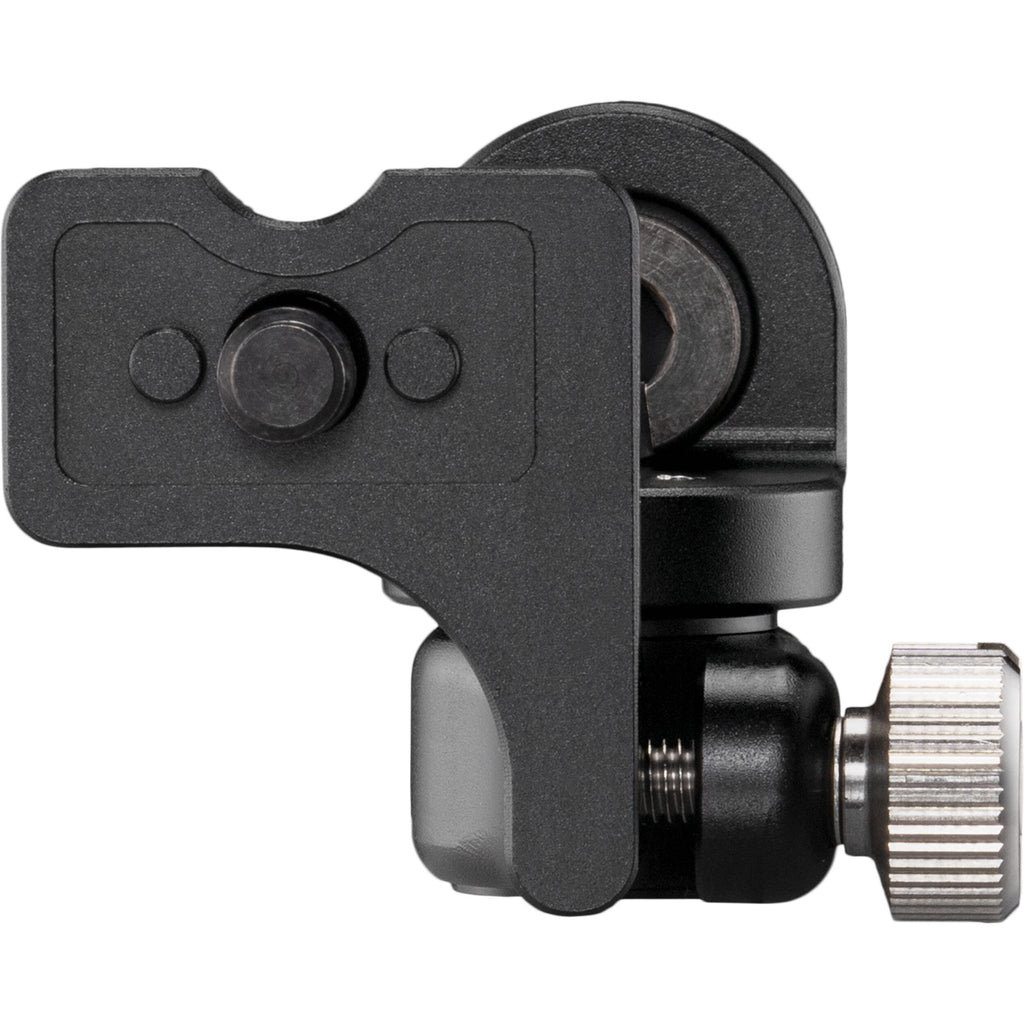

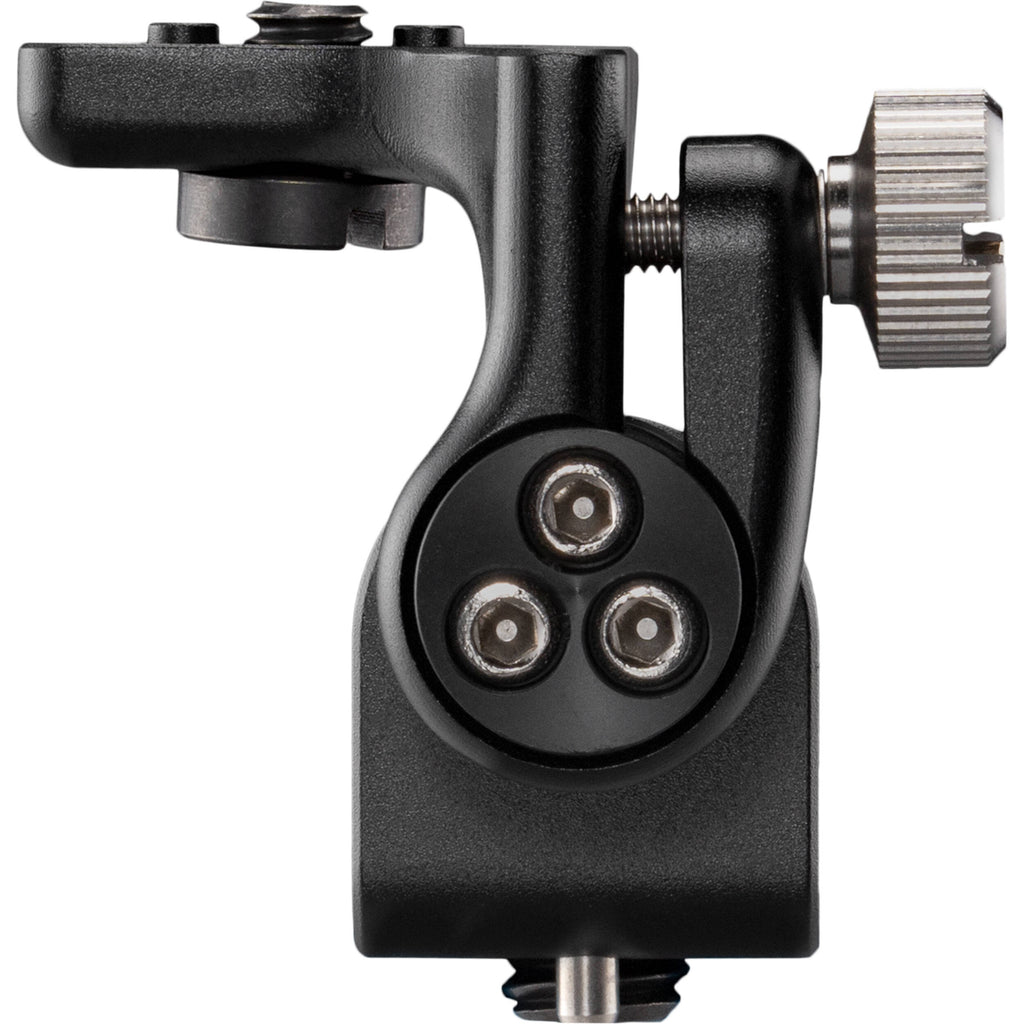

Mount your SmallHD Smart 5 monitor onto a cage or rig with a 3/8"-16 anti-twist thread using this Monitor Hinge from Wooden Camera. This lightweight mount is designed to fit the locating holes on the bottom or sides of a SmallHD Smart 5 monitor, such as the Cine 5, Indie 5, or Ultra 5, and it secures using a 1/4"-20 screw. The center hinge provides 180° tilt adjustment.
The hinge is also a 15mm rod clamp, and the base mount can be removed, and the monitor can be mounted onto a separately available standard 15mm rod, allowing the monitor to rotate further. A rubber pad is included to allow the mount to fit other third-party monitors that do not feature locating holes.
In the Box
- Wooden Camera Monitor Hinge for SmallHD Smart 5 Monitors (3/8"-16)
- 1/4"-20 Screw
- Limited 1-Year Manufacturer Warranty
Additional Resources
No additional resources available
Wooden Camera A00267Specs
| Compatibility |
SmallHD Smart 5 Monitors
Various 3/8"-16 Anti-Twist Thread Mounts |
| Mounting |
1x 1/4"-20 Screw with Locating Pins
1x 15 mm Rod Clamp 1x 3/8"-16 Anti-Twist Screw |
| Color |
Black
|
| Material of Construction |
Metal, Rubber
|
| Dimensions |
2 x 1.5 x 1.1" / 51 x 39 x 27 mm
|
| Weight |
2 oz / 58 g
|
| Package Weight |
0.18 lb
|
| Box Dimensions (LxWxH) |
4 x 2.35 x 1.2"
|
