Wooden Camera FUJIFILM GFX 100S Unified Accessory Pro Kit (V-Mount)

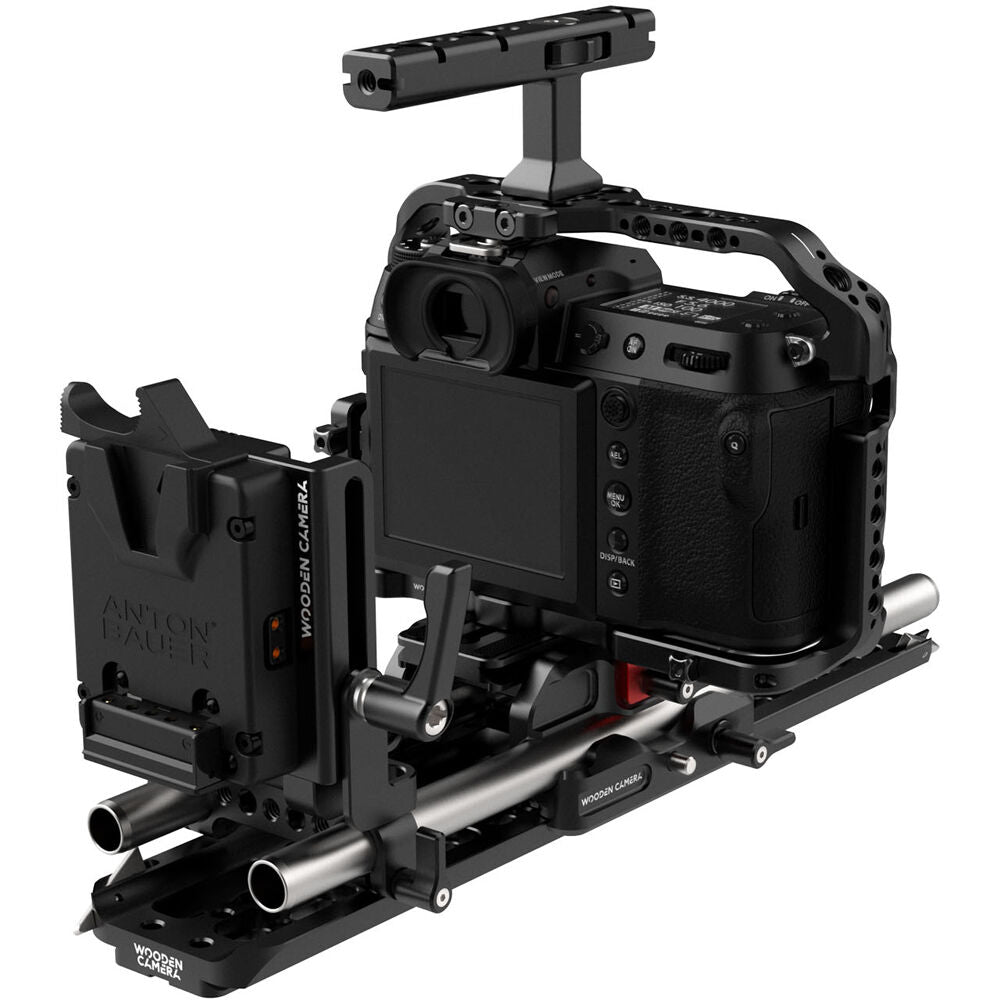

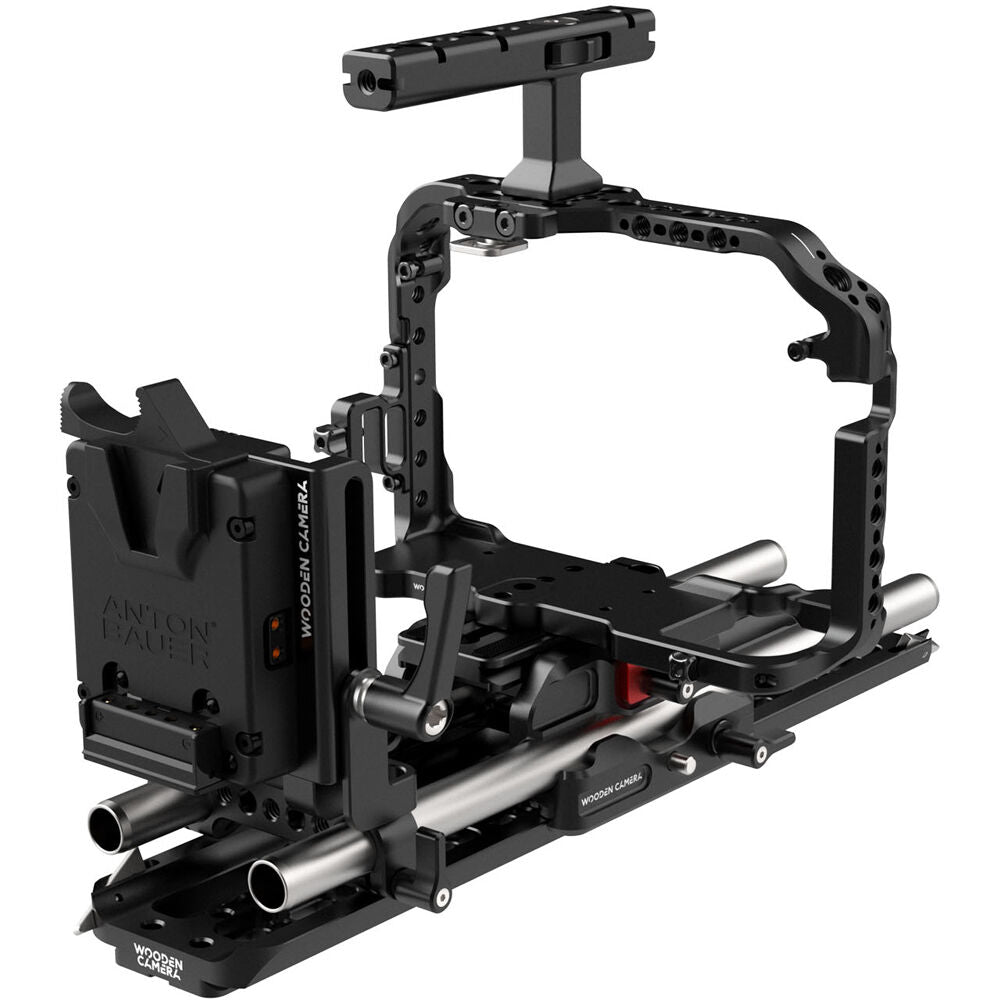

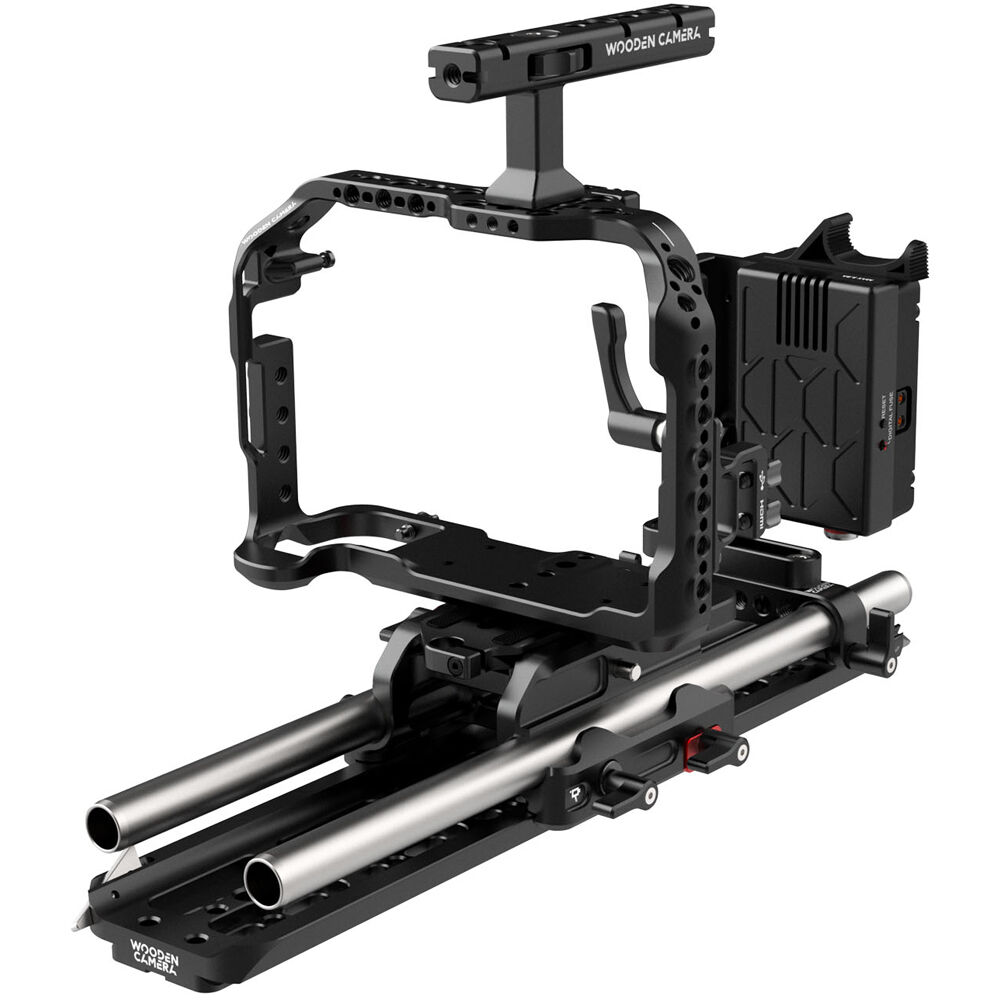

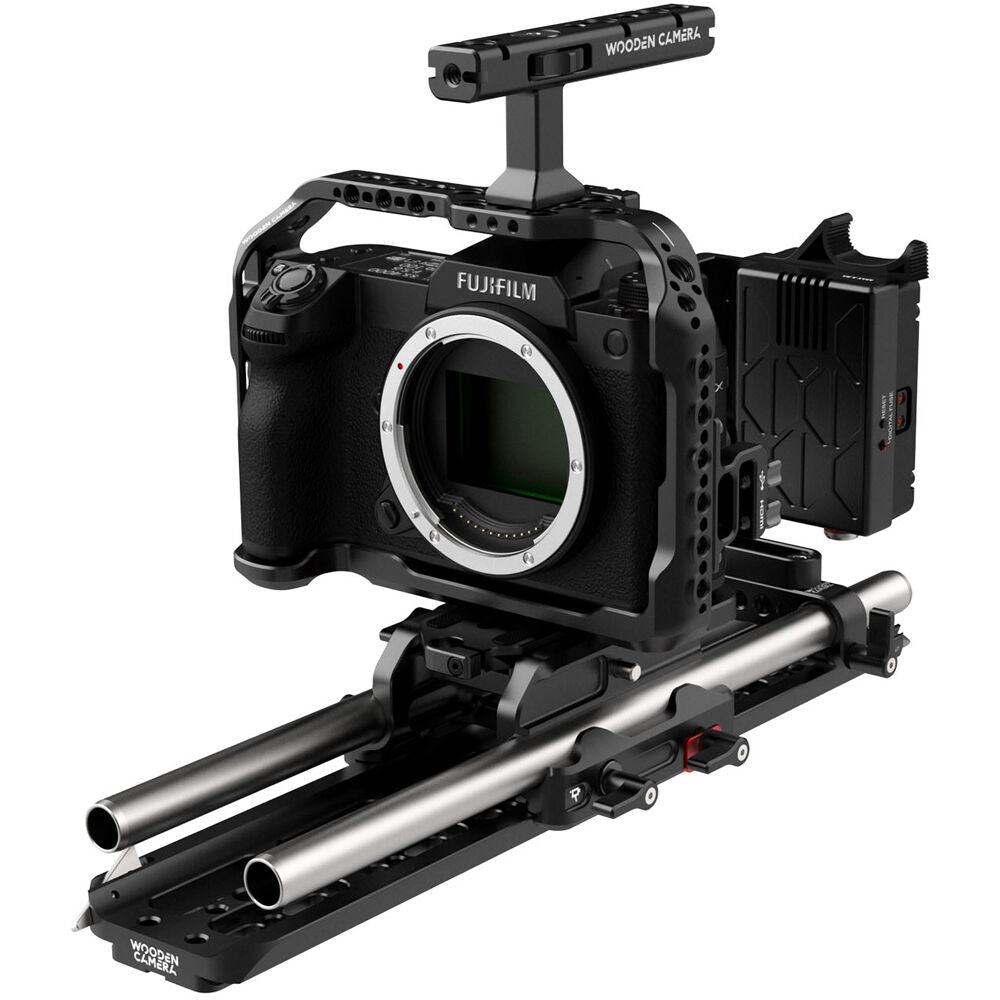

Outfit your FUJIFILM GFX 100S camera with this Full Camera Cage from Wooden Camera to protect the camera body while expanding its mounting capabilities. Its wraparound custom-fit design offers increased stability to your GFX 100S without blocking ports and controls, including an intuitive battery door latch for use with dummy batteries. Multiple 1/4"-20 and 3/8"-16 threads with ARRI standard locating pins allow you to attach articulating arms and secondary monitors to your handheld configuration.

The cage features a detachable cable clamp on the side to reduce strain on your HDMI or USB cable connections. A hot shoe clamp integrated to the top of the cage further secures the camera and allows the addition of on-camera fill lights or wireless microphone receivers. Engraved markings indicate the focal plane of the camera, and location tabs ensure your camera is positioned correctly within the cage.

Add a compact top handle to your camera cage or rig using the 4.3" Mini Top Handle from Wooden Camera. This lightweight handle mounts on your rig via a captive 3/8"-16 screw with detachable ARRI-standard, anti-twist locating pins. The versatile screw mount is attached with an easy-to-use thumbwheel, and it can be further tightened using a flat head screwdriver or either a 5/32" or 4mm Allen key. This aluminum handle features numerous 1/4"-20 threads and 3/8"-16 ARRI-style mounts for attaching a variety of camera accessories.

Integrate 15mm rod support systems at the correct lens height for your FUJIFILM GFX 100S or X-H2S camera using this LW 15mm Baseplate from Wooden Camera. The quick release baseplate has dual 15mm rod ports that have two locking thumbscrews to tighten or release the system. When releasing the baseplate from your support configuration, you can choose to keep the 15mm rods attached or leave them behind. Your camera is secured via two 3/8"-16 screws.

After securing your camera, sliding the quick ARRI standard dovetail onto the system is easy with the engraved arrows. Locating pins on the dovetail give it a more user-friendly design and ensure it locks into the same position every time. A safety release button makes it simple to detach the dovetail as needed. With the dovetail and baseplate attached to each other, you can mount your compatible camera onto Wooden Camera Quick Release Bridgeplates.

This is a single, 12" long 15mm Support Rod from Wooden Camera for mounting accessories. It is chamfered at each end to ease sliding accessories on and off, and has a hollow interior providing for maximum strength.

Power your camera and up to two accessories with this micro V-mount Micro Battery Slide Pro from Wooden Camera. A V-mount micro battery plate provides unregulated 12V of power to your camera via a LEMO 3-pin connector. Two D-tap ports output 5.8A of power to compatible accessories like secondary monitors or fill lights.

The Micro Battery Slide Pro attaches to the 15mm LW rods on your rig with its integrated rod clamp and can be adjusted for optimal positioning to reduce strain on the power connections. A digital fuse within the power device cuts off the accessory outputs if the user exceeds the set current while keeping the camera output active. Once the accessories are reconfigured, the reset button can be pressed and the outputs will be restored.

Power your FUJIFILM GFX 100S or X-H2S camera with this D-Tap to FUJIFILM NP-W235 Dummy Battery with a 12" cable from Wooden Camera. The device is compatible with any Gold mount or V-mount battery with an 11 to 17V output and a D-Tap port. It then outputs 7.2V via the dummy battery into your camera. Built-in reverse polarity protection ensures that if the cable is plugged in backwards, it does not damage the D-Tap connection.
