Description
- Power Distribution Box
- Fits Between V-Mount & Gold Mount Plates
- 2x 2-Pin LEMO Outputs
- 2x D-Tap Outputs
- 5V USB Output
- 4-Pin Mini XLR Power Input
- All Outputs Simultaneously Active
- D-Tap Power Input Adapter Cable Included

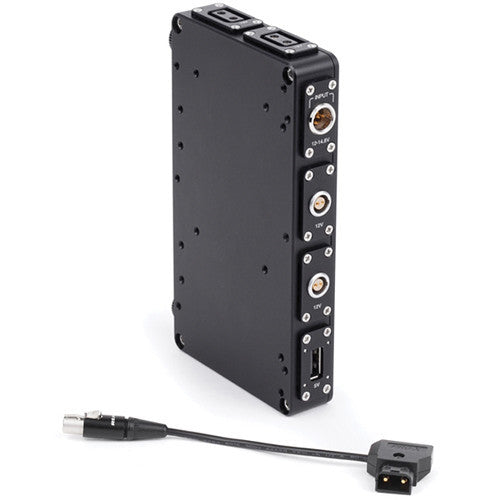

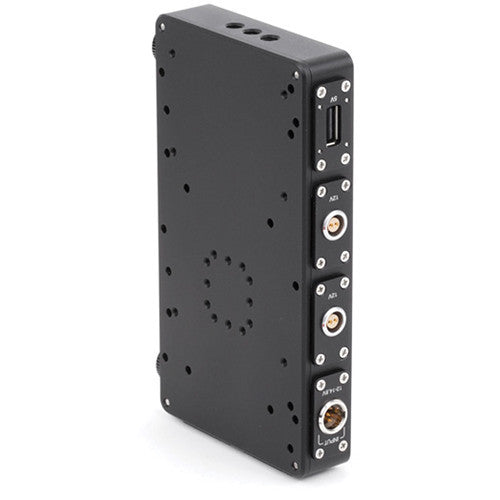

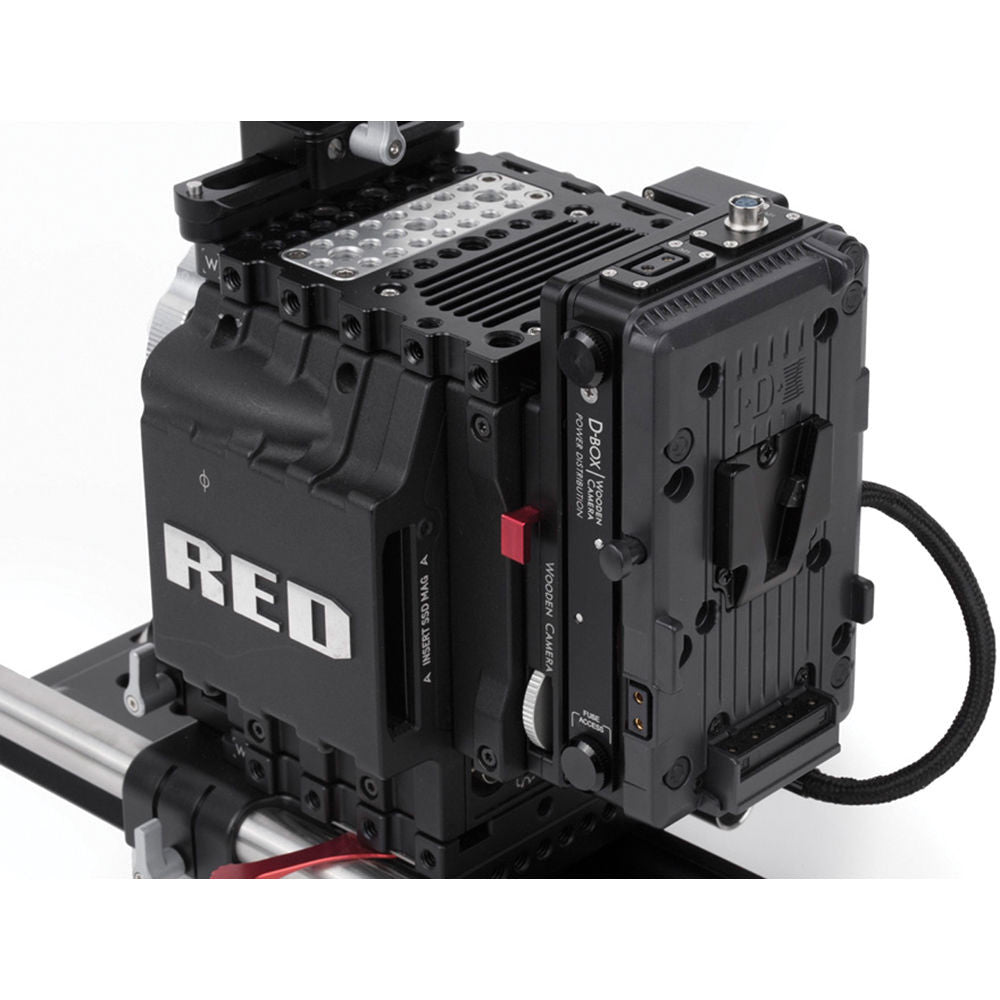

The D-Box 2-Pin LEMO Kit with D-Tap Power Adapter Cable from Wooden Camera is a battery distribution box that features two 2-pin LEMO connectors, two D-tap connectors, one USB port, and a 4-pin Mini XLR input. All outputs are active simultaneously, supporting a maximum power draw of 10A that is limited by a fuse accessible on the left side panel. The included pigtail cable loops around from your power plate D-Tap (sold separately) and plugs into the power input. The D-Box fits between any V-Mount or Gold Mount plate.
UPC: 702534253432
In the Box
Wooden Camera D-Box 2-Pin LEMO Kit with D-Tap Power Adapter Cable
- D-Tap to 4-Pin Mini XLR Power Adapter Cable
- Limited 1-Year Warranty
| Power Input | 1 x 4-pin Mini XLR (12 to 14.8 VDC) |
| Power Outputs | 2 x 2-pin LEMO (12 VDC unregulated) 2 x D-Tap (12 VDC unregulated) 1 x USB (5 VDC regulated) |
| Maximum Power Draw | 10 A |
| Packaging Info | |
|---|---|
| Box Dimensions (LxWxH) | 5.6 x 3.4 x 0.8" |
