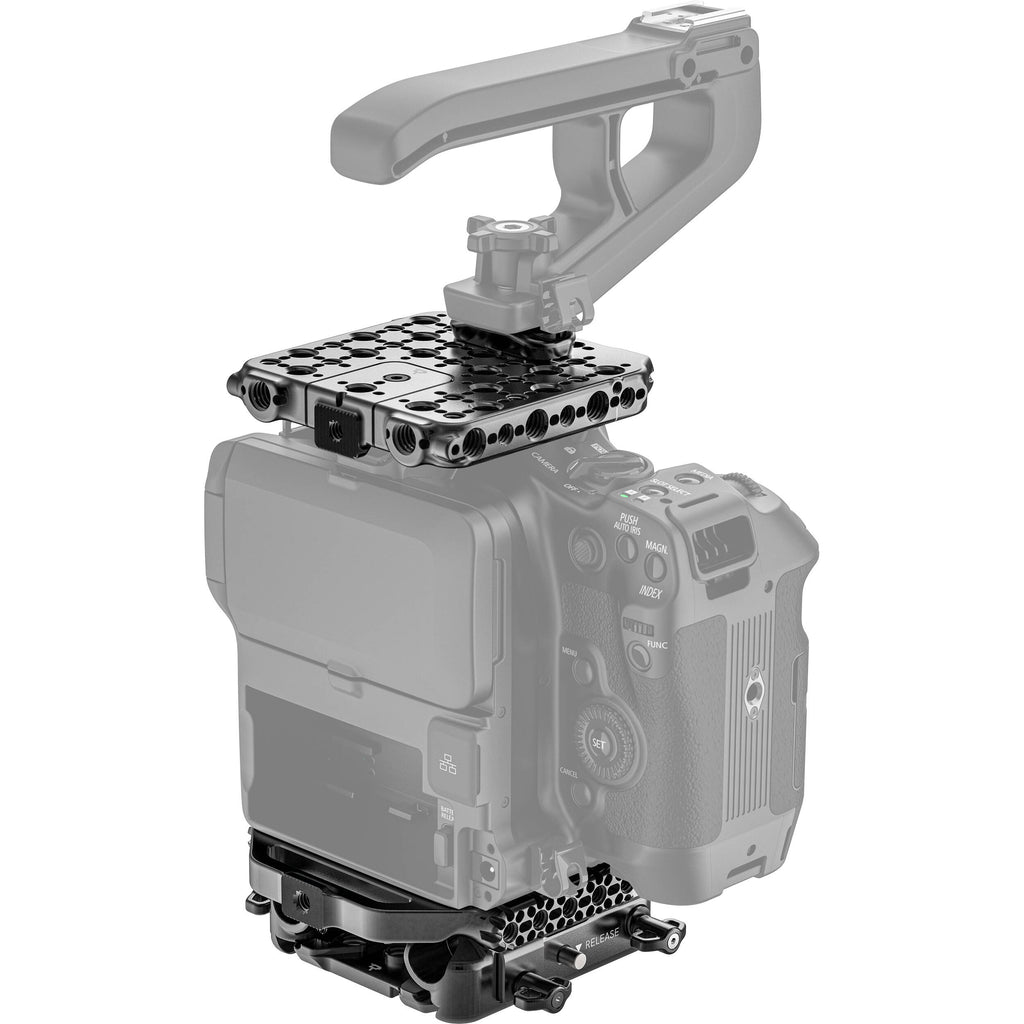

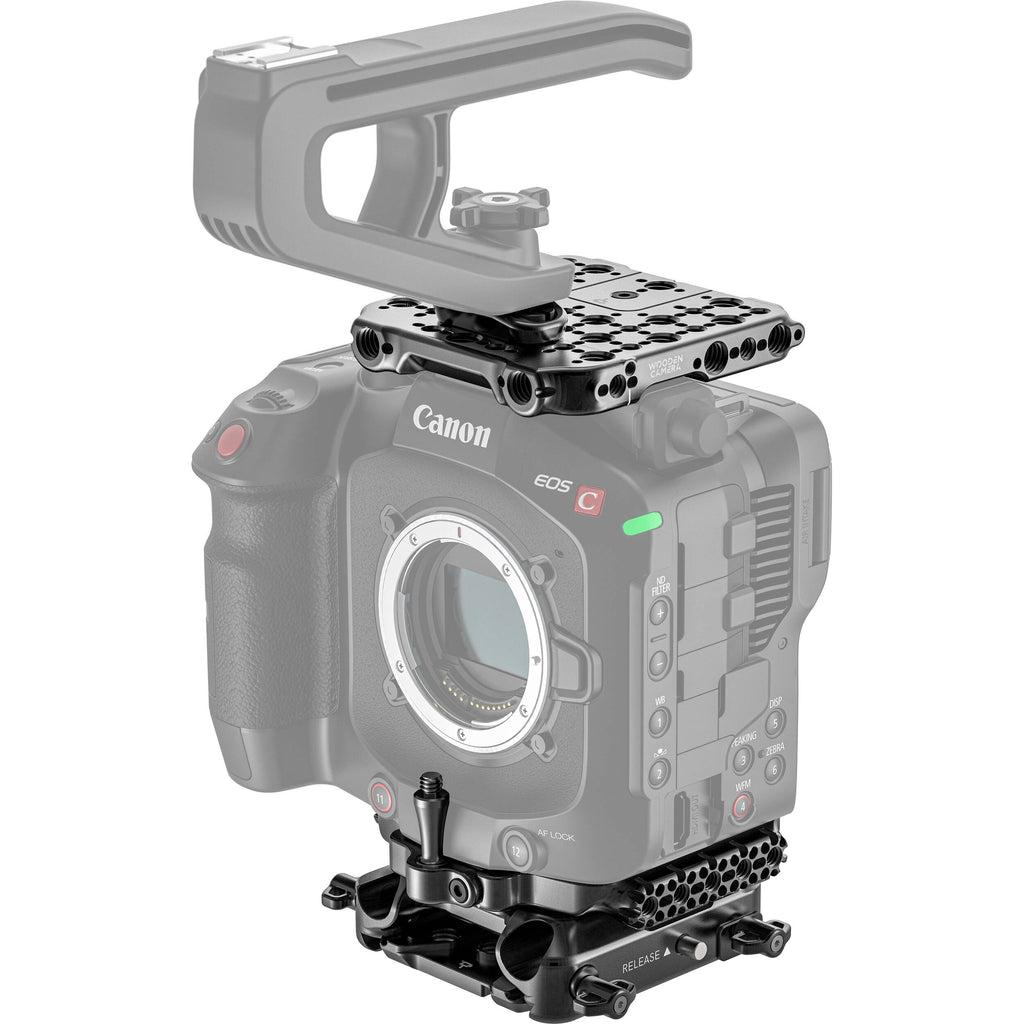

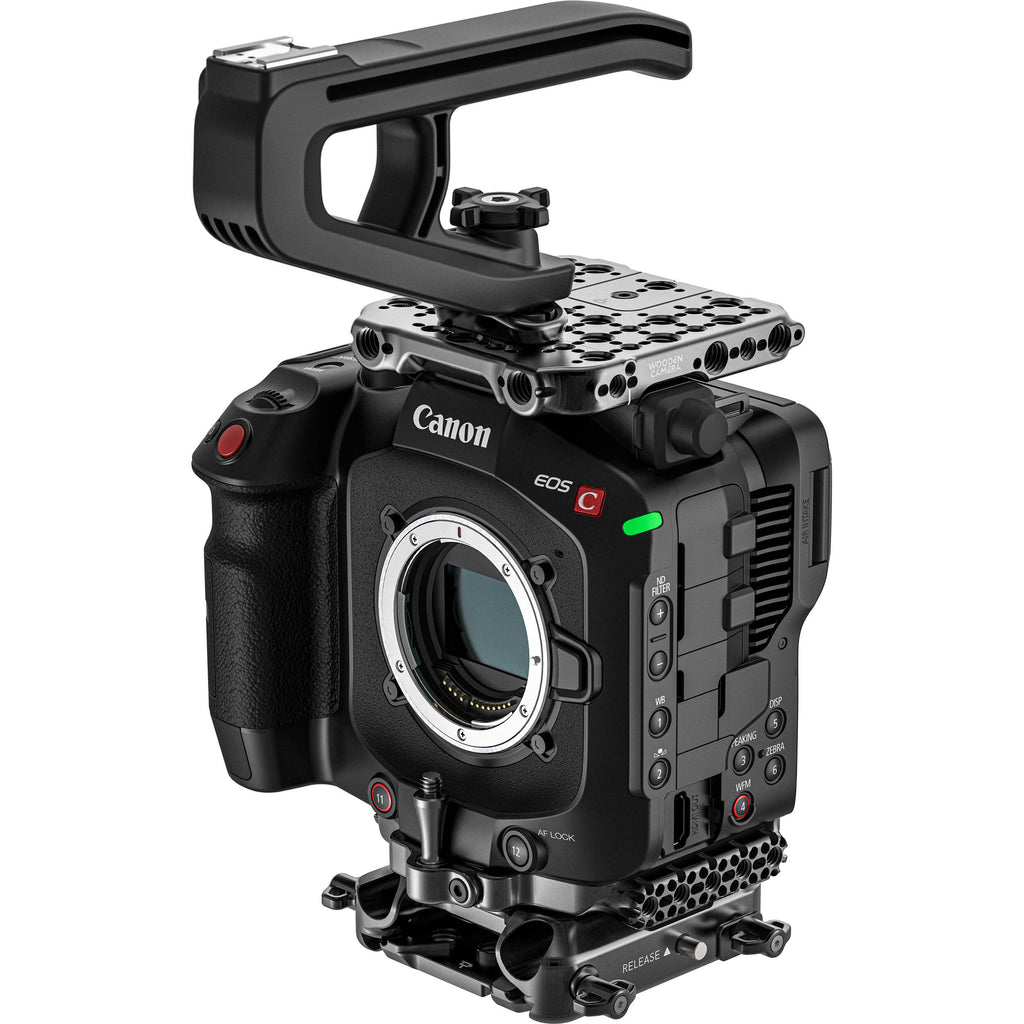

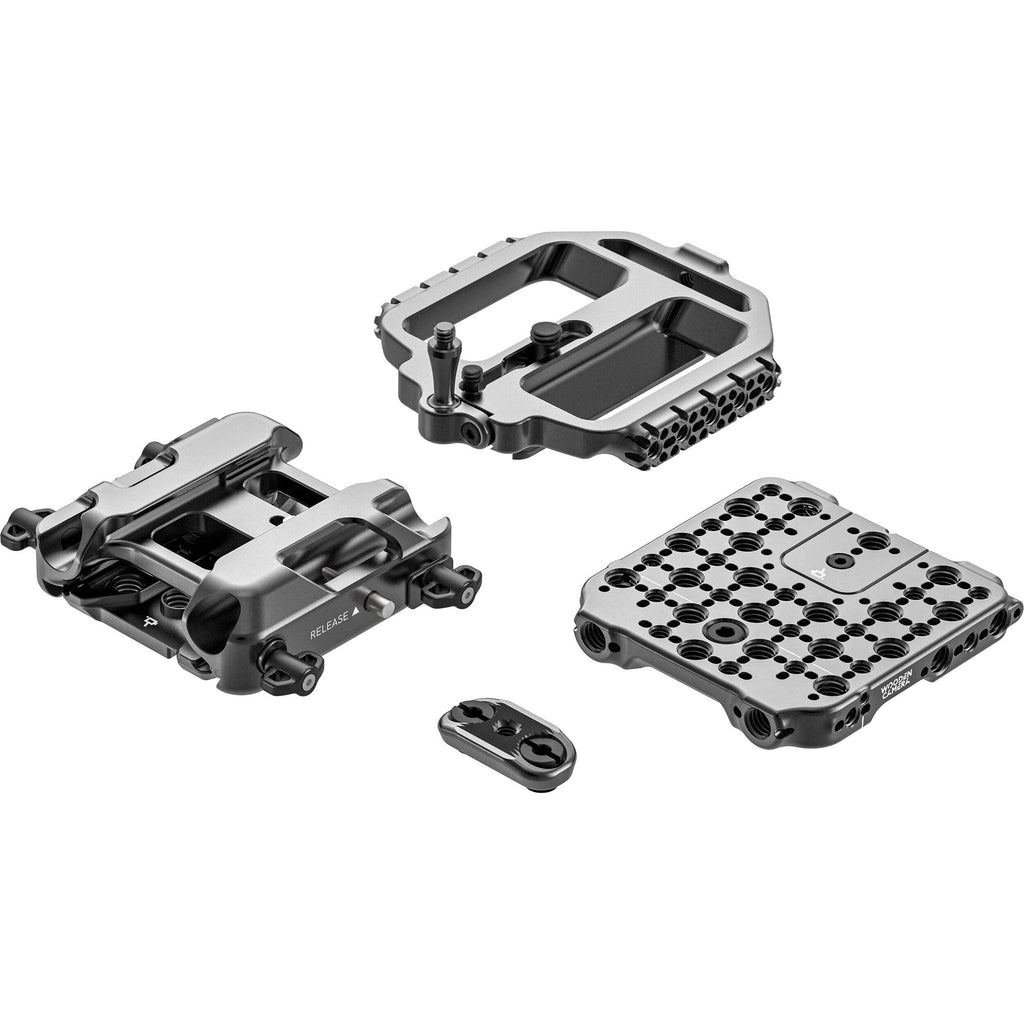

Wooden Camera Core Accessory System for Canon EOS C80

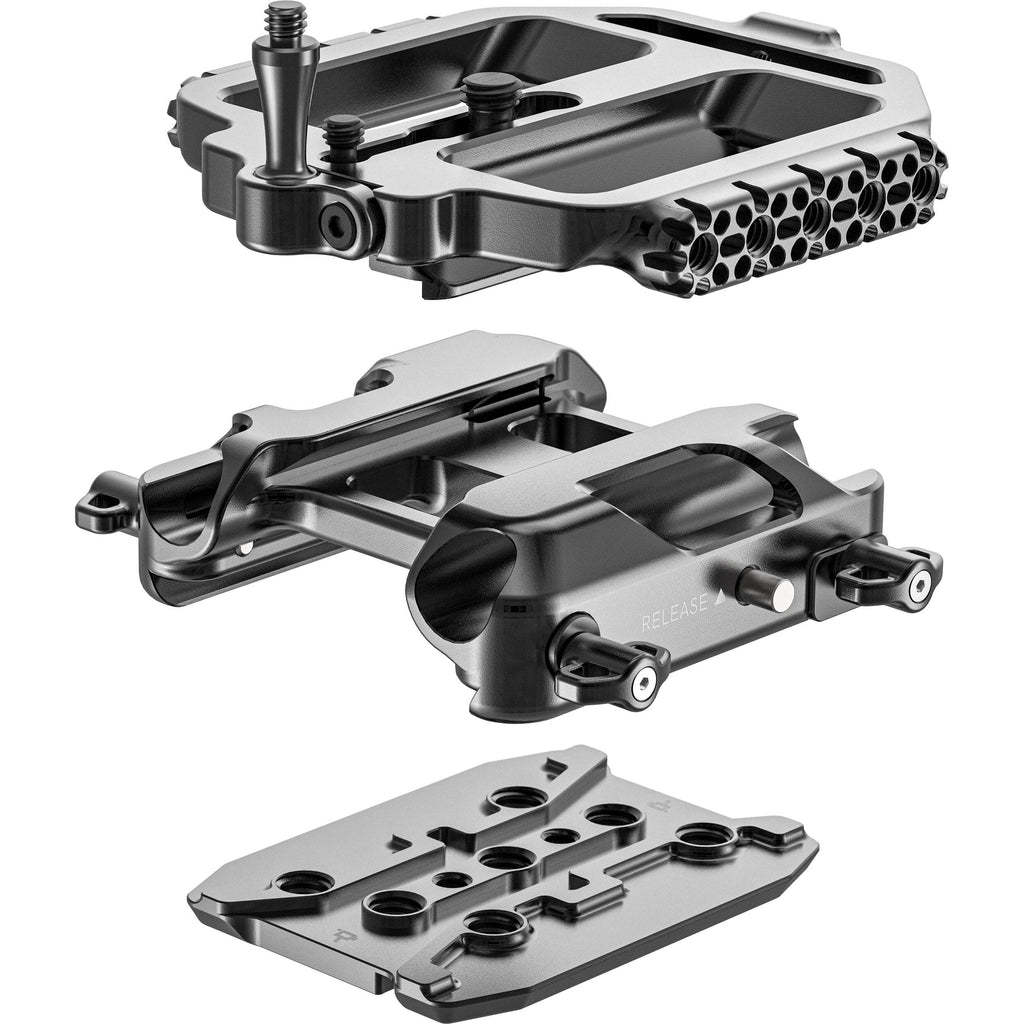

Quickly swap your Canon C80 or C400 cinema camera between rigs with this Arca-Type Baseplate from Wooden Camera. The baseplate features an Arca-type dovetail designed to work with the Wooden Camera Baseplate System for the Canon C400.

The camera mounts onto a standard or studio dovetail and features 15mm LWS rod ports to accommodate separately available rods. Tie-down screws allow you to adjust the baseplate when mounted onto a dovetail, shoulder rig, or bridge plate. The baseplate requires the separately available riser plate to mount it onto the C400.

Attach this Arca-Type Riser Plate from Wooden Camera to your Canon EOS C80 cinema camera with the separately available Arca-type C400 baseplate, shoulder rig, or gimbal mount to achieve the proper lens height for integration and easy transitioning between rigs. The riser includes a lens adapter support rod to prevent twisting or movement.

An integrated, adjustable slide rail in the center allows you to fine-tune your camera position when using a lens mount adapter. On the sides, there are multiple 1/4"-20 threads to add a variety of accessories, such as a shoulder plate or other mounting plates, without requiring a bridge or baseplate.

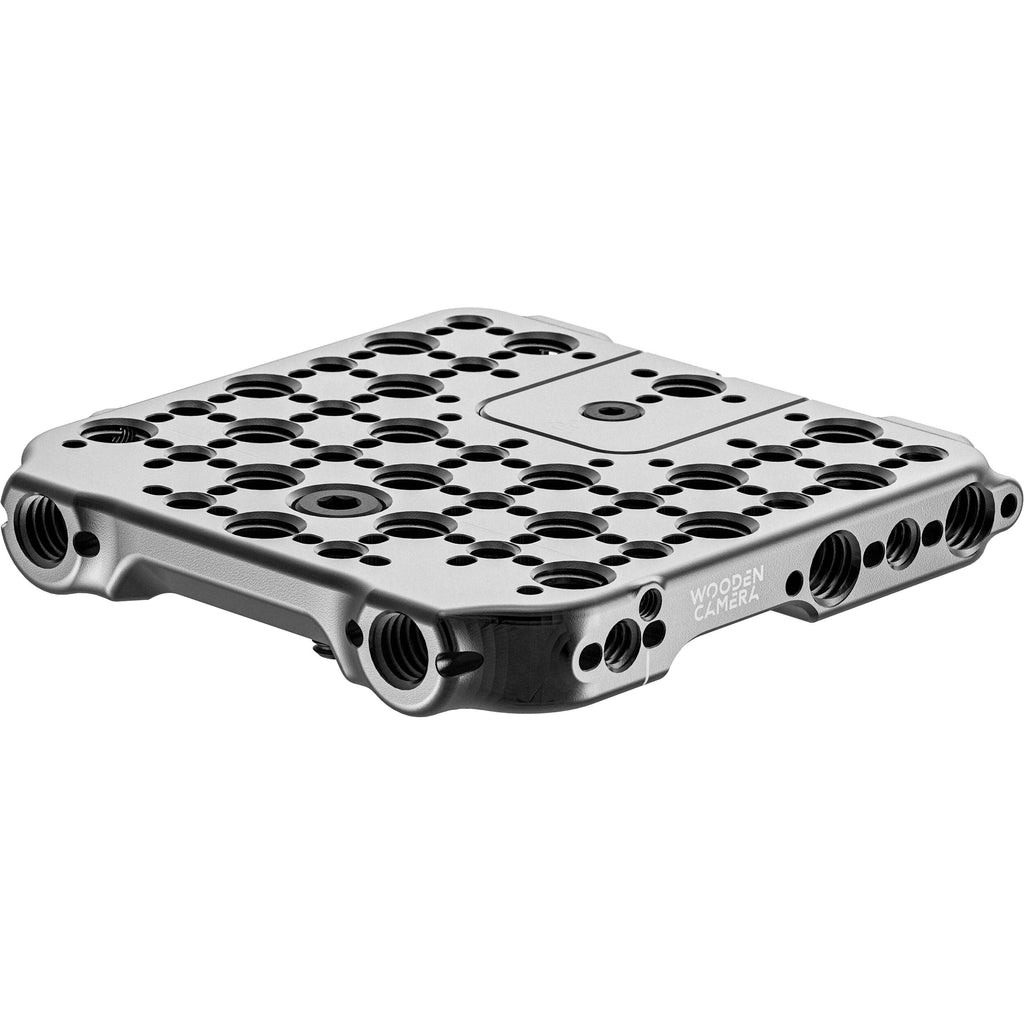

Add accessories such as a top handle, extension arms, a battery mount, a monitor, or an EVF mount to your Canon C80 camera with this Top Plate from Wooden Camera. The aluminum top plate features numerous 1/4"-20 and 3/8"-16 ARRI-style anti-twist accessory threads that can be used to mount accessories, and there are threads around the sides for bolt-on accessories such as rods or a rod clamp.

The plate mounts on top of the camera using its Canon Accessory Mount and the captive 1/4"-20 screw. There is also a removable portion of the plate in the rear that features a shoe adapter that can further secure the plate into the hot shoe, as well as provide a thread connection for a battery plate. That portion can be removed when the user needs to access the camera's hot shoe.

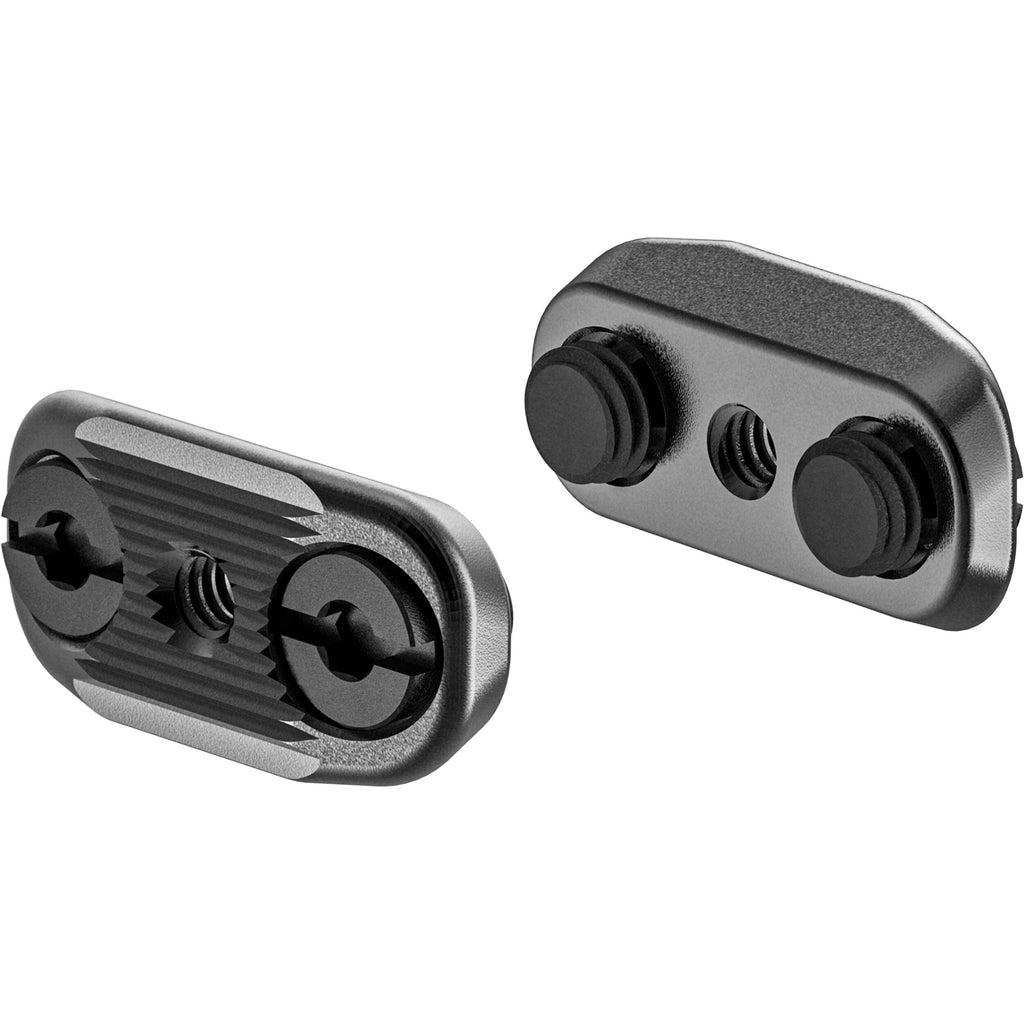

Mount the original Canon EOS C80 top handle onto the Wooden Camera top plate using this 1/4"-20 Ridge Plate. The ridge plate mounts onto the Wooden Camera C80 top plate using two 3/8"-16 captive screws with 1" spacing and provides a single 1/4"-20 thread to mount the original C80 top handle. It features ridges that match the camera body design. It can also be used with the Ultra Handle, allowing you to add a monitor mount or other accessory.
