Description
Wooden Camera Core Accessory System for Canon... Overview

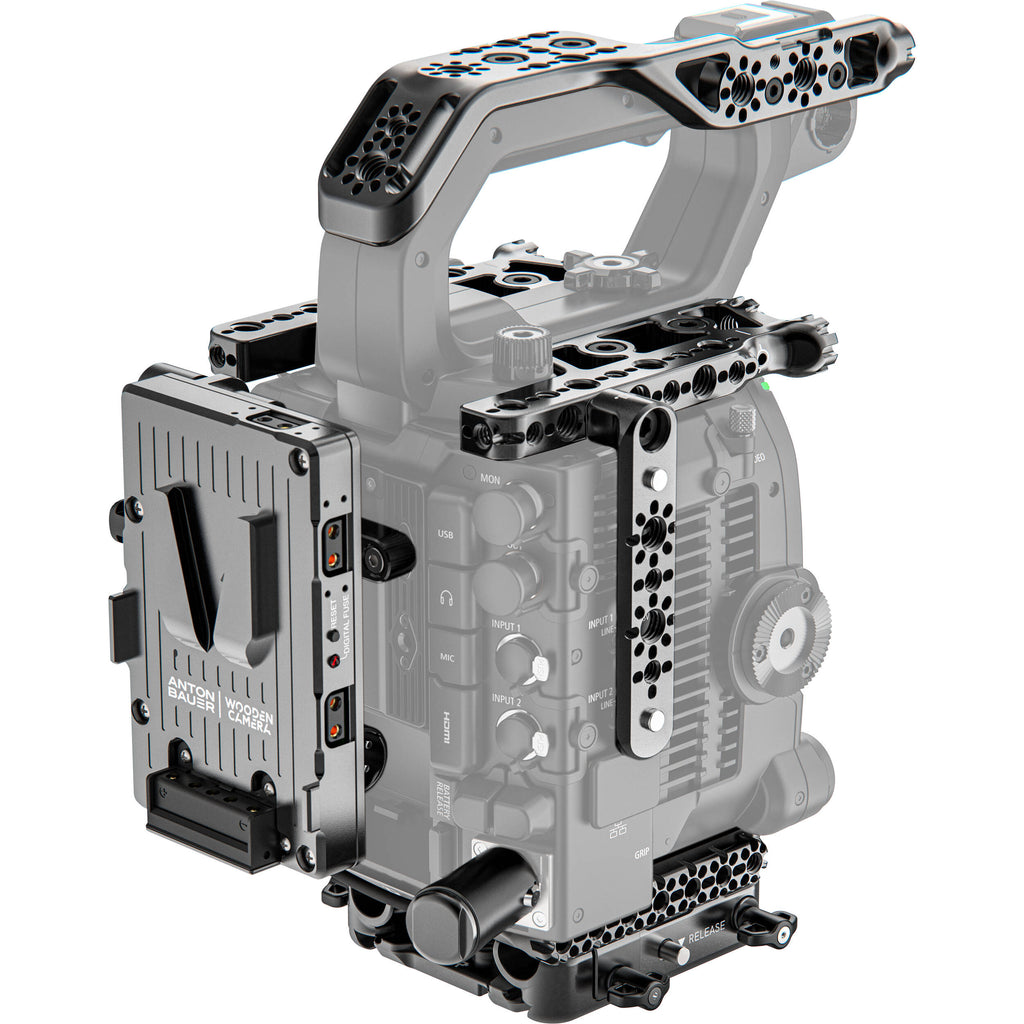

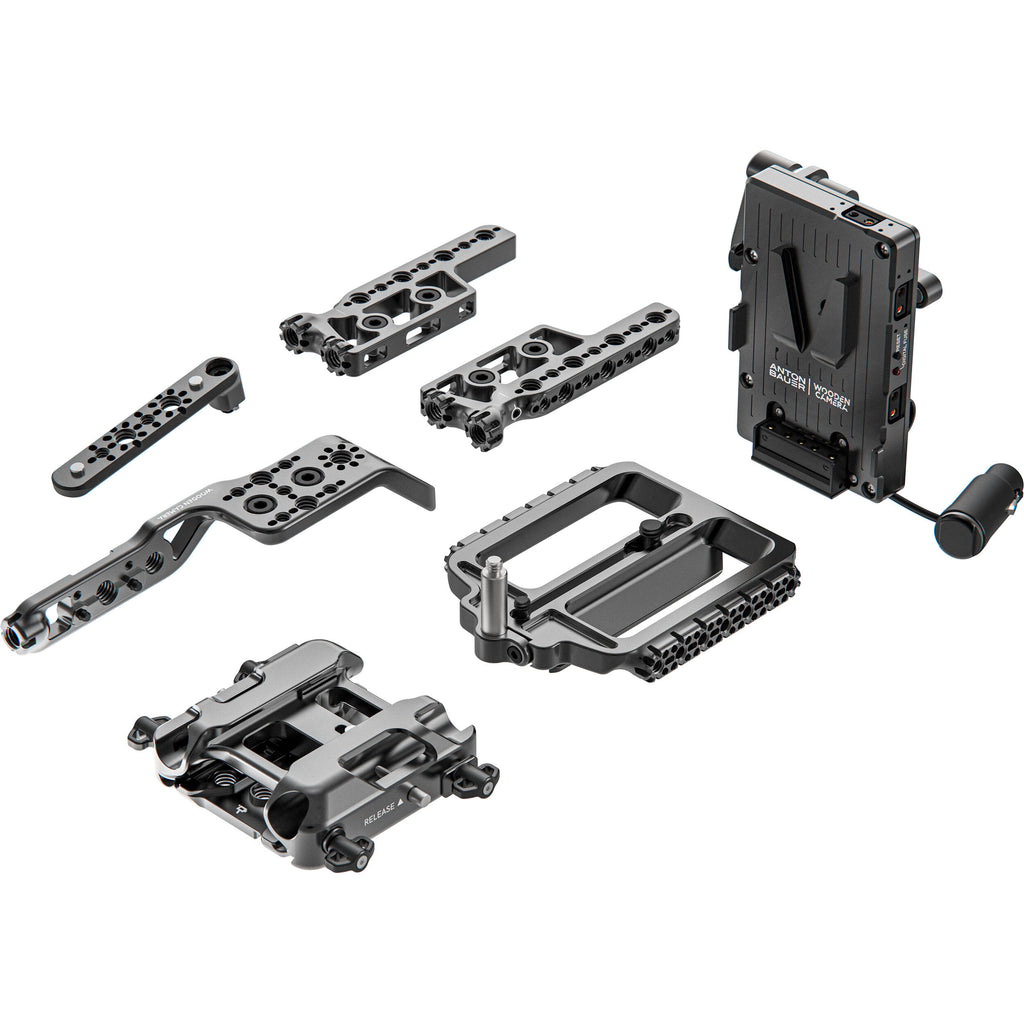

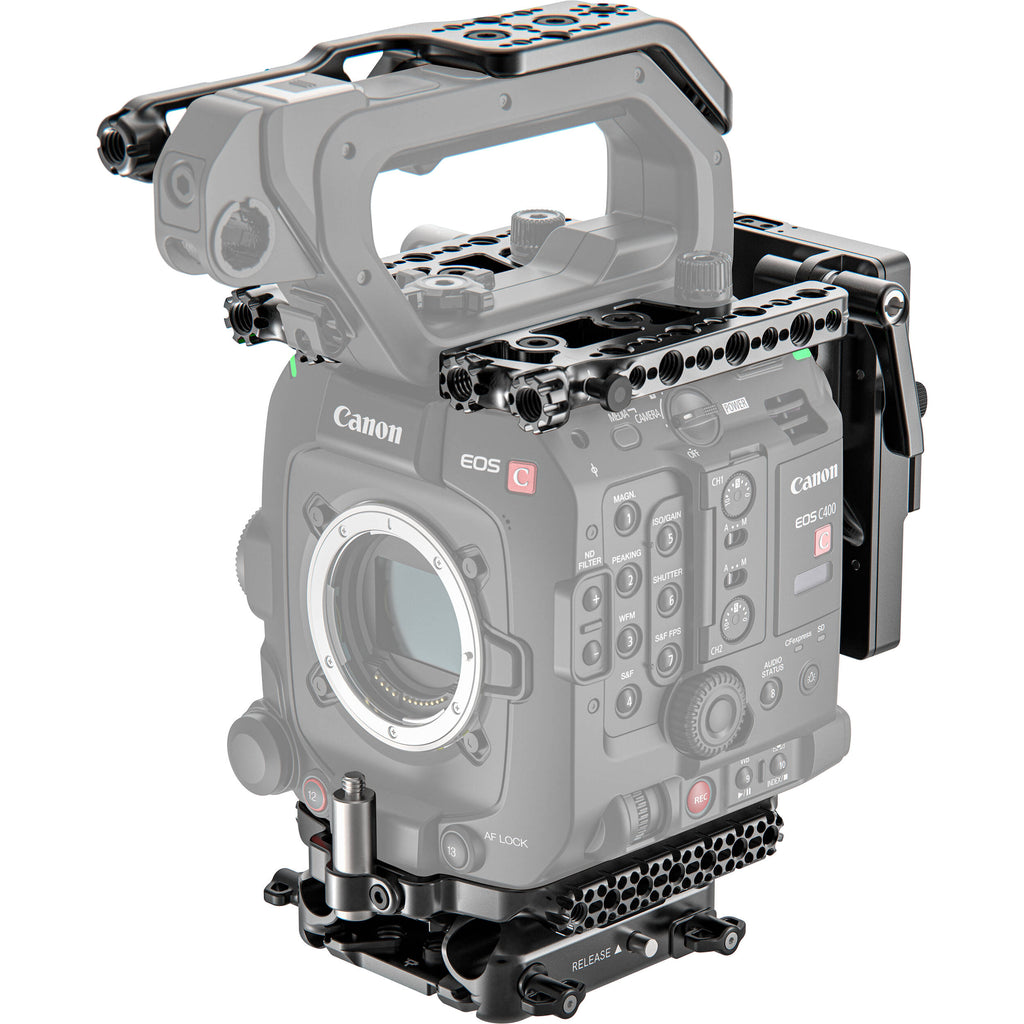

Add all the accessories you need to your Canon EOS C400 cinema camera with this Core Accessory System from Wooden Camera. The modular system includes an Arca-type baseplate with an Arca-type riser system, two versatile left/right top plates, a top handle cheese-style plate, a NATO side rail, and a pro V-mount battery slide.
The system provides tripod, shoulder pad, and bridge plate mounting options, lens support, multiple 1/4"-20 and 3/8"-16 accessory threads, and a NATO rail for mounting numerous accessory types. The battery slide mounts directly onto the back of the camera and can power the camera and accessories using a 4-pin XLR connector and three D-Tap outputs.
Add a professional high-capacity battery to power your Canon C300 Mark III or C500 Mark II cinema camera with this V-mount Battery Slide from Wooden Camera. The battery slide mounts onto your camera using its captive screws and sits at an angle with a movable hinge to allow you to access the camera's BP-U battery.
The slide mounts a single V-mount battery and powers the camera using a 4-pin XLR cable, which also provides hot-swap capability with the camera's internal battery. There are three D-Tap outputs around the battery plate to power a variety of other accessories.
V-mount battery
This Top Plate from Wooden Camera is designed to mount onto the top of the Canon EOS C400 camera to add accessories and additional mounting options. The single plate is symmetrical and can flip upside down and install on either side of the camera top.
There are multiple 1/4"-20 and 3/8"-16 threads along the plate, and multiple 3/8"-16 threads on the front allow for front-mounted accessories, such as optional bolt-on rods and rod clamps. The separately available NATO side rail for the C400 can also be installed using the plate.
NOTE: If the operator wants to use the tape hook while the top plate is installed, they must remove the film plane tape hook and install it on the top plate for proper installation.

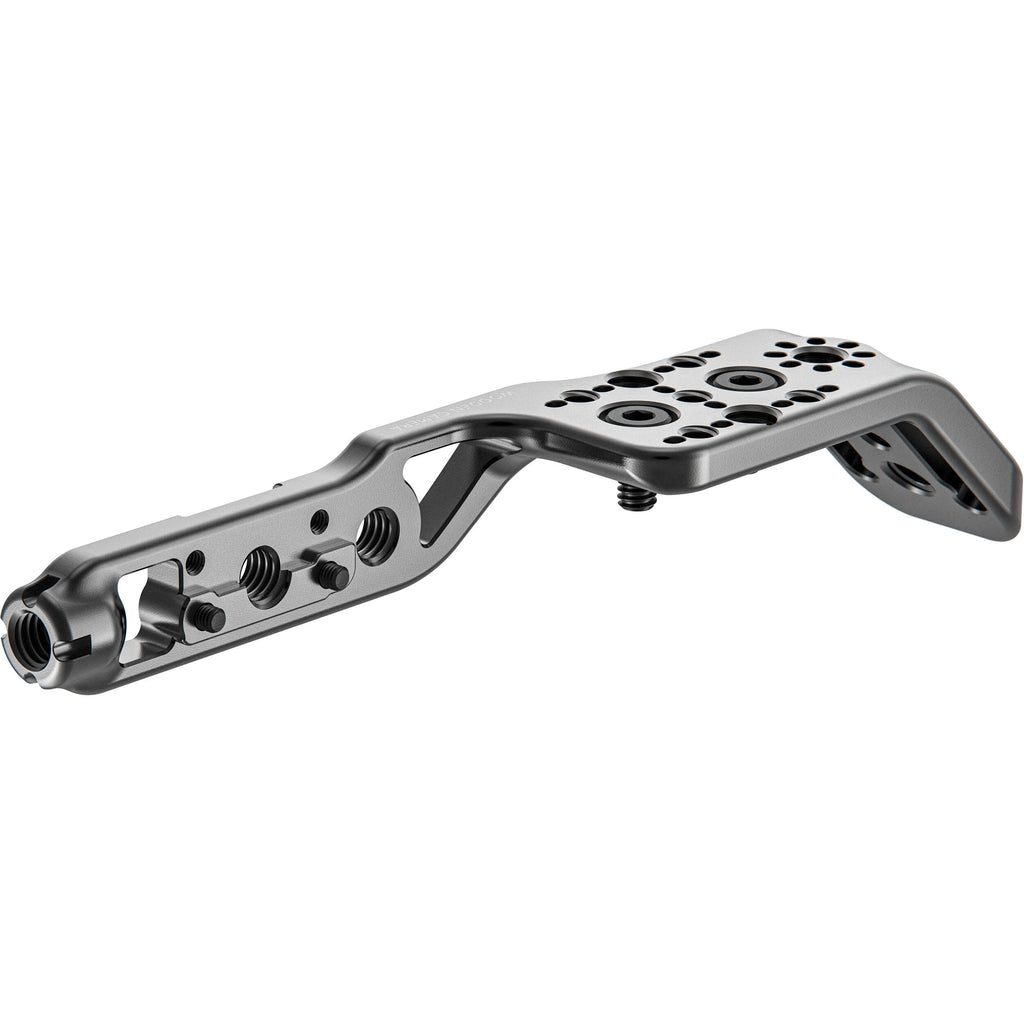

Extend your original Canon EOS C400 top handle to mount additional accessories with this Top Handle Cheese-Style Plate from Wooden Camera. This plate mounts onto the top handle and provides 1/4"-20 and 3/8"-16 accessory threads; a front 3/8"-16 thread allows you to mount a bolt-on rod or rod clamp toward the front of the camera. The plate leaves access to the C400 hot shoe to mount the camera's microphone mount.

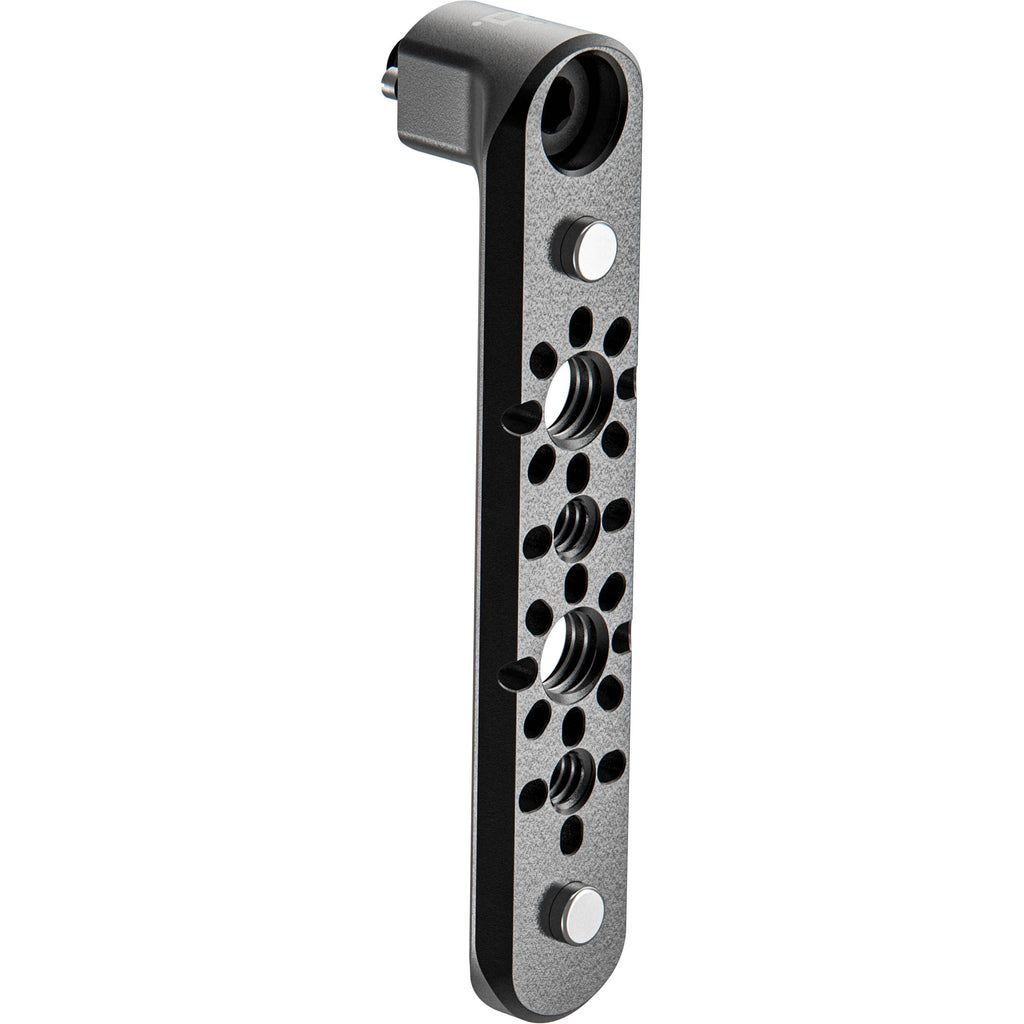

The NATO Side Rail from Wooden Camera attaches to the separately available Canon C400 top plate and provides a NATO rail for accessories such as handgrips. It also features 1/4"-20 and 3/8"-16 mounting threads along the length of the rail for alternative mounting options. The rail can be mounted horizontally or vertically for different configurations, and it features anti-twist safety pins to keep accessories mounted securely.
Items Included
- Wooden Camera Battery Slide for C300 Mark III and C500 Mark II (V-Mount)
- Limited 1-Year Warranty

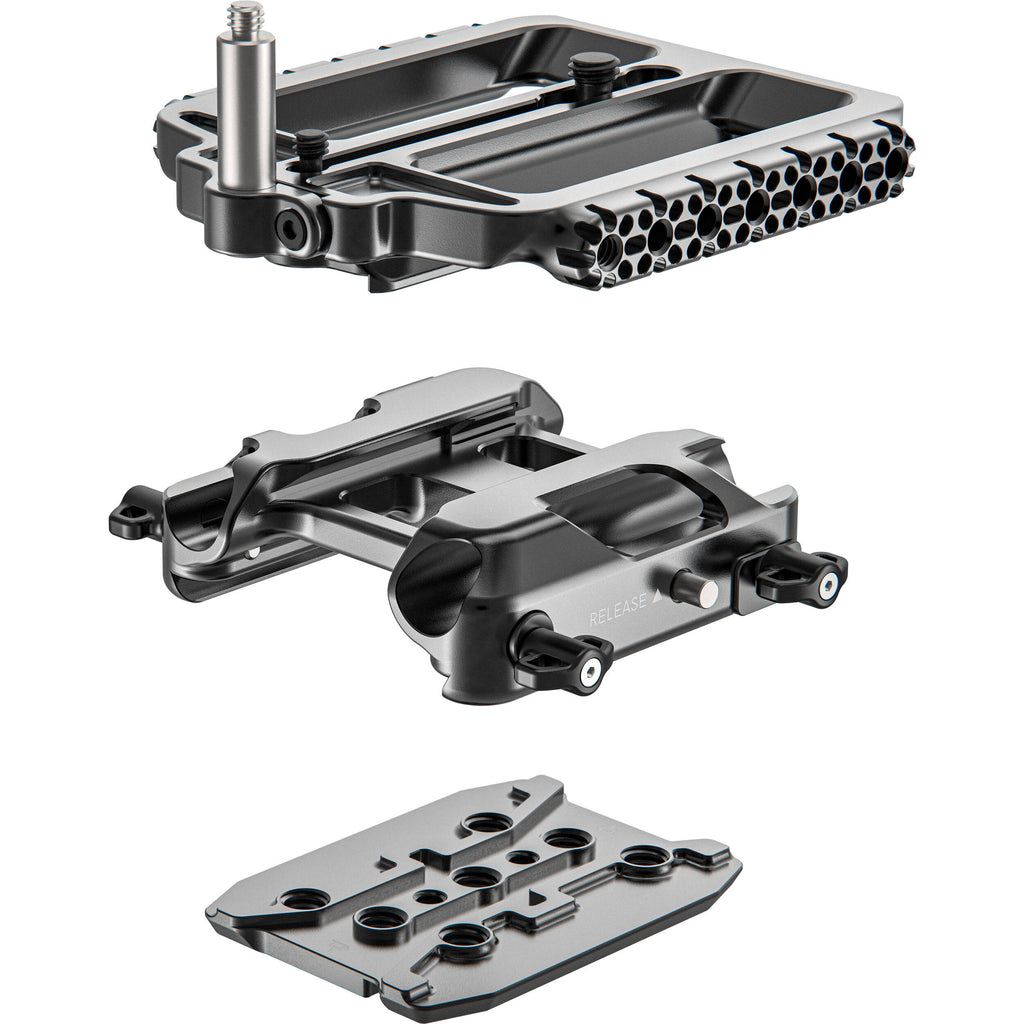

- Wooden Camera Baseplate System for Canon C400
- Wooden Camera Arca-Type Riser Plate for Canon C400
- Wooden Camera Arca-Type Baseplate for Canon C80/C400
- 2 x Wooden Camera Top Plate for Canon C400 (Left/Right)
- Limited 1-Year Manufacturer Warranty
- Wooden Camera Top Handle Cheese-Style Plate for Canon C400
- Limited 1-Year Manufacturer Warranty
- Wooden Camera NATO Side Rail for Canon C400
- Limited 1-Year Manufacturer Warranty
Additional Resources
No additional resources available
Wooden Camera Core Accessory System for Canon... Specs
| Power Output |
XLR 4-Pin: VDC
D-Tap: VDC |
| Camera Power Method |
Connector
|
| Plate Front / Battery Mount |
V-Mount
|
| Hot-Swap Support |
Yes
|
| Power Output |
XLR 4-Pin: VDC
D-Tap: VDC |
| Camera Power Method |
Connector
|
| Inputs/Outputs |
1x XLR 4-Pin
3x D-Tap |
| Plate Front / Battery Mount |
V-Mount
|
| Number of Battery Bays |
1
|
| Hot-Swap Support |
Yes
|
| Indicator |
LED
|
| Dimensions |
6 x 4 x 1.75" / 15.2 x 10.2 x 4.45 cm
|
| Weight |
12.32 oz / 349.27 g
|
| Package Weight |
0.945 lb
|
| Box Dimensions (LxWxH) |
6.7 x 4.4 x 3.3"
|
Wooden Camera Core Accessory System for Canon... Specs
| Compatibility |
Canon C400 Cinema Camera
Wooden Camera NATO Side Rail for C400 / Bolt-On Rods / Rod Clamps / Front Top Plate with Dual Rod Clamp |
| Dimensions |
4.8 x 1.7 x 0.8" / 120.8 x 44.2 x 19.2 mm
|
| Weight |
3.01 oz / 85.28 g
|
| Package Weight |
0.175 lb
|
| Box Dimensions (LxWxH) |
4.85 x 1.95 x 0.9"
|
Wooden Camera Core Accessory System for Canon... Specs
| Compatibility |
Canon C400 Cinema Camera
|
| Mounting |
Multiple 1/4"-20 Threads
Multiple 3/8"-16 Threads |
| Color |
Black
|
| Material of Construction |
Aluminum
|
| Dimensions |
7.5 x 1.7 x 1.5" / 190.4 x 44 x 37.2 mm
|
| Weight |
3.7 oz / 104.8 g
|
| Package Weight |
0.24 lb
|
| Box Dimensions (LxWxH) |
7.65 x 2.25 x 1.5"
|
Wooden Camera Core Accessory System for Canon... Specs
| Compatibility |
Canon C400 Cinema Camera
|
| Mounting |
1x NATO Rail
Multiple 1/4"-20 Threads Multiple 3/8"-16 Threads 1x 1/4"-20 Screw |
| Color |
Black
|
| Material of Construction |
Aluminum
|
| Dimensions |
3.8 x 1 x 0.8" / 97.5 x 25 x 21.2 mm
|
| Weight |
1.1 oz / 31.5 g
|
| Package Weight |
0.065 lb
|
| Box Dimensions (LxWxH) |
4.3 x 1.45 x 0.9"
|
