Description
Wooden Camera 288400 Overview

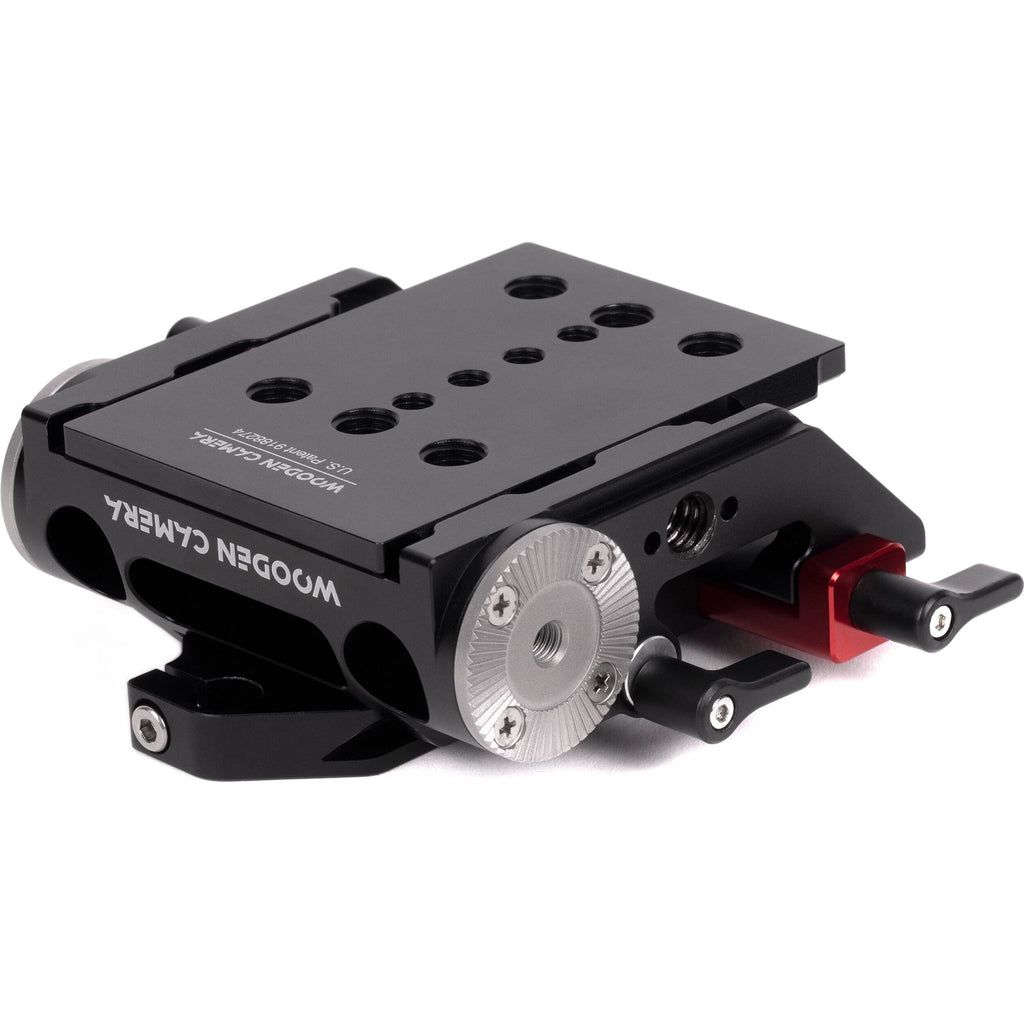

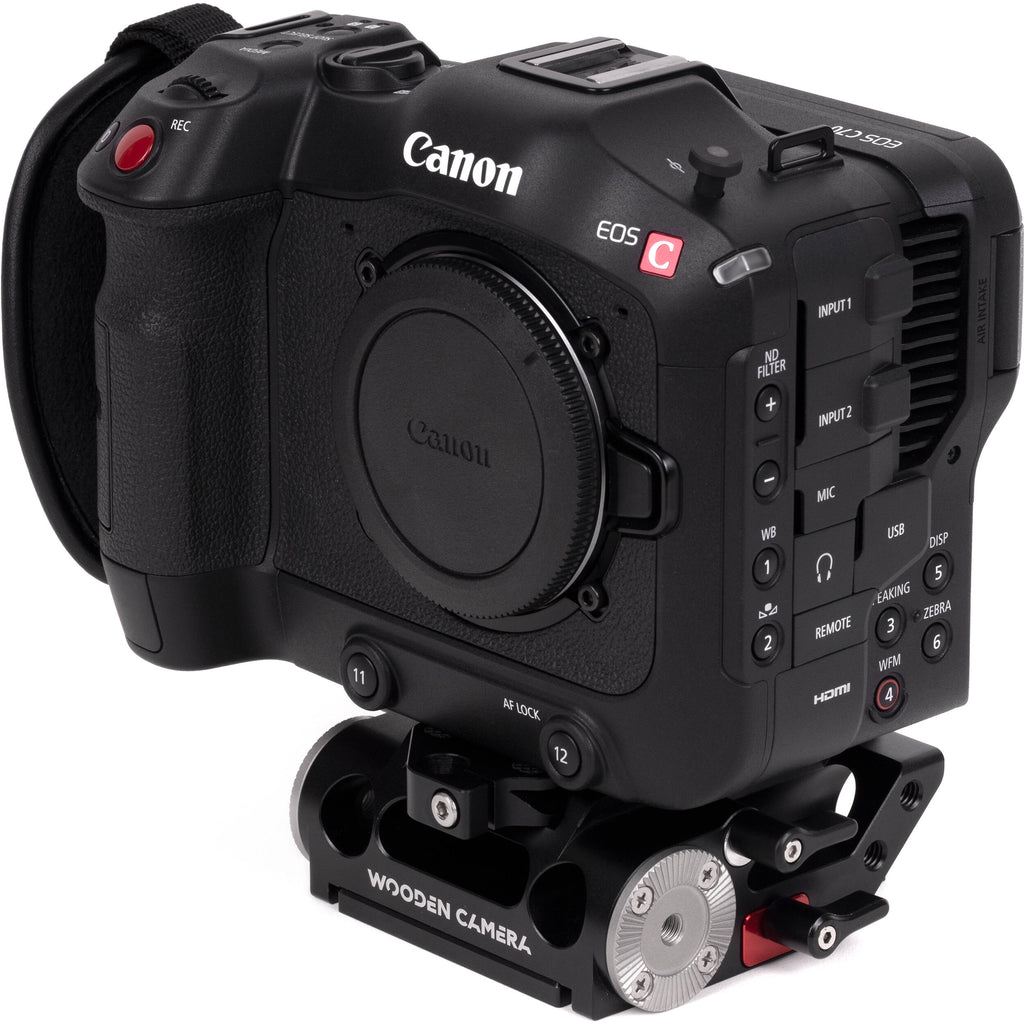

Add a quick release baseplate and additional accessories to your Canon C70 rig with this 15mm LWS Baseplate from Wooden Camera. The durable aluminum baseplate functions as both a riser and a 15mm LWS rod support, and it features multiple accessory attachment points.

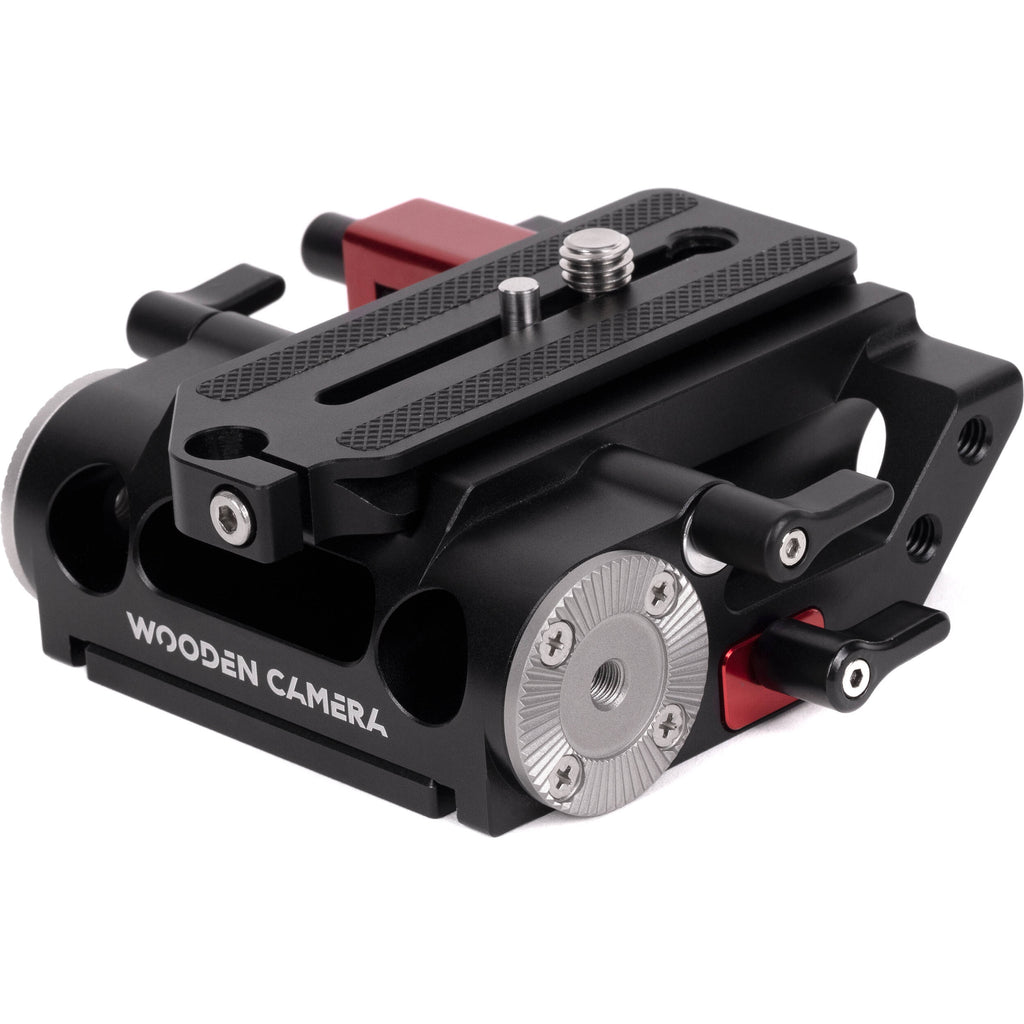

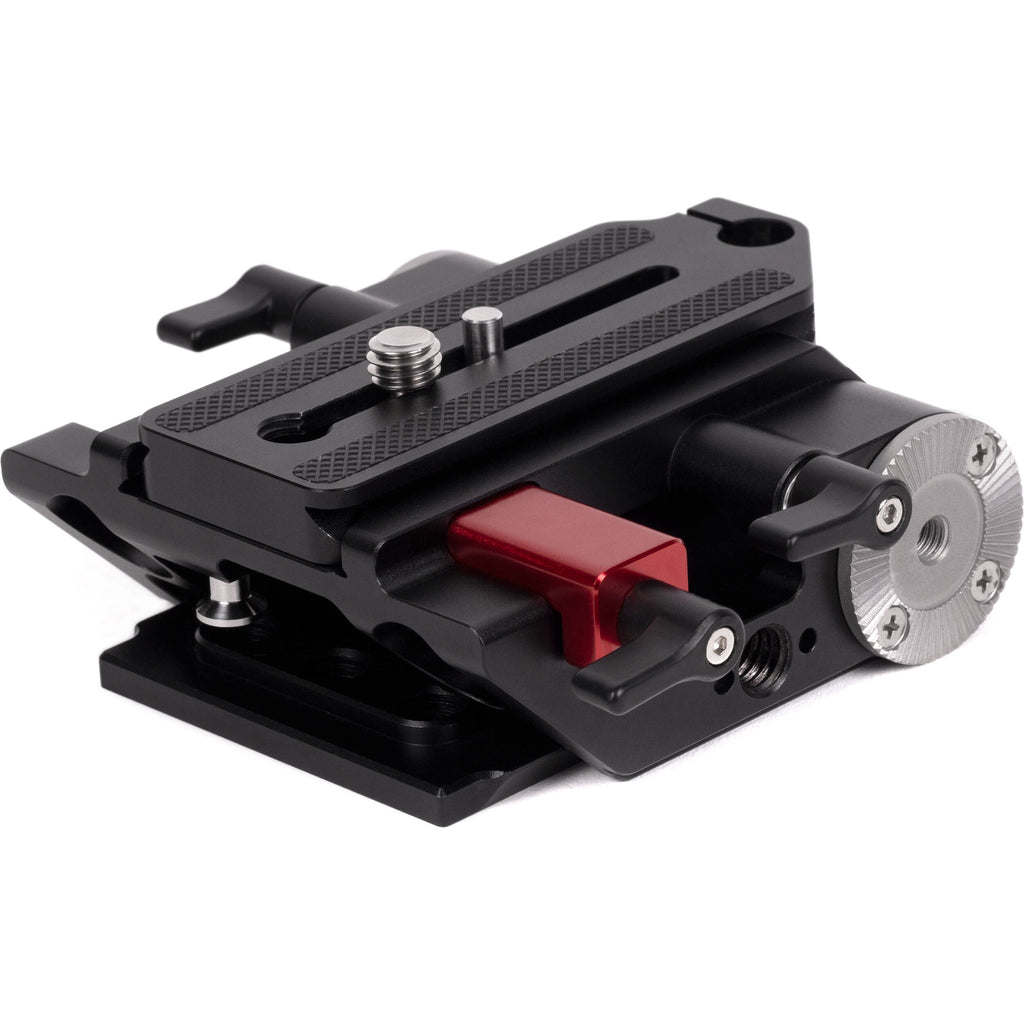

The riser baseplate features an Arca-type quick release dovetail plate with a 3/8"-16 camera screw and a push/pull safety pin to keep your camera from twisting. On the front of the dovetail is a vertical rod port that allows you to add an optional vertical lens support.
The base features standard 15mm rod ports that secure with locking levers, multiple 1/4"-20 threads, and one 3/8"-16 ARRI-style accessory mount for additional gear. There is an ARRI-style rosette with an M6 thread on either side for adding a handgrip or extension arm. The bottom of the plate features an ARRI-standard dovetail mount and a quick dovetail plate with multiple threads to mount the baseplate onto a bridge plate or rig.
Compatibility
Also compatible with but not limited to:
Wooden Camera Quick Release Bridgeplate (19mm) 277000
Wooden Camera Quick Release Bridgeplate (15mm Studio) 277100

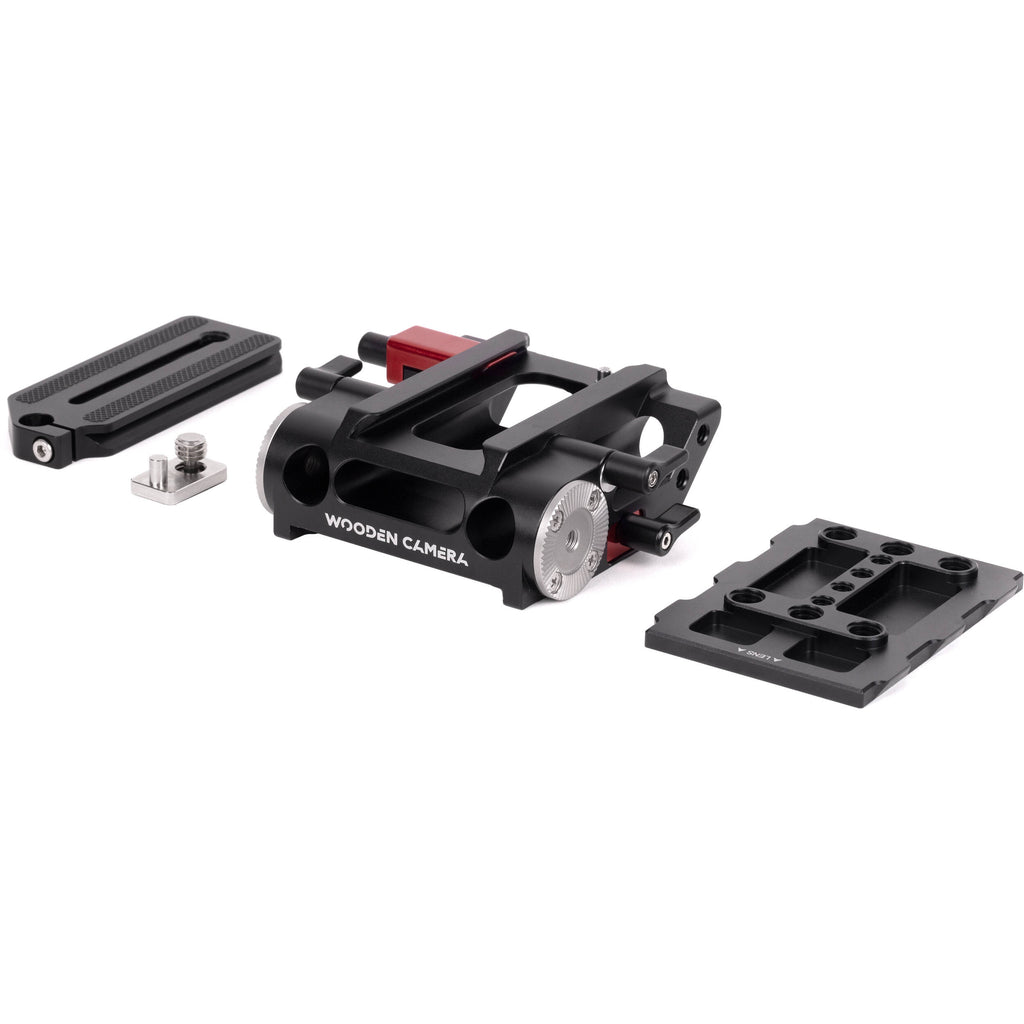

In the Box
- Wooden Camera 15mm LWS Baseplate for Canon C70
- Arca-Type Dovetail Camera Plate
- Quick Dovetail Plate
- Limited 1-Year Warranty
Wooden Camera 288400 Specs
| Support Type | Baseplate, Rod Support System |
| Grip Type | None |
| Camera Compatibility | Canon EOS C70 |
| Rod Standard | 15 mm LWS / 60 mm Spacing |
| Battery Plate Type | None |
| Accessory Mounting | Baseplate: Multiple x 1/4"-20 Thread, 1 x ARRI Anti-Twist 3/8"-16 Thread |
| Camera Mounting | Arca-Type Plate with 3/8"-16 Screw |
| Tripod Mounting | Baseplate: 1/4"-20 Thread, 3/8"-16 Thread, ARRI Dovetail, ARRI Dovetail Clamp |
| Rod Ports | Baseplate: 2 x 15 mm Rod Port |
| Shoe Mounting | None |
| Rosettes | 2 x ARRI Rosette w/ M6 Thread |
| Construction | Aluminum |
| Dimensions | 4.7 x 3.5 x 1.6" / 120 x 90 x 40 mm |
| Weight | 14.1 oz / 400 g |
| Package Weight | 0.91 lb |
| Box Dimensions (LxWxH) | 5.1 x 4.75 x 1.95" |
