Description

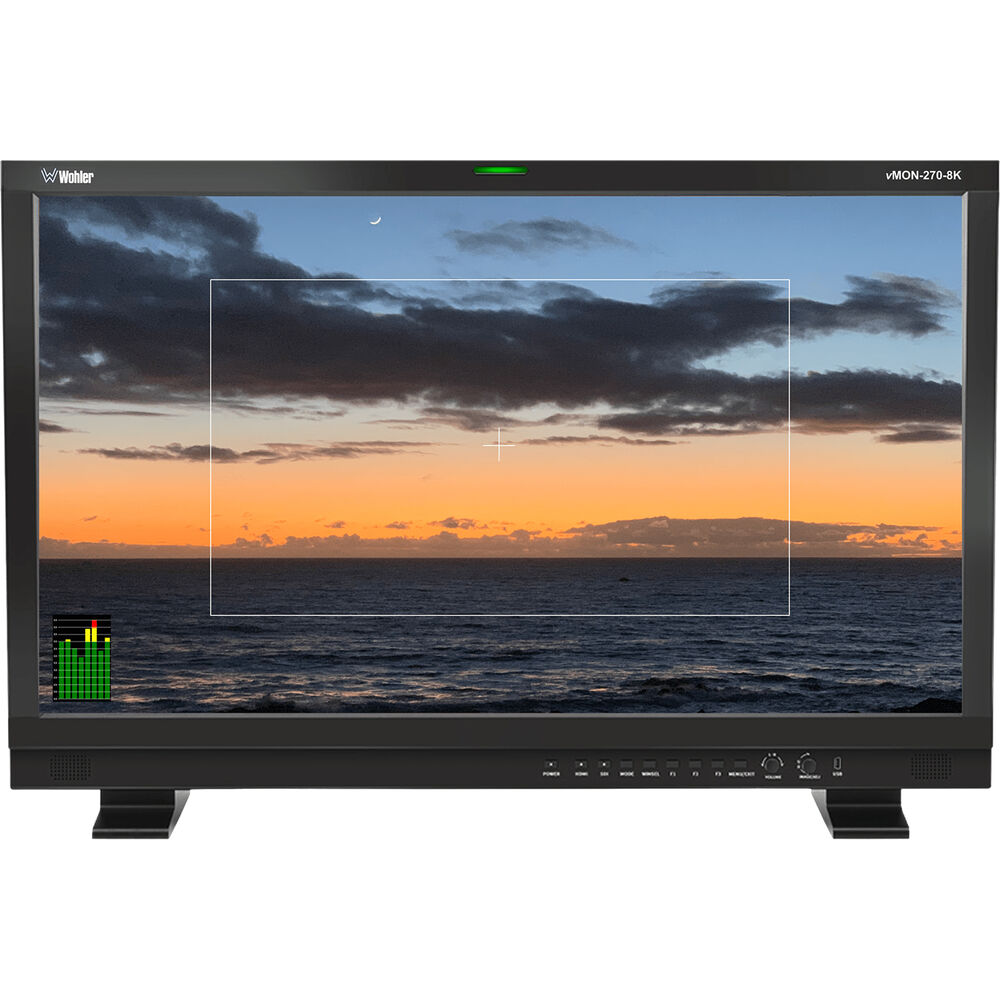

Wohler vMON-270-8K Overview
The vMON-270-8K 27" HDR Video Monitor from Wohler is a full-featured, slim video monitor designed for a wide variety of applications, including installation in mobile production trucks, 8K post-production rooms, and surveillance systems. The monitor comes standard with selectable video vectorscope/histogram, safe area and aspect ratio markers, IMD labeling, tally, and built-in color bars, as well as level metering and a broad range of picture controls and productive video features, such as zoom control and focus assist.
The vMON-270-8K supports 8192 x 4320 8K resolution with HDR support and latency-free 12-bit video processing but has a max display resolution of 3840 x 2160 UHD 4K. It features four 12G-SDI inputs and outputs, one HDMI 2.0, and an SDI SPF+ input. Embedded audio may be monitored via the 16-channel level meters, as well as built-in front panel speakers or via optional headphones connected to the integrated 3.5mm headphone jack.
A whole slew of professional broadcasting features, including image flip, focus assist, false color, quad split, darkness check, closed captioning, and eight selectable scene settings, make the vMON-270-8K an integral tool for all types of 8K production workflows. All standard frame rates, and resolutions are supported, and each of the four SDI inputs has a looping output.
- 3840 x 2160 4K resolution display
- 8192 x 4320 8K resolution supported
- 12-bit video processing without image delay
- 4K 12G-SDI single link signal, 4K/8K quad link 2 Sample Interleave (2SI), Square Division (SQD)
- 4K HDR waveform, vectorscope, marker/box control function
- Picture flip, focus assist, false color, zebra, full scan, overscan, blue/mono only, key lock, video freeze
- SDR and HDR comparison, darkness check
- Color space and EOTF curves auto sensing, matching (Rec. 709/Rec.2020)
- Color space: Rec. 709/EBU/DCI-P3 D65/DCI-P3/Rec. 2020/Bypass
- HDR: PQ (ST2084), HLG (1.0, 1.1, 1.2, 1.3, 1.4, 1.5)
- Sony log curves: S-Log, S-Log2, S-Log3
- Canon log curves: C-Log, C-Log2, C-Log3
- ARRI log curves: Log C
- Panasonic log curves: V-Log, V-Log (softroll)
- Gamma (2.0, 2.2, 2.4, 2.6), HDR area display
- 3D LUT color calibration with ColourSpace and CalMAN
- 3rd-party 3D LUT files import (USER1/USER2)
- Eight Selectable Scene Settings
- Dynamic and static UMD/IMD display (TSL3.1/4.0/5.0)
- 608/708 CC closed caption
- GPI (selectable/markable windows)
- Built-in speakers
In the Box
- Wohler vMON-270-8K 27" HDR Video Monitor
- Power Supply
- Limited 2-Year Manufacturer Warranty
Wohler vMON-270-8K Specs
| Display Size |
27.00" / 68.6 cm
|
| Resolution |
3840 x 2160
|
| Touchscreen |
No
|
| HDR Compatibility |
Yes
|
| Video I/O |
4 x BNC (12G-SDI) Input
1 x HDMI 2.0 Input 1 x BNC (Unspecified SDI) Input 4 x BNC (12G-SDI) Output |
| Media/Memory Card Slot |
No
|
| Video Format |
HDMI/SDI (10/12-Bit)
UHD 4K |
| Power Consumption |
63 W
|
| Display Size |
27.00" / 68.6 cm
|
| Screen Area |
23.5 x 13.2" / 597.7 x 336.3 mm
|
| Resolution |
3840 x 2160
|
| Aspect Ratio |
16:9
|
| Touchscreen |
No
|
| Maximum Brightness |
400 nits / cd/m2
|
| Contrast Ratio |
2000:1
|
| Bit Depth / Color Support |
10-Bit (1.07 Billion Colors)
|
| HDR Compatibility |
Yes
|
| Pixels Per Inch (ppi) |
163 ppi
|
| Real-Time LUT Monitoring |
SDR, HDR
|
| Image Controls |
Blue Only, False Color, Focus Assist, Histogram, Image Flip, Screen Markers, Vectorscope, Waveform, Zebra
|
| Video I/O |
4 x BNC (12G-SDI) Input
1 x HDMI 2.0 Input 1 x BNC (Unspecified SDI) Input 4 x BNC (12G-SDI) Output |
| Embedded Audio |
HDMI/SDI: 16-Channel
|
| Audio I/O |
1 x 1/8" / 3.5 mm Headphone Output
|
| Built-In Speaker |
2
|
| Power I/O |
1 x Barrel (12 VDC) Input
|
| Media/Memory Card Slot |
No
|
| Wi-Fi |
No
|
| Bluetooth |
No
|
| Mobile App Compatible |
No
*As of March, 2023: Check with manufacturer for the most up-to-date compatibility |
| Video Format |
HDMI/SDI (10/12-Bit)
UHD 4K |
| Gamma Curve |
ARRI Log C, Canon Log, Canon Log 2, Canon Log 3, DCI-P3, HDR-HLG, Panasonic V-Log, Rec709, Rec2020, Sony S-Log, Sony S-Log 2, Sony S-Log 3, ST2084
|
| AC Input Power |
100 to 240 VAC, 50 / 60 Hz
|
| DC Input Power |
12 VDC
|
| Power Consumption |
63 W
|
| Dimensions |
26.3 x 17.4 x 6.3" / 66.8 x 44.2 x 16 cm
|
| Weight |
25.8 lb / 11.7 kg
|
