Description

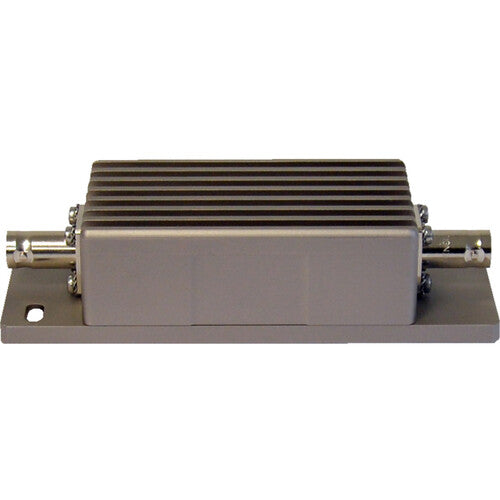

Wisycom PAW-L Overview
Designed for MFL RF-over-fiber systems, the Wisycom PAW is a high-performance wideband linear antenna amplifier capable of boosting RF signals by up to 20 dB, with a maximum output of 250mW EIRP. This "L" variant is optimized for operation within the 435 to 700 MHz frequency range and is equipped with BNC I/O connectors for easy integration.
The PAW is powered via 12V bias through the coaxial cable connected to its input, drawing power directly from the transmitter or MFL system. Encased in rugged aluminum, it is built for durability in outdoor installations. Additionally, it features two M4 screw holes for secure wall mounting.
Items Included
- Wisycom PAW Wideband Antenna Amplifier with BNC Connectors (L: 435 to 700 MHz)
- Limited 1-Year Manufacturer Warranty
Additional Resources
Wisycom PAW-L Specs
General
| Compatibility |
Wisycom MFL RF-over-Fiber System
|
| Connectors |
1 x BNC Input
1 x BNC Output |
| Frequency Range |
L: 435 to 700 MHz
|
| Maximum Input Power |
4 dBm
|
| Gain |
20 dB, Typical (250 mW EIRP)
|
| OIP3 |
+42 dBm (Output 3° Order Intercept Point) Typical at 27 dBm, 1 dB Compression Point
|
| Impedance |
BNC I/O: 50 Ohms
|
Power
| Power Source |
DC Input
|
| DC Input Power |
12 VDC at 200 mA
|
Physical
| Mounting |
2x Holes
|
| Material of Construction |
Aluminum
|
| Dimensions |
4.7 x 1.9 x 1.2" / 120 x 48 x 29.5 mm
|
| Weight |
8.1 oz / 230 g
|
