Description

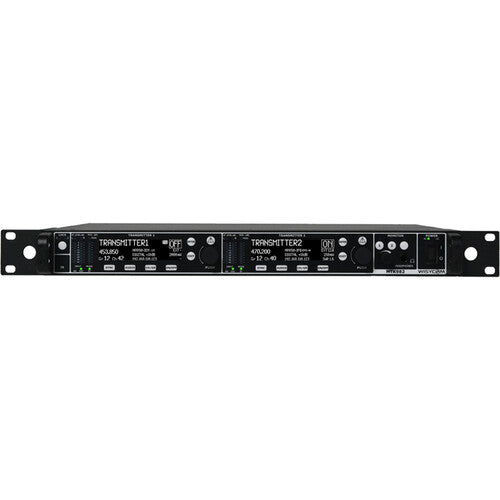

WISYCOM MTK982 Overview
The Wisycom MTK982 is a dual wideband, stereo IEM / IFB transmitter sporting DDS signal creation for high quality, low spurious emissions, and excellent stereo separation. With support for stereo, mono, or intercom audio modulation, 40-bit floating point DSP with multi-companding, and both analog and digital AES3 input, the MTK982 is extremely flexible.
The MTK982 offers 2400 user-defined frequencies with 40 groups by 60 channels. The maximum output power is 2W and the unit features BNC antenna connectors, RF auxiliary outputs for isofrequency transmission, and SWR sensing on antenna outputs. The unit enjoys redundant power input options for uninterrupted operation, with an integrated universal AC power supply and a 4-pin XLR DC input. I/O includes balanced XLR-1/4" combo inputs, balanced 1/4" TRS loop outputs, XLR 3-pin digital inputs, and an RJ45 connector for remote status monitoring.
- 330 MHz Bandwidth
- Direct Digital Synthesis (DDS) of signal for the highest flexibility and quality (> 70 dB stereo separation)
- Stereo, mono, intercom audio modulation
- DSP audio processing (40bit floating point / 2Gflops) with multi-companding
- Low interference output stage with wideband intermodulation phase cancellation
- 2400 user-defined frequencies (40 groups by 60 channels)
- Analog and digital input (AES3)
- Output power up to 2W
- Redundant power supply 110/230 VAC and 12 VDC
- SWR (Standing Wave Ratio) sensing on antenna outputs
- RF auxiliary outputs for isofrequency transmission (equipped by standard configuration)
- WISYCOM MTK982 2-Channel Wireless IEM / IFB Transmitter with DC Option (470 to 663 MHz)
- Limited 2-Year Manufacturer Warranty
No additional resources available
WISYCOM MTK982 Specs

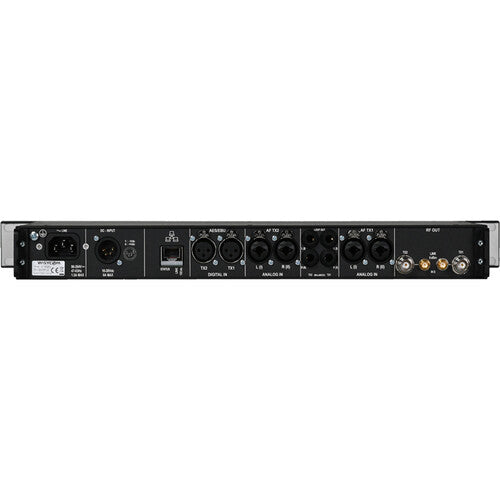

| Audio I/O |
2x XLR 3-Pin AES3 Input
4x Combo XLR-1/4" 3-Pin Line Input (2 Stereo Pairs) 4x 1/4" TRS Output (Loop, 2 Stereo Pairs) 1x 1/4" TRS Headphone Output 2x BNC Coaxial Output (Antenna) 1x RJ45 Coaxial Input/Output (Status) |
| Wireless |
UHF
*Built-In |
| Power Source |
AC Input, DC Input
|
| AC Input Power |
90 to 264 VAC, 50 / 60 Hz
|
| DC Input Power |
10 to 28 VDC at 6 A
|
| Mounting |
4x Standard Rack Screw
|
| Color |
Black
|
| Material of Construction |
Metal
|
| Dimensions |
19 x 13.7 x 1.7" / 48.3 x 34.9 x 4.4 cm
|
| Weight |
8.8 lb / 4 kg
|
