Description

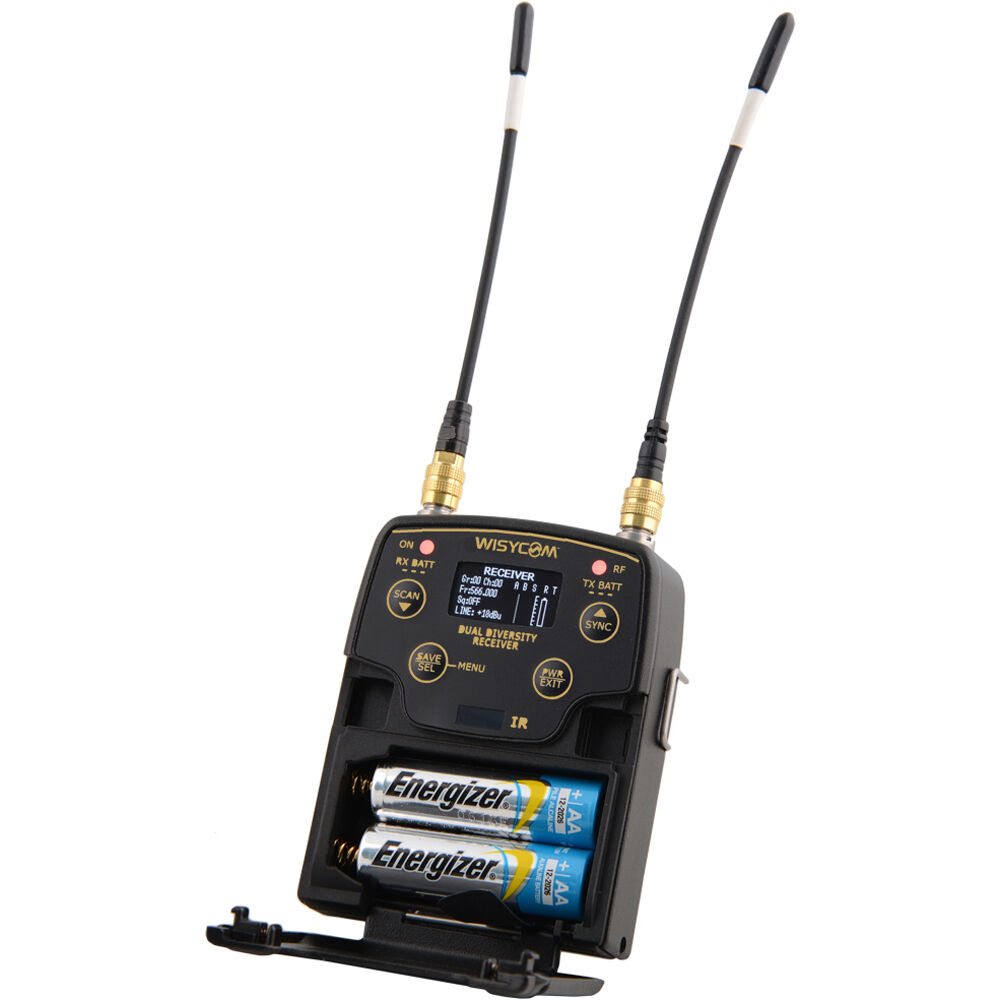

WISYCOM MPR52-ENG Overview
Designed for pro ENG applications, the Wisycom MPR52-ENG is a compact two-channel wireless bodypack receiver sporting analog and digital AES3 output via TAF5. With three selectable frequency bands (470 to 800, 823 to 832, and 920 to 960 MHz), this portable receiver is extremely flexible and capable of high performance in a variety of environments.
Software-selectable DSP-FM operation allows you to choose between narrowband (for increased band efficiency and sensitivity) or wideband. Front-facing control buttons, convenient software control and monitoring via USB, and a high-contrast OLED display make this device easy to operate. Extremely fast spectrum scanning and convenient IR programming enhance the versatility and efficiency of this receiver. Through the computer-based Wisycom Manager 2.0, you can use the MPR52-ENG as a highly portable spectrum scanner. The MPR52-ENG can be powered by either two AA batteries or the MPRLBP battery pack (batteries sold separately).
- Two-channel diversity receiver
- DSP analog and digital audio output (AES3)
- Up to 790 MHz bandwidth
- Next-gen multiband front-end filtering: high Q moving filter in 470 to 960 MHz, saw filter at 940 to 960 MHz
- Wideband and narrowband DSP-FM operation
- Narrowband allows 50% more band efficiency, narrowband allows for 3 dB of extra sensitivity and noise immunity
- Extreme low noise VCO with ultrafast spectrum scan for optimal quick and easy setup
- High-contrast OLED display
- Automatic scan and transmitter programming through infrared
- DSP based for extreme flexibility and multicompanding operations
- Miniature design with integrated battery pack: MPRLBP or 2 x AA batteries
- Operation and charging through micro-USB-B connector
- Monitor and control through USB and Wisycom Manager 2.0 (this transform MPR52 in a quick and low-noise portable spectrum scanner)
- WISYCOM MPR52-ENG 2-Channel Bodypack Receiver (B12: 470 to 960 MHz)
- Limited 2-Year Manufacturer Warranty
WISYCOM MPR52-ENG Specs
| Wireless Technology |
Digital UHF
|
| Diversity |
Yes
|
| Max Operating Range |
Not Specified by Manufacturer
|
| Receiver Type |
1x Bodypack
|
| Number of Audio Channels |
2
|
| Included Transmitters |
No Transmitters Included
|
| Microphone Type |
No Microphone Included
|
| Included Charging Case |
No
|
| Wireless Technology |
Digital UHF
|
| Diversity |
Yes
|
| RF Frequency Band |
470 to 800 MHz / 823 to 832 MHz / 920 to 960 MHz
|
| Number of RF Channel Frequencies |
2400
|
| Max Operating Range |
Not Specified by Manufacturer
|
| Built-In Recorder |
No
|
| Timecode Support |
No
|
| Mobile App Compatible |
No
|
| Receiver Type |
1x Bodypack
|
| Mounting Options |
Belt Clip (with Included Hardware)
|
| Antenna |
1x Removable SMA
|
| Number of Audio Channels |
2
|
| Audio I/O |
1x TA5M/Mini-XLR 5-Pin Balanced Output
1x 1/8" / 3.5 mm Locking TRS Headphone Output |
| Slot-Mount I/O Adapters |
No
|
| Network I/O |
No
|
| USB/Lightning Connectivity |
1x Micro-USB Female
|
| Display |
OLED
|
| Power Requirements |
Battery
|
| Included Transmitters |
No Transmitters Included
|
| Microphone Type |
No Microphone Included
|
| Receiver Battery Type |
2x AA (Not Included)
1x Rechargeable (Not Included) |
| Receiver Battery Life |
7 Hours (Rechargeable)
|
| Included Charging Case |
No
|
| AC/DC Power Adapter |
No
|
| Environmental Resistance |
No
|
| Dimensions |
3.6 x 2.8 x 1.1" / 9.1 x 7.1 x 2.7 cm
|
| Weight |
3.5 oz / 100 g (without Batteries)
|
| Package Weight |
0.58 lb
|
| Box Dimensions (LxWxH) |
6.2 x 4.2 x 2.7"
|
