Description

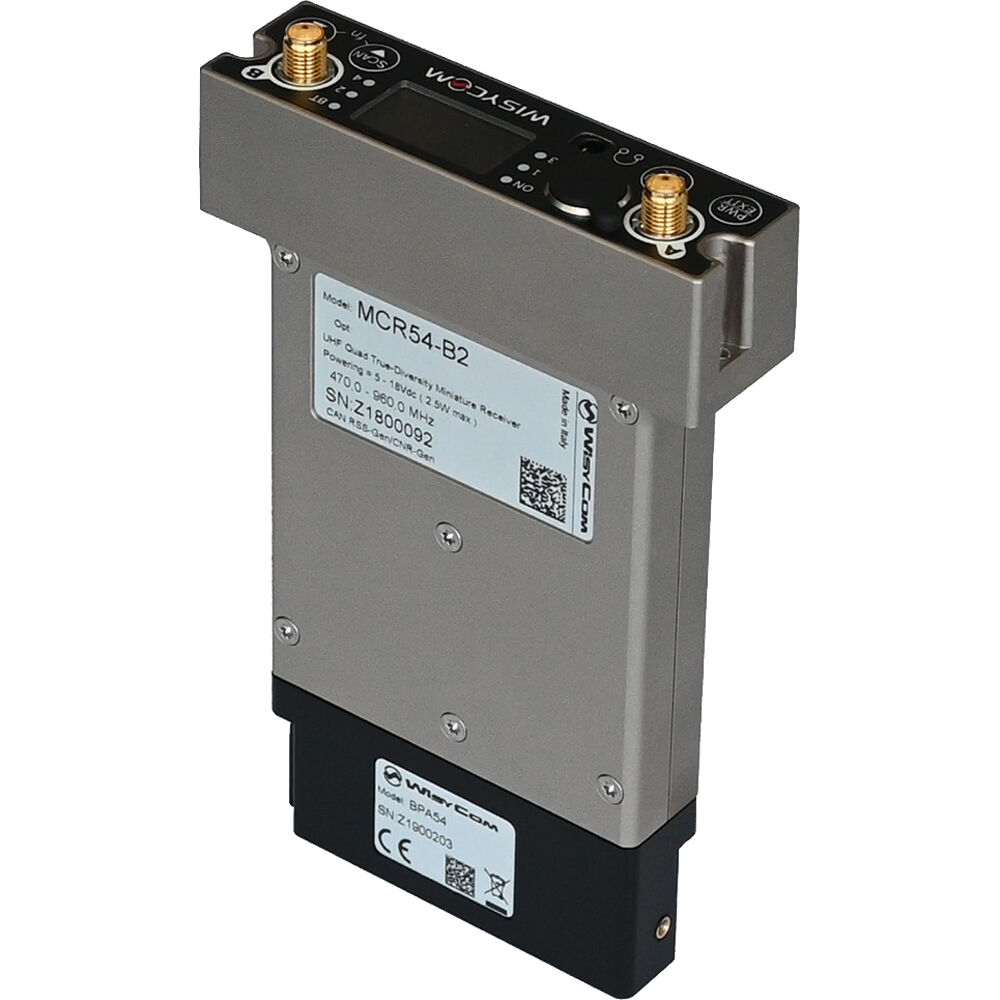

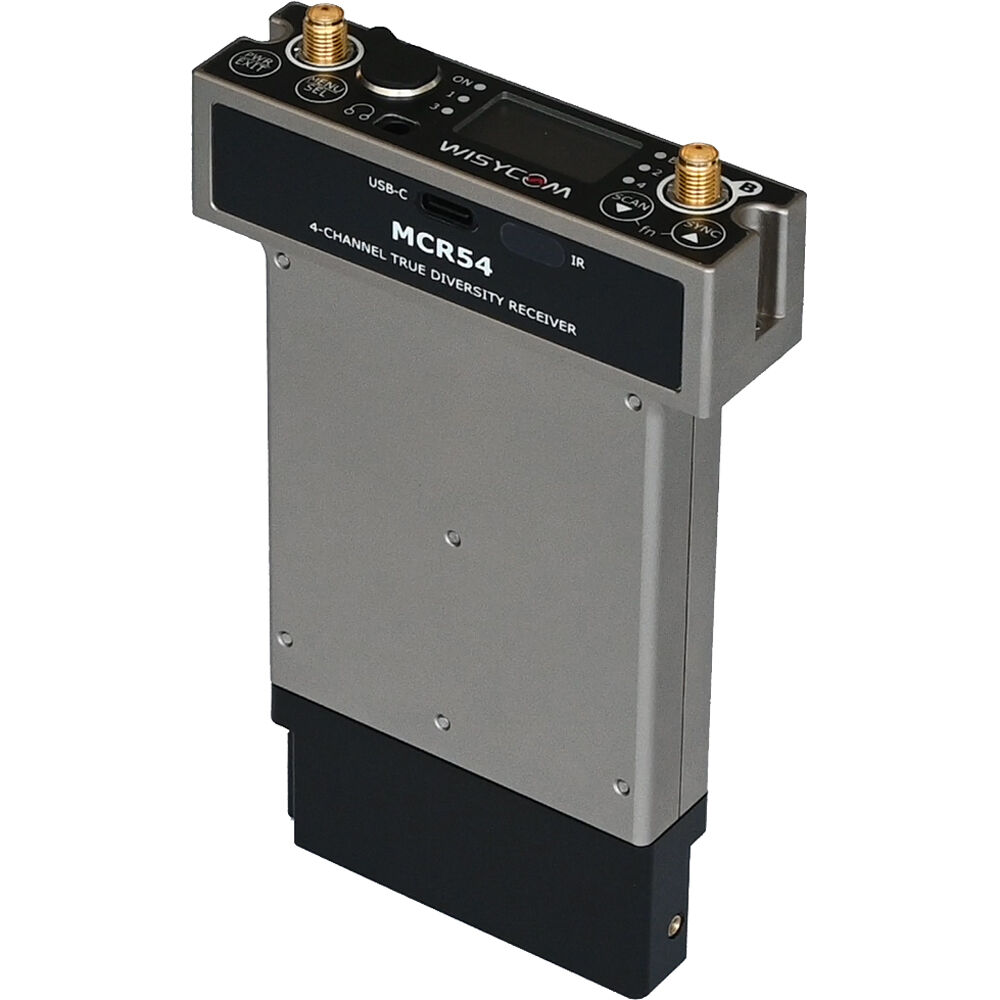

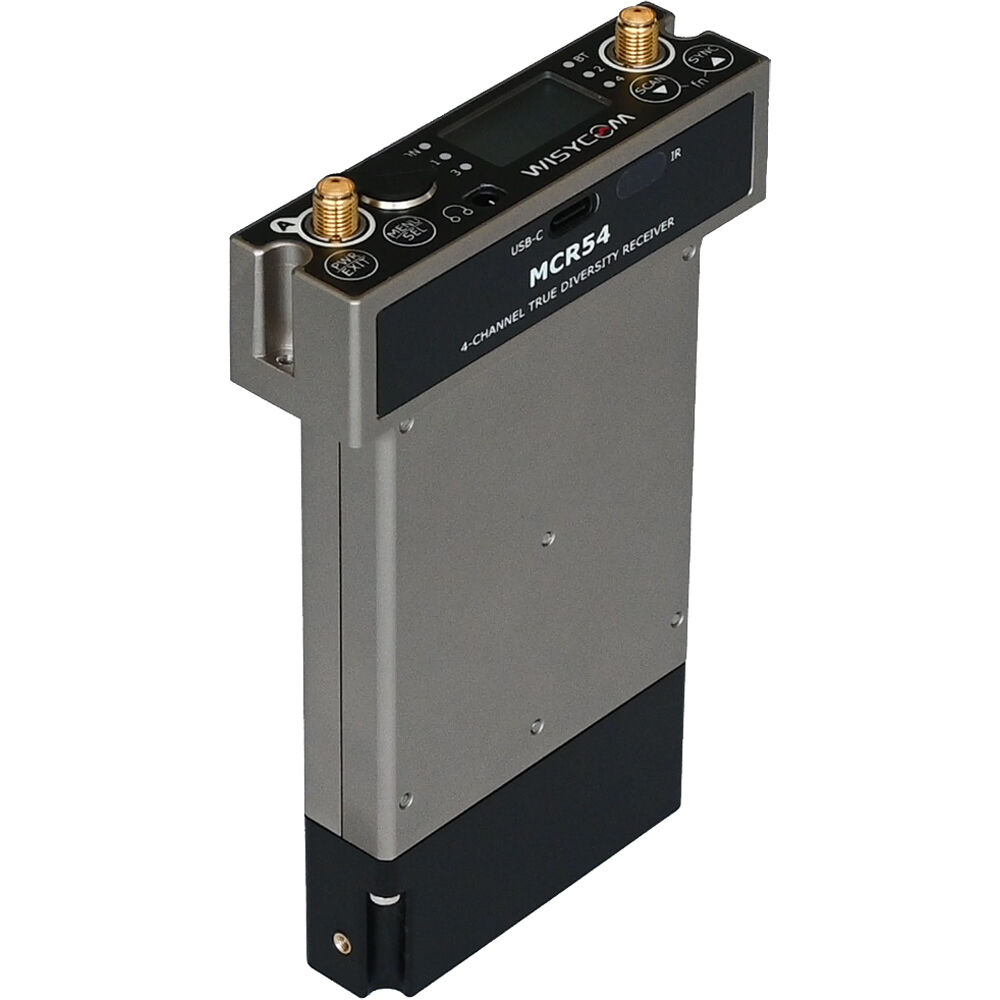

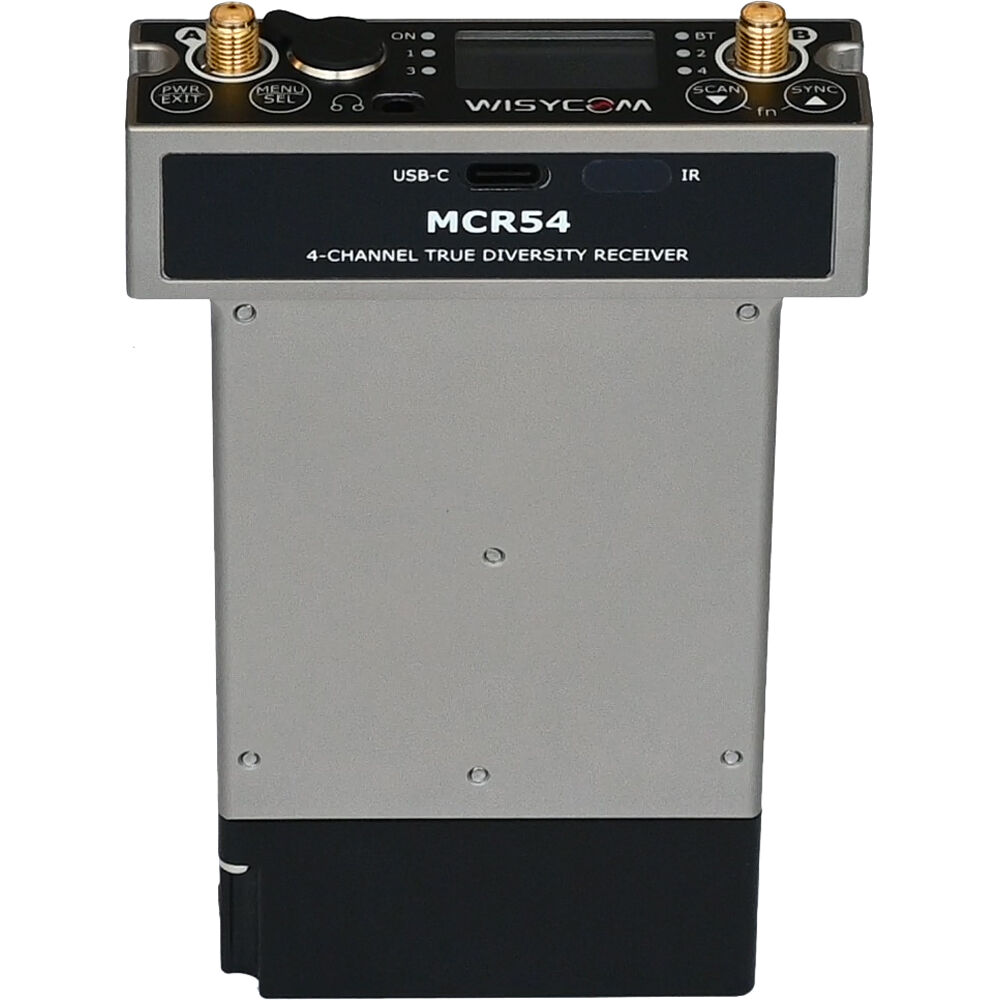

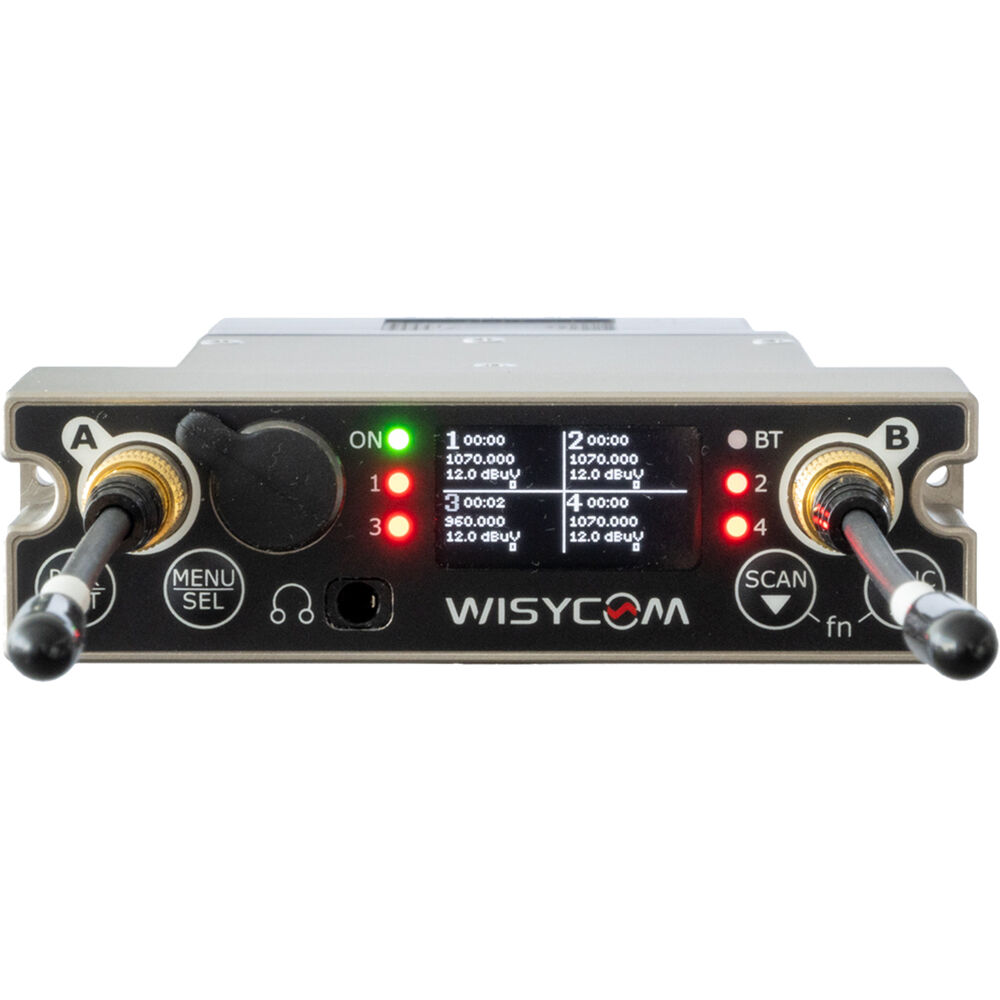

WISYCOM MCR54 Overview
Compatible with most camera slots and multi-slot mixer accessories, the Wisycom MCR54 is a compact four-channel, true diversity wireless receiver sporting analog and digital AES3 output via TAF5. With three selectable frequency bands (470 to 800, 823 to 832, and 920 to 960 MHz), this modular receiver is extremely flexible and capable of high performance in a variety of environments.
True diversity technology ensures top-of-the-line reliability and reception range. Software-selectable DSP-FM operation allows you to choose between narrowband (for increased band efficiency and sensitivity) or wideband. Top-mounted controls for slot-in use, convenient software control and monitoring via USB-C or Bluetooth, and a high-contrast OLED screen make this device easy to operate. Extremely fast spectrum scanning and convenient IR programming enhance the versatility and efficiency of this receiver. The MCR54 can be powered by either the BCA54 battery pack or external DC input (battery and DC adapter sold separately).
- Four-channel true diversity receiver (8 Receiver boards)
- Exceptional compactness and robustness
- DSP analog and digital audio output (AES3)
- Up to 790 MHz bandwidth in 470 MHz range
- Next-gen multiband front-end filtering: high Q electronically tunable filter in 470 to 800 MHz
- Wideband and narrowband DSP-FM operation
- Narrowband allows 50% more band efficiency
- Narrowband allows an extra 3 dB of sensitivity and noise immunity
- Extremely low-noise VCO with fast spectrum scan for optimal quick and easy setup
- High-contrast OLED display
- Automatic scan and transmitter programming through infrared and Bluetooth 5 long range
- DSP based for extreme flexibility and multi-companding operations
- Monitor and control through USB-C or Bluetooth 5 (long range) on Wisycom Manager 2.0 (computer only)
- Rear antenna connectors and micro audio and power adapter
- WISYCOM MCR54 4-Channel Multiband Receiver (B2: 470 to 960 MHz)
- Limited 2-Year Manufacturer Warranty
WISYCOM MCR54 Specs
| Wireless Technology |
Digital UHF
|
| Diversity |
Yes, True Diversity
|
| Max Operating Range |
Not Specified by Manufacturer
|
| Receiver Type |
1x Slot-Mount Receiver Module
|
| Number of Audio Channels |
4
|
| Included Transmitters |
No Transmitters Included
|
| Microphone Type |
No Microphone Included
|
| Included Charging Case |
No
|
| Wireless Technology |
Digital UHF
|
| Diversity |
Yes, True Diversity
|
| RF Frequency Band |
470 to 800 MHz / 823 to 832 MHz / 941 to 960 MHz
|
| Number of RF Channel Frequencies |
2400
|
| Max Operating Range |
Not Specified by Manufacturer
|
| Built-In Recorder |
No
|
| Timecode Support |
No
|
| Mobile App Compatible |
No
|
| Receiver Type |
1x Slot-Mount Receiver Module
|
| Mounting Options |
Modular Receiver Slot (with Included Hardware)
|
| Antenna |
1x Removable SMA
|
| Number of Audio Channels |
4
|
| Audio I/O |
1x TA5M/Mini-XLR 5-Pin Balanced Output
1x 1/8" / 3.5 mm Locking TRS Headphone Output |
| Slot-Mount I/O Adapters |
No
|
| Network I/O |
No
|
| USB/Lightning Connectivity |
1x USB-C Female
|
| Display |
OLED
|
| Power Requirements |
Battery, DC Input
|
| Included Transmitters |
No Transmitters Included
|
| Microphone Type |
No Microphone Included
|
| Receiver Battery Type |
1x Rechargeable (Not Included)
|
| Included Charging Case |
No
|
| AC/DC Power Adapter |
No
|
| Environmental Resistance |
No
|
| Dimensions |
4.1 x 3.4 x 1" / 10.4 x 8.7 x 2.5 cm
|
| Weight |
8.1 oz / 230 g (without Batteries)
|
| Package Weight |
0.925 lb
|
| Box Dimensions (LxWxH) |
9.8 x 5 x 1.5"
|
