Description

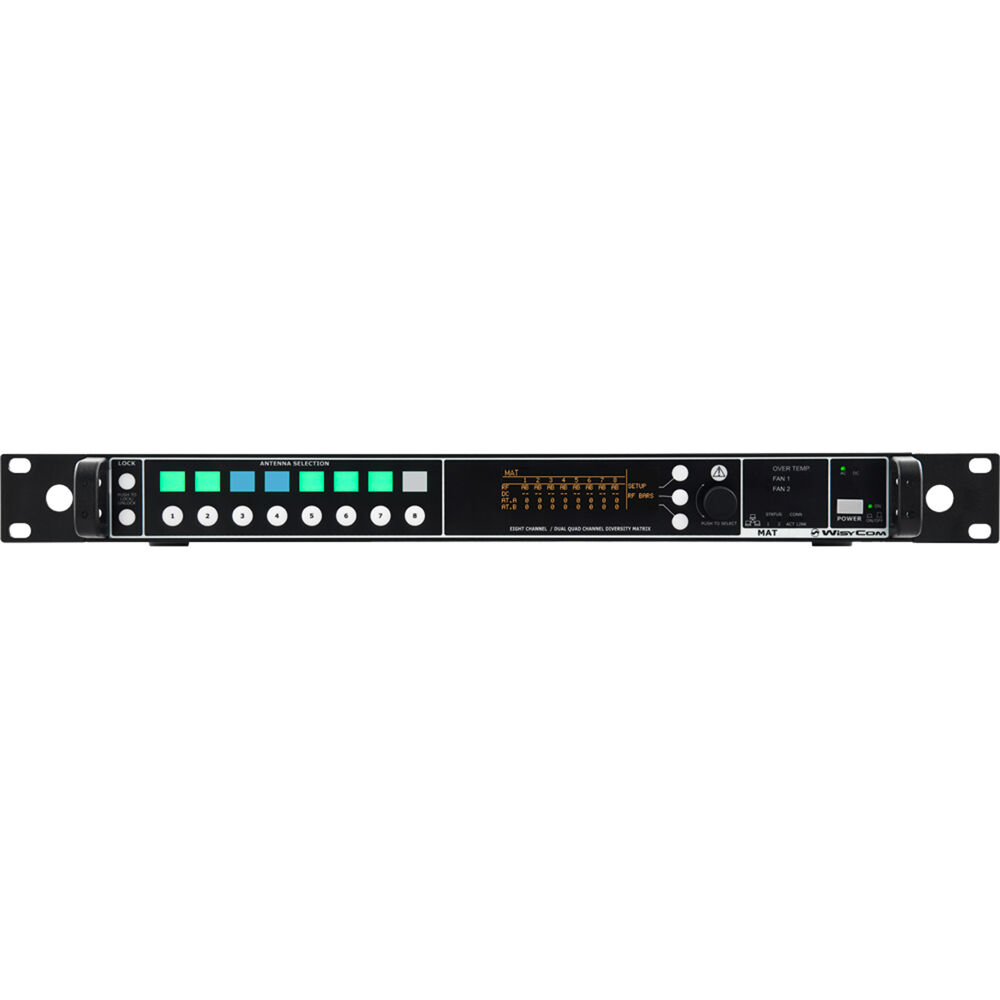

Wisycom MAT244-X1 Overview
Designed to enhance wireless-microphone reception coverage, the Wisycom MAT244-X1 is a highly versatile, wideband programmable matrix/combiner optimized for multi-site production environments across the 150 to 1160 MHz range. Configurable via software, it functions as either a 4:2 diversity combiner with 7 dB gain or as a non-diversity combiner in 8:4 or 8:1 configurations.
The MAT244-X1 offers extensive RF routing options, remote antenna control, and adjustable attenuation/boost for different areas, while an integrated RF meter enables real-time monitoring of signal levels and interference. With an Ethernet interface and the intuitive Wisycom Manager software for Windows, all settings can be managed remotely.
- Diversity combiner 4:2 with 7 dB max gain
- Combiner 8:1 with 7 dB max gain (not diversity)
- Combiner 8:4 with 0 dB max gain (not diversity)
- Combiner mode: diversity 4:2 / non-diversity 8:1 or 8:4 (SW configurable)
- Wide bandwidth: 150 to 1160 MHz
- Remote management and monitor of alarms thru Ethernet 10/100 base TX
- Antenna booster supply toggled on each input independently
- Voltage and current monitoring on each booster supply with alarm
- Programmable attenuators on each inputs
- Remote boost control (for gain/bandwidth) with a bidirectional data link thru coax (input BNCs)
- Manage and monitor unit via Wisycom Manager software for Windows
- Light window where users can enter their own text to identify the 8 areas
Items Included
- Wisycom MAT244-X1 Wideband Diversity Programmable Matrix/Combiner (150 to 1160 MHz)
- Power Cord
- Limited 1-Year Manufacturer Warranty
Additional Resources
No additional resources available
Wisycom MAT244-X1 Specs
| Bandwidth |
X1: 150 to 1160 MHz
|
| Input/output Gain |
7 dB (Diversity Combiners 4:2), OIP3=30 dBm Typical
7 dB (Combiner 8:1), OIP3=30 dBm Typical 0 dB (Combiner 8:4), OIP3=24 dBm Typical |
| Noise |
5.5 dB (Each Channel)
|
| Antenna Booster Powering |
+12 Vcc / 800 mA Max (Ports 1a, 1b)
+12 Vcc / 230 mA Max (Other Ports ) |
| Display |
64 x 256 OLED (Yellow)
|
| Antenna Connector |
8 x BNC A / B Antenna Inputs
4 x BNC Antenna Outputs |
| Impedance |
50 Ohms
|
| Ethernet |
1 x RJ45 10/100 Base TX Port
|
| Mobile App Compatible |
No
|
| Power Source |
AC Input (Included)
|
| AC Input Power |
90 to 264 VAC, 50 / 60 Hz
|
| Mounting |
2x Rackmount Ears
|
| Color |
Black
|
| Material of Construction |
Aluminum
|
| Dimensions |
190.2 x 156.7 x 17.3" / 483 x 398 x 44 cm (Standard Rack 1 RU)
|
| Weight |
8.2 lb / 3.7 kg
|
| Package Weight |
11.345 lb
|
| Box Dimensions (LxWxH) |
23.4 x 22.2 x 4.2"
|
