Description
Wisycom LNN2 Overview

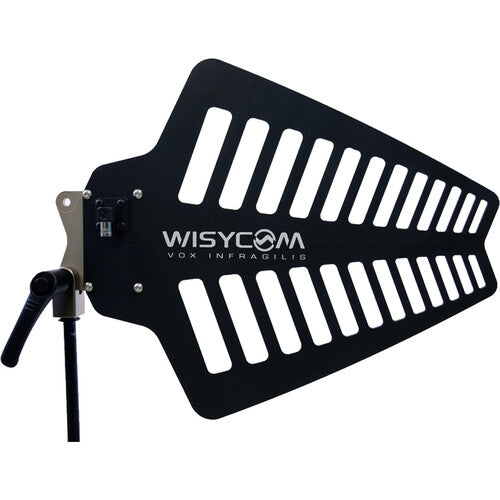

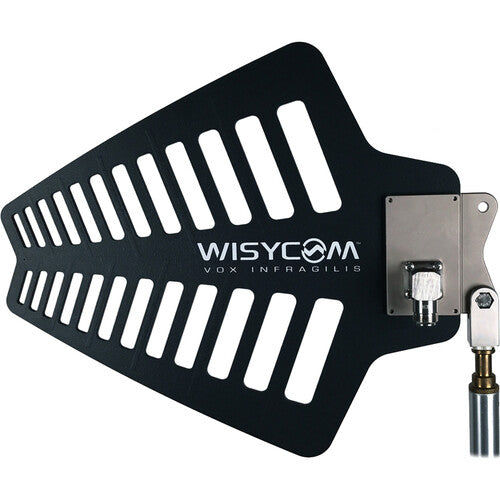

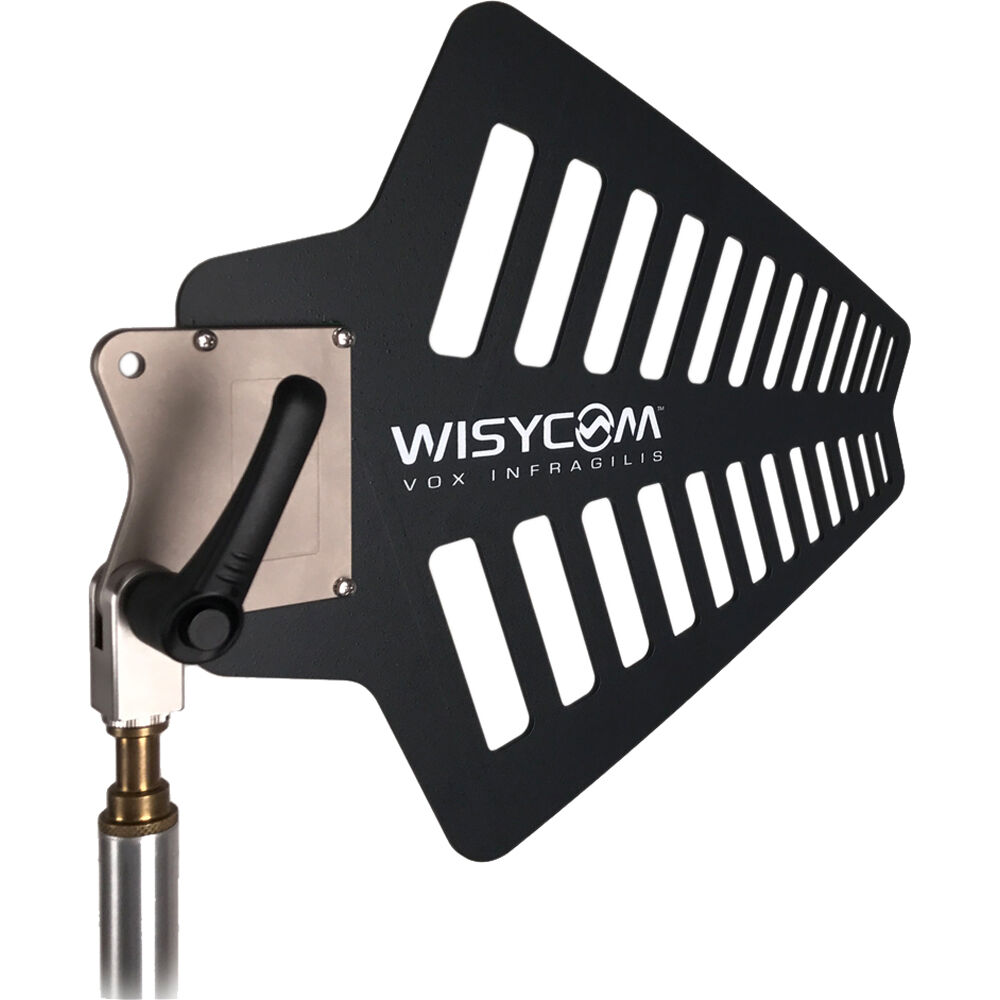

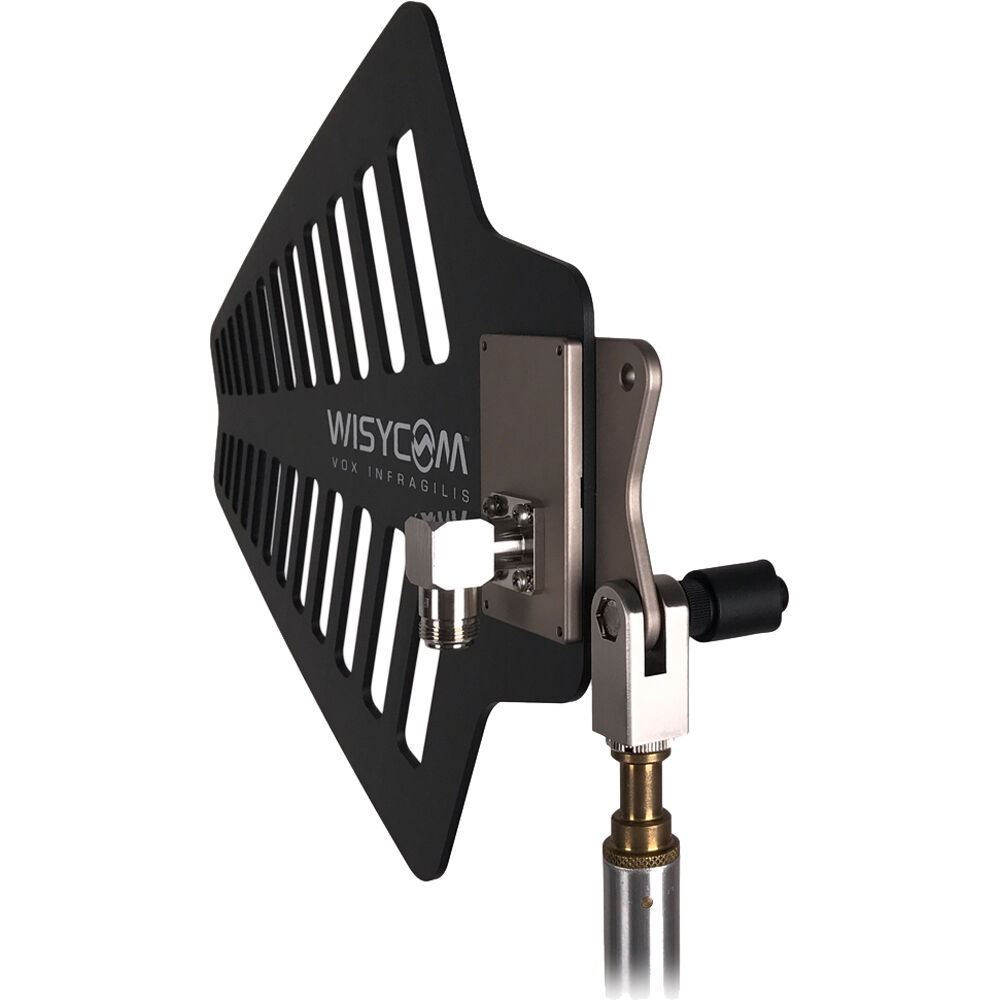

Used in professional wireless-audio applications, the Wisycom LNN2 is a wideband UHF Log Periodic Dipole Array (LPDA) directional passive antenna designed to improve UHF signal reception. It covers a broad frequency range, typically from 420 to 1300 MHz, offering approximately 6 dBi of gain and a 140° beamwidth. This LNN2 version utilizes an N-type connector to ensure easy and reliable connectivity.
The LNN2 features a skeletal design that minimizes wind loading and a weather-resistant and waterproof coating that offers protection against the elements.
At a Glance
- Bend elements for maximal directionality with minimum size (6 dBi gain)
- Wide, future-proof bandwidth: 420 to 1300 MHz
- N-Type connector
- Passive design
- Skeletal design for minimal wind loading
- Robust metal support with fine slope tuning
- Full metal support and mounting base (1/4? and 3/8? thread)
- Textured weather-resistant coating
- Waterproof with gasket sealing
Items Included
- Wisycom LNN2 Directional Wideband Passive Antenna with N-Type Connector (420 to 1300 MHz)
- Limited 1-Year Manufacturer Warranty
Additional Resources
No additional resources available
Wisycom LNN2 Specs
Wireless
| Antenna Type |
Paddle
|
| Beamwidth |
140°
|
| Polarization |
Vertical
|
| Input/Output |
1x Coaxial N-Type
|
| Compatibility |
Not Specified by Manufacturer
|
| Operating Frequency |
420 to 1300 MHz
|
| Gain |
6 dBi
|
| Number of Antennas |
1
|
Physical
| Tilt Range |
Yes
|
| Antenna Mounting |
1/4"-20
|
| Material of Construction |
Metal
|
| Color |
Black
|
| Dimensions |
H: 13.2 x W: 10.9 x D: 2.4" / H: 336 x W: 276 x D: 61 mm
|
| Weight |
1.1 lb / 500 g
|
All product and company names are trademarks™ or registered® trademarks of their respective holders. Use of them does not imply any affiliation with or endorsement by them.
