Description
Wisycom BFLR1_B-SC-BT2 Overview

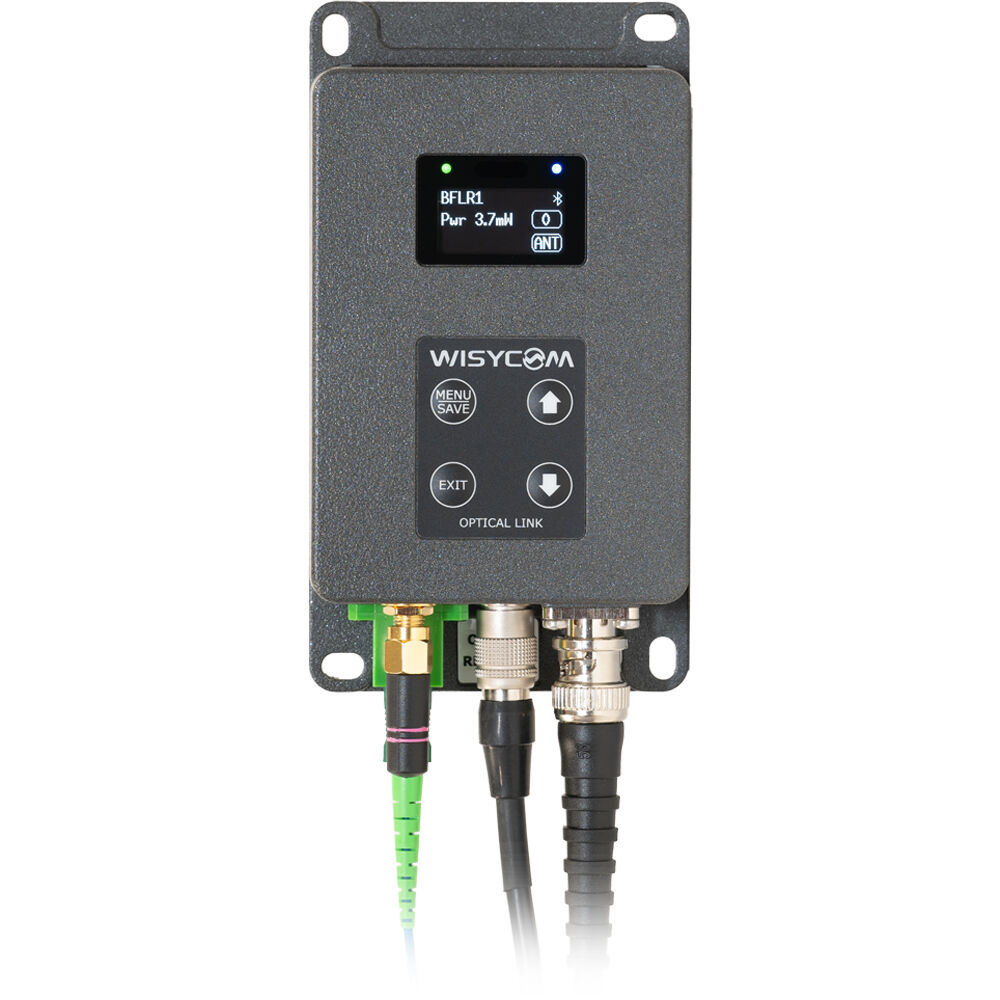

The Wisycom BFLR1 is a high-performance RF-over-fiber receiver designed for minimal signal loss over long distances. It enables you to use a fiber-optic cable instead of a coaxial cable, ensuring reliable coverage, even when the antenna is placed miles away from the receiver. BFLR1 operates in two modes: Antenna Mode, which enables placement in a local rack to receive RF from a remote antenna with minimal degradation, and IFB Mode, which allows it to receive a low-power, single-channel IFB/IEM signal. This model is configured with the F1 filter option and operates in the 470 to 758 MHz range.
BFLR1 provides a 12 VDC / 200mA output for powering boosters such as the PAW, or LBP (available separately). For seamless operation, the BFLR1 supports Bluetooth remote control and monitoring via the Wisycom BT app (available for iOS and Android) or through its onboard navigation buttons and high-contrast OLED display. Connectivity is streamlined with SC/APC optical and BNC RF connectors, ensuring easy integration into various setups.
- Tunable filter for interference control: 470 to 758 MHz (40 MHz-wide)
- Fixed band saw filter: 940 to 960 MHz (USA)
- High-pass filters (170/470/518/566/960 MHz) and low-pass filters (608/698/1160/1260 MHz)
- Wide RF band: 470 to 758 MHz
- Photodiode transforms optical signal to RF signal
- BNC and SC/APC connectors
- Bluetooth remote control and monitoring in real time via Wisycom BT app (iOS/Android)
- Antenna mode to receive signal from an antenna
- IFB mode to send low-power IFB/IEM signal
- DC power for external amplifier: 12 VDC / 200mA for PAW or LBP (in IFB mode)
- Operating voltage range: 9 to 18 VDC
- 2 RGB LEDs for RF overload and system status indication
- Easy configuration through a high-contrast OLED white display and 4-key navigation buttons
- Four holes for wall installation (M4 screw type)
- Includes PSP15V1A2 AC adapter
Items Included
- Wisycom BFLR1-F1 Portable RF-over-Fiber Receiver with BNC and SC/APC Connectors (470 to 758 MHz)
- ABTS Bluetooth Antenna
- Wisycom PSP15V1A2-H Power Supply with Hirose 4-Pin Connector
- Limited 1-Year Manufacturer Warranty
Additional Resources
No additional resources available
Wisycom BFLR1_B-SC-BT2 Specs
| Frequency Range |
470 to 758 MHz
|
| DC Power for External Amplifier |
+12 VDC, 200 mA Max. (for PAW, LBP/LNP)
|
| Connectors |
RF Output: 1 x BNC-F
Optical Connector: 1 x SC/APC Bluetooth Antenna Connector: 1 x SMA Power Connector: 1 x 4-Pin Hirose |
| Wireless |
Bluetooth 5.0
*Built-In |
| Mobile App Compatible |
Yes: Android & iOS
App Name: Wisycom BT Functionality: Remote Control |
| Power Source |
DC Input (Included)
|
| DC Input Power |
9 to 18 VDC
|
| Power Consumption |
3.5 W (Maximum)
|
| Mounting |
4x Holes
|
| Operating Conditions |
14 to 131°F / -10 to 55°C
|
| Dimensions |
5 x 2.8 x 1" / 127 x 70 x 26 mm
|
| Package Weight |
1.215 lb
|
| Box Dimensions (LxWxH) |
7.9 x 4.1 x 2.6"
|
