Description

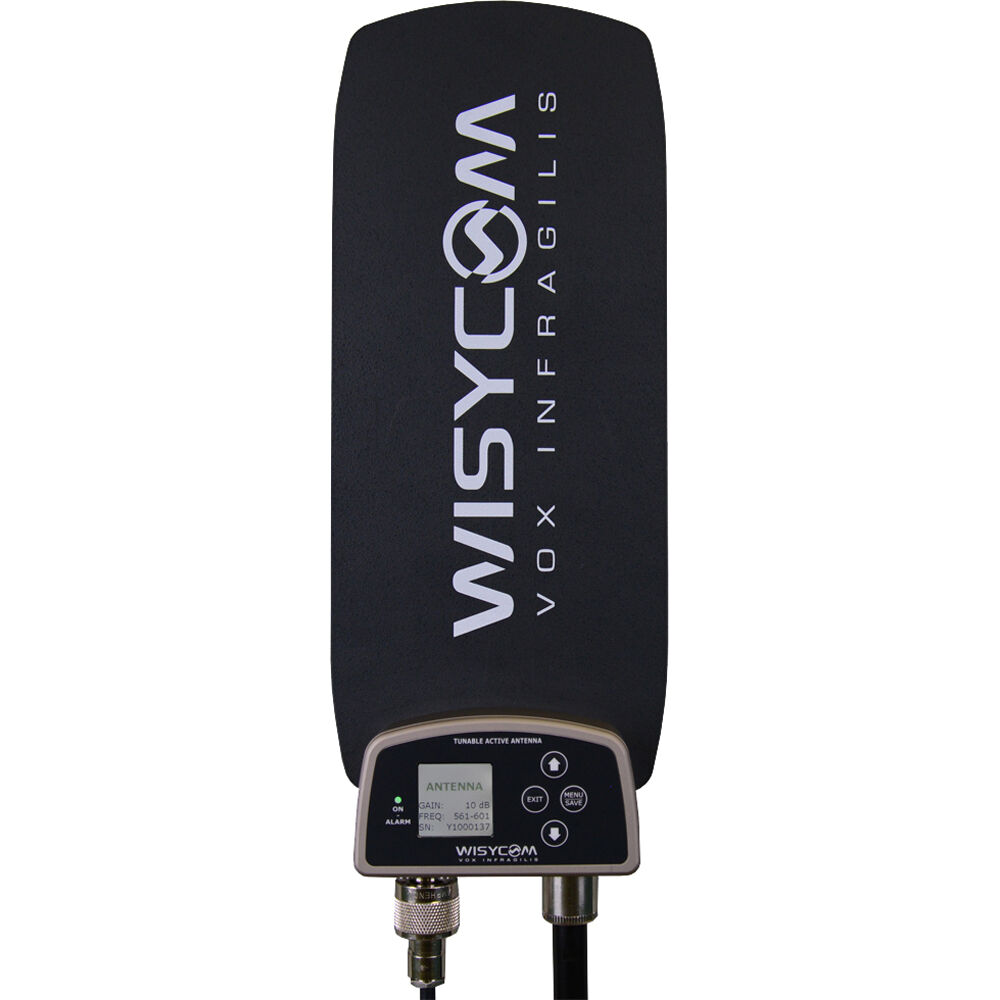

Wisycom ADFA-B-F2 Overview
The Wisycom ADFA-F2 is an ultrawideband active omnidirectional antenna that combines a low-noise RF amplifier with a remote-controllable filter bank, ensuring high-quality signal reception and minimizing interference for professionals wireless systems in film, television, live sound, theater, broadcast, and houses of worship. This variant is configured with the F2 filter option and features a BNC connector.
The ADFA-F2 covers a wide frequency range from 430 to 1160 MHz, making it compatible with a variety of wireless microphone systems. It can be controlled both locally, using the user-friendly interface with a TFT display and navigation buttons, and remotely using the Wisycom Manager software via a data connection over the RF coaxial cable. This remote controllability allows for fast and flexible setup and integration into complex wireless-audio systems.
- Tunable filter for interference control: 430 to 730 MHz (40 MHz-wide)
- Fixed band saw filter: 940 to 960 MHz (USA)
- 3 high-pass filters (470/520/550 MHz) and 3 low-pass filters (617/663/698 MHz) CASCADE 9 bandpass combinations (USA/EU)
- BNC connector
- Wide reception band: 430 to 1160 MHz
- RF gain from -12 to +27 dBu (1-dB step)
- Remote controllable filters via Wisycom Manager Network�through data link running on coaxial cable (with MAT244/MAT288/SPL2208/SPL2216)
- Local configuration through TFT display and four key navigation buttons
- Antenna off for RF zone disabling
- Skeletal design for low wind loading
- Waterproof with gasket sealing
- Easy installation: the antenna can be easily mounted on a standard microphone stands or clamps using its 5/8" mounting thread or the included or 3/8" adapter
Items Included
- Wisycom ADFA-F2 Omnidirectional Wideband Active Antenna with Remote-Controlled Filters and BNC Connector (470 to 1160 MHz)
- 3/8" Mounting Adapter
- Limited 1-Year Manufacturer Warranty
Additional Resources
Wisycom ADFA-B-F2 Specs
| Antenna Type |
Paddle
|
| Polarization |
Vertical
|
| Input/Output |
1x Coaxial BNC
|
| Compatibility |
Not Specified by Manufacturer
|
| Operating Frequency |
430 to 1160 MHz
|
| Gain |
27 dBi
|
| Number of Antennas |
1 (Amplified)
|
| Tilt Range |
Yes
|
| Antenna Mounting |
3/8"-16
|
| Material of Construction |
Fiber-Glass
|
| Color |
Black
|
| Dimensions |
H: 12 x W: 4.4 x D: 1.1" / H: 305 x W: 111 x D: 28 mm
|
| Weight |
11.1 oz / 315 g
|
| Package Weight |
0.82 lb
|
| Box Dimensions (LxWxH) |
13 x 6.05 x 1.6"
|
