Description
Wimaxit M1012 Overview
- 1Description
- 2Raspberry Pi Compatible

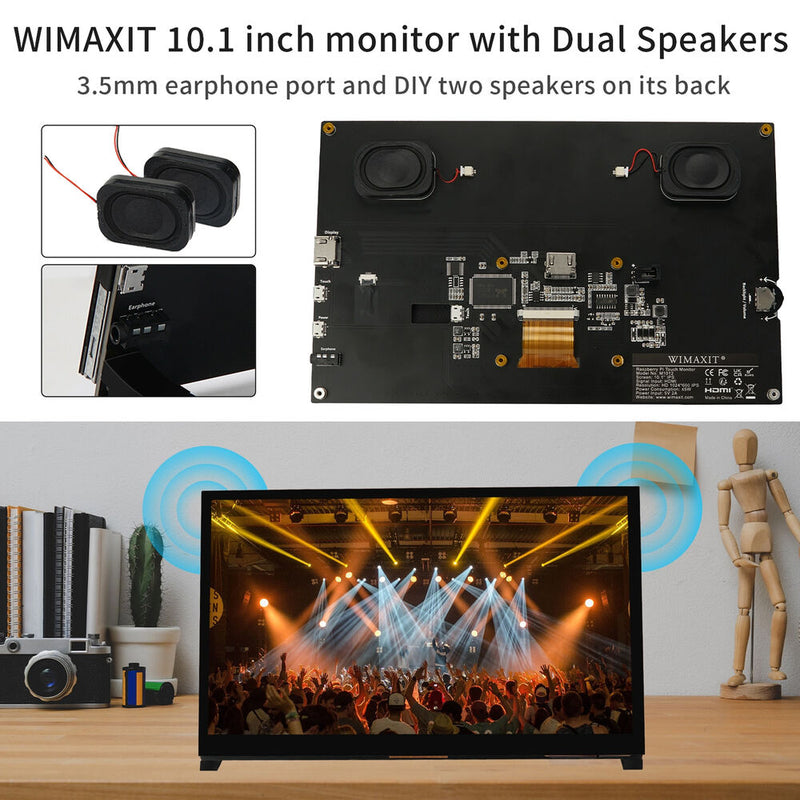

- 3Dual Speakers

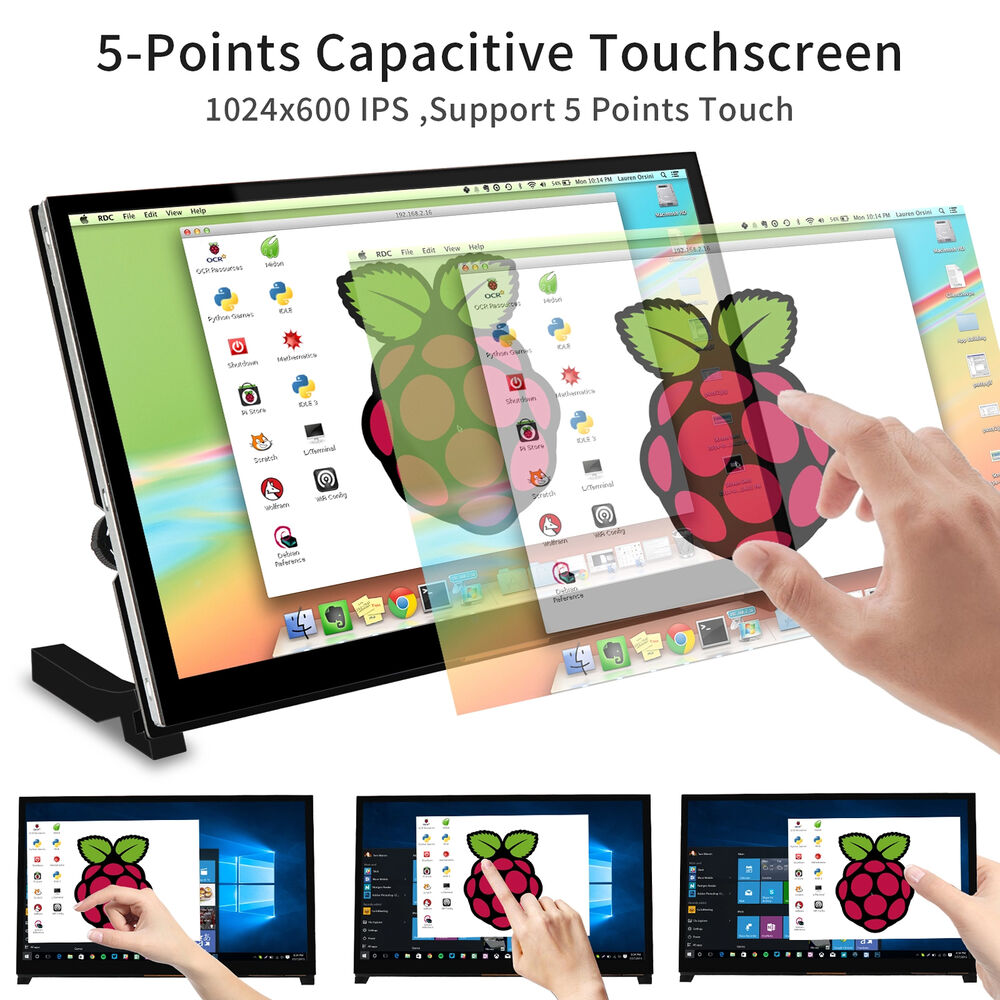

- 45-Point Multi-Touch Support
- 5Plug-and-Play Design
- 6Compatibility

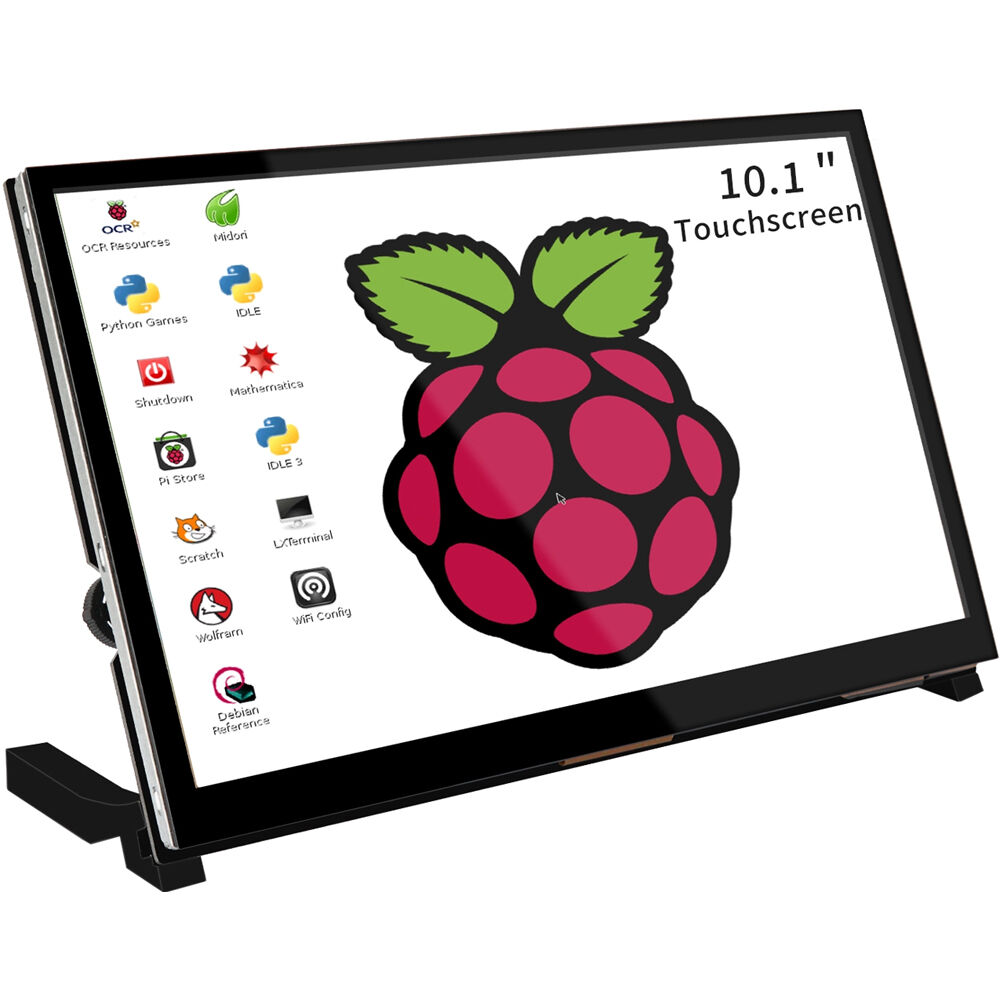

Level up your DIY project or expand your screen space on the go with the M1012 10.1" Touchscreen Display for Raspberry Pi from Wimaxit. It features a 5-point touch screen and dedicated rear mounting options for compatible Raspberry Pi systems.
The 1024 x 600 resolution IPS display provides 178° wide viewing angles, enabling deployment in a variety of environments, while the 6H hardness glass panel keeps it protected from scratches. The M1012 includes HDMI and micro-USB adapters which handle power and signal conversion for Raspberry Pi 2/3/4 systems, allowing for a cable-free installation. Its HDMI and micro-USB inputs located on the side offer compatibility with a wide range of devices, such as Windows laptops, smartphones, and gaming consoles. For audio, connect headphones to the 3.5mm jack or take advantage of the two rear-mounted DIY speakers.
- Windows 7 Pro, 8, 10 or later
- Linux
- Raspberry Pi
- Banana Pi
- BeagleBone Black
- Raspbian
- Kali Linux
- Ubuntu

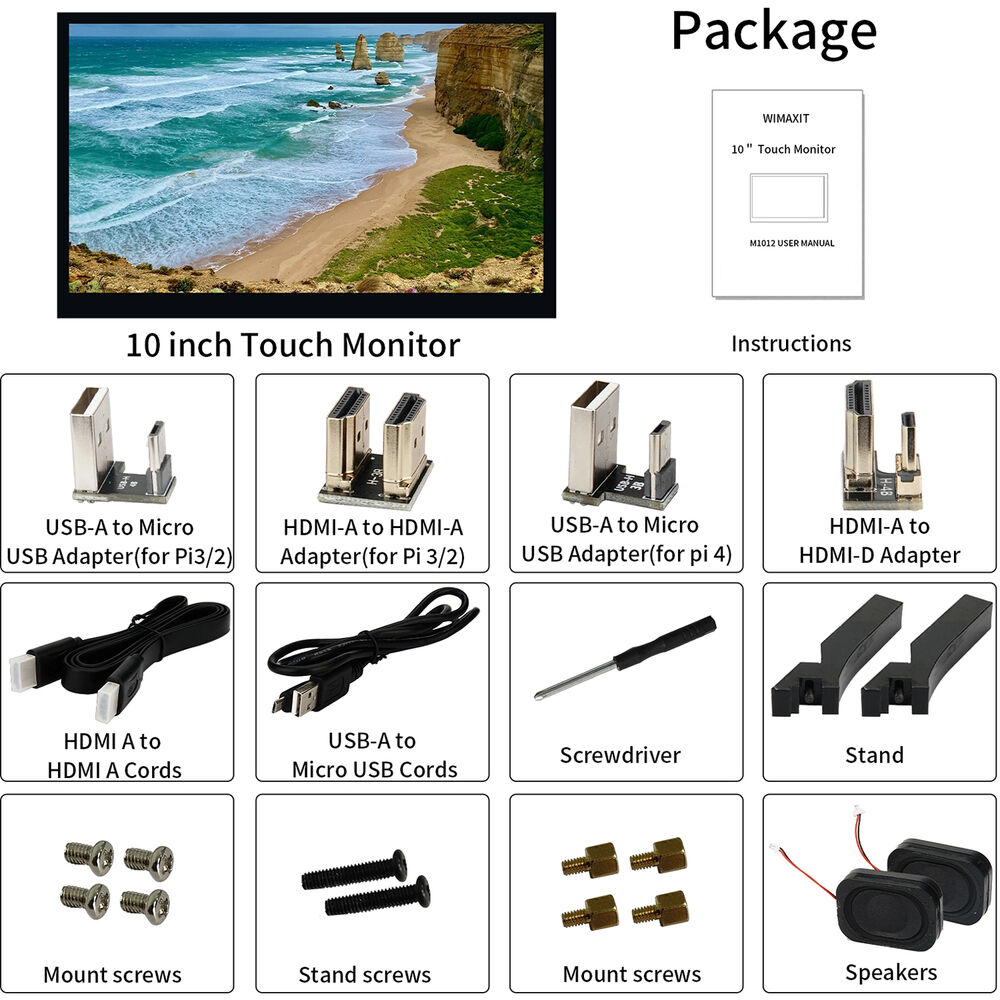

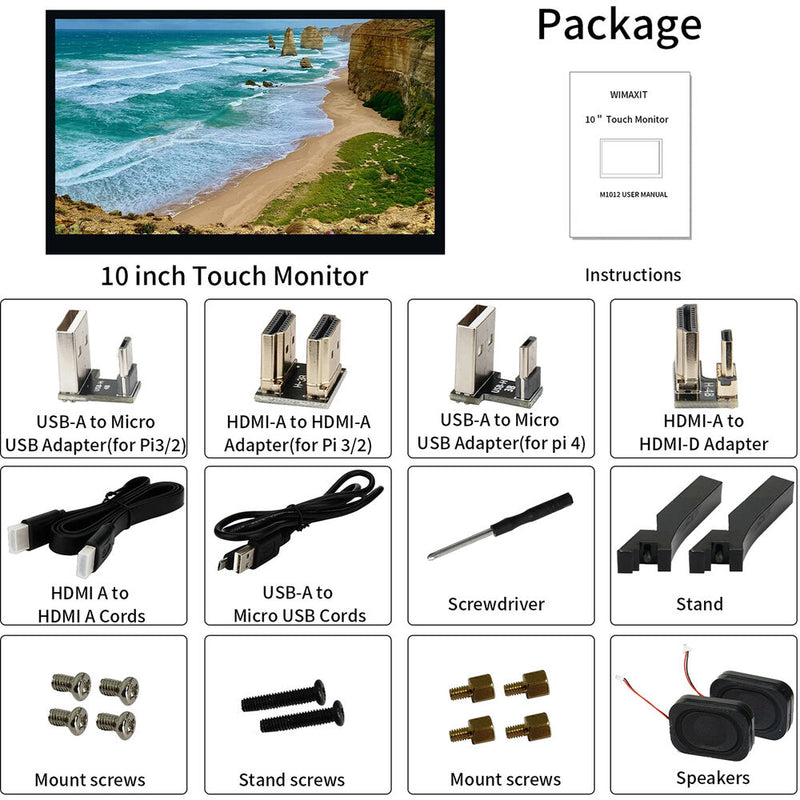

In the Box
- Wimaxit M1012 10.1" Touchscreen Display for Raspberry Pi

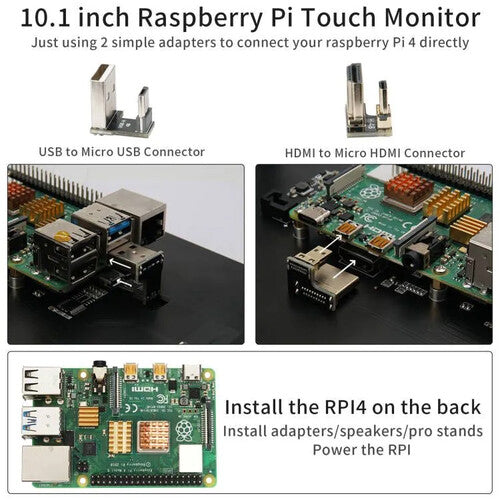

- USB-A to Micro-USB Adapter (for Pi 2/3)
- HDMI to HDMI Adapter (for Pi 2/3)
- USB-A to Micro-USB Adapter (for Pi 4)
- HDMI to Micro-HDMI Adapter
- HDMI to HDMI Cable
- USB-A to Micro-USB Cable
- Screwdriver
- 2 x Stand Legs
- 10 x Mounting Screws
- 2 x Speakers
- Limited 1-Year Manufacturer Warranty
- Description
- Raspberry Pi Compatible
- Dual Speakers
- 5-Point Multi-Touch Support
- Plug-and-Play Design
- Compatibility
Wimaxit M1012 Specs
| Display Size |
10.1"
|
| Panel Type |
IPS-Type LCD
|
| Resolution |
1024 x 600
|
| Inputs |
2 x HDMI
|
| Outputs |
1 x 1/8" / 3.5 mm
|
| USB I/O |
3 x Micro-USB 2.0
|
| Display Size |
10.1"
|
| Panel Type |
IPS-Type LCD
|
| Aspect Ratio |
16:9
|
| Resolution |
1024 x 600
|
| HDR Compatibility |
No
|
| Refresh Rate |
60 Hz
|
| Variable Refresh Technology |
No
|
| Viewing Angle (H x V) |
178 x 178°
|
| Pixels Per Inch (ppi) |
60 ppi
|
| Touchscreen Technology |
Yes
|
| Hardness Rating |
6H
|
| Inputs |
2 x HDMI
|
| Outputs |
1 x 1/8" / 3.5 mm
|
| HDCP Support |
No
|
| USB I/O |
3 x Micro-USB 2.0
|
| Built-In Speakers |
Yes, 2
|
| DC Input Power |
5 VDC at 3 A
|
| Power Adapter Type |
External
|
| Tilt Adjustment |
No
|
| Lock Slot |
No
|
| Dimensions |
9.2 x 5.7 x 0.6" / 233.7 x 144.8 x 14 mm
|
| Package Weight |
2.005 lb
|
| Box Dimensions (LxWxH) |
12 x 8.2 x 2.7"
|
