Description
Williams Sound BA CT1-00 Overview

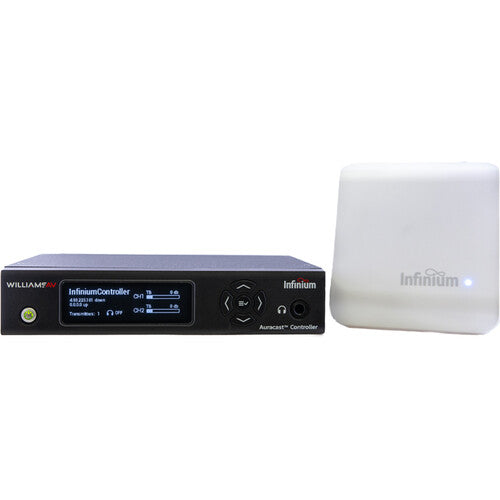

Ideal for lecture halls, transportation stations, theaters, and other large venues, the Williams Sound Infinium CT1 Infinium Auracast Controller & Transmitter is a modular system with a discreet transmitter and a rackmount-ready controller that delivers ultralow-latency, high-fidelity audio to unlimited Auracast enabled devices, including hearing aids, cochlear implants, headphones, and Infinium receivers.
The professional AV Controller seamlessly integrates into AV racks with both analog and Dante inputs. You can configure the system locally via the front panel or remotely through a web interface. The compact transmitter installs easily with a single Cat cable carrying both audio and power. It delivers omnidirectional audio coverage up to 328'.
Benefits
- Modular system design: The transmitter and controller are housed separately, allowing flexible placement and smooth integration into AV racks.
- Simplified transmitter installation: The transmitter requires just a single Cat cable for power and audio, reducing setup time for integrators.
- Remote and onsite management: Configure, monitor, and troubleshoot via the front panel or web interface, with the added ability to listen to audio outside the coverage area.
- Auracast compatibility: Supports a wide range of personal listening devices and a dedicated Infinium receiver, ensuring inclusive audio access.
- Dante integration: Easily connects to professional AV networks, enabling efficient audio routing and management.

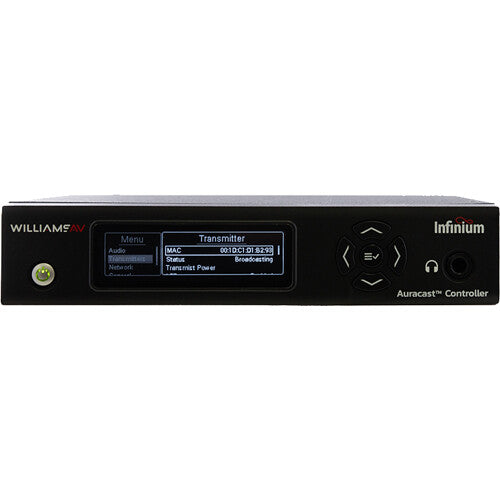

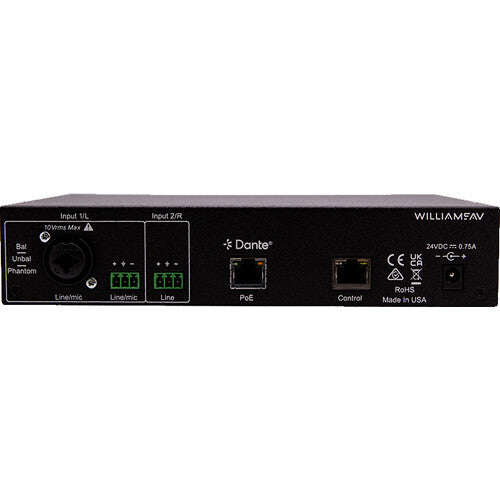

Infinium Controller
- Flexible monitoring and network management: Program and monitor in real time directly at the controller or remotely via online access.
- Integrated Dante connectivity: Ensures seamless AV network integration.
- Secure channel creation: Provides controlled and reliable audio distribution.
- Rackmount ready: Designed for professional installation and easy monitoring.

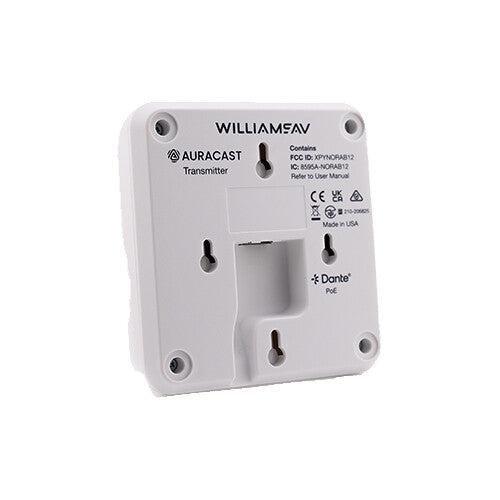

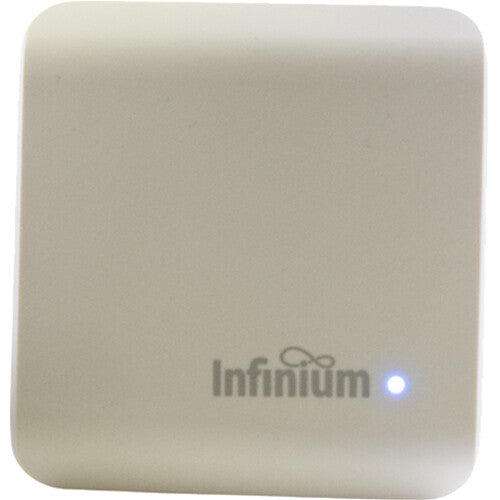

Infinium Transmitter
- Unmatched audio clarity for exceptional broadcast performance.
- Low-profile and compact design integrates discreetly into any environment, preserving room aesthetics without disruption.
- Plug-and-play simplicity and effortless setup: Single Cat cable delivers power and audio, simplifying setup.
- 328' broadcast range with the Infinium receiver; the range may vary for other devices
- Compatible with Auracast-enabled headphones, cochlear implants, and earphones for versatile listening.
- High-quality, low-latency audio: Supports stereo and mono transmission.
UPC: 707976005946
Items Included
- Williams Sound CT1 Infinium Auracast Controller & Transmitter with Ethernet Cable
- Power Supply
- Ethernet Cable (10')
- Limited 2-Year Manufacturer Warranty
Additional Resources
No additional resources available
Williams Sound BA CT1-00 Specs
Controller
| Power Button |
Push-On/Push-Off Latching Power Button
|
| Ethernet Control |
RJ-45 Used for Web UI, Programming, and Status Display
Supports Cat 5e Cable Lengths up to 328' / 100 m, 10/100BASE-T |
| Front Panel |
Display: 3.12" / 7.9 cm High-Resolution OLED
Direct Entry UI with Button Entry Programming and Status Indicator Selections |
| Dante |
RJ-45 Jack
|
| Power |
Power Supply: Desktop-Style Transformer (TFP 062)
Input: 100 to 240 VAC, 50/60 Hz; IEC Line Cord Output: 24 VDC, 750 mA, 18 W. 2.5 mm ID Center Positive Barrel Connector Power Out: PoE |
| Installation |
Rackmount: Standard 19" / 48.2 cm Rack, One EIA Rack Space High, 1/2 Space Wide
1-2 Units Can Be Mounted in Single Rack Space with Optional RPK 005 (single) or RPK 006 (Double) Rackmount Kits Shelf: Can Sit on Shelf, Table, Podium, etc. |
| Compliance |
FCC, RoHS3, WEEE, Industry Canada/ISED, CE, UKCA, RCM, CB Scheme
|
| Temperature |
Operating: +32 to +122?F / 0 to 50?C
Storage: -4 to +158?F / -20 to 70?C |
| Dimensions |
8.45 W x 8.25 x 1.72" / 21.5 x 14.6 x 4.4 cm
|
| Weight |
2.3 lb / 1.04 kg
|
Transmitter
| Installation |
Configurations: Ceiling Mount, Wall Mount, Shelf
|
| Power |
PoE (Input)
|
| Connection |
RJ45 with Audio, Control, and PoE
|
| Power On |
Programmable LED
|
| Transmitter Power |
Programmable
|
| Compliance |
FCC, RoHS3, WEEE, Industry Canada/ISED, CE, UKCA, RCM, CB Scheme, Gitecki (Japan)
|
| Dimensions |
4.7 x 5 x 1.19" / 11.9 x 12.7 x 3 cm
|
| Weight |
0.4 lb / 0.18 kg
|
Packaging Info
| Package Weight |
4.295 lb
|
| Box Dimensions (LxWxH) |
11.2 x 9.2 x 6.8"
|
