Description

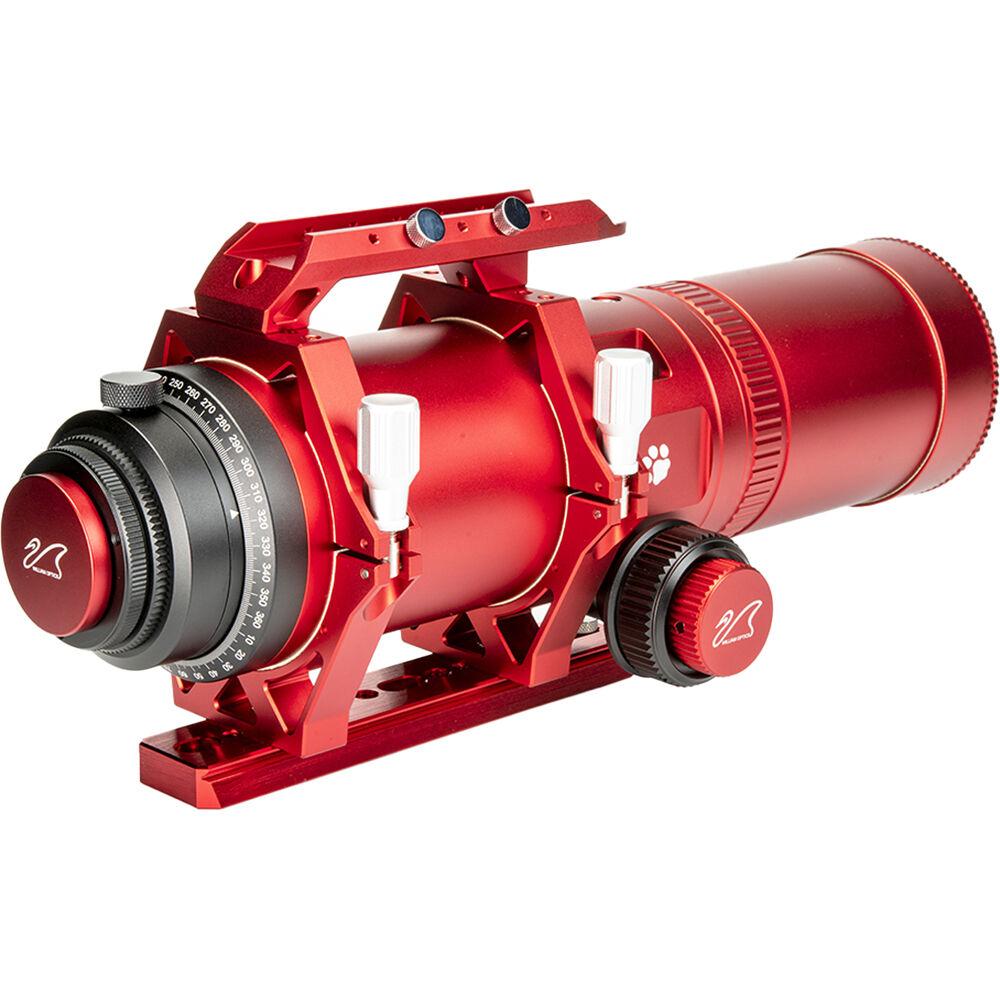

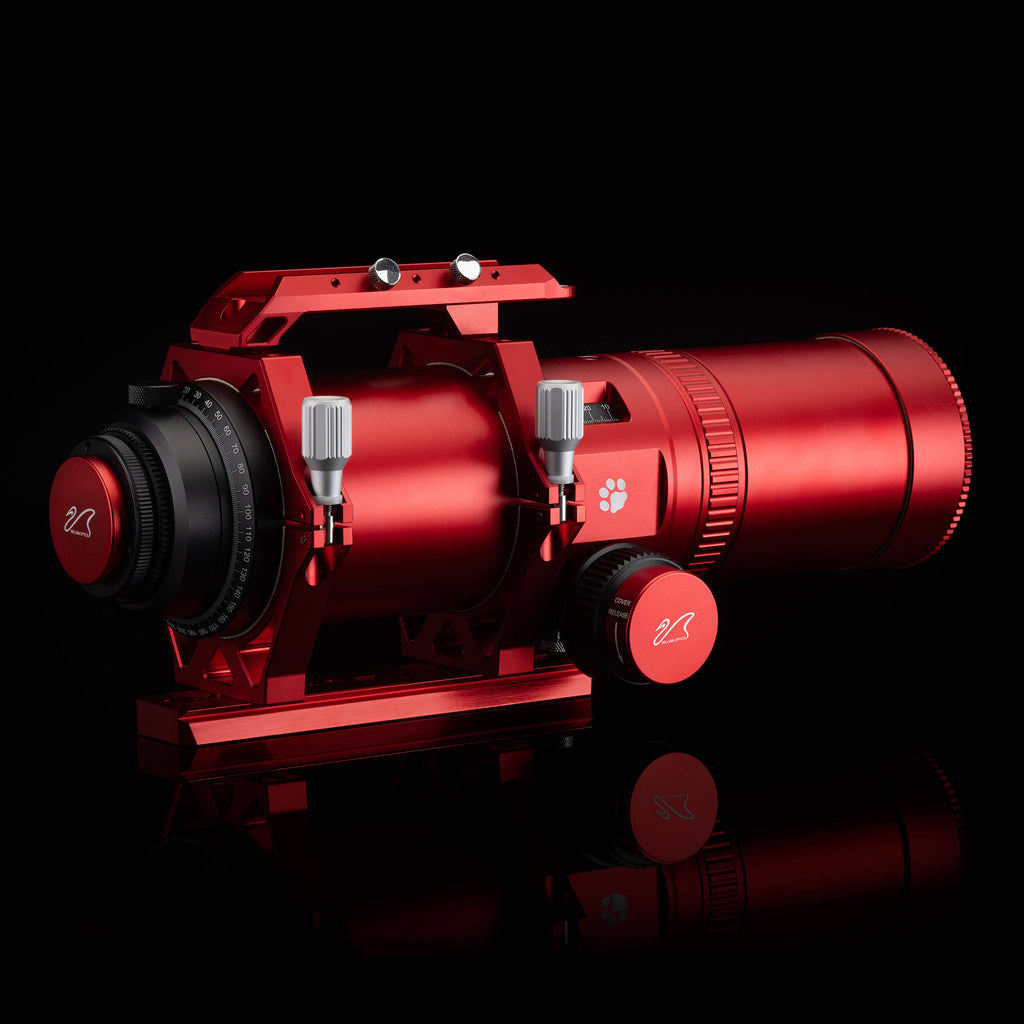

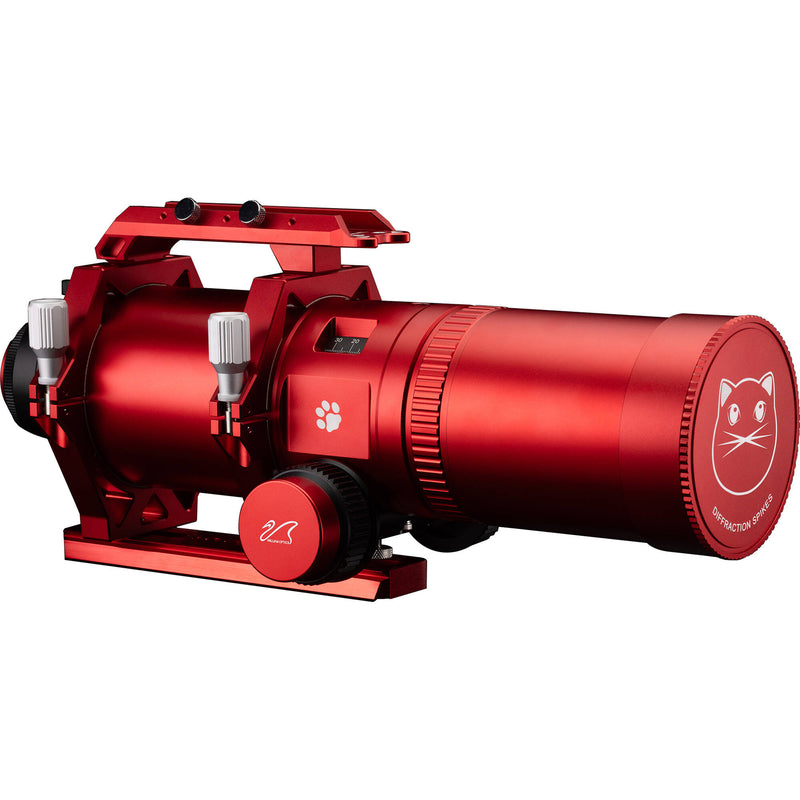

William Optics CAT 71 WIFD Overview
Designed for astrophotography, the Cat 71 WIFD 71mm f/4.9 Apochromatic Refractor Telescope from William Optics uses an unorthodox design for supporting heavy cameras and delivers a wide field, a fast focal ratio, and a Petzval lens for beautiful images. The WIFD (William Optic Internal Focus Design) places the 10:1 rack-and-pinion focuser in the center of the optical tube, eliminating the tilt and vignetting that can occur from heavy cameras on traditional rear-mounted focusers. A four-element Petzval-style lens yields a sharp image with no need for a flattener and the dust cover has a built-in Bahtinov mask for tack-sharp star images. This optical tube assembly requires a mount and a tripod for use.
- Fast f/4.9 focal ratio and 350mm focal length for wide field of view and fast exposure times
- Apochromatic Petzval-style four-element lens produces rich views with minimal chromatic aberration
- Sharp image with no need for a separate field flattener
- Supports 48mm image circle for full-frame, APS-C, and micro four thirds cameras
- Dust cover with integrated Bahtinov mask allows for fine focusing on stars
- Built-in tilt adapter
- Camera angle rotation device
- M68 female thread with M68 to M54 and M54 to M48 adapters for cameras, accessories, or eyepiece diagonals
- William Optics Internal Focus Design places focuser in center of OTA to balance the weight of imaging systems
- Precise internal sliding of fixed optics prevents image shift, ensuring stable and clear observations
- 10:1 coarse and fine focus rack-and-pinion design
- Compatible with ZWO EAF automatic focuser
- 0-35mm focus travel, ruler to 40mm
- Dial-style thermometer for gauging temperature effect on optical tube
- Anodized aluminum optical tube
- Sturdy mounting rings and handle assembly with 210mm Vixen-style dovetail
- Additional dovetail with thumbscrews on handle for guidescope
Items Included
- William Optics Cat 71 WIFD 71mm f/4.9 Apochromatic Refractor Telescope (Red)
- Bahtinov Cap
- M68-M54 Adapter
- M54-M48 Adapter
- 8.3" Vixen-Style Dovetail
- Dual Mounting Rings with Handle Bar
- Allen Key Set
- Soft Carry Case
- Limited 2-Year Manufacturer Warranty
Not Included
- Essential AC Adapters
Additional Resources
William Optics CAT 71 WIFD Specs
| Optical Design |
Apochromatic Doublet Refractor
|
| Aperture |
71 mm / 2.8"
|
| Focal Length |
350 mm
|
| Focal Ratio |
f/4.9
|
| Focuser |
Dual-Speed Rack-and-Pinion
|
| Weight |
9.46 lb / 4.29 kg
|
| Optical Design |
Apochromatic Doublet Refractor
|
| Aperture |
71 mm / 2.8"
|
| Focal Length |
350 mm
|
| Focal Ratio |
f/4.9
|
| Focuser |
Dual-Speed Rack-and-Pinion
|
| Diagonal |
No
|
| Finderscope |
No
|
| Mounting |
Vixen Style
|
| Optical Tube Dimensions |
16.8" / 427 mm
|
| Payload Capacity |
No
|
| Altitude Adjustment |
No
|
| Latitude Adjustment |
No
|
| Counterweight |
No
|
| Weight |
9.46 lb / 4.29 kg
|
| Package Weight |
14.085 lb
|
| Box Dimensions (LxWxH) |
21.4 x 11.7 x 10"
|
