Description
Wi Digital Wi-SB800 Overview

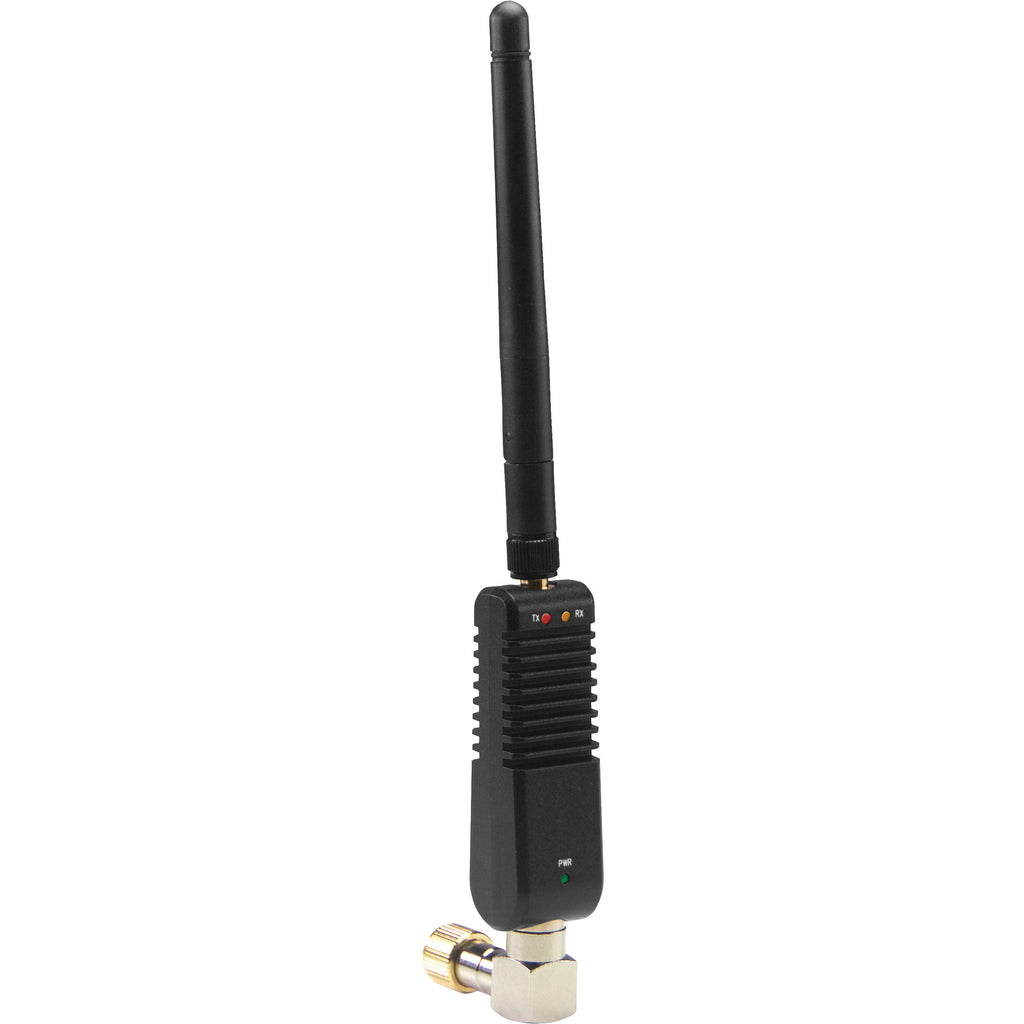

The Wi Digital Wi Signal Booster is a 2.4 GHz, 800mW, 8 dBi powered antenna designed to provide enhanced signal strength and extended range for presenters, musicians, and sound engineers in office buildings, conference spaces, outdoor events, and multi-floor venues. Its PP-SMA male connector allows it to function as a direct replacement for the stock antennas included with Wi Pro AudioMatrix multicast systems.

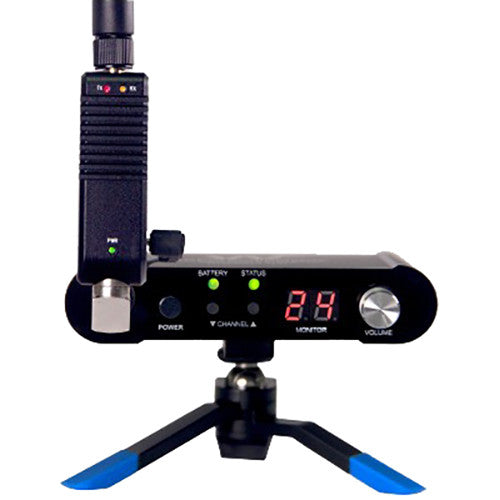

Mount the antenna on your receiver or transmitter; the connection type is identical on both units. The Wi Signal Booster features an omnidirectional radiation pattern, which enables signal to be sent and received without sensitivity to direction. Its body is made of aluminum to ensure durability and minimal weight. It ships with a power adapter.
- For Wi Digital Wi Pro AudioMatrix multicast systems
- Boost signal strength and extend signal range
- 2.4 GHz frequency
- Powerful 800mW, 8 dBi antenna
- Omnidirectional radiation pattern allows signal to be sent and received without sensitivity to direction
- PP-SMA male connector enables direct replacement of antennas that come standard with Wi Pro AudioMatrix units
- Mount on receiver or transmitter
- Lightweight and durable aluminum body
- Includes power adapter
In the Box
- Wi Digital Wi Signal Booster 2.4 GHz, 800mW, 8 dBi Powered Antenna
- Power Adapter
- Limited 1-Year Manufacturer Warranty
Wi Digital Wi-SB800 Specs
| Frequency Band | 2.4 to 2.5 GHz |
| Signal Type | DSSS, OFDM |
| Radiation Pattern | Omnidirectional |
| Transmitter Output | 500 mW / +27 dBm @ 11g 800 mW / +29 dBm @ 11b |
| Switch Speed | <1 µs |
| Antenna Connection Type | PP-SMA Male |
| Diagnostic LED | Green (power) Red (Tx) Amber (Rx) |
| Power Requirement | 5 VDC, 1 A |
| Operating Temperature | 32 to 122°F / 0 to 50°C |
| Operating Humidity | 10 to 90% (non-condensing) |
| Enclosure Material | Aluminum |
| Dimensions | 3.7 x 0.7 x 0.5" / 94.0 x 17.8 x 12.7 mm (without antenna) 11.0 x 0.7 x 0.5" / 279.4 x 17.8 x 12.7 mm (with antenna) |
| Weight | 0.7 oz / 20 g |
| Package Weight | 0.85 lb |
| Box Dimensions (LxWxH) | 7.8 x 5 x 1.2" |
