Description
West Penn 293GY1000 Overview

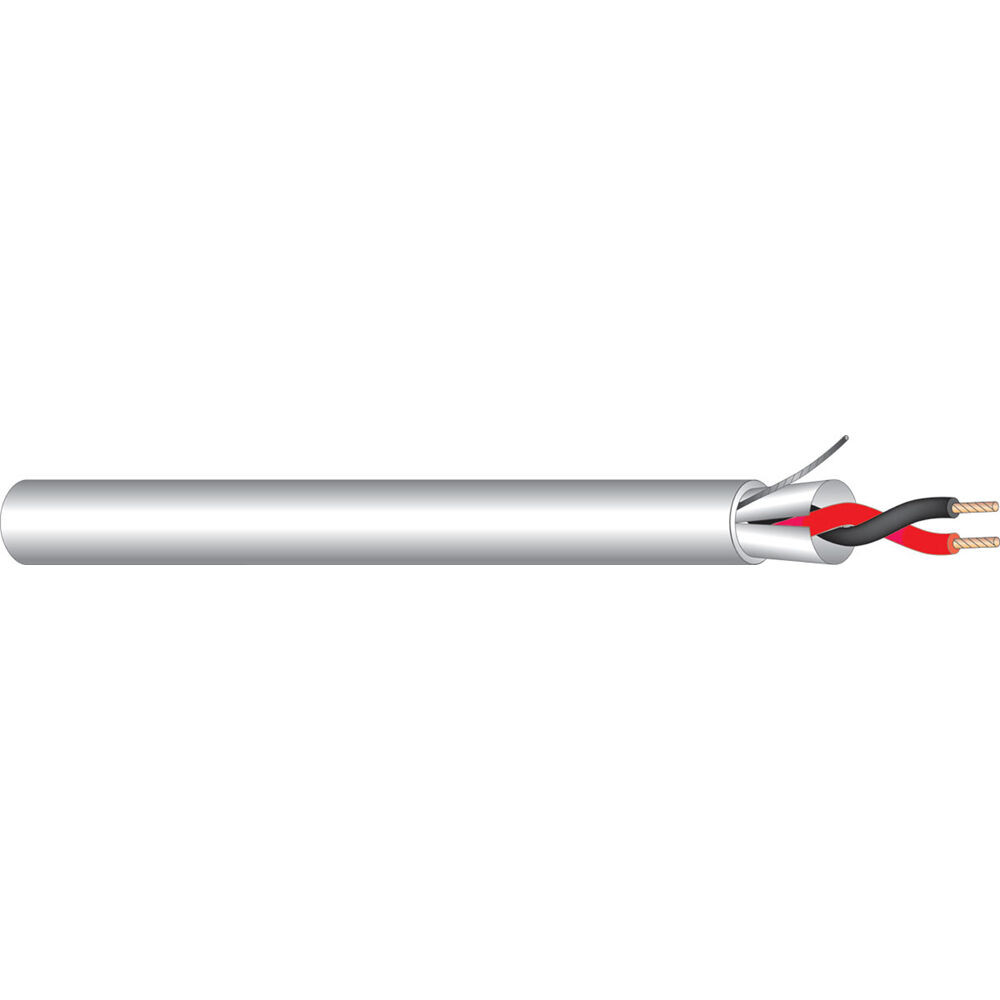

The gray 293 18 AWG 2-Conductor Shielded Cable from West Penn has a length of 1000'. It also does not have connectors on either end.
In the Box
- West Penn 293 18 AWG 2-Conductor Shielded Cable (1000', Gray)
West Penn 293GY1000 Specs
| Connector 1 | None |
| Connector 2 | None |
| Cable Length | 1000' / 152.4 m |
| Conductor Material | Bare Annealed Copper (BAC) |
| Number of Conductors | 2 |
| Wire Gauge | 18 AWG |
| Wire Stranding | 7 x Strands of 26 AWG |
| Outer Diameter | 0.16" / 0.41 cm |
| Jacket Type | Polyvinyl Chloride (PVC) |
| Color | Gray |
| Shielding | 100% Aluminum Foil |
| Insulation Type | Thermoplastic Elastomer (TPE) |
| Conductor Capacitance | 40 pF/ft |
| Conductor DC Resistance | 6.2 Ohms/ft (Up to 1000' / 304.8 m) |
| Maximum Voltage | 300 V (UL) |
| Pulling Tension | 57 lb / 25.9 kg |
| Bend Radius | 1.44" / 3.66 cm |
| Operating Temperature | 12 to 92°F / -20 to 60°C |
| Certifications | NEC UL, UL1666 Vertical Shaft, FT4, RoHS *as per Manufacturer |
| Weight | 23 lb / 10.4 kg |
All product and company names are trademarks™ or registered® trademarks of their respective holders. Use of them does not imply any affiliation with or endorsement by them.
