Description
West Penn 225 Overview

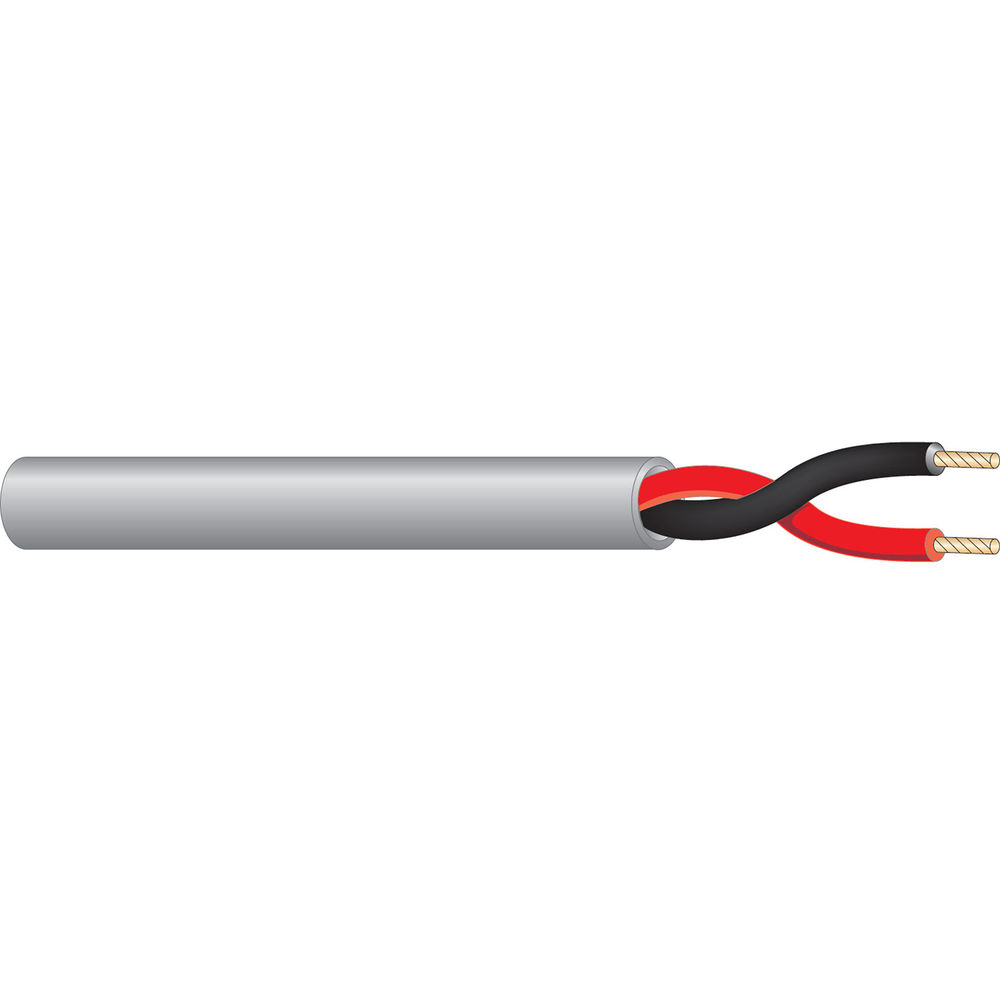

The gray 225 16 AWG 2-Conductor Unshielded Speaker Cable from West Penn has a length of 1000'. It also does not have connectors on either end.
UPC: 612825043584
West Penn 225 Specs
| Connector 1 | None |
| Connector 2 | None |
| Cable Length | 500' / 152.4 m |
| Conductor Material | Bare Annealed Copper (BAC) |
| Number of Conductors | 2 |
| Wire Gauge | 16 AWG |
| Wire Stranding | 19 x Strands of 29 AWG |
| Outer Diameter | 0.182" / 0.46 cm |
| Jacket Type | Polyvinyl Chloride (PVC) |
| Color | Gray |
| Shielding | None |
| Insulation Type | Thermoplastic Elastomer (TPE) |
| Conductor DC Resistance | 4.2 Ohms/ft (Up to 1000' / 304.8 m) |
| Lay Length | 4" / 10.2 cm |
| Maximum Voltage | 300 V (UL) |
| Pulling Tension | 59 lb / 26.8 kg |
| Bend Radius | 1.68" / 4.27 cm |
| Operating Temperature | -4 to 140°F / -20 to 60°C |
| Certifications | NEC UL, RoHS, CSA *as per Manufacturer |
| Weight | 28 lb / 12.7 kg |
Packaging Info
| Package Weight | 16.85 lb |
| Box Dimensions (LxWxH) | 13.5 x 13.3 x 10.8" |
