WesAudio NG500 Recall Chassis (Up to 10 NG500 Devices and 5 Amps Of Power)

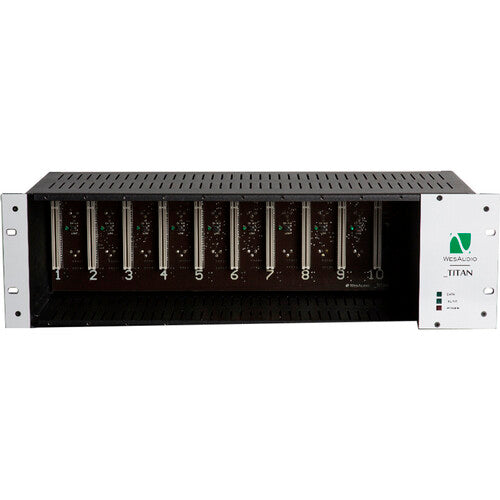

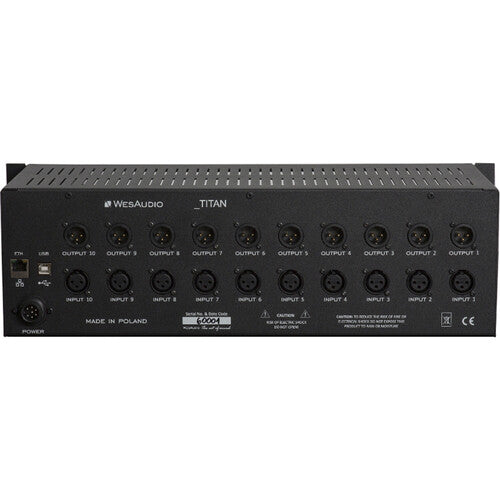

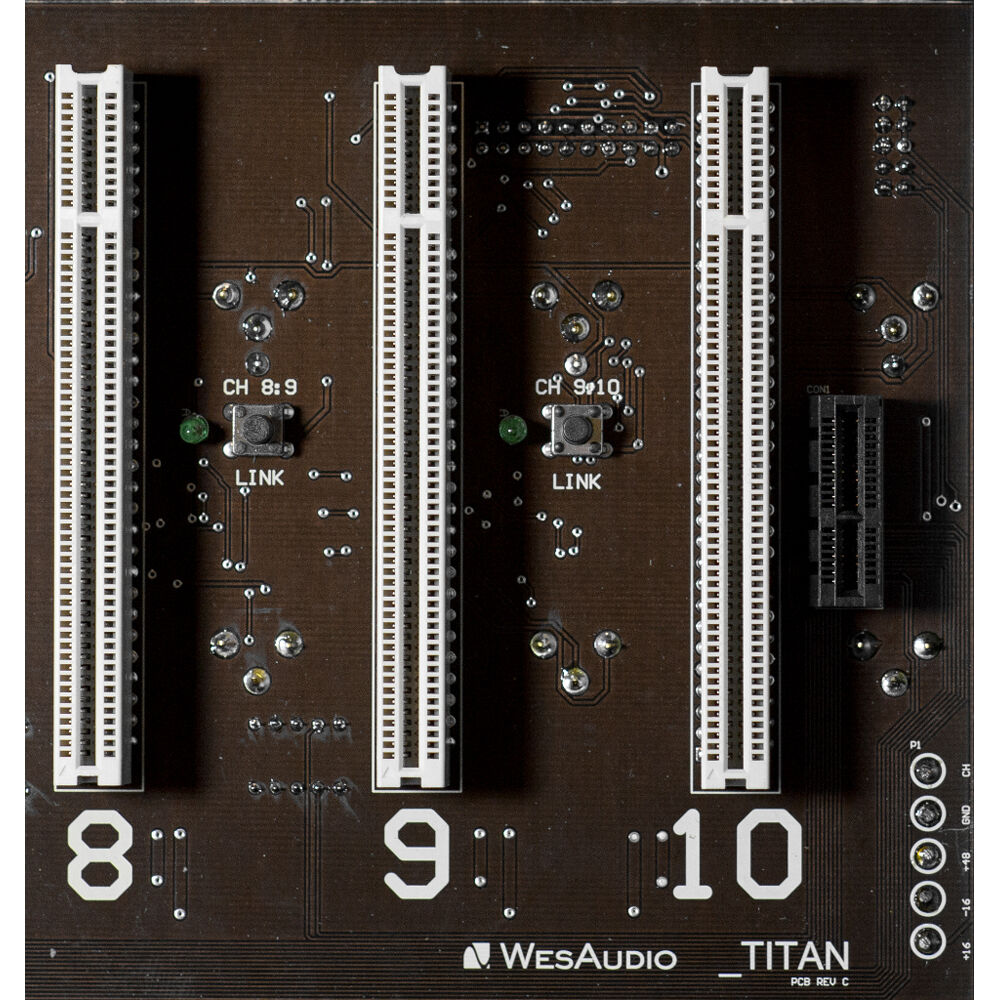

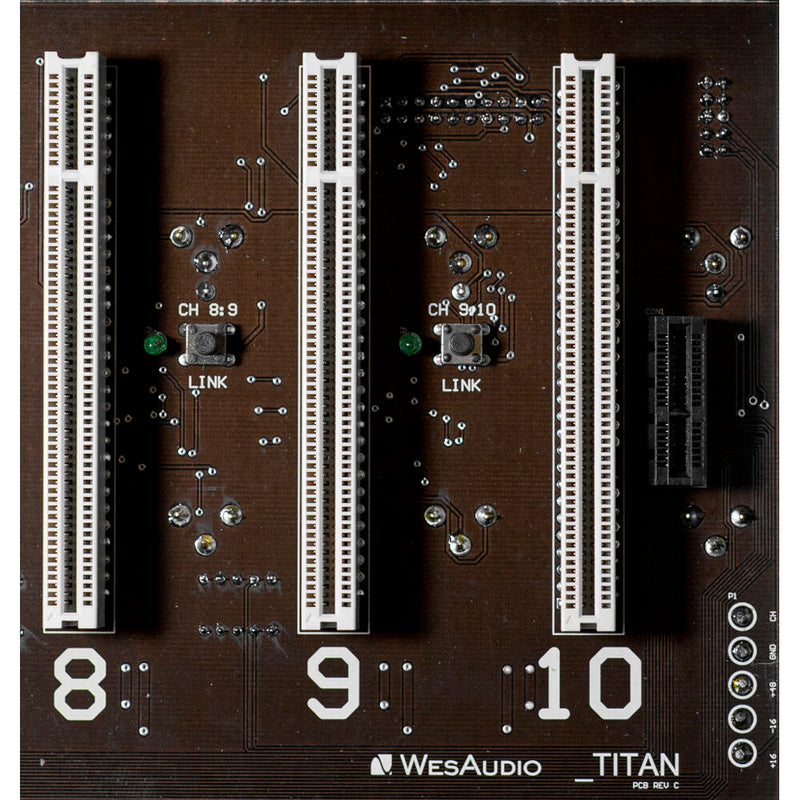

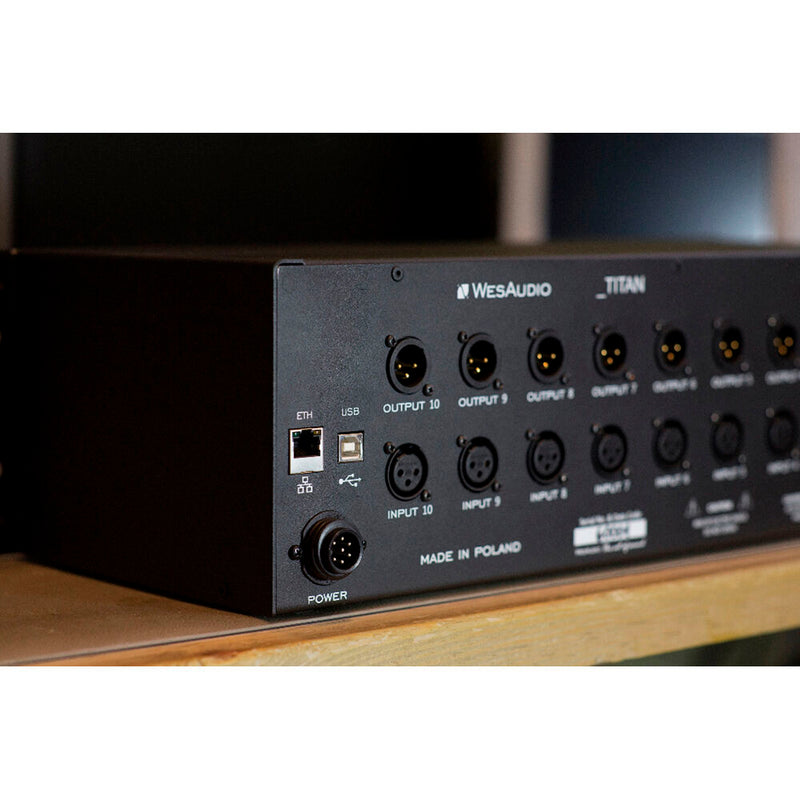

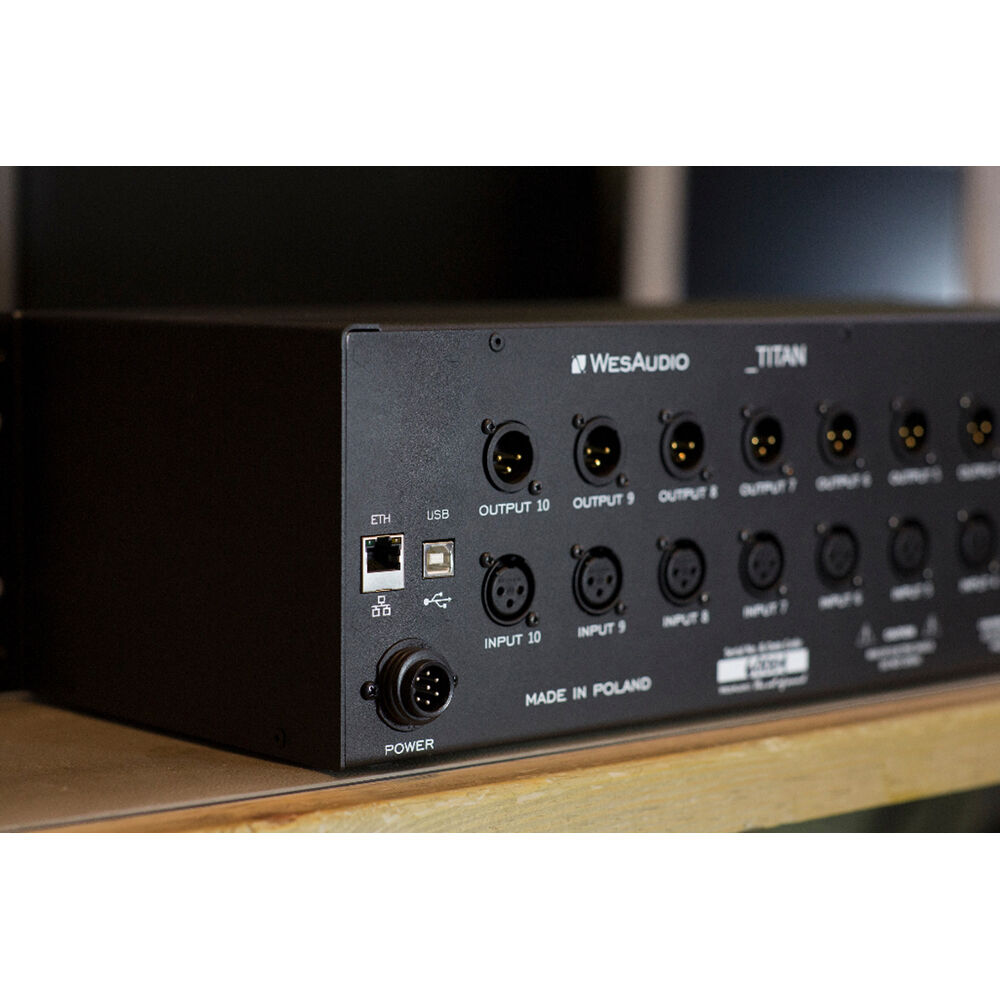

_TITAN is complete recall system designed to provide total integration with your beloved analogue equipment. It extends 500 series connector with additional pins where modules can be designed to support digital recall or any other vendor specific functionalities. This extension is part of new open standard �ng500� � �Next Generation 500 series� which allows other manufacturers to design and implement digitally controlled analog devices.HIGH END LINEAR POWER SUPLYLinear power supply capable to deliver 5A of power will bring sound of your units to the next level! 10 SLOTS FOR 500-SERIES or ng500-SERIES MODULES(*)_TITAN can host standarized 500 series module (Please read Important Note below).Of course it was designed to recall up to 10 units with signle USB or Ethernet connection! (*)Important note about 500 series extension : ng500CONTROL ALL MODULES THROUGH ONE CONNECTION!_TITAN allows to control/recall all hosted modules through one connection:1) USB � for direct connection with your workstation.2) Ethernet � dedicated LAN connection to access all devices in your local network. OPEN SPECIFICATION_TITAN is part of open specification where proper documentation along with dedicated software frameworks (including high level AP, firmware drivers and generic _GConBlackBox plugin) can be shared with other vendors free of charge.If interested, check this article how to start! REMOTELY CONTROLED STEREO LINKS_TITAN provides simple standalone application to change status of stereo links between modules.No more problems with accessing your chassis configuration! IAC � INTERNAL AUDIO CONNECTORAt slot number 10, _TITAN implements special connector, which routes all audio signals from and to, slots 1 � 8.This allows future integration with audio interface modules, analog summing modules or patchbays.INPUT source for any slot is implemented through analog relays, and it is configurable through standalone application. This prevents two different signal sources to be routed to the same module
