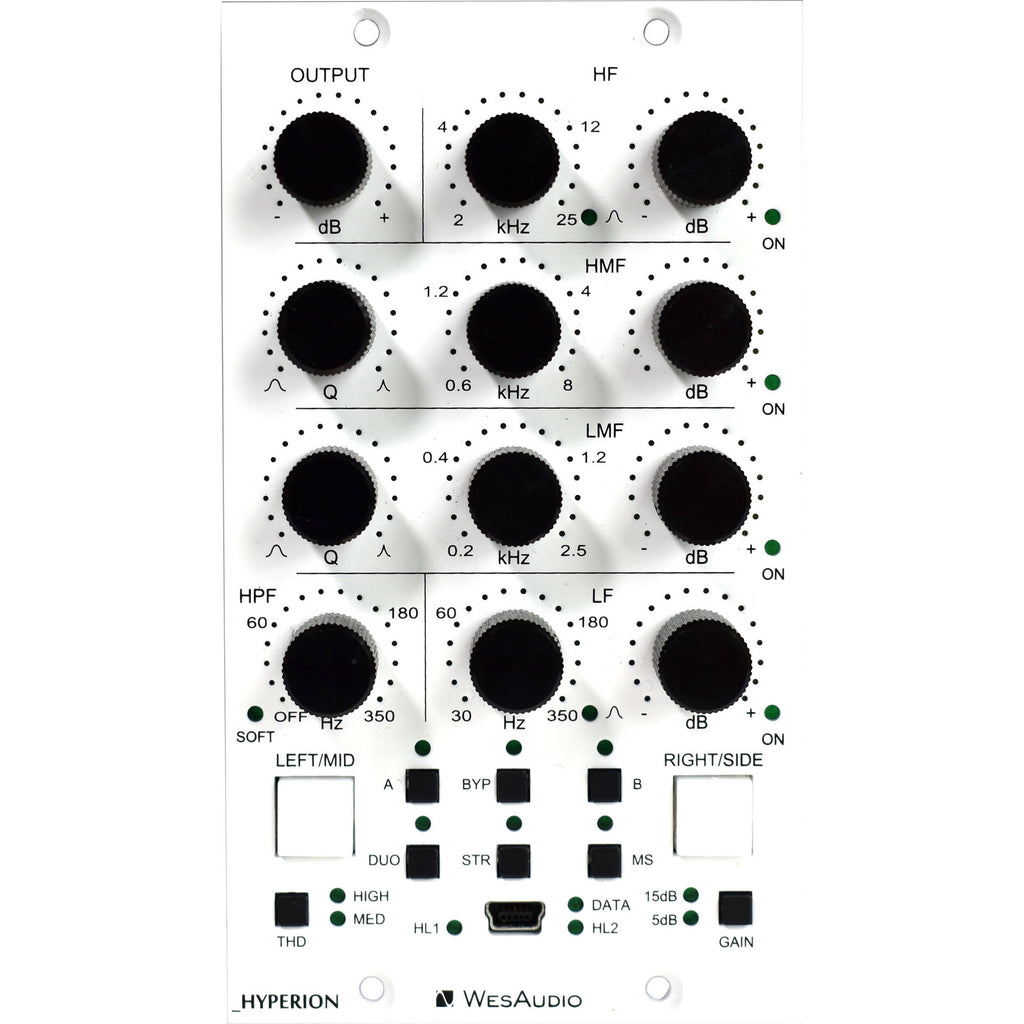

WesAudio HYPERION Overview
- 1Description
- 2Versatile Parametric EQ
- 3Four Bands plus HPF
- 4Two Channels, Multiple Modes
- 5500 Series Compatible
- 6ng500 Series
- 7Hardware A/B
- 8THD
- 9Total Recall and Plug-In Control
- 10Analog Automation
- 11Additional Features
Merging the best of analog and digital worlds, the WesAudio _HYPERION 500 series two-channel parametric EQ offers extremely flexible equalization, precise control, and the powerful luxury of digital total recall. On the analog side, it provides high headroom of +24 dBu and two-stage THD coloration for big tone that'll help you get pro impact in your tracks, mixes, and masters. Plus, there's true bypass, per-band bypass, and hardware A/B switching, so you can easily compare dry versus EQ'd or two different configurations of settings.
When it comes to the digital integration, _HYPERION is high-tech with USB connectivity and plug-in control. It has 12 touch-sensitive encoders that not only adjust the settings of the analog circuitry, but also allow you to write real-time automation from _HYPERION to your DAW. Alternatively, you can draw automation in the DAW and _HYPERION will react accordingly. Whether you use it in stereo, dual mono, or mid-side, _HYPERION offers bell and shelf modes for the low and high band, fully parametric high-mid and low-mid bands, and a high-pass filter.
Versatile Parametric EQ
WesAudio's _HYPERION implements flexible parametric equalization into a 500 Series module and brings with it one of the most demanded features in the audio industry�digital recall. Its innovative design utilizes 15 VCAs per channel to provide essentially noiseless parameter changes and a very musical nature.
Four Bands plus HPF
_HYPERION is a 4-band EQ with switchable gain range for 5 or 15 dB boost/cut per band. Each band has its own bypass. Additionally, there is a post-EQ output control for level matching and more flexibility.
- High Band: 2 to 25 kHz (bell or shelf)
- High-Mid Band: 600 Hz to 8 kHz with full Q control
- Low-Mid Band: 200 Hz to 2.5 kHz with full Q control
- Low Band: 30 to 350 Hz (bell or shelf)
- High-Pass Filter: up to 350 Hz at 6 or 12 dB/octave slopes
Two Channels, Multiple Modes
_HYPERION can work in three different modes (stereo, dual mono, and mid-side), which makes it the perfect solution for multiple applications from tracking to mixing to mastering.
500 Series Compatible
Regardless its extensions, _HYPERION is fully compatible with the 500 series standard. Digital features can be enabled through the mini-USB socket on the front panel.
ng500 Series
Each WesAudio device in ng500 (Next Generation 500 series) product line is equipped with a special connector. This connector is an extension to the 500 series, and allows your device to be managed/recalled through specialized GCon protocol (e.g. _TITAN 500 series 10-slot frame). This extension is compatible with the 500 series standardized plug type; however, some manufacturers apply enormous screws to the plug itself, which prevent the device from fitting in. Based on official research, more than 90% of available 500 series racks will fit just fine. Currently known exceptions include:
- Rupert Neve Designs 500 series Racks (R6 & R10)
- Aphex 500 series rack
- Some older BAE racks (not produced anymore)
- Midas L6 (module won�t fit to the very end on slots 3 and 6
- Midas L10 (module won�t fit to the very end on slots 4 and 8
Hardware A/B
Even using _HYPERION as a pure analog signal processor, you can easily switch between two parallel settings with the magic of simple A/B buttons.
THD
THD stands for "total harmonic distortion" and it allows you to saturate your signal with beautiful analog color with two different intensity levels. Choose "Mid" for 1% THD or "High" for 2.5% THD.

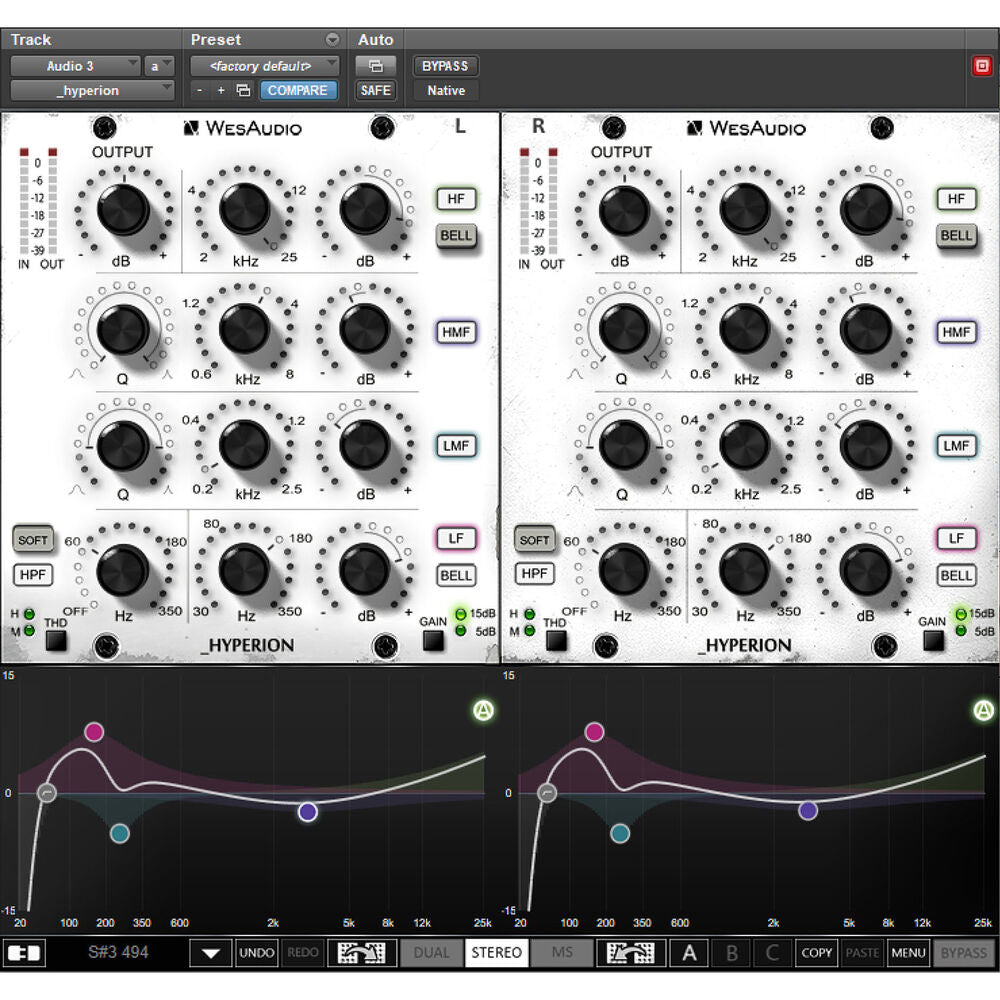

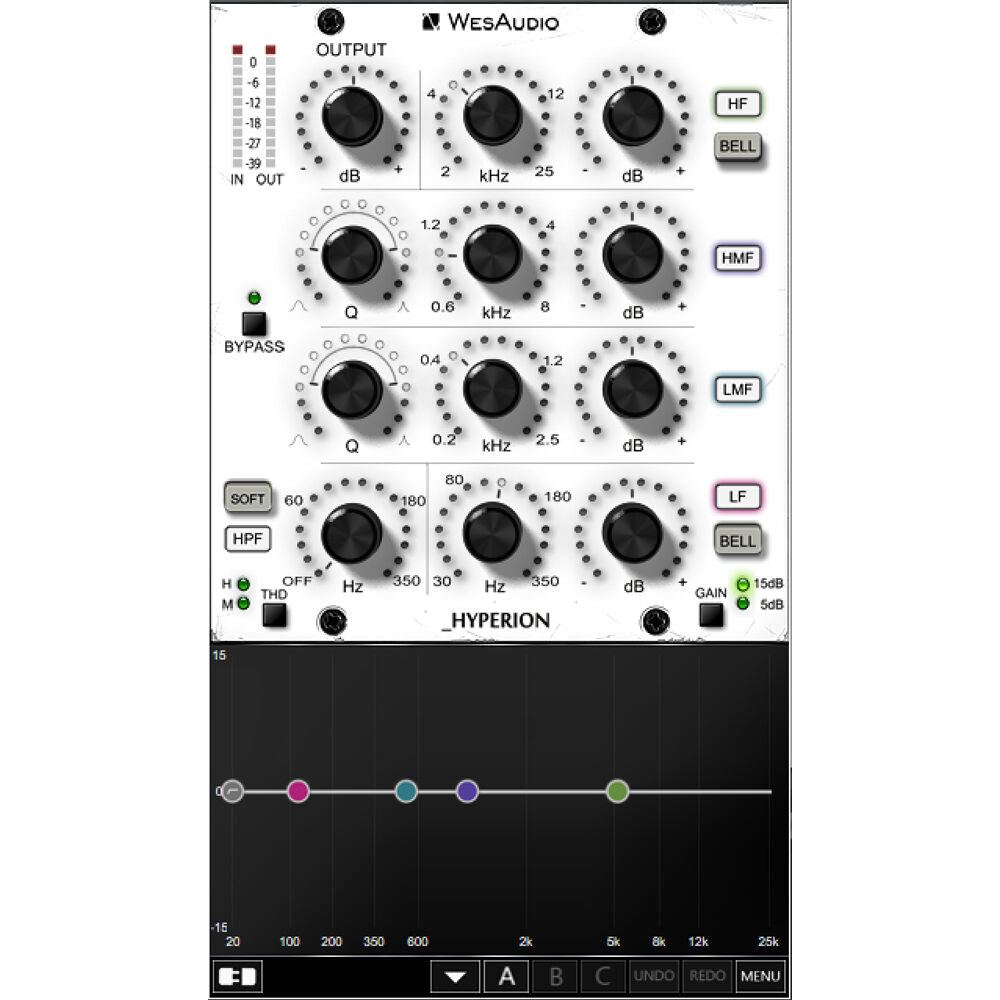

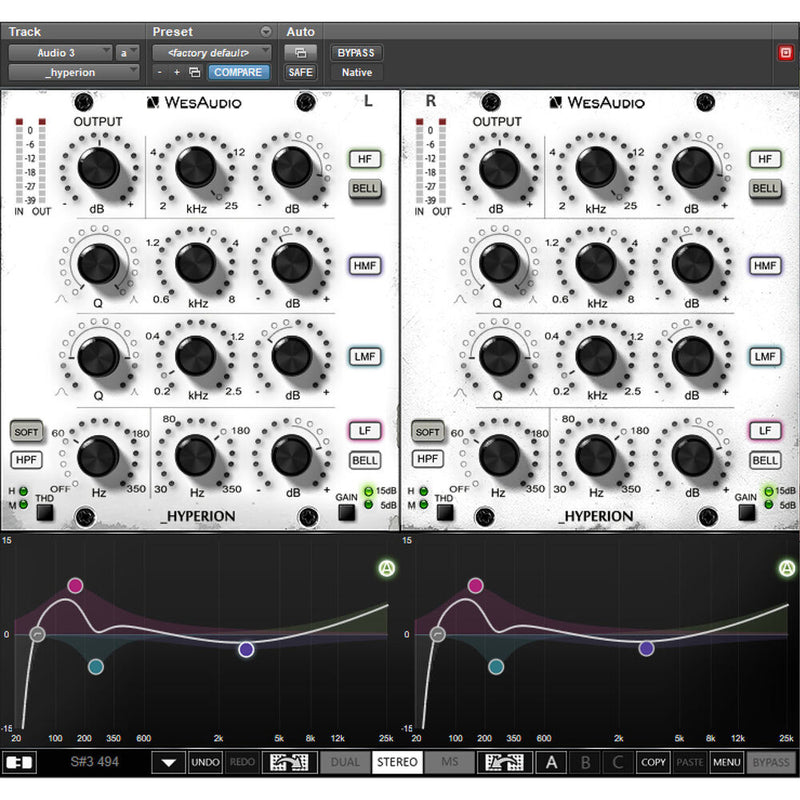

Total Recall and Plug-In Control
Along with classic analog EQ, you receive one of the most demanded features in the audio industry�total recall. Plus, full plug-in control (VST2, VST3, AU, AAX, and AAX DSP) makes _HYPERION compatible with most, if not all, major DAWs. This total integration with your beloved DAW will change your workflow forever. Use the stereo plug-in on one track to manage all three modes of operation for _HYPERION, or use two mono plug-ins on different tracks to manage each channel separately.
Analog Automation
It's very common to want different device settings based on song sections. Now it is possible; just draw automation lines in your DAW and the _HYPERION analog device will follow. And remember, you can use the 12 touch-sensitive encoders to record automation to your DAW.
Additional Features
- Fully digitally controlled analog circuit
- Two channels, operable in stereo, dual mono, or mid-side
- +24 dBu of headroom
- Digital recall can be achieved by connecting directly through the mini-USB socket on the front panel, or using it inside a _TITAN chassis
- Dedicated stereo plug-in to manage all modes of operation
- 12 touch-sensitive encoders, perfect for recording automation of all parameters to your DAW in real time
- True bypass and per-band bypass
- Input and output metering with clip detection
- Flexible parametric EQ GUI
- Free software and firmware upgrades
UPC: 590666029908
In the Box
- WesAudio _HYPERION 500 Series Parametric Equalizer with Digital Recall
- Limited 2-Year Warranty
Not in the Box
- Essential Mounting (Not Included)
Table of Contents
- Description
- Versatile Parametric EQ
- Four Bands plus HPF
- Two Channels, Multiple Modes
- 500 Series Compatible
- ng500 Series
- Hardware A/B
- THD
- Total Recall and Plug-In Control
- Analog Automation
- Additional Features
WesAudio HYPERION Specs
| Function | Equalizer |
| Number of Channels | 2 (Stereo, Dual Mono, or Mid-Side) |
| Inputs | 2 x Balanced Line Inputs via 500 Series Multipin Connector |
| Outputs | 2 x Balanced Line Outputs via 500 Series Multipin Connector |
| USB | 1 x Mini-USB Port (Front Panel) |
| Plug-In Formats | VST2, VST3, AU, AAX, and AAX DSP |
| Input Impedance | 10 Kilohms |
| Output Impedance | <100 Ohms |
| Bands | High: 2 to 25 kHz (Bell or Shelf) High-Mid: 600 Hz to 8 kHz with Full Q Control Low-Mid: 200 Hz to 2.5 kHz with Full Q Control Low: 30 to 350 Hz (Bell or Shelf) |
| High-Pass Filter | 6 or 12 dB/Octave |
| Gain Range | ±5 dB in 0.083 dB Steps ±15 dB in 0.25 dB Steps |
| Control Steps | HF: 256 HMF: 256 LMF: 256 LF: 200 HPF: 128 |
| Frequency Response | 10 Hz to 150 kHz (-2 dB) |
| Maximum Signal Level | +24 dBu |
| THD | Mid Switch: 1% High Switch: 2.5% |
| THD + N | All Bands at 0 Gain: <0.003% (1 kHz, 0 dBu) +15 dB Band Boost: <0.15% (1 kHz, 0 dBu) |
| Crosstalk | < -100 dB |
| Power Consumption | 150 mA per Rail |
| Dimensions | 3 x 5.2 x 6.2" / 7.6 x 13.3 x 15.8 cm |
| Weight | Not Specified by Manufacturer |
